Cerio CerioPoE Injector 5Gig Ethernet PoE+ 30W DC and Terminal Power Input
Out of stock
Cerio CerioPoE Injector 5Gig Ethernet PoE+ 30W DC and Terminal Power Input
- Brand: Cerio
- MPN: POE-G30T
- Part #: NETCER0003
- UPC:
- Brand: Cerio
- MPN: POE-G30T
- Part #: NETCER0003
- UPC:
Features
CERIO POE-G30T supports IEEE 802.3af/at Power Over Ethernet Standard. It's an Active PoE Multi Gigabit PoE+ Injector provides DC 48-57V over Ethernet cables. It supports IEEE802.3af 15.4Watt POE (Class3 Standard) and IEEE802.3at 30Watt POE+ (Class4 Standard). Provide Screw Terminal Block power input and DC In both Power Systems. With extremely cost-effective, it provides enterprise-level flexibility and expansion capabilities. With this POE-G30T PoE+ Injector, you can simultaneously transmit network data and power to PD powered network equipment through the RJ45 UTP cable.
The CERIO POE-G30T greatly simplifies the wiring and deployment process, and brings a great deal of convenience benefits to home, office, and industrial environments. Moreover, it supports End-span (Type-A) or Mid-span (TypeB) power pin designed, no matter the PD devices is designed Type-A or Type-B all can supply power automatically. The POE-G30T Power over Ethernet (POE) adapter is designed to supply operational power to wireless LAN devices such as PoE access point bridges, routers, and surveillance cameras. With Power over Ethernet devices installed, the system administrator only has to use a single RJ-45 Ethernet cable to carry both power and data to each device.
- Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3bz 2.5G/5G BASE-T, IEEE 802.3af PoE , IEEE 802.3at PoE+ standards.
- Supports Multi Gigabit (1/2.5/5Gbps) Ethernet connection ability.
- Auto detect PD power pin is powered by End-span (Type-A) or Mid-span (Type-B) then powered to PD device and LED indicator shows power pin type.
- Supports IEEE 802.3af/at POE standards and PoE max Power up to 30Watt (IEEE 802.3at) bundle with 56V Power supply.
- Support PSE / POE Power Over Ethernet function which can provide both data and power for distances of up to 100 meters (328 feet) from the power source when using CAT 5 or up cabling.
- Provide Screw Terminal Block power input and DC In both Power Systems. User can select either one to supply power or it can choice dual power supply as power backup function for the device. (Power failover).
- Over Current Protection and Short-circuit Protection.
- Supports Desktop, Wall mounting and Units Combination for easy to bundles organize the Ethernet cables.
Long Distance Application
Cerio POE Injector can provide both data and power for distances of up to 100 meters (328 feet) from the power source when using CAT 5 or up cabling.
ESD Protection
POE-G30T supports ESD , Electro Static Discharge protection includes Over Voltage protection and Short Circuit Protection ensuring device safety.
Additional Benefits
Some additional benefits of Cerio POE Injector include cost saving, convenience in network planning, and higher reliability.
Easy installation
Plug-and-Play, requires no configuration.
Product Application
Hardware Overview
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular POE Splitters / Injectors
Ubiquiti U-POE-at 30W 802.3AT PoE Injector
TP-Link TL-POE150S Gigabit PoE Injector 802.3af / 15.4W
TP-Link TL-POE160S Gigabit PoE+ Injector 802.3at/ 30W
Ubiquiti U-POE++ 60W Gigabit PoE Adapter (48V DC /1.25A)
Ubiquiti U-POE 15W Gigabit PoE Adapter (48V DC / 0.32A)
Cerio CerioPoE Injector 5Gig Ethernet PoE+ 30W DC and Terminal Power Input
- Brand: Cerio
- MPN: POE-G30T
- Part #: NETCER0003
Product URL: https://www.pbtech.com/product/NETCER0003/Cerio-CerioPoE-Injector-5Gig-Ethernet-PoE-30W-DC-a
Features
CERIO POE-G30T supports IEEE 802.3af/at Power Over Ethernet Standard. It's an Active PoE Multi Gigabit PoE+ Injector provides DC 48-57V over Ethernet cables. It supports IEEE802.3af 15.4Watt POE (Class3 Standard) and IEEE802.3at 30Watt POE+ (Class4 Standard). Provide Screw Terminal Block power input and DC In both Power Systems. With extremely cost-effective, it provides enterprise-level flexibility and expansion capabilities. With this POE-G30T PoE+ Injector, you can simultaneously transmit network data and power to PD powered network equipment through the RJ45 UTP cable.
The CERIO POE-G30T greatly simplifies the wiring and deployment process, and brings a great deal of convenience benefits to home, office, and industrial environments. Moreover, it supports End-span (Type-A) or Mid-span (TypeB) power pin designed, no matter the PD devices is designed Type-A or Type-B all can supply power automatically. The POE-G30T Power over Ethernet (POE) adapter is designed to supply operational power to wireless LAN devices such as PoE access point bridges, routers, and surveillance cameras. With Power over Ethernet devices installed, the system administrator only has to use a single RJ-45 Ethernet cable to carry both power and data to each device.
- Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3bz 2.5G/5G BASE-T, IEEE 802.3af PoE , IEEE 802.3at PoE+ standards.
- Supports Multi Gigabit (1/2.5/5Gbps) Ethernet connection ability.
- Auto detect PD power pin is powered by End-span (Type-A) or Mid-span (Type-B) then powered to PD device and LED indicator shows power pin type.
- Supports IEEE 802.3af/at POE standards and PoE max Power up to 30Watt (IEEE 802.3at) bundle with 56V Power supply.
- Support PSE / POE Power Over Ethernet function which can provide both data and power for distances of up to 100 meters (328 feet) from the power source when using CAT 5 or up cabling.
- Provide Screw Terminal Block power input and DC In both Power Systems. User can select either one to supply power or it can choice dual power supply as power backup function for the device. (Power failover).
- Over Current Protection and Short-circuit Protection.
- Supports Desktop, Wall mounting and Units Combination for easy to bundles organize the Ethernet cables.
Long Distance Application
Cerio POE Injector can provide both data and power for distances of up to 100 meters (328 feet) from the power source when using CAT 5 or up cabling.
ESD Protection
POE-G30T supports ESD , Electro Static Discharge protection includes Over Voltage protection and Short Circuit Protection ensuring device safety.
Additional Benefits
Some additional benefits of Cerio POE Injector include cost saving, convenience in network planning, and higher reliability.
Easy installation
Plug-and-Play, requires no configuration.

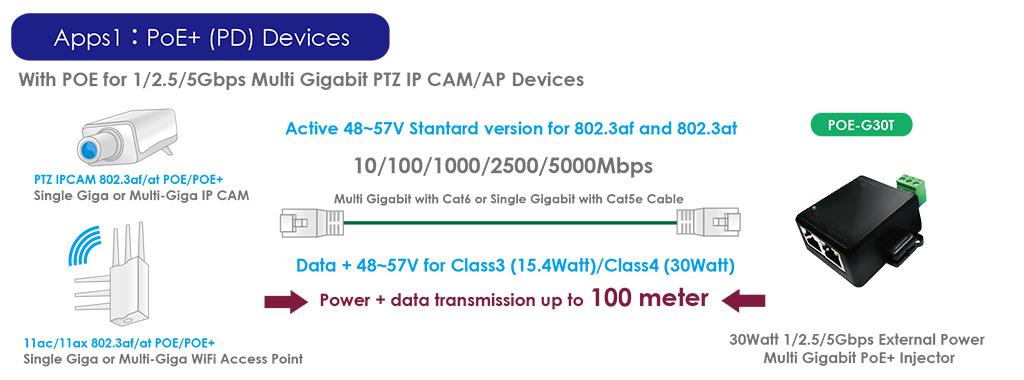

Product Application

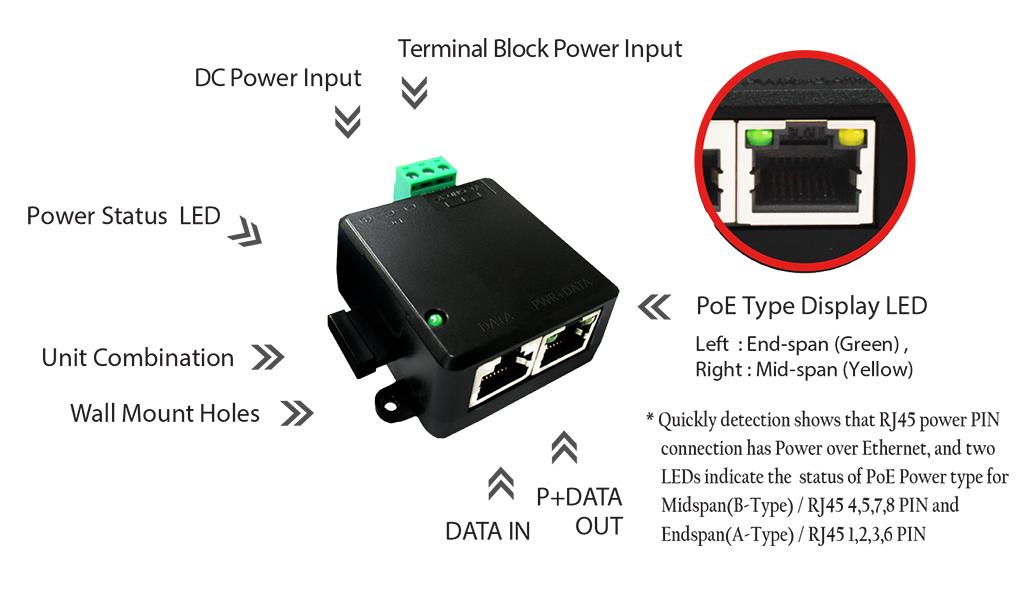

Hardware Overview
Specifications
Standards & Hardware Specifications
Standard
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5G BASE-T
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)
Network Media
10BASE -T: UTP Cat. 3 or up
100BASE-TX : UTP Cat. 5 or up
1000BASE-T: UTP Cat. 5 or up
2.5G/5G BASE-T : UTP Cat.5e or up
Data Transfer Rate
10M/100M/1G/2.5G/5G (Half-duplex),
20M/200M/2G/5G/10G (Full-duplex)
PoE Type
Active POE
Data PIN
PIN 1/2,3/6 & 4/5,7/8
Power PIN
End-span (Type-A): PIN 1/2,3/6
Mid-span (Type-B): PIN 4/5,7/8
Ethernet Connector
RJ-45 x1 : Data
RJ-45 x1 : Power + Data
Power Interface
Output: RJ45 Active 802.3af/at standard PoE+ Out
Multi Input: DC In or Screw Terminal Block In (STB In)
ESD Protection
Supports ESD (Electro Static Discharge)
Over Voltage protection and Short Circuit Protection
Environmental & Mechanical Characteristics
Max Power Output
30Watt
Power Requirement
56V 30W External Power Supply
Input Voltage
48 ~ 57Volt
LED
System: Power (Green)x1
PoE (RJ45): End-span(Green), Mid-span (Yellow)x2
(The PoE LED on RJ45 Jack)
Operating Temperature
0° to 55° C
Storage Temperature
-40° to 70° C
Operating Humidity
5% to 90% non-condensing
Storage Humidity
5% to 90% non-condensing

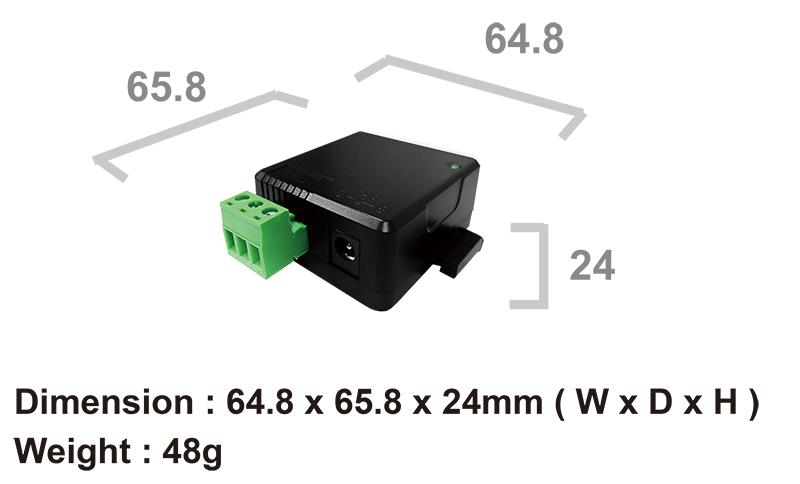

Dimension ( W x D x H )
64.8 x 65.8 x 24mm
Weight ( g )
48g
Form Factor
Wall mounting /Desktop/ Units Combination
Case of material
ABS
