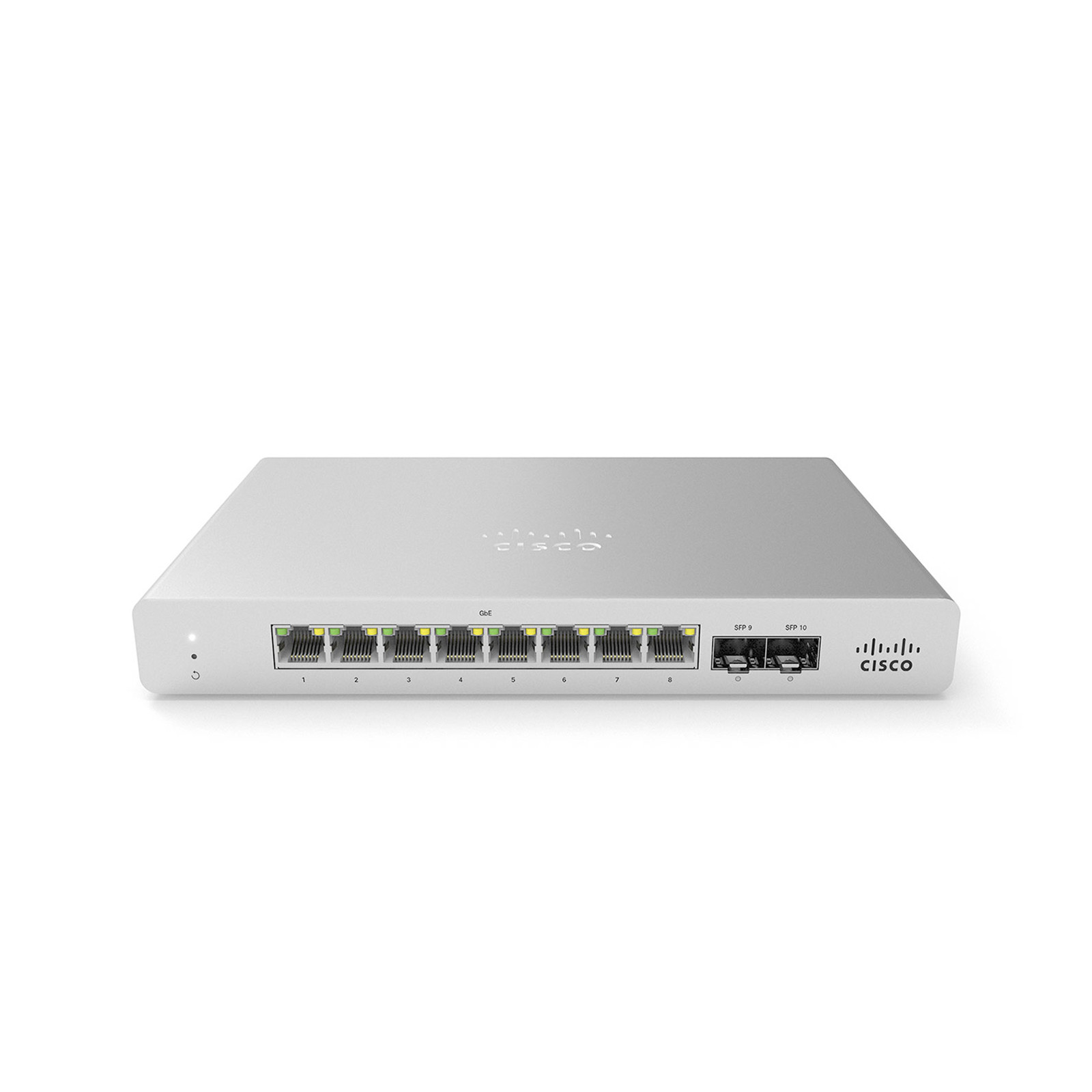

Cisco Meraki MS120-8-HW MS120-8 1G L2 Cloud Managed 8x GIGE Switch

Interfaces

8 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover
48V DC 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on the MS120-8LP/FP model, available on all ports (maximum of 30W per port for PoE+)
2 × 1GbE SPF uplink
Auto negotiation and crossover detection

Management

Managed via the web with the Meraki cloud management platform
Integrated with Meraki wireless and complete portfolio of IT products and solutions
Zero-touch remote provisioning (no staging needed)
Detailed historical per-port and per-client usage statistics
DHCP, client, and hostname fingerprinting
SNMP and Syslog support for integration with other network management solutions
Automatic firmware upgrades with scheduling control

Remote diagnostics

Email, SMS and mobile push notification alerts1
Cable testing and link failure detection with alerting
Live remote packet capture
Dynamic and interactive network discovery and topology
Combined event and configuration change logs with instant search

Stacking

Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration

Ethernet switching capabilities

802.1p Quality of Service, 8 queues and configurable DSCP to CoS mapping
802.1Q VLAN and trunking support for up to 4,094 VLANs
802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
Broadcast storm control
IGMP Snooping
802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
802.3ad Link aggregation with up to 8 ports per aggregate
Port mirroring
MAC forwarding entries: 16,000

Security

Integrated two-factor authentication for Dashboard management
Role-based access control (RBAC) with granular device and configuration control
SSO, Corporate-wide password policy enforcement
IEEE 802.1X RADIUS, hybrid authentication and RADIUS server testing
MAC-based RADIUS authentication (MAB)
Port security: Sticky MAC, MAC whitelisting
DHCP snooping, detection and blocking
STP Enhancements include BPDU guard, Root guard
IPv4 ACLs

Power over Ethernet

802.3af (PoE) 15.4W per port and 802.3at (PoE+) 30W per port
Maximum PoE output: 67/124W
PoE available on all ports simultaneously

Performance

Switching capacity: 20Gbps
Forwarding rate: 14.88mpps with standard packet size
Jumbo frame support (9578 byte Ethernet frame)
Flow control support

Power

Power input: 100 - 240 VAC, 47-63 Hz
Power consumption: 5 - 161W
External power supply for MS120-8, MS120-8 LP

Mounting

Wall or utility board mountable with included mount hardware
Desktop-mountable with included feet
Kensington lock slot included

Environment

Operating temperature: 32°F to 104°F (0°C to 40°C), 45°C
Humidity: 5 to 95% non-condensing
Fanless operation

Regulatory

CSA-US (US, Canada)
FCC (USA)
IC (Canada)
CE (Europe)
RCM (Australia/New Zealand)
RoHS

MTBF

MS120-8 1,307,036
MS120-8LP 837,035
MS120-8FP 579,132

Physical dimensions (H×W×D)

MS120-8: 1.1" × 8.74" × 5.91" (2.8 × 22.2 × 15cm)
MS120-8LP: 1.1" × 8.74" × 5.91" (2.8 × 22.2 × 15cm)
MS120-8FP: 1.75" × 8.97" × 8.58" (4.4 × 22.7 × 23cm)

Physical Weight

MS120-8: 2.36 lb (1.07 kg)
MS120-8LP:2.76 lb (1.25 kg)
MS120-8FP: 3.42 lb (1.55 kg)
