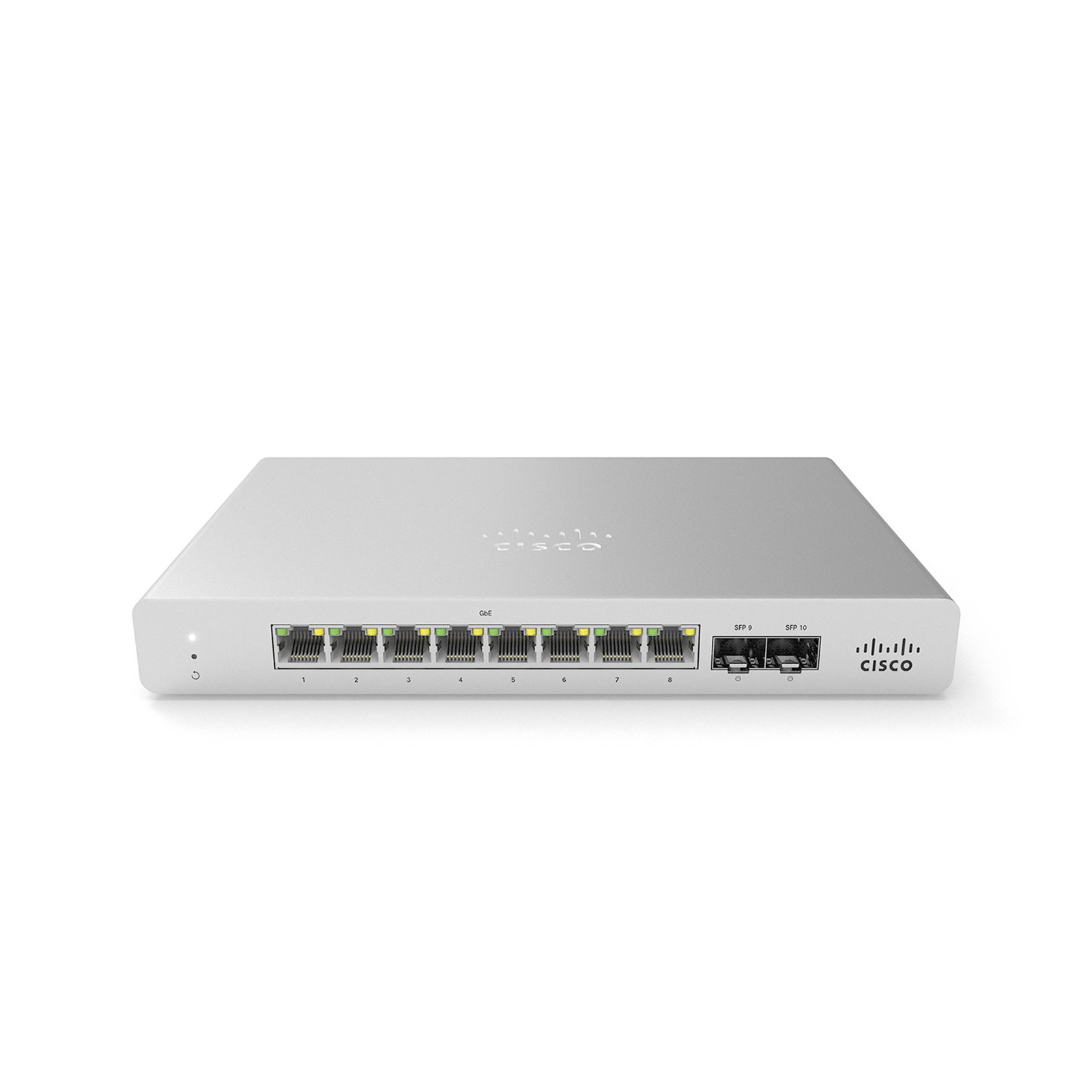

Cisco Meraki MS120-8FP-HW - MS120-8FP - 1G L2 Cloud Managed 8X GIGE 127W POE Switch
Out of stock
Cisco Meraki MS120-8FP-HW - MS120-8FP - 1G L2 Cloud Managed 8X GIGE 127W POE Switch
- Brand: Cisco Meraki
- MPN: MS120-8FP-HW
- Part #: NETCIS3973794
- UPC: 810979012979
- Brand: Cisco Meraki
- MPN: MS120-8FP-HW
- Part #: NETCIS3973794
- UPC: 810979012979
Similar in-stock products available at PB Tech right now
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
Ubiquiti UniFi USW-Flex-2.5G-5 5-Port 2.5G L2 Managed Switch - 2...
Ubiquiti UniFi USW-Pro-48-POE 52-Port 10G L3 Managed PoE Switch ...
Ubiquiti UniFi USW-24-POE 26-Port Gigabit L2 Managed PoE Switch ...
Cisco Meraki MS120-8FP-HW - MS120-8FP - 1G L2 Cloud Managed 8X GIGE 127W POE Switch
- Brand: Cisco Meraki
- MPN: MS120-8FP-HW
- Part #: NETCIS3973794
- UPC:810979012979
Product URL: https://www.pbtech.com/product/NETCIS3973794/Cisco-Meraki-MS120-8FP-HW---MS120-8FP---1G-L2-Clou
Features
Designed for a wide range of smaller organizations that are in need of world-class networking, the Cisco Meraki MS120-8FP has all the power and flexibility of enterprise-grade Meraki hardware but in a tiny go-anywhere package that's perfect for startups.
The MS120-8FP is an eight-port, Layer 2 switch with full PoE power support across all Ethernet ports. A power budget of 124W leaves plenty of room for powering attached devices such as IP phones or 802.11ac Wave 2 WiFi access points. Two separate SFP Gigabit uplinks ensure there will be plenty of bandwidth for all users and devices. Should the network ever need more capacity, the MS120-8FP also features virtual stacking capabilities that make it simple to add more MS120-series switches to the network.
As part of a Meraki mesh-based network, the MS120-8FP is capable of self-configuring and self-optimizing. No matter how large your Meraki network grows, it will always maintain optimal performance automatically. The network mesh is also self-healing, and it can adjust for any hardware failures to minimize the impact they have on overall performance.
With the Meraki Dashboard system, configuration is simple and accessible for anyone - even if they have no previous networking experience. Everything is handled through a single simple GUI that is easy to learn, while still bringing all the power and control an experienced admin would want. From top-level oversight, to reporting, to app-level security restrictions, the Meraki Dashboard makes administration a breeze.
Configurations
- 8 port Gigabit Ethernet
- 2 x 1GbE SFP uplink
- MS120-8 LP includes 67W PoE/PoE+
- MS120-8 FP includes 124W PoE/PoE+
Hardware platform
- Small, mountable form factor
- Low noise, fanless
- Voice and Video QoS
- Non-blocking switch fabric
- Ultra-reliable, includes lifetime warranty
Power
- MS120-8FP maximum PoE output: 124 W
- PoE available simultaneously on all ports
- Intelligent PoE power allocation based on device advertisement (LLDP)
Cloud management
- Visibility and control over thousands of ports
- Built-in multi site management
- Zero touch provisioning
Monitoring and Diagnostics
- Cable failure testing
- Gateway connectivity testing
- Real time troubleshooting tools
- Email and text message alerts
Specifications
Interfaces
8 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover
48V DC 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on the MS120-8LP/FP model, available on all ports (maximum of 30W per port for PoE+)
2 × 1GbE SPF uplink
Auto negotiation and crossover detection
Management
Managed via the web with the Meraki cloud management platform
Integrated with Meraki wireless and complete portfolio of IT products and solutions
Zero-touch remote provisioning (no staging needed)
Detailed historical per-port and per-client usage statistics
DHCP, client, and hostname fingerprinting
SNMP and Syslog support for integration with other network management solutions
Automatic firmware upgrades with scheduling control
Remote diagnostics
Email, SMS and mobile push notification alerts1
Cable testing and link failure detection with alerting
Live remote packet capture
Dynamic and interactive network discovery and topology
Combined event and configuration change logs with instant search
Stacking
Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Ethernet switching capabilities
802.1p Quality of Service, 8 queues and configurable DSCP to CoS mapping
802.1Q VLAN and trunking support for up to 4,094 VLANs
802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
Broadcast storm control
IGMP Snooping
802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
802.3ad Link aggregation with up to 8 ports per aggregate
Port mirroring
MAC forwarding entries: 16,000
Security
Integrated two-factor authentication for Dashboard management
Role-based access control (RBAC) with granular device and configuration control
SSO, Corporate-wide password policy enforcement
IEEE 802.1X RADIUS, hybrid authentication and RADIUS server testing
MAC-based RADIUS authentication (MAB)
Port security: Sticky MAC, MAC whitelisting
DHCP snooping, detection and blocking
STP Enhancements include BPDU guard, Root guard
IPv4 ACLs
Power over Ethernet
802.3af (PoE) 15.4W per port and 802.3at (PoE+) 30W per port
Maximum PoE output: 67/124W
PoE available on all ports simultaneously
Performance
Switching capacity: 20Gbps
Forwarding rate: 14.88mpps with standard packet size
Jumbo frame support (9578 byte Ethernet frame)
Flow control support
Power
Power input: 100 - 240 VAC, 47-63 Hz
Power consumption: 5 - 161W
External power supply for MS120-8, MS120-8 LP
Mounting
Wall or utility board mountable with included mount hardware
Desktop-mountable with included feet
Kensington lock slot included
Environment
Operating temperature: 32°F to 104°F (0°C to 40°C), 45°C
Humidity: 5 to 95% non-condensing
Fanless operation
Regulatory
CSA-US (US, Canada)
FCC (USA)
IC (Canada)
CE (Europe)
RCM (Australia/New Zealand)
RoHS
MTBF
MS120-8 1,307,036
MS120-8LP 837,035
MS120-8FP 579,132
Physical dimensions (H×W×D)
MS120-8: 1.1" × 8.74" × 5.91" (2.8 × 22.2 × 15cm)
MS120-8LP: 1.1" × 8.74" × 5.91" (2.8 × 22.2 × 15cm)
MS120-8FP: 1.75" × 8.97" × 8.58" (4.4 × 22.7 × 23cm)
Physical Weight
MS120-8: 2.36 lb (1.07 kg)
MS120-8LP:2.76 lb (1.25 kg)
MS120-8FP: 3.42 lb (1.55 kg)
