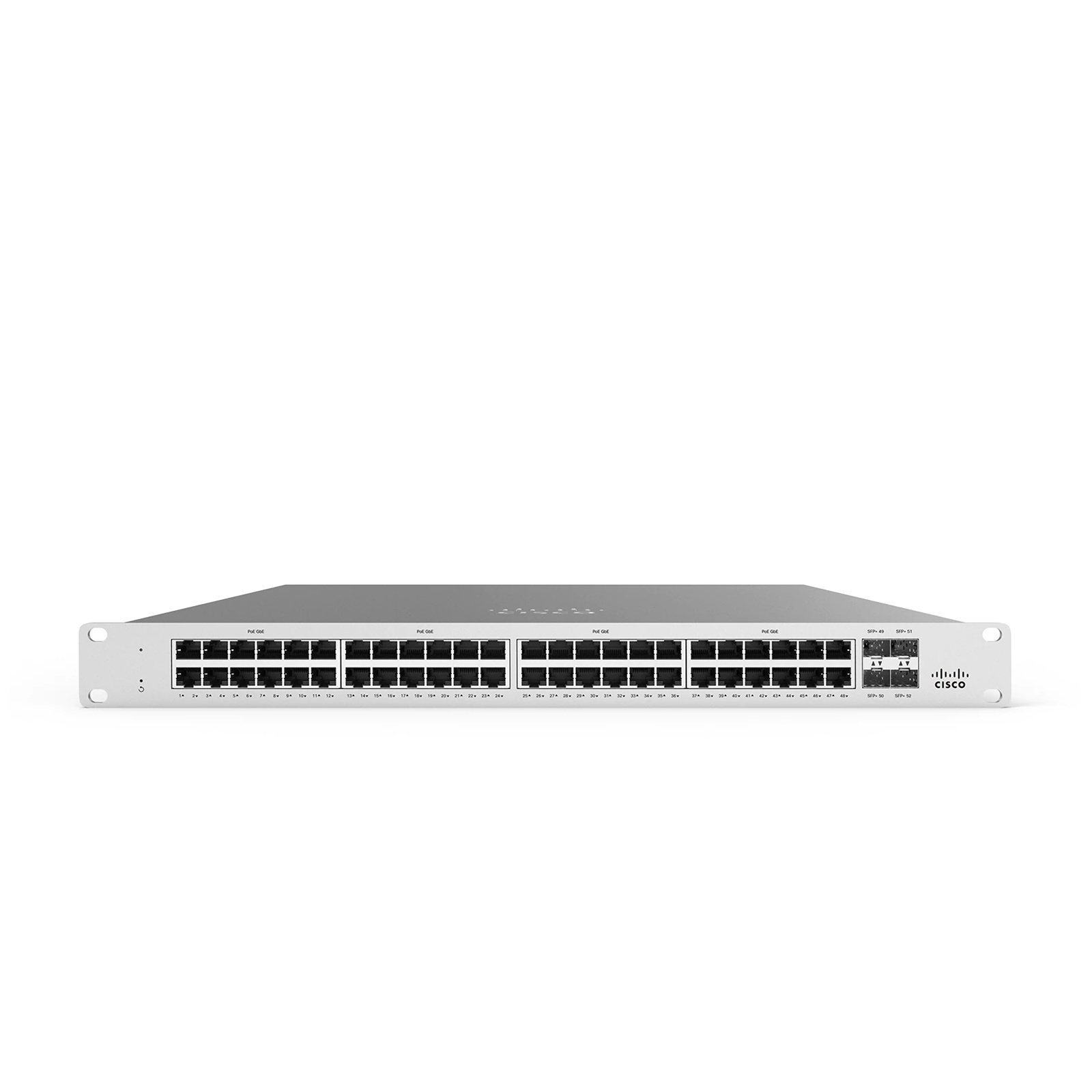

Cisco MS125-48-HW APL-MERAKI MS125-48 10G L2 CLD-MNGD 48X GIGE SWITCH
- Brand: Cisco
- MPN: MS125-48-HW
- Part #: NETCIS4510315
Product URL: https://www.pbtech.com/product/NETCIS4510315/Cisco-MS125-48-HW-APL-MERAKI-MS125-48-10G-L2-CLD-M
Features
MS125-48
Cloud-Managed Switching for Small Branch and Office
Switch ports
- 48 x 1G port models
- 4 x 10G SFP+ uplinks
Power/PoE
- MS125-48LP includes 370W
- MS125-48FP includes 740W
- Up to 30W per port
Hardware platform
- Reliable platform with 24/7 Meraki Support
- 1RU rack mountable
- Low noise, fanless model available
- Voice and video QoS
- Non-blocking switch fabric
Cloud management
- Email alerts for switch management
- Remote troubleshooting tools
- Manage ports from a GUI-based dashboard
- Zero-touch provisioning
- Per-port and per-client usage statistics
- Secure, user-scheduled firmware updates
Switching capabilities
- Layer 2
- DHCP Relay
- 802.1X Authentication
- DHCP Snooping
- STP Enhancements
- IPv4 and IPv6 ACLs
Specifications
Interfaces
48 × 10/100/1000BASE-T Ethernet (RJ45)
4 × 10G SFP+ ports for uplinks
Auto-negotiation and crossover detection
Management
Managed via the Web with the Meraki cloud management platform
Integrated with Meraki wireless and complete portfolio of IT products and solutions
Zero-touch remote provisioning (no staging needed)
Detailed historical per-port and per-client usage statistics
Operating system, device, and hostname fingerprinting
SNMP and SYSLOG support for integration with other network management solutions
Automatic firmware upgrades with scheduling control
Remote Diagnostics
Email, SMS, and Mobile push notification alerts
Ping, traceroute, cable testing, and link failure detection with alerting
Remote packet capture
Dynamic and interactive network discovery and topology
Combined event and configuration change logs with instant search
Stacking
Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Ethernet Switching Capabilities
802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
802.1Q VLAN and trunking support for up to 4,094 VLANs
802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD
802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
Port mirroring
IGMP snooping for multicast filtering
MAC forwarding entries: 32K
Security
Integrated multi-factor authentication for cloud management platform
Role-based access control (RBAC) with granular device and configuration control
Corporate-wide password policy enforcement
IEEE 802.1X RADIUS and MAB, hybrid authentication, and RADIUS server testing
Single-Host/Multi-Domain/Multi-Host/Multi Authentication
Port security: Sticky MAC, MAC whitelisting
DHCP snooping, detection and blocking
IPv4 and IPv6 ACLs
Performance
Switching capacity: 176 Gbps
Forwarding rate: 130.95 mpps
Jumbo frame support (9578 byte Ethernet frame)
Flow control
Layer 3
DHCP Relay
Power
Power input: 100 - 240 V~, 50-60 Hz
MS125-48: 21.7-42W max, fanless
MS125-48LP: 40.2-439.8 W
MS125-48FP: 52-845.4 W
Mounting
1U Rack-mountable with included rack mount hardware
2-post front mounting options available
Environment
Operating temperature: 0°C to 45°C 0°C - 40°C at sea level 0°C - 35°C at 10,000 feet for MS125-48 when using MA-SFP-10GB-ER
Humidity: 5 to 95% RH
Regulatory
CSA-US (US, Canada)
FCC (USA)
IC (Canada)
CE (Europe)
RCM (Australia/New Zealand)
RoHS
For international availability, please contact [email protected]
MTBF at 25°C
MS125-48-HW: 1,628,120
MS125-48LP-HW: 287,429
MS125-48FP-HW: 311,726
Physical Specifications (H × W × D)
1.73" × 17.32" × 9.84" (4.40 × 44 × 25cm)
9.25 lb (4.20 kg)
