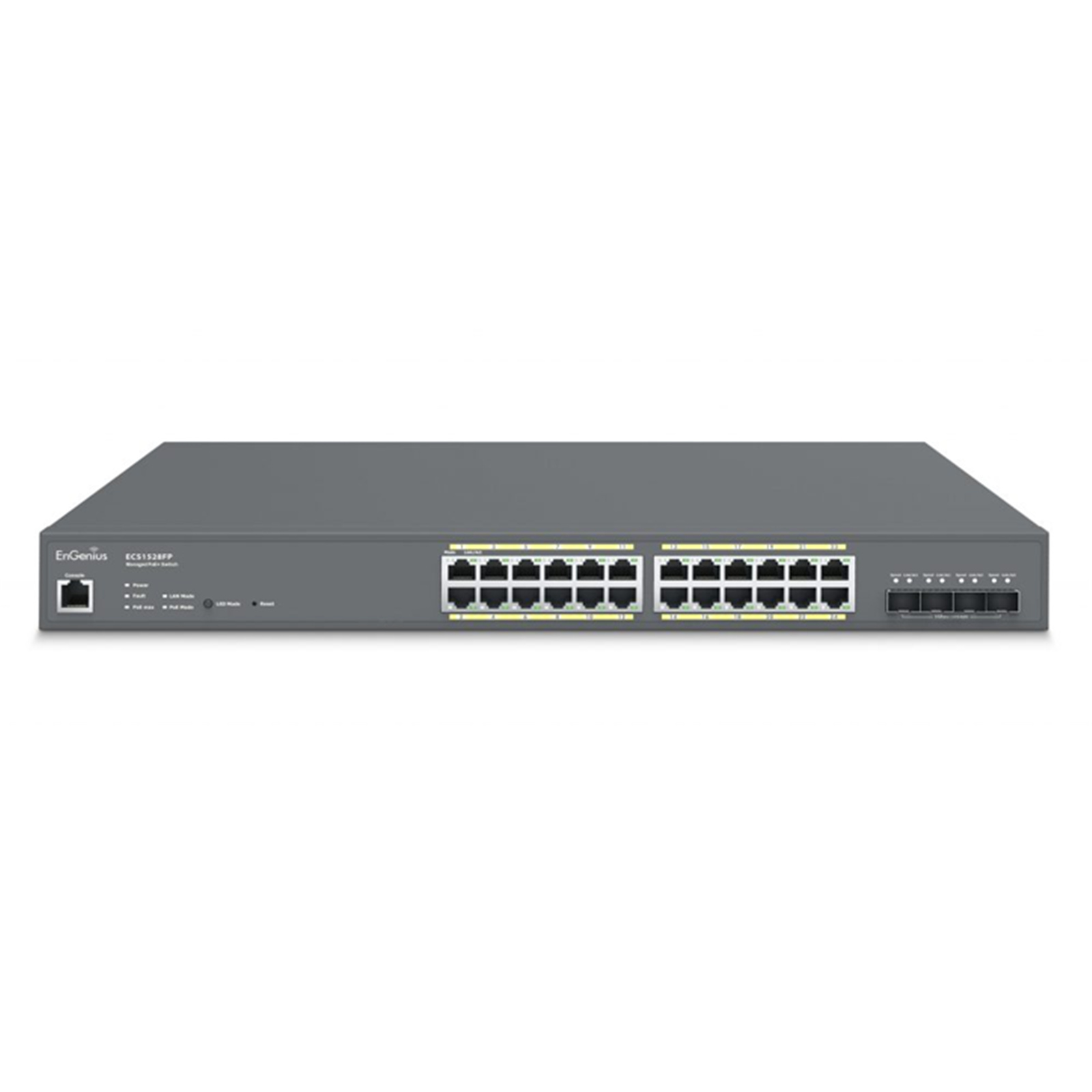

EnGenius ECS1528FP Cloud Managed 410W PoE 24-Port Gigabit Network Switch with SFP+
- Brand: EnGenius
- MPN: ECS1528FP
- Part #: NETEGN0272

Product URL: https://www.pbtech.com/product/NETEGN0272/EnGenius-ECS1528FP-Cloud-Managed-410W-PoE-24-Port
Features
ECS series switches can be managed by EnGenius Cloud and on-premises ezMaster or can be worked as standalone switches, providing enterprise-class features for simplifying network configuration and monitoring at prices affordable to small and mid-sized businesses. With advanced management, EnGenius Switches enhance network performance to allow companies to focus on growing their business.
EnGenius Cloud is built on top of the most advanced cloud computing technology. Scalable and AI-ready, the robust and dynamic cloud computing infrastructure helps you work smart on your network with important analytics and visualization tools.
Deploy and Monitor Your Networks with EnGenius Cloud App: Easy device deployment, visualized monitoring, and alerts for abnormal network activity available within an intuitive mobile app.
Configure stand alone with EnSky or Manage for Free with EnGenius Cloud Here.
- (24) 10/100/1000 Mbps Gigabit Ethernet PoE Ports
- (4) 10 Gigabit SFP Plus Uplink Ports for Superior Network Performance
- Desktop Model Supports Full-Featured Layer 2 Switching
- 802.3af/at Available On All Ports with a Total PoE Budget of 410W
- Configure stand alone with EnSky or Manage for Free with EnGenius Cloud
Specifications
Details | |
---|---|
Manufacturer's Code | ECS1528FP |
Network Ports | 24 x 10/100/1000 Mbps Ports, 4 x 1000/10000 SFP+ Ports |
Port Standards | 802.3 10Base-T Ethernet, 802.3u 100Base-TX Ethernet, 802.3ab 10000Base-T Ethernet, 802.3x Full-Duplex Flow Control |
Performance | Switching Capacity: 128Gbps, Forwarding Mode: Store-and-Forward, Flash Memory: 128 MB, SDRAM:512MB, Packet Buffer Memory: 2M, Address Database Size: 16K MAC Addresses |
PoE Capability | PoE Standard: Ports 1~24 Support IEEE 802.3at/af, PoE Capable Ports: All Gigabit Ethernet Ports |
PoE Budget | 410 W |
Power Source | AC Input: 100 ~ 240VAC, 50-60Hz, 1.2A, DC Output: 54V/1.67A |
LED Indicators | Device: Power LED, Fault LED, PoE Max LED, LAN Mode LED. PoE Mode LED |
Ports LED | Link/Activity/Speed (per Ethernet port), Link/Activity/Speed (per SFP slot) |
Network Layer | Support Layer 2 & 3 (See Datasheet) |
Dimensions | Weight: 4.7Kg, Width: 260mm, Length: 440mm, Height: 44mm |
