EnGenius ECW516L EnGenius ECW516L Cloud Managed WiFi 7 Access Point
EnGenius ECW516L EnGenius ECW516L Cloud Managed WiFi 7 Access Point
- Brand: EnGenius
- MPN: ECW516L
- Part #: NETEGN0286
- UPC: 655216011687
- Brand: EnGenius
- MPN: ECW516L
- Part #: NETEGN0286
- UPC: 655216011687
Similar in-stock products available at PB Tech right now
Features
The EnGenius Cloud Managed ECW516L is a sleekly designed Wi-Fi 7 tri-band 2x3x3 access point that supports up to 13.7 gigabits speeds using 2.4 GHz, 5 GHz, and 6 GHz band. With Wi-Fi 7 standards, the ECW516L supports 320 MHz channels, 2 MU-MIMO, 4096-QAM, Multi-Link Operation, and Multi-RU puncturing. These features enhance reliability and performance by using multiple bands, minimizing interference, and reducing latency. The ECW516L wireless AP will provide up to 1,200 sq. ft. of Wi-Fi coverage and can support up to 200 connected wireless devices in small to medium businesses. The single 2.5 GbE PoE+ Ethernet port ensures gigabit performance and facilitates easy mounting and placement in enterprise environments.
- Wi-Fi 7 delivers stunning gigabit performance
- Provides Wi-Fi coverage for up to 1,200 sq. ft. and supports up to 200 connected devices
- Smooth streaming and video conferencing with unmatched speeds up-to 13.7 Gbps
- Take advantage of Wi-Fi 7's seamless connectivity for all your legacy devices
- Experience faster throughput and installation flexibility with up-to 100 meters away with the 2.5 GbE PoE+ Port
- Protect your Wi-Fi with the latest WPA3 enterprise and WPA3 for top-notch security
- Easily manage all your AP's with EnGenius Cloud and a user-friendly mobile AP from anywhere
- Quick network setup and management with simple device registration and remote monitoring
- Sleek and modern ceiling-mount design with LED lights, seamlessly blending into any environment
- Simple mounting and Kensington lock to ensure a hassle-free and secure installation process
- Best for Restaurants and Cafés, Boutique Stores, Bars, Repair Shops, Law Firms Dentist Office, Urgent Care, etc.
Note: Must be Powered over Ethernet, does not include AC Adapters.
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular WiFi 7 Access Points
Ubiquiti UniFi U7-Lite (BE5000) Dual-Band 4-Stream Wi-Fi 7 Access...
Ubiquiti UniFi U7-PRO (BE11000) Tri-Band 6-Stream Wi-Fi 7 Access...
Ubiquiti UniFi U7-PRO-XG (BE11000) Tri-Band 6-Stream Wi-Fi 7...
Ubiquiti UniFi U7-LR (BE5000) Duai-Band 5-Stream Wi-Fi 7 Access...
Ubiquiti UniFi U7-Outdoor (BE5000) Dual-Band 4-Stream Wi-Fi 7...
EnGenius ECW516L EnGenius ECW516L Cloud Managed WiFi 7 Access Point
- Brand: EnGenius
- MPN: ECW516L
- Part #: NETEGN0286
- UPC:655216011687
Product URL: https://www.pbtech.com/product/NETEGN0286/EnGenius-ECW516L-EnGenius-ECW516L-Cloud-Managed-Wi
Features
The EnGenius Cloud Managed ECW516L is a sleekly designed Wi-Fi 7 tri-band 2x3x3 access point that supports up to 13.7 gigabits speeds using 2.4 GHz, 5 GHz, and 6 GHz band. With Wi-Fi 7 standards, the ECW516L supports 320 MHz channels, 2 MU-MIMO, 4096-QAM, Multi-Link Operation, and Multi-RU puncturing. These features enhance reliability and performance by using multiple bands, minimizing interference, and reducing latency. The ECW516L wireless AP will provide up to 1,200 sq. ft. of Wi-Fi coverage and can support up to 200 connected wireless devices in small to medium businesses. The single 2.5 GbE PoE+ Ethernet port ensures gigabit performance and facilitates easy mounting and placement in enterprise environments.
- Wi-Fi 7 delivers stunning gigabit performance
- Provides Wi-Fi coverage for up to 1,200 sq. ft. and supports up to 200 connected devices
- Smooth streaming and video conferencing with unmatched speeds up-to 13.7 Gbps
- Take advantage of Wi-Fi 7's seamless connectivity for all your legacy devices
- Experience faster throughput and installation flexibility with up-to 100 meters away with the 2.5 GbE PoE+ Port
- Protect your Wi-Fi with the latest WPA3 enterprise and WPA3 for top-notch security
- Easily manage all your AP's with EnGenius Cloud and a user-friendly mobile AP from anywhere
- Quick network setup and management with simple device registration and remote monitoring
- Sleek and modern ceiling-mount design with LED lights, seamlessly blending into any environment
- Simple mounting and Kensington lock to ensure a hassle-free and secure installation process
- Best for Restaurants and Cafés, Boutique Stores, Bars, Repair Shops, Law Firms Dentist Office, Urgent Care, etc.
Note: Must be Powered over Ethernet, does not include AC Adapters.
Specifications
Technical Specifications
Standards
IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
IEEE 802.11be on 6 GHz
Backward compatible with 802.11a/b/g/n/ac/ax
IEEE 802.3 u/ab
Antenna2
2 x 2.4 GHz: 5 dBi(Integrated Omni-Directional)
3 x 5 GHz: 5 dBi(Integrated Omni-Directional)
3 x 6 GHz: 5 dBi(Integrated Omni-Directional)
Physical Interfaces

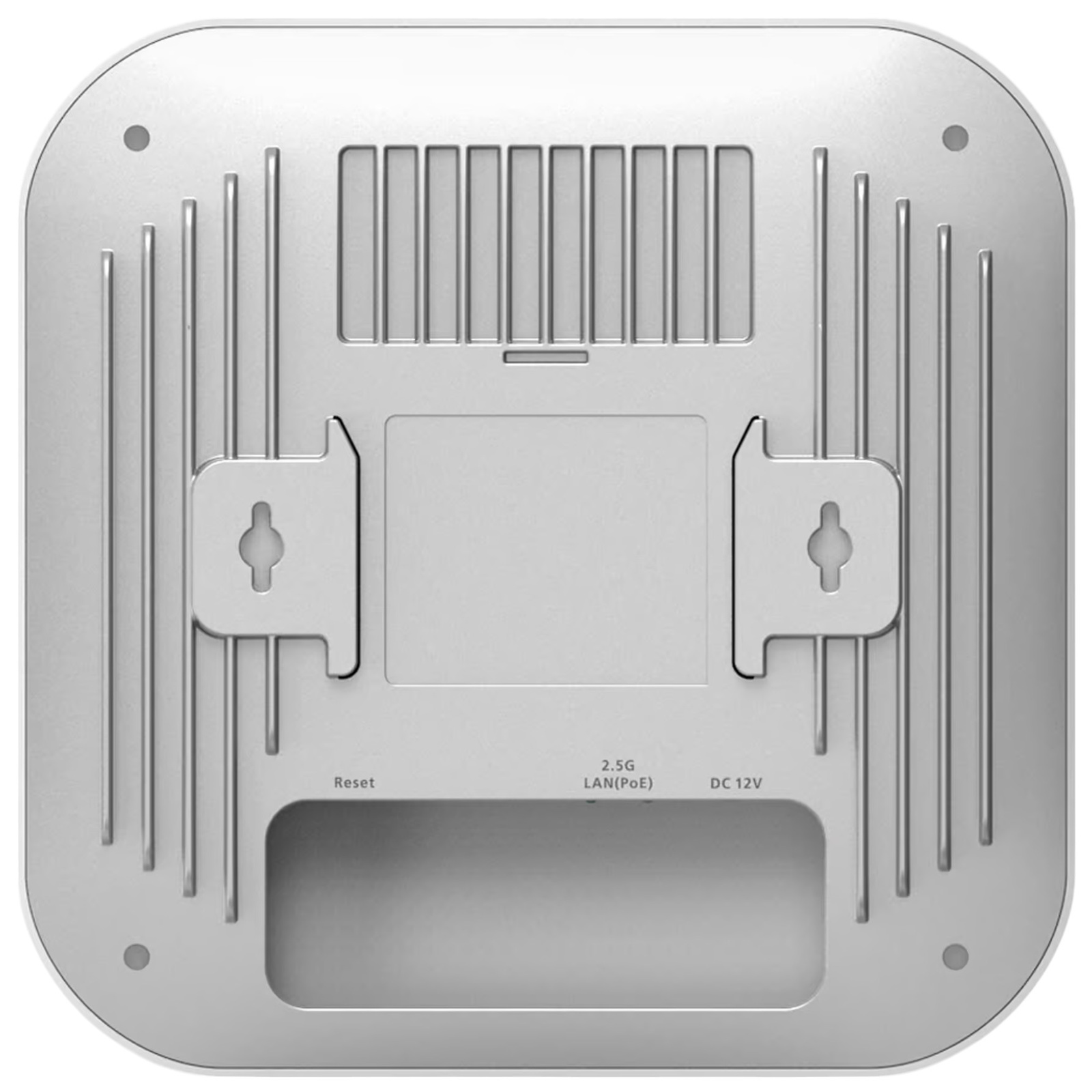

1 x 2.5GE Port (PoE+)
1 x DC Jack
1 x Reset Button
LED indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
1 x 6GHz
Power Source
Power-over-Ethernet: 802.3at Input
12VDC /2A Power Adapter
Maximum Power Consumption
20.7W
Wireless & Radio Specifications
Operating Frequency
Tri-Radio Concurrent 2.4 GHz & 5 GHz & 6GHz
Operation Modes
Managed mode: AP, AP Mesh, Mesh
Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz,
5725 MHz ~ 5850 MHz
6GHz: 5925-7125MHz
Transmit Power
Up to 22 dBm on 2.4 GHz
Up to 22 dBm on 5 GHz
Up to 22 dBm on 6 GHz
(Maximum power is limited by regulatory domain)
Radio Chains
2 x 2:2
3 x 3:3
SU-MIMO
Two(2) spatial stream Single User (SU) MIMO for up to 700 Mbps wireless data rate with VHT40 bandwidth to a 2x2 wireless device under the 2.4GHz radio.
Three(3) spatial stream Single User (SU) MIMO for up to 4,300 Mbps wireless data rate with HE160 to a 3x3 wireless device under the 5GHz radio.
Three(3) spatial stream Single User (SU) MIMO for up to 8,700 Mbps wireless data rate with EHT320 to a 3x3 wireless device under the 6GHz radio.
MU-MIMO
Two(2) spatial stream MU-MIMO for up to 700 Mbps wireless data rate with VHT40 bandwidth to a 2x2 wireless device under the 2.4GHz radio.
Three(3) spatial stream MU-MIMO for up to 4,300 Mbps wireless data rate with HE160 to a 3x3 wireless device under the 5GHz radio simultaneously.
Three(3) spatial stream MU-MIMO for up to 8,700 Mbps wireless data rate with EHT320 to a 3x3 wireless device under the 6GHz radio simultaneously.
Supported Data Rates
802.11be:
2.4 GHz: Max 700 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: Max 4,300 (MCS0 to MCS11, NSS = 1 to 4)
6 GHZ: Max 8,700 (MCS0 to MCS13, NSS = 1 to 4)
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 1,800 (MCS0 to MCS11, NSS = 1 to 4)
6 GHZ: 18 to 3,600 (MCS0 to MCS13, NSS = 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 (MCS0 to MCS31)
802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4)
Supported Radio Technologies
802.11be/ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)
Channelization
802.11be supports extreme high efficiency (EHT) -EHT 20/40/80/160/320 MHz
802.11ax supports high efficiency throughput (HE) -HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) -VHT 20/40/80 MHz
802.11n supports high throughput (HT) -HT 20/40 MHz
802.11n supports high throughput under the 2.4GHz radio -HT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation
802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
Max Concurrent User
128 per radio
Client Balancing
Yes
Auto Channel Selection
Yes
Management Features
Multiple BSSID
8 SSIDs on both 2.4GHz and 5GHz bands
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Compliance With IEEE 802.11e Standard
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Fast Roaming
802.11r/k
Wireless Security
WPA2-PSK
WPA3-PSK
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Client Access Control
Interface
IPv4, IPv6
Local Web Access
Supports HTTP or HTTPS
Environmental & Physical
Temperature Range
Operating: 32°F~104°F (0°C~40°C)
Storage: -40°F~176°F (-40°C~80°C)
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
Dimensions
205 x 205 x 33 mm
Compliance
Regulatory Compliance
FCC
CE
IC
UKCA
UK PSTI
AU
