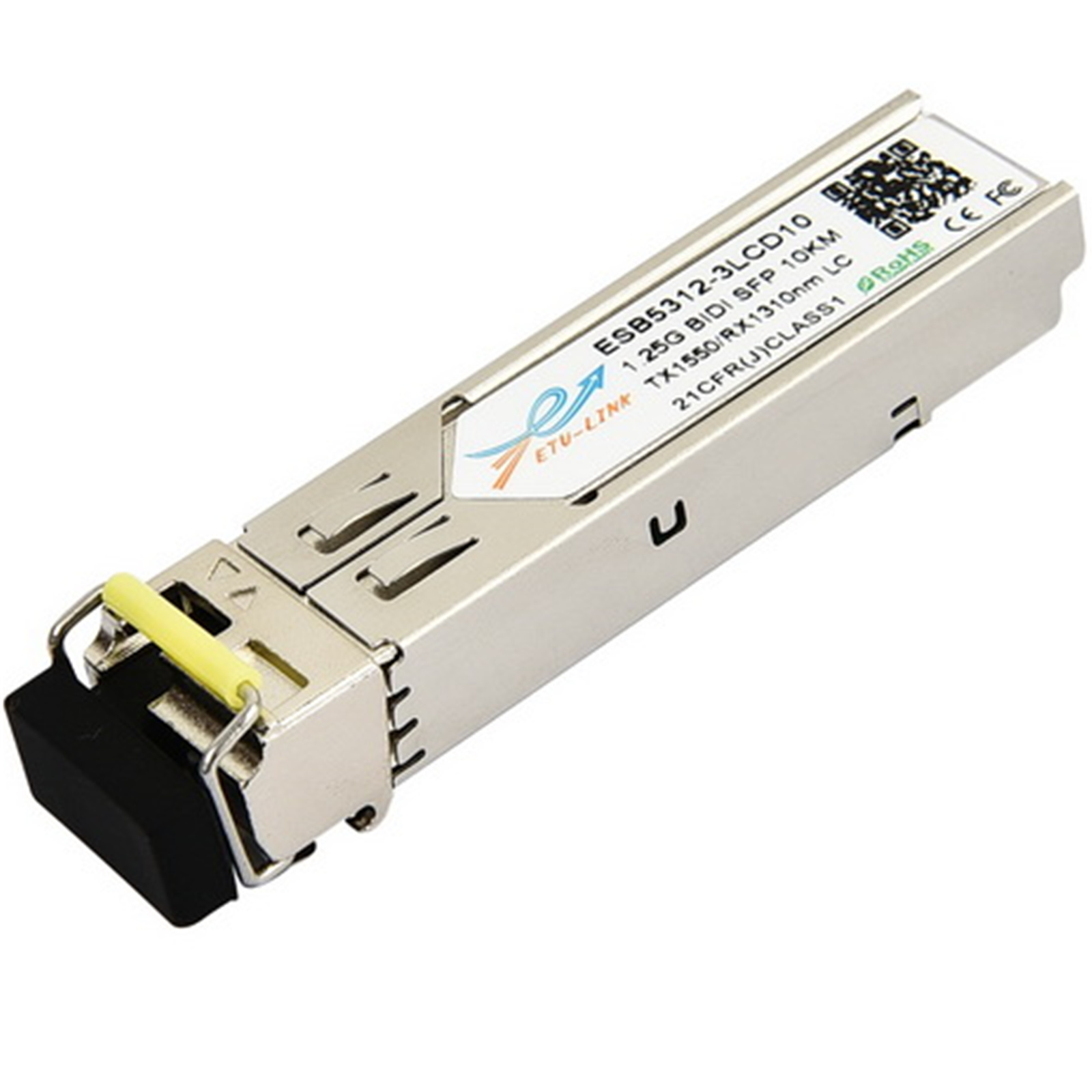

ETU-LINK 1.25Gbps Bi-directional SFP module TX1550/RX1310nm Single-mode 10KM
- Brand: ETU-LINK
- MPN: ESB5312-3LCD10
- Part #: NETETL0002
Product URL: https://www.pbtech.com/product/NETETL0002/ETU-LINK-125Gbps-Bi-directional-SFP-module-TX1550R
Features
1.25Gbps SFP Bi-Directional Transceiver, 10KM Reach Tx1550nm/Rx1310nm
The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 10KM transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integratedwithatrans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
- Dual data-rate of 1.25Gbps/1.063Gbps operation
- 1550nm DFB laser and PIN photodetector for 10KM transmission
- Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
- Hot-plug, singlemode, UPC fiber connecting
- Compatible with SONET OC-24-LR-1
- Compatible with RoHS
- +3.3V single power supply
- Operating case temperature range: 0 °C to +70 °C (Commercial), -40 °C to +85 °C (Industrial)
Module Block Diagram

Specifications
Manufacturer
ETU-LINK
MPN
ESB5312-3LCD10
Product Type
SFP module
Mode
Single-mode
Data rate
1.25G
Wavelength
TX1550/RX1310nm
Distance
10KM
Interface
LC
Fiber
SM
DDM
Yes
Working temperature
Commercial:0°C to +70°C;Industrial:-40°C to +85°C
