FlyingVoice P23G Multi-Functional IP Phone Gigabit Ethernet PoE WiFi
- Brand: FlyingVoice
- MPN: P23G
- Part #: NETFLV1024

Product URL: https://www.pbtech.com/product/NETFLV1024/FlyingVoice-P23G-Multi-Functional-IP-Phone-Gigabit?type=ex-demo
Features
FlyingVoice P23G Multi-Functional IP Phone, Gigabit Ethernet, PoE, WiFi

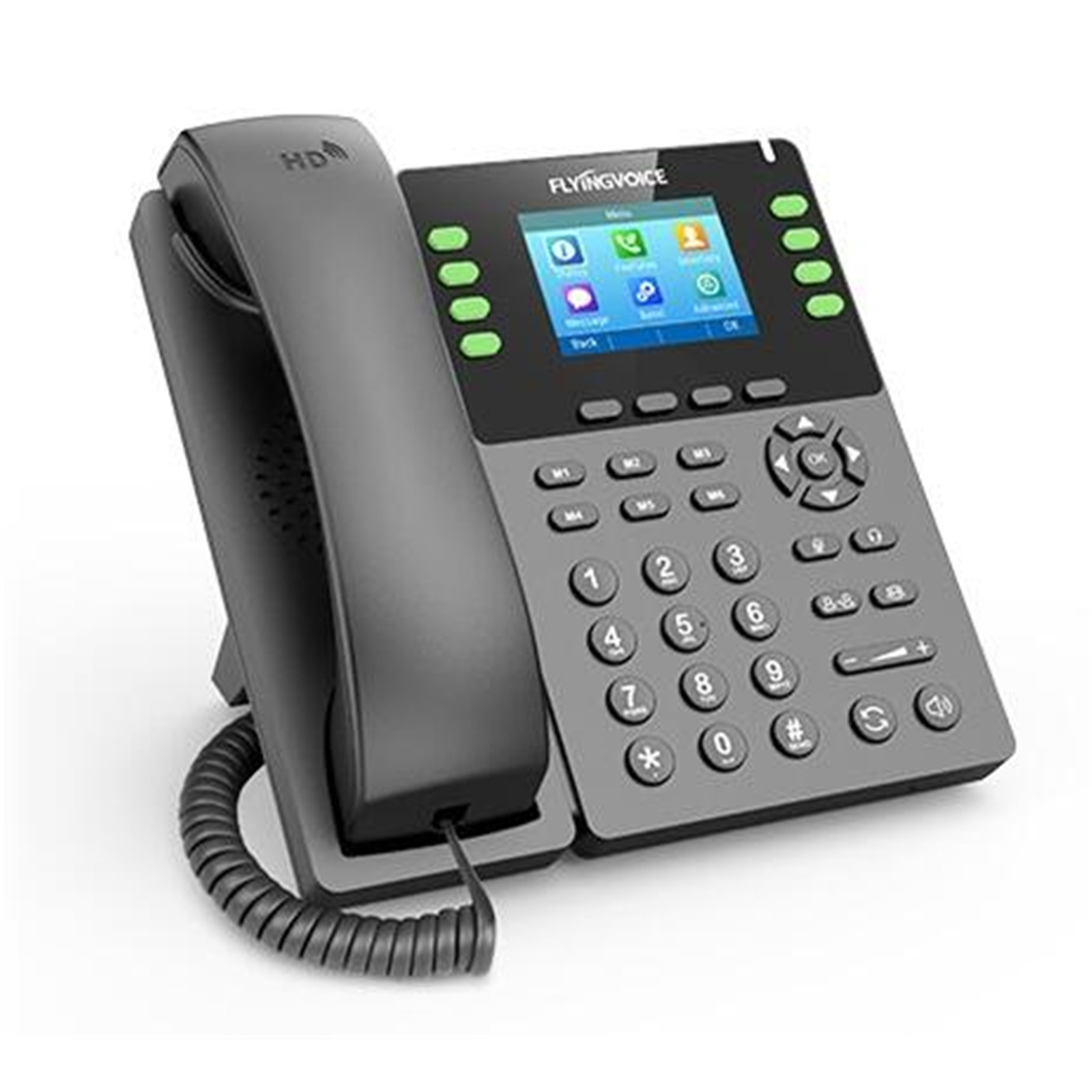

The P23G is a business multi-functional IP phone with 2.8-inch 320×240 IPS screen with backlight. Equipped with a new chip with a strong performance for a smooth user experience. It supports 8 SIP lines, 2.4G/5G dual-band Wi-Fi (P23GW only), integrated dual Gigabit Ethernet ports, PoE, and USB 2.0. Supports U disk, EHS adapter, Bluetooth adapter, and other expansion devices to access, meeting various demands.
This phone supports U disk, EHS adapter, Bluetooth adapter, and other expansion devices, meeting various demands.
- Brands and models of headsets supported by P23 series IP phones.
- Plantronics CS520, CS540
- Jabra PRO 920, PRO 925, PRO 9460, PRO 9470, Motion Office, Engage 65 Stereo&Mono, Engage 75 Convertible, Engage 75 Stereo&Mono
- Sennheiser SDW5016
P23 series Key Features
- 8 SIP Lines
- 2.8-inch 320x240 Graphical LCD screen with backlight
- 2.4GHz & 5GHz Wi-Fi
- Dual Gigabit Ethernet ports, POE
- Record calls via USB disks (Manual/Automatic)
- Support DECT Headset and RJ9 Headset
- 6-Way Audio Conferencing
- Support multiple wideband Codec like G.722,Opus etc.
- Support more than 2000 local Phonebook
- Support IPv4 and IPv6 protocols
- Wall Mountable
- 8 SIP accounts
- HD Voice
- 2.4G & 5G Wi-Fi
- USB2.0 port
- 6-Way Audio Conference
- Dual Gigabit Ethernet ports
- New Design, Interactive Experience
- With a 2.8-inch IPS color screen with backlight, display with a 7-adjustable brightness level on the backlight, timer off screen and breathing light caller alert, which provides an enhanced visual experience.
HD Voice Quality
Wideband G.722 and Opus are supported, meet the European Telecommunications Standardization Institute (ETSI) voice test standards, can achieve high-definition voice noise reduction and high-definition echo cancellation, you can have clear VoIP calls even in noisy places.
6-Way Audio Conference
Support 6-Way Audio Conference, making your communication easier and realize a better collaboration.

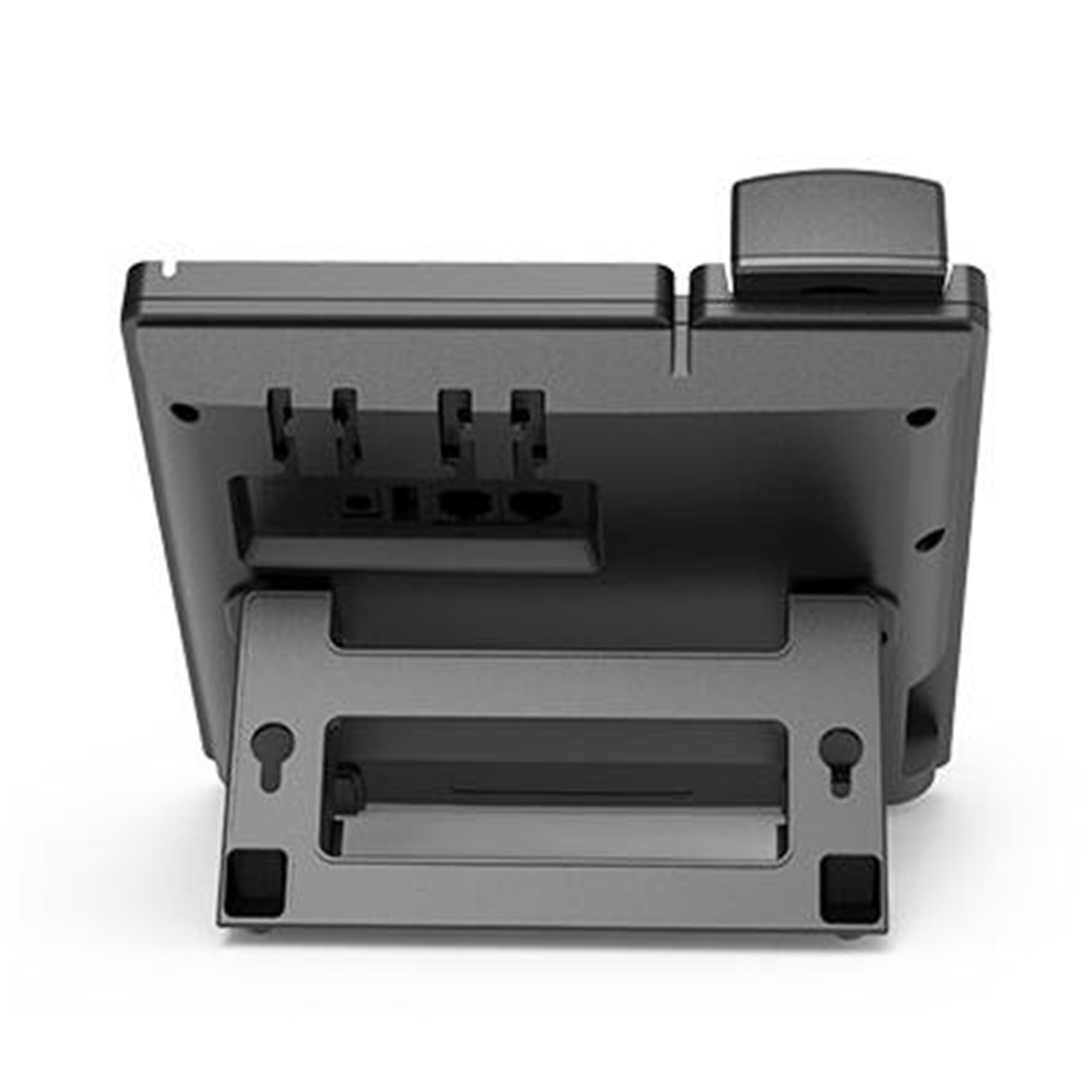

New Stand, More Stable Wall Mounting
The angle adjustable and wall-mountable stand, supports 45-angle placement on the desktop and 15-angle installation on the wall, meeting your various demands for a neat environment.
USB Expanded Functions
The Built-in USB 2.0 ports on the phone allow you to record important calls via USB disks, and connect DECT wireless headsets, Bluetooth dongle, and access to call which gives you more freedom to connect your business.
Online management Platforms, Easy Configuration
It can be easily deployed and managed by online platforms such as FACS and FRPS and auto-provisioning modes FTP/TFTP/HTTP/HTTPS/TR069, greatly saving on operation and maintenance time.
Specifications
Phone Features
LCD Screen
> 2.8" 320 x 240px color screen with backlight > 16-bit depth color
Function Keys
> 12 Function Keys: M1, M2, M3, M4, M5, M6, mute, headset, transfer, redial, hands-free speakerphone> 8 Line keys, 4 Soft Keys, 5 Navigate Keys, Volume+/-
SIP Accounts
> 8 SIP accounts
Wi-Fi
> 2.4GHz & 5GHz Wi-Fi (P23G: 2.4G Hz Wi-Fi)
USB Ports
> USB call recording through USB flash drive > Wireless Headset Adapter EHS10 > Bluetooth earphone through BT50Ethernet Port > 2*10/100/1000M(adaptive) > Support PoE
Other Ports
> 1 x Handset port, > 1 x RJ9 Headset port - Wire-controlled RJ9 headset through HP200
Call Features
Basic function
> Call hold, Mute, DND, Redial, Auto answer, One-touch speed dial, Hotline, SMS, Call forward, Call
waiting, Call transfer (attended/blind), Paging, Voice mail, BLF, Anonymous call, Anonymouscall
rejection, Message waiting indicator (MWI), Hot desking
Direct IP Call
> Supported
Phone book
> 2000 records; Phonebook search/import/export; XML/LDAP remote phonebook; Black list
Call history
> 60 records; Call history: all/missed/dialed/received
Conference Call
> 6-way conference, Network conference
Audio Features
HD Voice
> HD handset, HD speaker
Audio Codec
> G.722, Opus, AMR-WB(Optional), G.711WB(Optional), G.711(A/u), iLBC, G.729A/B, G.723, G.726, AMR-NB(Optional)
DTMF
> In-band, RFC 2833, SIP info
Other Features
> AEC, VAD, CNG, PLC, AGC, AJB
Network
Network Safety
> SIP Related Features: - SIP v1 (RFC2543), v2 (RFC3261), NAT Traversal by STUN
- SIP link mode: Proxy mode and peer-to-peer SIP link mode
- Call server redundancy supported > Network Features: - Static IP and DHCP, IPv4 /IPv6, Dual stack IPv4/IPv6, ARP/RARP, DNS A/DNS SRV/DNSNAPTR- LLDP/CDP/DHCP VLAN; IEEE802.1X; OpenVPN; DSCP, 802.1p QoS, SSL > Time and Date synchronization: SNTP, PBX, DHCP
> Transport Feature: UDP/TCP/TLS; RTP/RTCP/SRTP
Configuration & Maintenance
Auto-provision
> TR069(TR104/TR106)
> FTP/TFTP/HTTP/HTTPS for Auto Provisioning > Cloud device management: FACS
> Cloud device management: FRPS
> DHCP Option66
Configuration
> Supports web configuration > Factory reset, reboot > Packet capture, system log
Others
Physical Features
> New Stand, Wall mountable > AC/DC Adapter, AC Input: 100~240V, 50~60Hz > DC Output: 5V, 1A;5V,2A (Only P23GW) > Power consumption (PSU): 1.6~3.0W
> Power consumption (PoE): 1.7W~3.3W
> Relative humidity: 10%~90% (No Condensing)
- Storage temperature: -20~ 70°C
- Operation temperature: 0~45°C
> Dimension (W x D x H): 190mm × 188.5mm × 41mm
