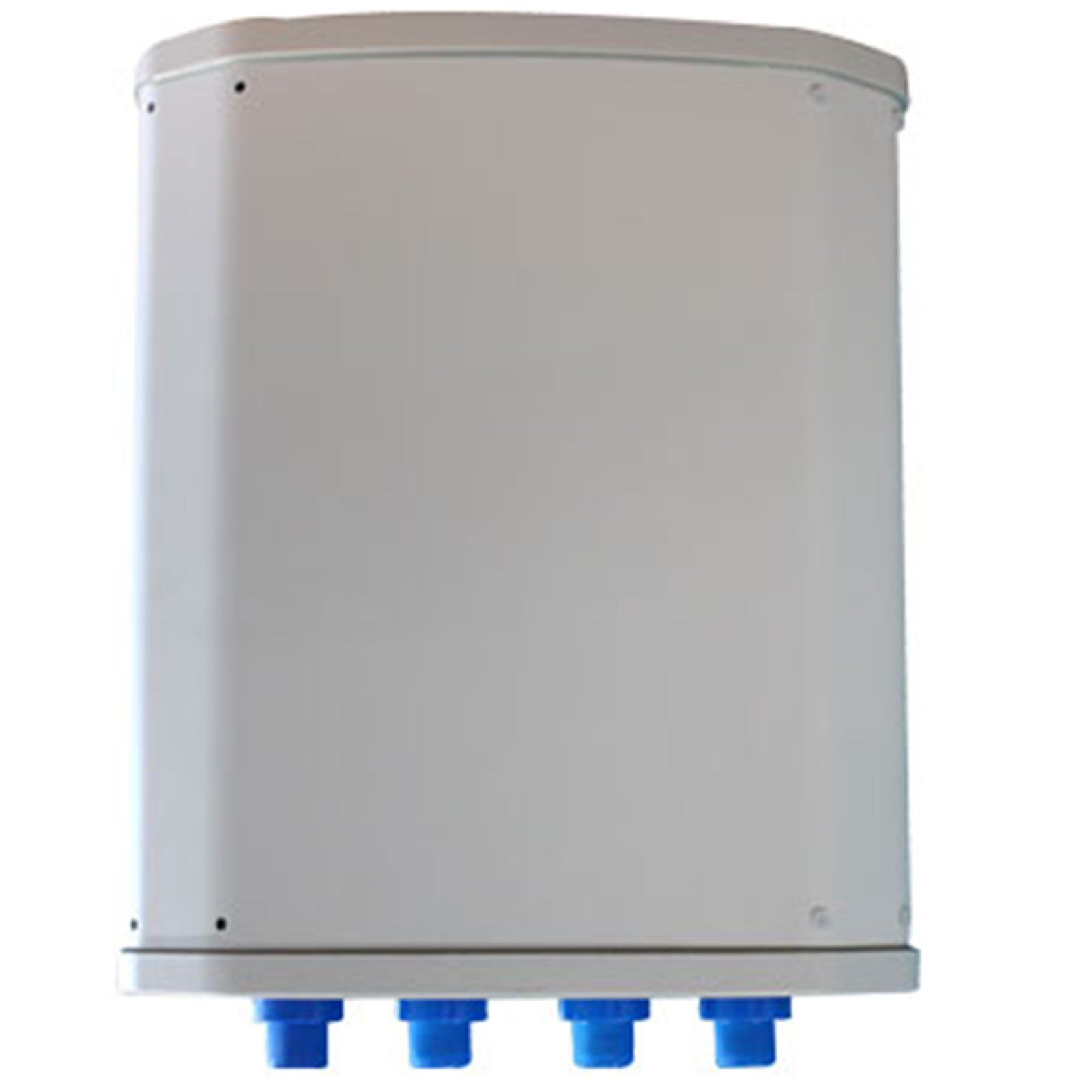

Go Wireless ANT-253 6.5dBi Dual Polarity Tri-Band 3G/4G/LTE/5G Antenna
Go Wireless ANT-253 6.5dBi Dual Polarity Tri-Band 3G/4G/LTE/5G Antenna
- Brand: Go Wireless
- MPN: ANT-253
- Part #: NETGWL1016
- UPC:
- Brand: Go Wireless
- MPN: ANT-253
- Part #: NETGWL1016
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Antennas
Go Wireless ANT-253 6.5dBi Dual Polarity Tri-Band 3G/4G/LTE/5G Antenna
- Brand: Go Wireless
- MPN: ANT-253
- Part #: NETGWL1016
Product URL: https://www.pbtech.com/product/NETGWL1016/Go-Wireless-ANT-253-65dBi-Dual-Polarity-Tri-Band-3
Features
The ANT-253 is a 4 Port Tri-Band GSM/CDMA/PCS/3G/4G/5G/WLAN/LTE Broadband Directional Antenna with wideband frequency options including 698-960/1710-2700/3300-3800MHz. This antenna is the ideal solution for all of your cellular needs.
- Broadband Directional Antenna with Low VSWR
- Seal with Radome, Strong Protection against the elements
- Supplied with stainless steel mast down-tilt bracket
- Perfect for RBI (Rural Broadband Initiative) Installations
- Suitable for LoRaWAN and Sigfox 868MHz and 923MHz IoT applications
Specifications
Manufacturer Part Number
ANT-253
Frequency range
Port 1&2 - 698-960, 1710-2700 MHz; Port 3&4 - 3300-3800, 3300-3800 MHz
Polarization
±45 Deg
Gain
6.5dBi
Half-power beam width
60 Deg
Front-to-back ratio
23dB
Cross-polar discrimination
17dB
Isolation
23dB
Impedance
50 Ohm
VSWR
<=1.5
Intermodulation IM3
2×43dBm carrier <=-150dBc
Maximum power
200W
Lighting protection
DC Ground
Connectors
4×7-16 DIN Female
Dimensions (H x W x D)
465×385×138 mm
