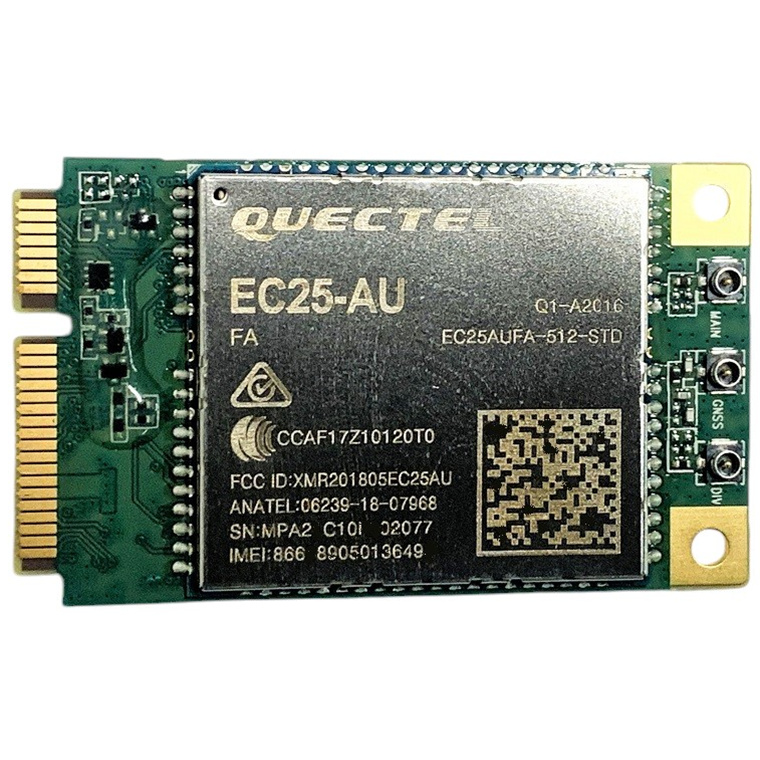

Go Wireless EC25-AU Quectel EC25-AU 4G LTE Cat 4 mPCIe Module with B28

  • Brand: Go Wireless
  • MPN: EC25-AU
  • Part #: NETGWL1043
  • UPC:
PB Tech price
AUD $ 100 .36 $ 100 .36
In stock at NZ Logistics Centre
Delivery: Order now and it ships on 01 Jul
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$100.36  +GST
$100.36
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: Go Wireless
  • MPN: EC25-AU
  • Part #: NETGWL1043
  • UPC:
Returns & Warranty Bulk Quote Print Page

Features

Quectel EC25-AU 4G LTE Cat 4 mini PCIe Module with B28. The EC25-AU is an LTE category 4 module in an LCC form factor measuring 32.0mm × 29.0mm × 2.4mm. The EC25-AU delivers maximum downlink rates of 150Mbps and uplink rates of 50Mbps under LTE, and multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability. It is also backward-compatible with existing 2G networks, ensuring that it can be connected even in remote areas devoid of 3G or 4G network coverage. The EC25-AU is optimized for networks in Australia, New Zealand, Brazil, and Taiwan.

The EC25-AU supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS), and the optional multiconstellation GNSS receiver greatly simplifies product design, and provides quicker, more accurate and dependable positioning.

A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10, Linux, Android and eCall) allow the module to serve a wide range of IoT applications including industrial routers, industrial PDAs, rugged tablet PCs, and digital signage.

- LTE category 4 module
- Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE coverage
- Max. 150Mbps downlink / 50Mbps uplink under LTE
- LCC form factor
- Extended temperature range of -40°C to +85°C
- Supports DFOTA, DTMF, MIMO and QuecLocator
- Compatible with MikroTIk RouterBoard (LTE interface supported)

Specifications

Region/Operator

Latin America/Australia/New Zealand

Dimensions (mm)

32.0 × 29.0 × 2.4

Operating Temperature

-35°C to +75°C

Extended Temperature

-40°C to +85°C

LTE-FDD

B1/B2/B3/B4/B5/B7/B8/B28

LTE-TDD

B40

WCDMA

B1/B2/B5/B8

GSM/EDGE

B2/B3/B5/B8

GNSS

GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)

Regulatory

Global: GCF, America: FCC, Taiwan (China): NCC, Brazil: Anatel, Australia/New Zealand: RCM, Others RoHS/WHQL

LTE-FDD Data Rates (Mbps)

150 (DL)/ 50 (UL)

LTE-TDD Data Rates (Mbps)

130 (DL)/ 30 (UL)

DC-HSPA+ Data Rates (Mbps)

42 (DL)/ 5.76 (UL)

WCDMA Data Rates (kbps)

384 (DL)/ 384 (UL)

EDGE Data Rates (kbps)

296 (DL)/ 236.8 (UL)

GPRS Data Rates (kbps)

107(DL)/ 85.6 (UL)

(U)SIM

x 1

UART

x 2

USB 2.0

x 1

Audio Digital (PCM)

x 1

I2C

x 1

SDIO

x 2

SGMII

x 1

ADC

x 2

Speech Codec Modes

HR/FR/EFR/AMR/AMR-WB

Echo Arithmetic

Echo Cancellation/Noise Suppression

VoLTE

Digital Audio and VoLTE (Voice over LTE) (Optional)

USB Serial Driver

"Windows 7/8/8.1/10, Linux 2.6-5.4,

Android

4.x-9.x"

GNSS Driver

Android 4.x-9.x

RIL Driver

Android 4.x-10.x

NDIS

Windows 7/8/8.1/10

MBIM

Windows 8/8.1/10, Linux 3.18-5.4

GobiNet Driver

Linux 2.6-5.4

QMI_WWAN Driver

Linux 3.4-5.4

Supply Voltage Range

3.3-4.3V, 3.8 V Typ.

Power Consumption

11 µA @ Power off, 1.3 mA @ Sleep, Typ., 22 mA @ Idle

Manufacturer Part No:
EC25-AU
Brand:
Go Wireless
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.01 kg
PB Part No:
NETGWL1043
Product Model:
-
Warranty: 12 months *
