Go Wireless PT-PSE100G 48V DC 30 Watt Gigabit Passive Power over Ethernet Supply
Go Wireless PT-PSE100G 48V DC 30 Watt Gigabit Passive Power over Ethernet Supply
- Brand: Go Wireless
- MPN: PT-PSE100G
- Part #: NETGWL1107
- UPC:
- Brand: Go Wireless
- MPN: PT-PSE100G
- Part #: NETGWL1107
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular POE Splitters / Injectors





Go Wireless PT-PSE100G 48V DC 30 Watt Gigabit Passive Power over Ethernet Supply
- Brand: Go Wireless
- MPN: PT-PSE100G
- Part #: NETGWL1107

Product URL: https://www.pbtech.com/product/NETGWL1107/Go-Wireless-PT-PSE100G-48V-DC-30-Watt-Gigabit-Pass
Features
The PT-PSE100G PoE Injector is a single port PoE Injector that is compatible with IEEE 802.at standard. Recently upgraded to a smaller form factor but still comes with the industry leading PoE technology that enables 30W of PoE over standard Cat5 or better cables to easily upgrade IP surveillance devices, WLAN APs and other Ethernet devices.

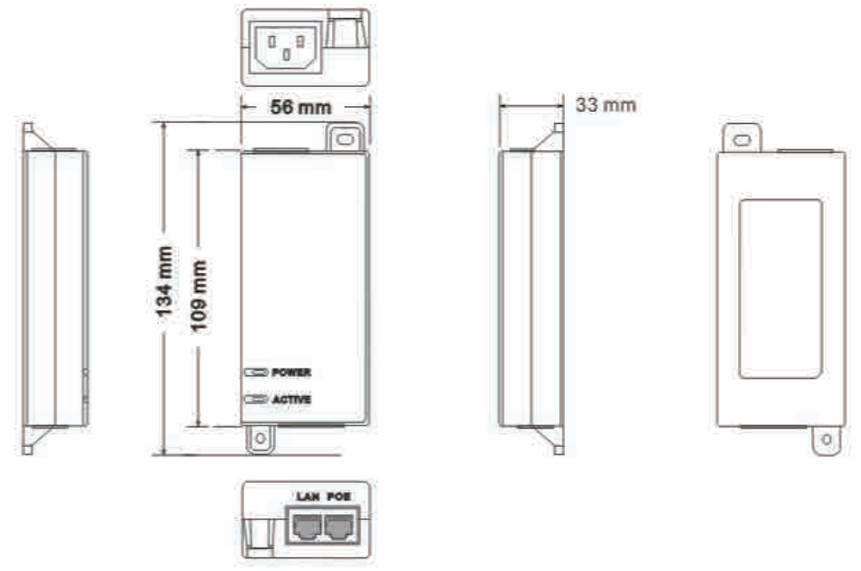

Dimensions

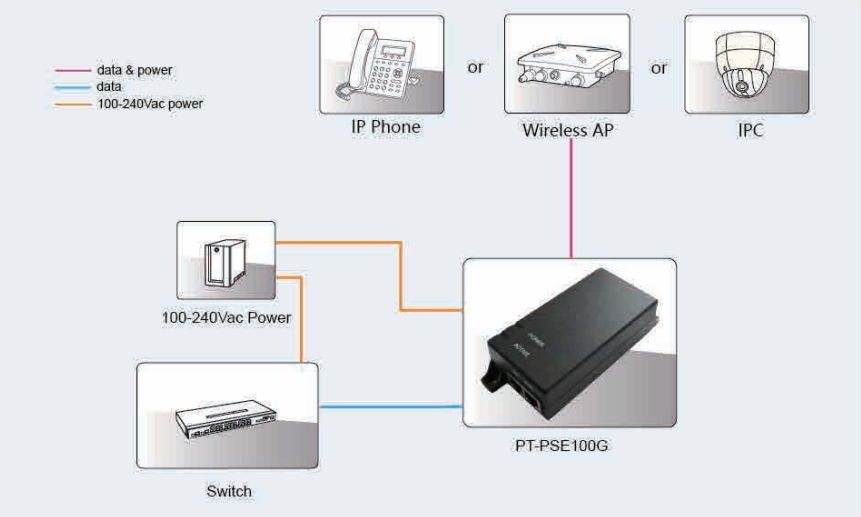

Product Working Diagram
Specifications
Standards
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, Support terminal equipment with IEEE802.3af/at, RoHS Compliance, WEEE Compliance
Input
100-240Vac 1.0A 50/60Hz
Output
48Vdc 630mA
Power Pins
4/5(+), 7/8(-)
Data Speed
10/100/1000Mbps
Operating Temperature
0°C to 40°C
Operating Humidity
20% to 80%, non-condensation
Storage Temperature
-20°C to 70°C
Storage Humidity
10% to 90%, non-condensation
Operating Altitude
Up to 2000meters
AC Surge Protection
1.0KV (5P/5N), L-N 1.2/50 (8/20) Tr/Th us, 2.0KV (5P/5N), L-PE 1.2/50 (8/20) Tr/Th us, N -PE
Case
Plastic
Colour
Black
Mounting
Wall-mounted
IP Rated
IP40
Dimensions
134mm X 56mm X 33mm
Weight
175g
Safety Approvals
CE, FCC
EMI
FCC CFR47 Part 15, EN55024, EN55032
EMS
IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air)
IEC61000-4-3(RS) 10V/m(80MHz~2GHz)
IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV
IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM
IEC61000-4-6(CS) 10V(150kHz~80MHz)
Immunity
IEC60068-2-6(Vibration), IEC60068-2-27(Impact), IEC60068-2-32(Free Fall)
LED Indicator
Power Indicator: Green, PoE Load Indicator: Green
