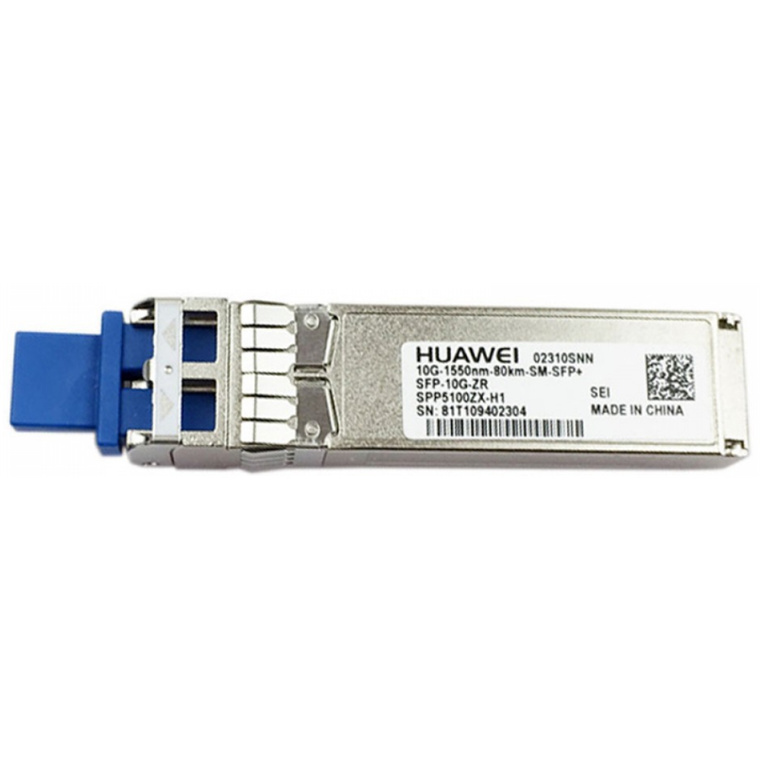

Huawei SFP-10G-ZR 10Gbps SFP+ to LC 1550nm Single-mode Transceiver, Up to 80km
- Brand: Huawei
- MPN: 02310SNN
- Part #: NETHUA0231004
Product URL: https://www.pbtech.com/product/NETHUA0231004/Huawei-SFP-10G-ZR-10Gbps-SFP-to-LC-1550nm-Single-m
Features
Huawei SFP-10G-ZR 10Gbps SFP+ to LC 1550nm Single-mode Transceiver, Up to 80km
Specifications
Version support
Supported in V100R001C00 and later versions
Transceiver form factor
SFP+
Transmission speed
10GE
Center wavelength (nm)
1550
Standards compliance
10GBASE-ZR
Connector type
LC
Type of the end face of the fiber ceramic ferrule
PC or UPC
Applicable cable and maximum transmission distance
Single-mode fiber (G.652) (with diameter of 9 µm): 80 km
Modal bandwidth
-
Transmit power (dBm)
0 to 4
Maximum receiver sensitivity (dBm)
-24
Overload power (dBm)
-7
Extinction ratio (dB)
>= 9
Operating temperature
0°C to 70°C
