L-com 2.4/ 5 GHz 6dBi Dual Band Dual Polarized Omni Antenna

PB Tech price

AUD $ 287 .34

$ 287 .34

L-com 2.4/ 5 GHz 6dBi Dual Band Dual Polarized Omni Antenna

Brand: L-com
MPN: ANT-255
Part #: NETLCM0008
UPC:

PB Tech price

AUD $ 287 .34

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 25 Jun

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: L-com
MPN: ANT-255
Part #: NETLCM0008
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

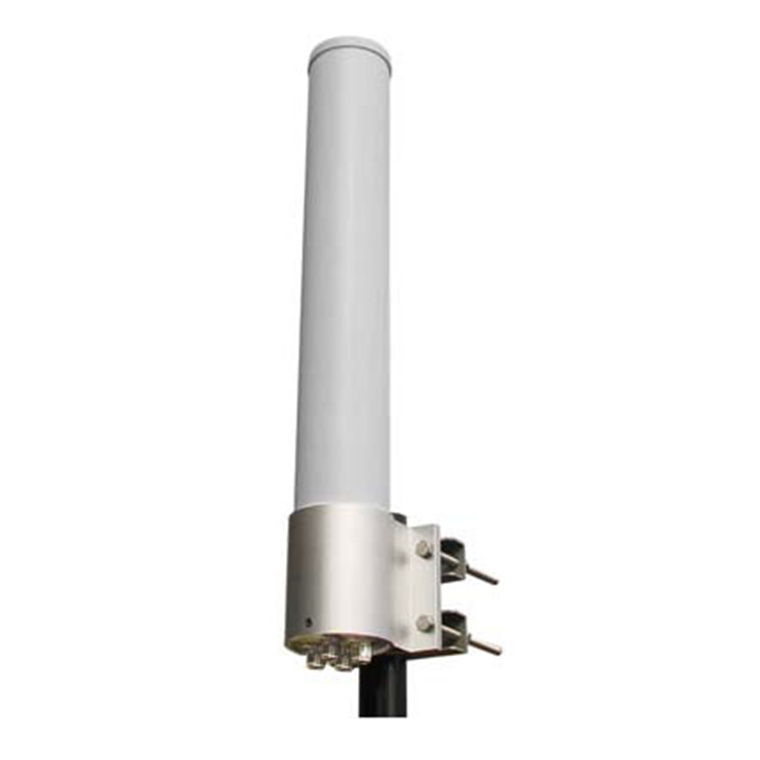

L-com 2.4/ 5 GHz 6 dBi Dual Band / Dual Polarized Omni Antenna.

L-com has developed the world's first 802.11ac 4x4 MIMO outdoor omni directional, dual polarized / dual frequency antenna line.

The HyperGain HG2458-06DPU is a professional high gain dual band/dual polarity omnidirectional base station antenna designed and optimized for 2.4 and 5 GHz frequencies. This antenna is ideally suited for multi-point applications where long range and wide coverage is desired. The DPU series stands out from the competition since they are true 360 degree omni directional antennas which feature patent pending technology.

- True 360 degree omni directional antennas which feature patent pending technology
- Dual polarity/dual frequency feed system in single enclosure
- MIMO - Multiple-Input and Multiple-Output, separate inputs for 2.4 GHz and 5 GHz - four connectors total
- UV-Resistant radome for all-weather operation
- Heavy duty industrial grade design
- Supports 1x2, 2x2 and 4x4 MIMO AP/Routers

Dual Frequency / Dual Polarized

The HG2458-06DPU is actually four antennas in one, a 2.4 GHz dual polarized antenna and a 5 GHz dual polarized antenna together in a single radome. Each frequency features separate feeds for both horizontal and vertical polarities, four N-Female connectors total.

This antenna incorporates advanced dual polarization technology that allows for the interoperability of two radio transmit and receive paths. This technology allows for the attenuation of unwanted signals from adjacent channels and/or co-located equipment.

Rugged and Waterproof

The HG2458-06DPU construction features a heavy-duty UV resistant PVCs radome for durability and aesthetics. Designed to operate in the harshest of environments, the HG2458-06DPU far exceeds other omnidirectional antennas. The included mounting system features twin heavy-duty mounting clamps and bolts for superior strength.

Specifications

Manufacturer's Product Code

HG2458-06DPU

Frequency Range

2400 - 2500MHz, 5100 - 5800MHz

Gain

6dBi all polarisations

Vertical Beamwidth

24 to 30 degrees depending on polarisation

Horizontal Beamwidth

360 degrees

Impedance

50 Ohm

Max input power

100 Watts

VSWR

2.4GHz = 1.6, 5GHz =1.8

Pol Isolation

>28 dB

Lightning Protection

DC Ground (2.4GHz; 5GHz H Pol), DC Open (5GHz V Pol

Connectors

4 x N Female

Weight

2.4Kg

Dimensions

L 718mm x D 75mm

Radome Material

UV Resistant PVC

Mounting Mast size

40 to 90mm

Operating Temperature

-40 to +60 deg C

Max Wind Velocity

210 km/h

Manufacturer Part No:

ANT-255

Brand:

L-com

Product Type:

UPC

Product Family:

Shipping Weight:

1.8 kg

PB Part No:

NETLCM0008

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
