LevelOne SFP-9331 Gigabit Ethernet (1.25G) Single- mode Bi-directional SFP Transceiver (20km, TX/RX

PB Tech price

AUD $ 50 .56

$ 50 .56

LevelOne SFP-9331 Gigabit Ethernet (1.25G) Single- mode Bi-directional SFP Transceiver (20km, TX/RX

Brand: LevelOne
MPN: SFP-9331
Part #: NETLEL9331
UPC:

PB Tech price

AUD $ 50 .56

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 16 Jun

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

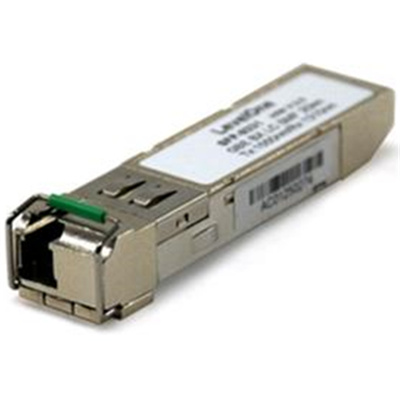

Click or hover over image to enlarge

Brand: LevelOne
MPN: SFP-9331
Part #: NETLEL9331
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Networking / Fiber Optical Transceiver / SFP-9331

The LevelOne SFP-9331 is a high performance, cost-effective SFP transceiver. It provides up to 1.25 Gbps bi-directional data transfer rate at distances up to 20km on a single fiber core. These bi-directional SFP Transceivers allow data transfer in either direction through a single optical fiber by employing separate wavelengths travelling in either direction. The SFP-9331 transmits using a wavelength of 1550nm and receives using a wavelength of 1310nm. When coupled with the LevelOne SFP-9321 transceiver which transmits at and receives at the opposite rates (1550nm TX and 1310nm RX) you get bi-direction data communication on a single fiber core.

- 1550nm DFP LD
- Multi Data Rate: from 125M to 1.25Gbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/AC Differential Electrical Interface
- Compliant with Multi-Source Agreement(MSA)
- Simplex LC Connector
- Compliance with specifications for IEEE802.3z Gigabit Ethernet at 1.25Gbps
- Compliance with ANSI specifications for Fiber Channel applications at 1.06bps
- No configuration or installation software required
- Eye Safety Designed to meet LASER Class 1 comply with EN60825-1

Specifications

Standards & Protocols:

IEEE 802.3ah 1000BASE-BX10-D
SFP Multi-Sourcing Agreement(MSA)

Connectors and Cabling:

Simplex LC Connector, Single-mode fiber(SMF)

Wavelength(nm):

T 1550nm / R 1310nm

Optical Receive Sensitivity:

-23 dBm

Optical Link Power Budget:

15 dB

Power Input:

Supply Voltage: 3.3V
Max Voltage/Current: 6V/300mA

General:

Hot-swappable

Data Transfer Rate:

1.25 Gbps Bi-directional data link

Operating Distance:

up to 20km (9/125µm)
Fiber channel up to 1.06Gbps

Optical Transmission Power:

-8~ -3 dBm

Temperature (°C):

Operating: 0°C ~ 70°C
Storage: -40 ~ 85°C

Humidity (Non-condensing):

5 ~ 95%

Dimensions (W x D x H mm):

13.7 x 56.5 x 8.95 mm

Weight (g):

20g

EMI/EMS:

Class 1 eye safety and comply with EN 60825-1

Manufacturer Part No:

SFP-9331

Brand:

LevelOne

Product Type:

UPC

Product Family:

Shipping Weight:

0.5 kg

PB Part No:

NETLEL9331

Product Model:

Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
