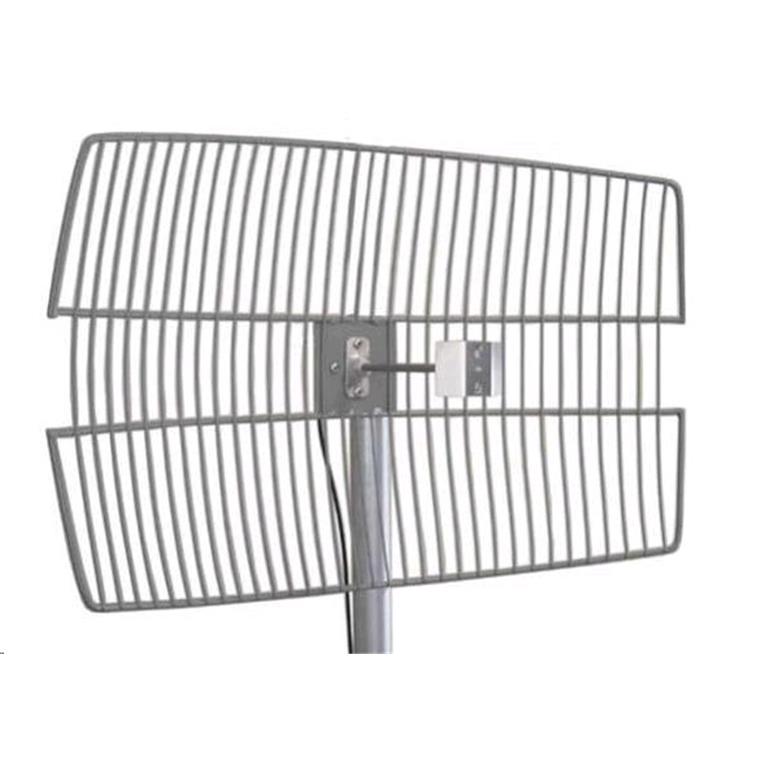

The Pacific Wireless GD5W-25 5GHz 25dBi wide band parabolic grid directional antenna utilizes a unique patented parabolic grid design with compact high performance feed. The antennas are constructed of welded steel wires which are galvanized and then powder coat painted with a light gray epoxy paint. The wire grid semi-parabolic design offers unsurpassed low wind loading while maintaining good RF performance. The compact low visual impact attractive styling blends well in almost any application. Mounting is simplified with the Pacific Wireless bracket system made of galvanized steel with stainless steel hardware. The 25dBi model comes with a super heavy duty bracket system to give even greater stability in high winds. The feed has a 30inch pigtail and N Female connector standard. Great for use with Ubiquiti and MikroTik high power point to point wireless networks. Quality heavy duty construction from Pacific Wireless USA.
Specifications
Frequency Range 4940-5850MHz
Gain 25dBi
Polarisation Vertical or Horizontal
Vertical Beamwidth 6deg
Horizontal Beamwidth 6deg
Connector Type N-Type Female
Dimensions 427x610mm
Pole Mount Diameter 25-50mm
Manufacturer Part No:
ANT-84
Brand:
Laird
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
3 kg
PB Part No:
NETLID721283
Product Model:
-
Warranty:
12 months * * Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
