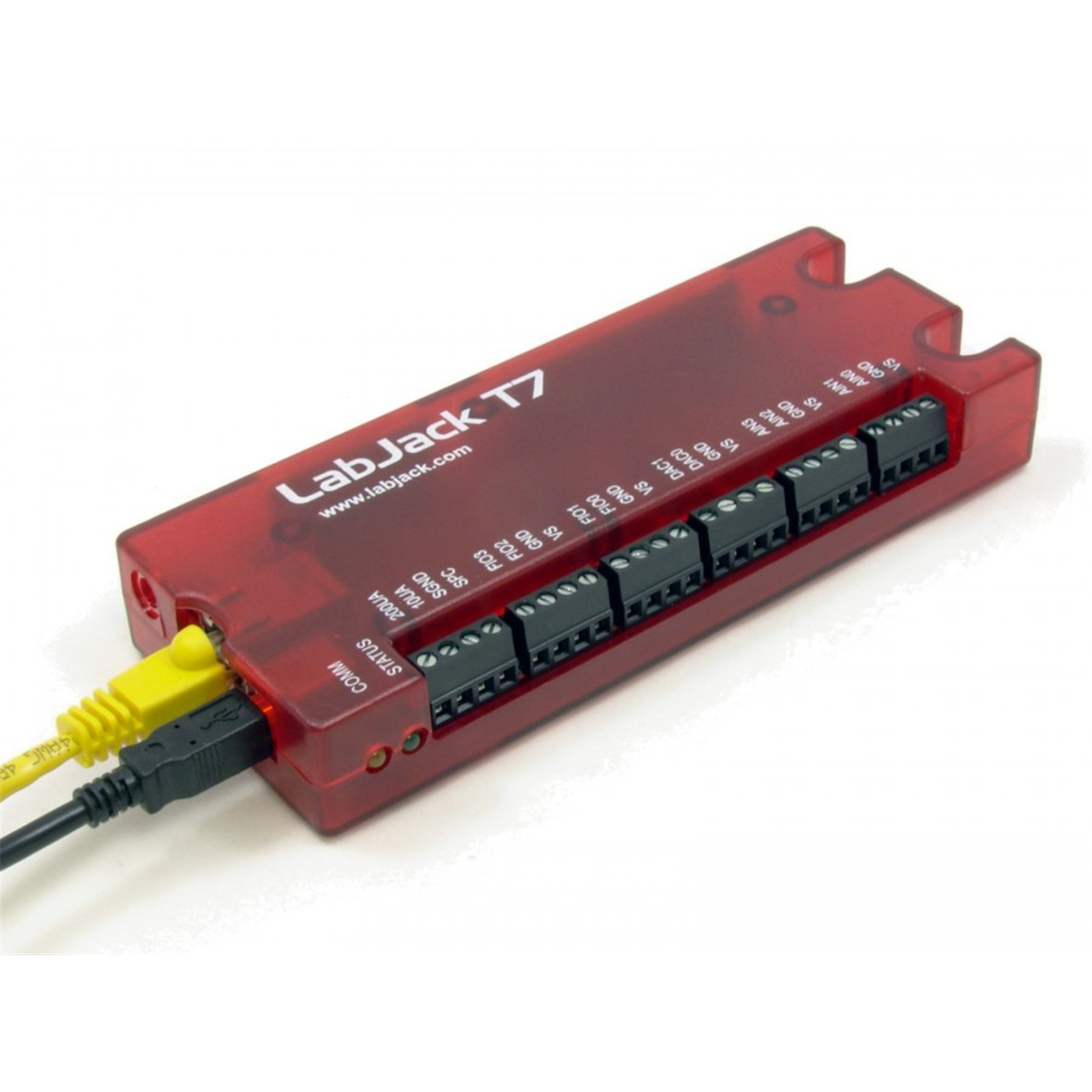

Labjack T7 USB or Ethernet multifunction DAQ device

PB Tech price

AUD $ 926 .78

$ 926 .78

Labjack T7 USB or Ethernet multifunction DAQ device

Brand: Labjack
MPN: T7
Part #: NETLJK1001
UPC:

PB Tech price

AUD $ 926 .78

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 30 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Labjack
MPN: T7
Part #: NETLJK1001
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Multifunction DAQ with WiFi, Ethernet, and USB

Choose the T7 series for ultimate flexibility. With 16 to 24-bit analog inputs, the option to use USB, Ethernet, or WiFi, and numerous built-in firmware features, the T7 Series can help you accomplish nearly any data acquisition need.

It's great for acquiring signals from virtually any kind sensor, and can serve that sensor data out through any of its 3 communication interfaces. With instrumentation amplified inputs, software selectable gain settings, dozens of digital I/O features, and a Modbus TCP front-end, the T7 Series is our most versatile multifunction DAQ platform. Common applications include laboratory research, industrial control and monitoring, automated testing, and prototype development. Additionally, the T7 series devices are capable of stand-alone operation by running Lua scripts.

Specifications

Analog Input
14 Analog Inputs built in (16-24 Bits Depending on Speed & Device Type)
Expand to 84 analog inputs with Mux80 add-on
T7: 16-bit high-speed ADC (up to 100k samples/s)
T7-Pro: 24-bit low-speed ADC (resolution as low as 1uV noise-free)
Software Configurable Resolution Settings
Single-Ended Inputs (14) or Differential Inputs (7)
Analog input ranges: ±10V, ±1V, ±0.1V and ±0.01V
All analog input features are software programmable by configuring the Analog Input Registers
High speed sampling configurable by using Stream Mode. Speeds up to 100kS/s
Low Latency Sampling and Control (less than 1ms) is made easy with Command-Response Modbus messages
Easy integration with sensors like thermocouples, load cells, bridges, and more ...

Analog Output
2 analog outputs (12-bit, 0-5V)
Waveform generation via Stream Out
Integrated LJTick-DAC support for multiple +/-10V outputs

Digital I/O
23 Digital I/O
Supports SPI, I2C, and more... (Master Only)
5 PWM Outputs with individual phase control
5 Pulse Outputs with configurable number, frequency, and width
2 Frequency Inputs returning both frequency and period
2 Pulse Width Inputs measuring time spent high and low as well as duty cycle
2 Line-to-Line Inputs measuring the time between edges on 2 different lines
4 High-Speed Counters
6 Software Counters w/ debounce capabilities
3 Pairs of Quadrature Inputs
Many of these DIO Extended Features share pins and cannot be used at the same time. See the DIO Extended Features section of the T7's datasheet

Fixed Current Outputs
200 µA
10 µA

Communication Options
USB
Ethernet
802.11b/g WiFi (T7-Pro only)

Other Highlights
Capable of stand-alone operation by running Lua Scripts
Built-In CJC Temperature Sensor for easy thermocouple temperature readings
Watchdog system
Field Upgradable Firmware
Programmable Startup Defaults
Industrial temperature range (-40 to +85C)

Package Contents
T7 (-Pro) unit itself in red enclosure
USB cable (6 ft / 1.8 m)
Ethernet Cable (6ft / 1.8m)
USB 5V power supply
Screwdriver
Antenna (T7-Pro only)
Other package details: No software CD included. Download the software from labjack.com.
Retail packing (Package) size: 10" x 7" x 3"
Retail packing (Package) wt: 1.2lb

Manufacturer Part No:

Brand:

Labjack

Product Type:

UPC

Product Family:

Shipping Weight:

0.5 kg

PB Part No:

NETLJK1001

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
