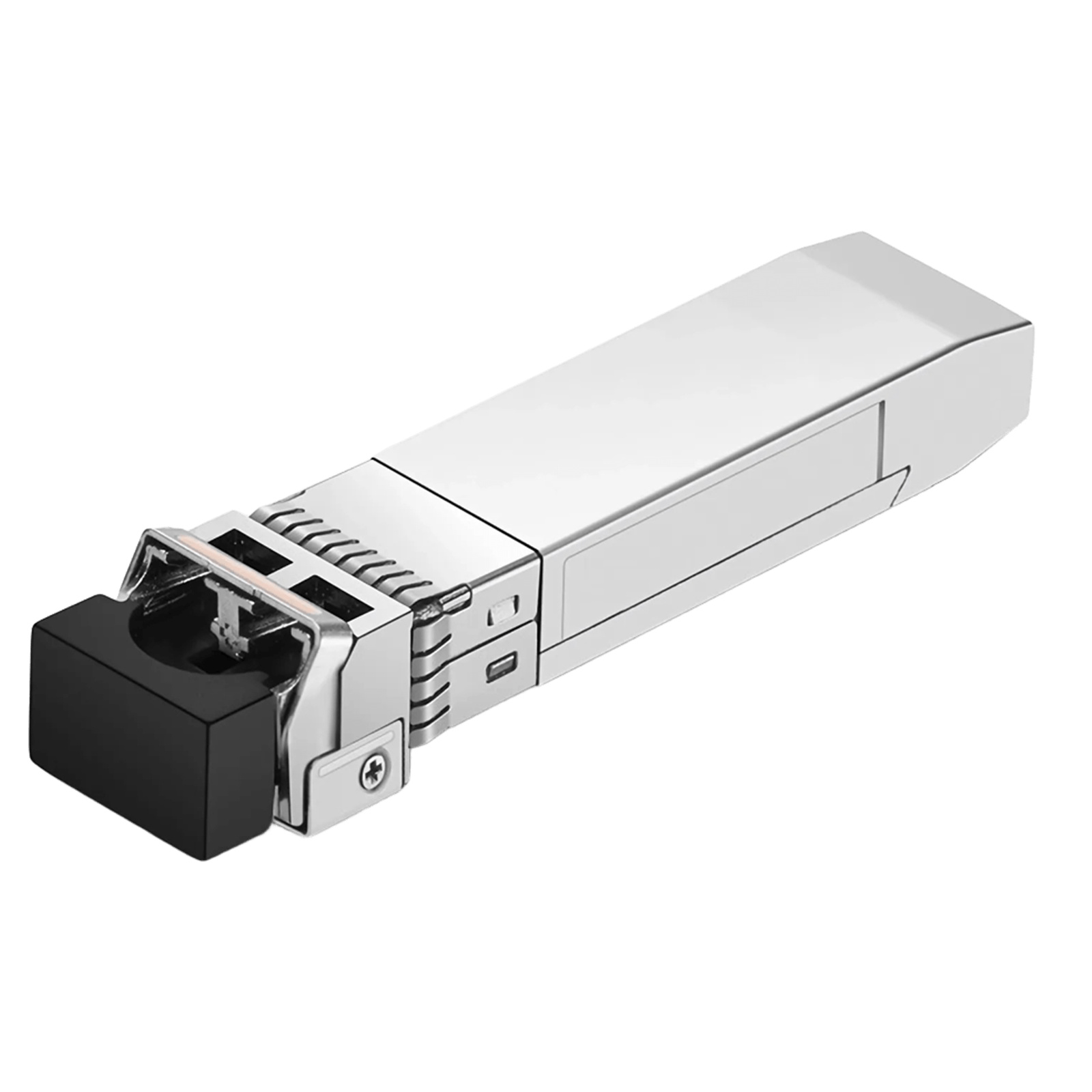

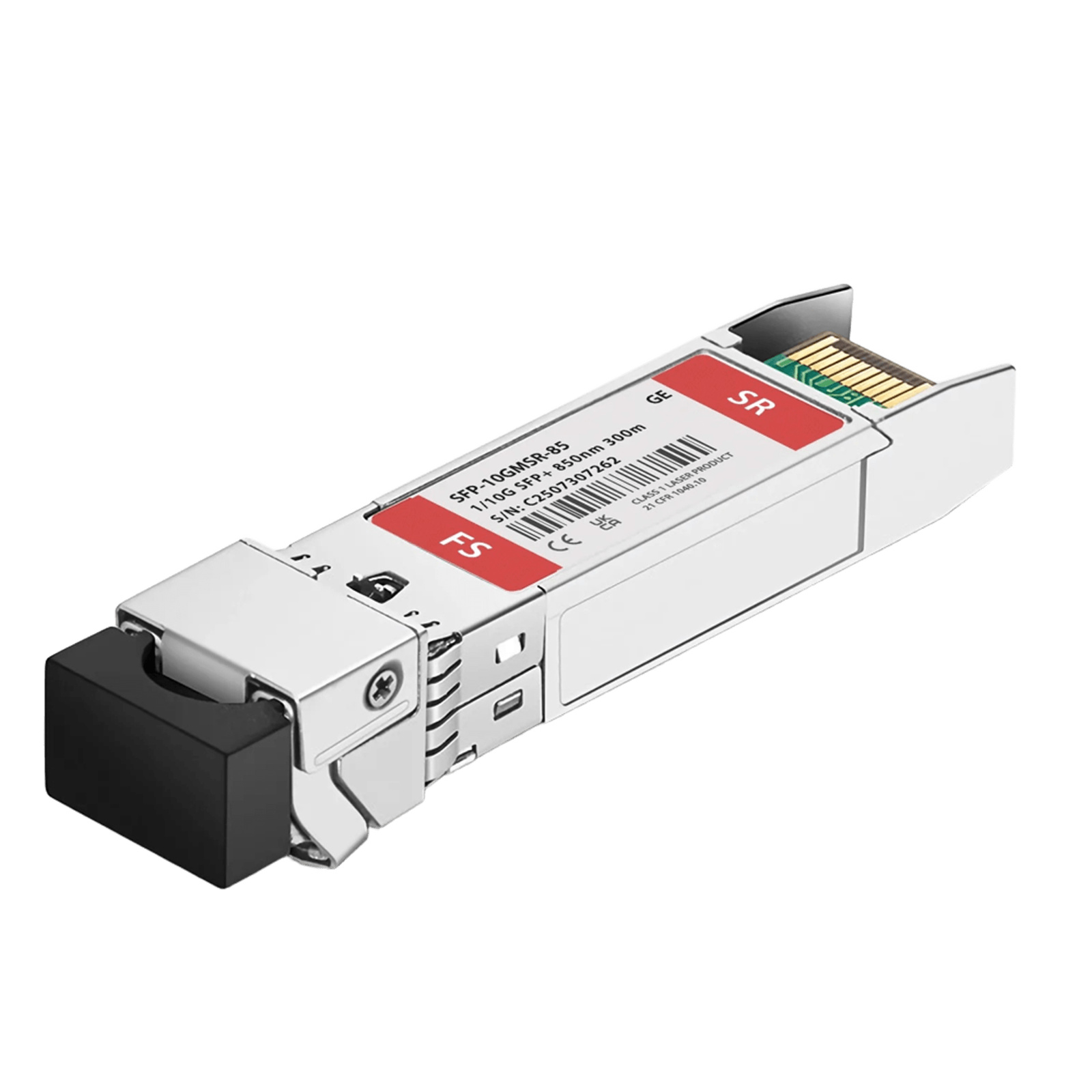

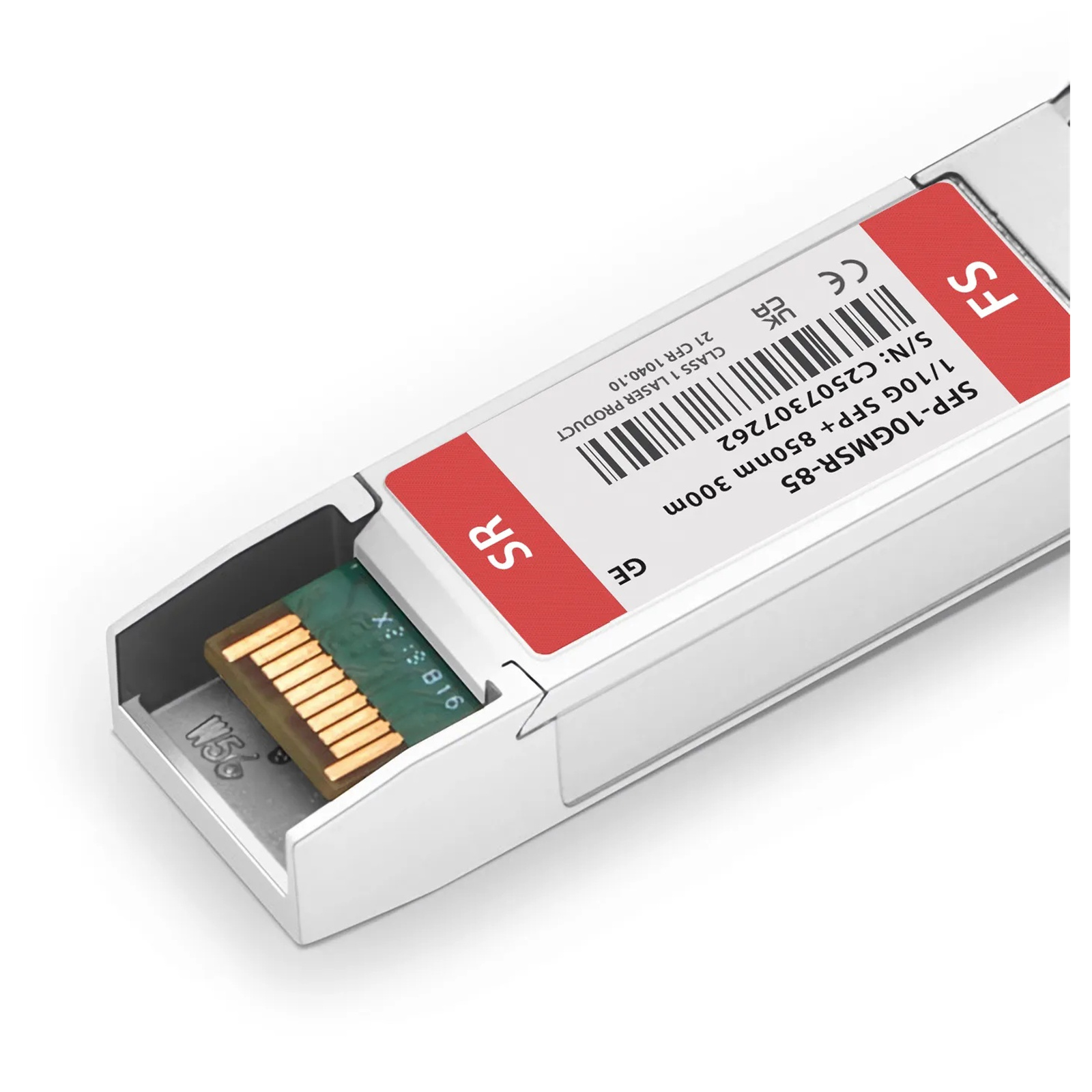

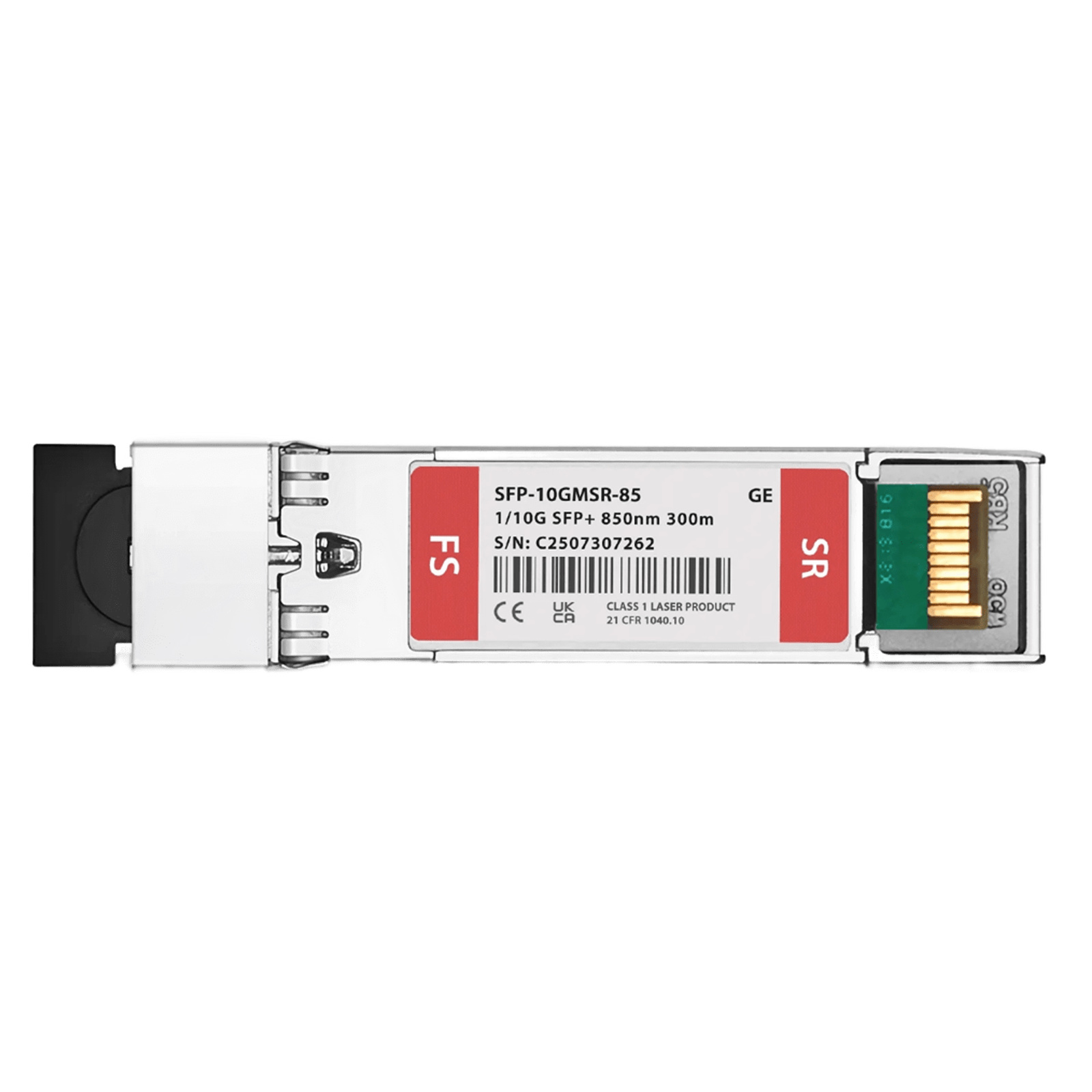

FS Generic Compatible SFP+ 1000BASE-SX and 10GBASE-SR Dual-Rate 850nm 300m DOM Duplex LC/UPC MMF Optical Transceiver Module
Out of stock
FS Generic Compatible SFP+ 1000BASE-SX and 10GBASE-SR Dual-Rate 850nm 300m DOM Duplex LC/UPC MMF Optical Transceiver Module
- Brand: FS
- MPN: FS-74676
- Part #: NETLTE2029
- UPC:
- Brand: FS
- MPN: FS-74676
- Part #: NETLTE2029
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Transceivers
FS Generic Compatible SFP+ 1000BASE-SX and 10GBASE-SR Dual-Rate 850nm 300m DOM Duplex LC/UPC MMF Optical Transceiver Module
- Brand: FS
- MPN: FS-74676
- Part #: NETLTE2029
Product URL: https://www.pbtech.com/product/NETLTE2029/FS-Generic-Compatible-SFP-1000BASE-SX-and-10GBASE
Features
Dual-Rate 1000BASE-SX and 10GBASE-SR SFP+ Transceiver Module (MMF, 850nm, 300m, LC, DOM)
Generic Compatible SFP+ transceiver supports up to 300m over OM3 MMF via an LC duplex connector. This transceiver is compliant with SFF-8431, IEEE 802.3-2012 10G-SR/SW and 1000BASE-SX. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data centre, 1G and 10G Ethernet etc.
- Max. Power Consumption 1W
- Tested in Targeted Switches for Superior Performance, Quality, and Reliability
- Hot Pluggable SFP+ MSA Compliant
- Support 1G/10G Dual-rate
- Optical Interoperability with 10GBASE XENPAK, X2, and XFP Interfaces On the Same Link
- TO Packaging Features High Reliability and Robust Physical Protection
- Class 1 FDA Laser Safety and RoHS Compliant
- IEEE 802.3ae Compliant

Effortless Network Upgrade with 1/10G Dual-Rate Transceivers
Elevate from 1G to 10G bandwidth smoothly with the dual-rate transceiver, enhancing performance with minimal disruption.

10G Connectivity for Data Center
Featured with 1W low-power, high-density and high-speed, the SFP+ transceiver offers a popular way to help you quickly ramp up to 10G transmission.

Tailored Excellence with TO-Can Packaging
Taking TO-can package design, the transceiver has great reliability, airtightness, and heat dissipation performance, ideal for telecom & data centre applications.

Tested in Host Devices for Proven Interoperability
Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations.

Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
- Optical Spectrum Test: No Packet Loss & CRC
- Eye Pattern Test: Mask Margin >20%
- Bit Error Rate Test: BER 1E-12
- Temperature Test: 0~70°C

Certifications
Fully certified to meet strict international safety and quality standards for the industry.

Note
The FS P/N is changed from SFP-10GSR-85 to SFP-10GMSR-85. You may receive either label, but functionality is identical.
Specifications
Part Number
SFP-10GMSR-85
Form Factor
SFP+
Max. Data Rate
1/10.3Gbps
Wavelength
850nm
Max. Transmission Distance
300m@ OM3/400m@ OM4

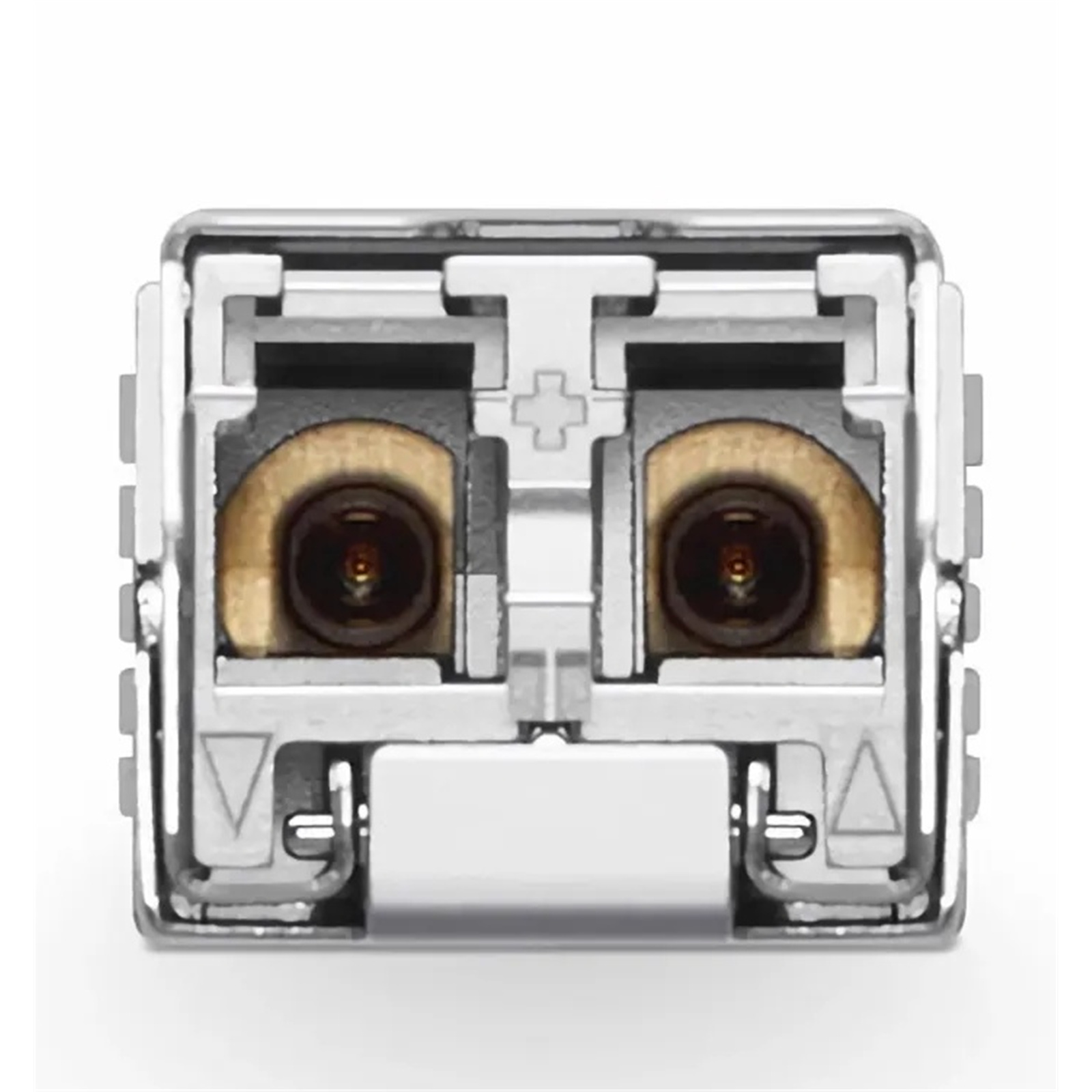

Connector
Duplex LC
Media
MMF
Transmitter Type
VCSEL
Receiver Type
PIN
TX Power
-7.3~-1dBm
Receiver Sensitivity
< -11.1dBm
Power Budget
3.8dB
Receiver Overload
-1dBm
Max. Power Consumption
≤1W
Extinction Ratio
>3dB
DDM/DOM
Supported
Operating Temperature
0 to 70°C (32 to 158°F)
Core Size
50/125µm
Modulation
NRZ
Protocols
IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
