FS Cisco GLC-BX80-DA Compatible 1000BASE-BX-D SFP BiDi 1550nm- 1000BASE-BX-D SFP BiDi 1550nm-TX/1490nm-RX 80km DOM Simplex LC/UPC SMF Optic
Out of stock
FS Cisco GLC-BX80-DA Compatible 1000BASE-BX-D SFP BiDi 1550nm- 1000BASE-BX-D SFP BiDi 1550nm-TX/1490nm-RX 80km DOM Simplex LC/UPC SMF Optic
- MPN: FS-49481
- Part #: NETLTE2041
- UPC:
- MPN: FS-49481
- Part #: NETLTE2041
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Transceivers
FS Cisco GLC-BX80-DA Compatible 1000BASE-BX-D SFP BiDi 1550nm- 1000BASE-BX-D SFP BiDi 1550nm-TX/1490nm-RX 80km DOM Simplex LC/UPC SMF Optic
- MPN: FS-49481
- Part #: NETLTE2041
Product URL: https://www.pbtech.com/product/NETLTE2041/FS-Cisco-GLC-BX80-DA-Compatible-1000BASE-BX-D-SFP
Features

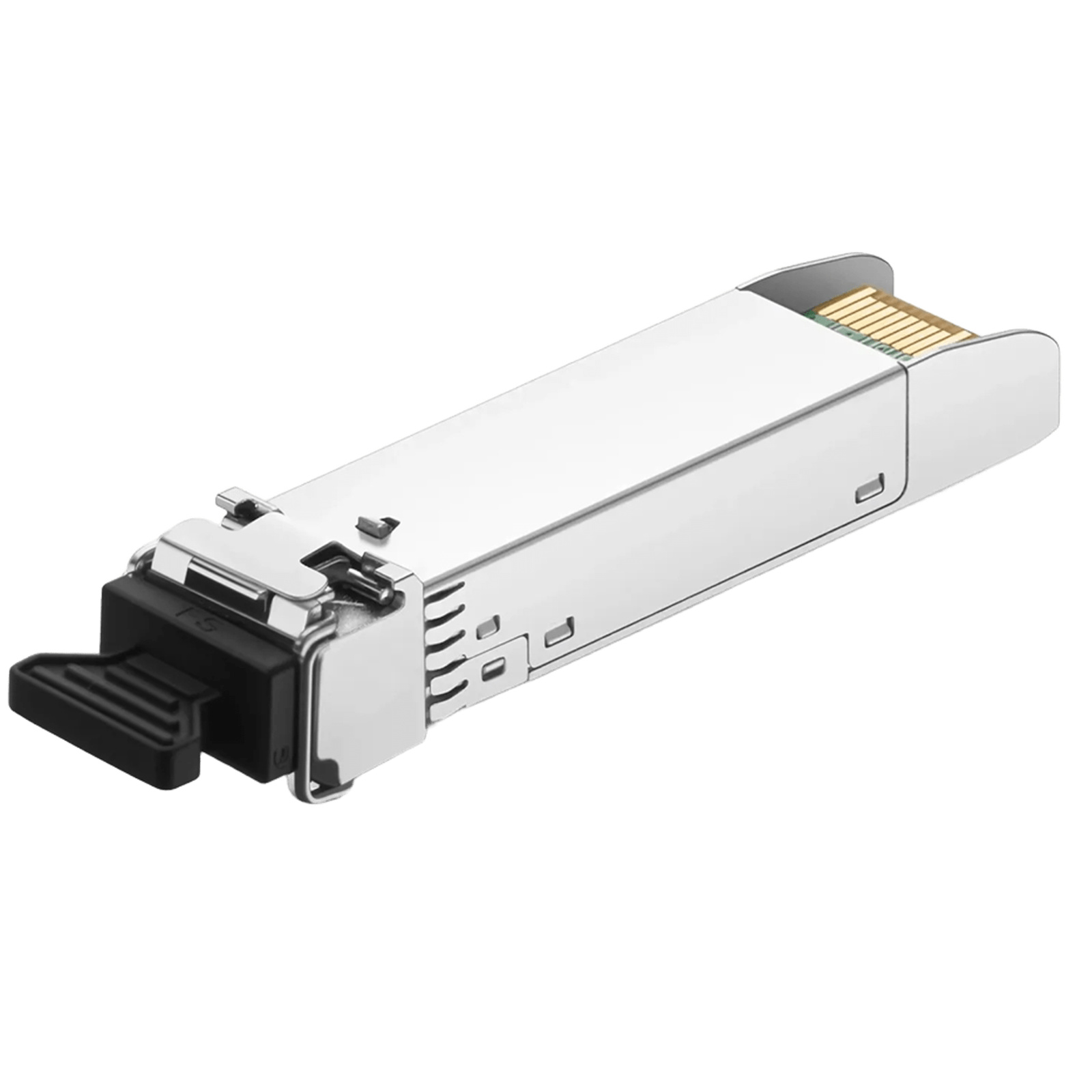

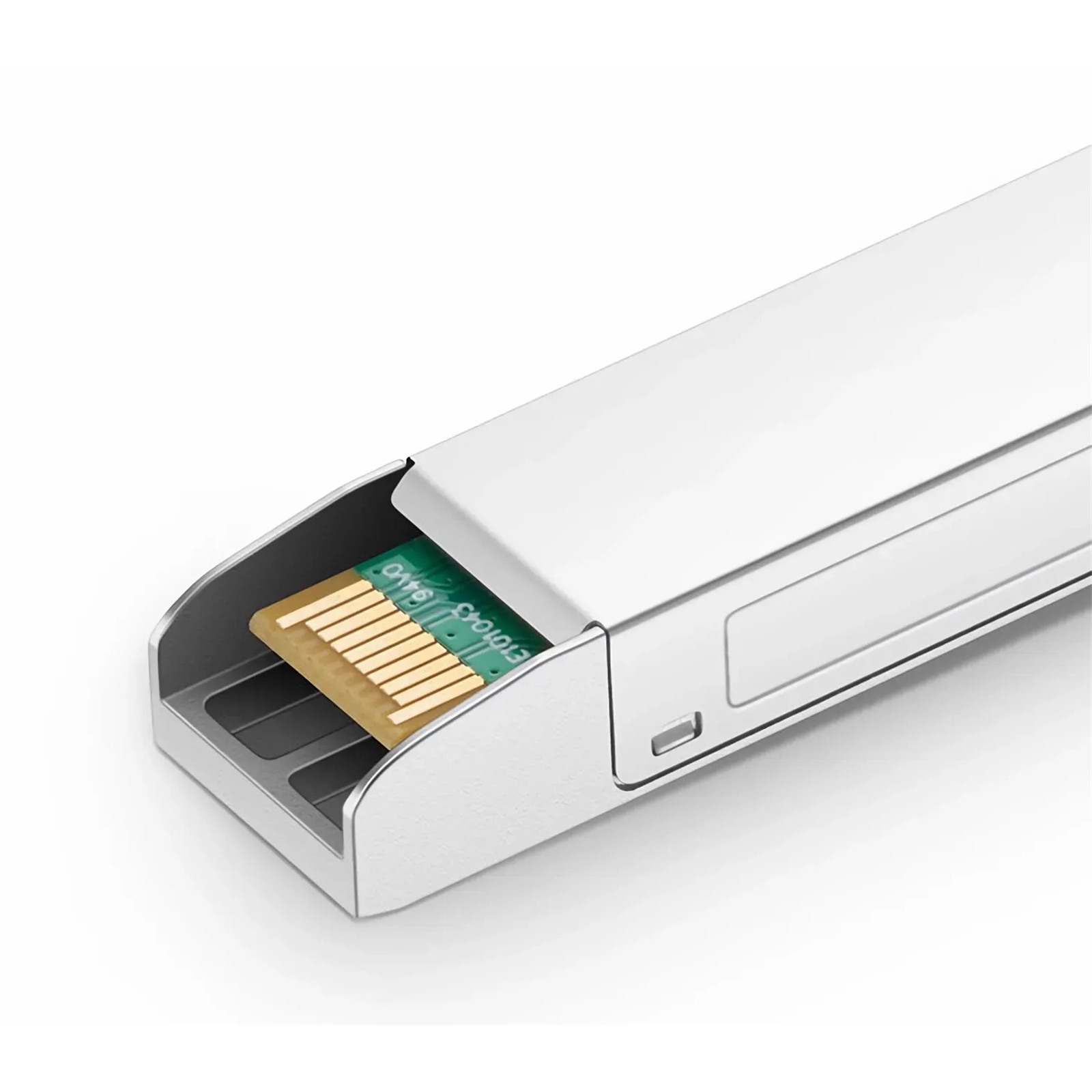

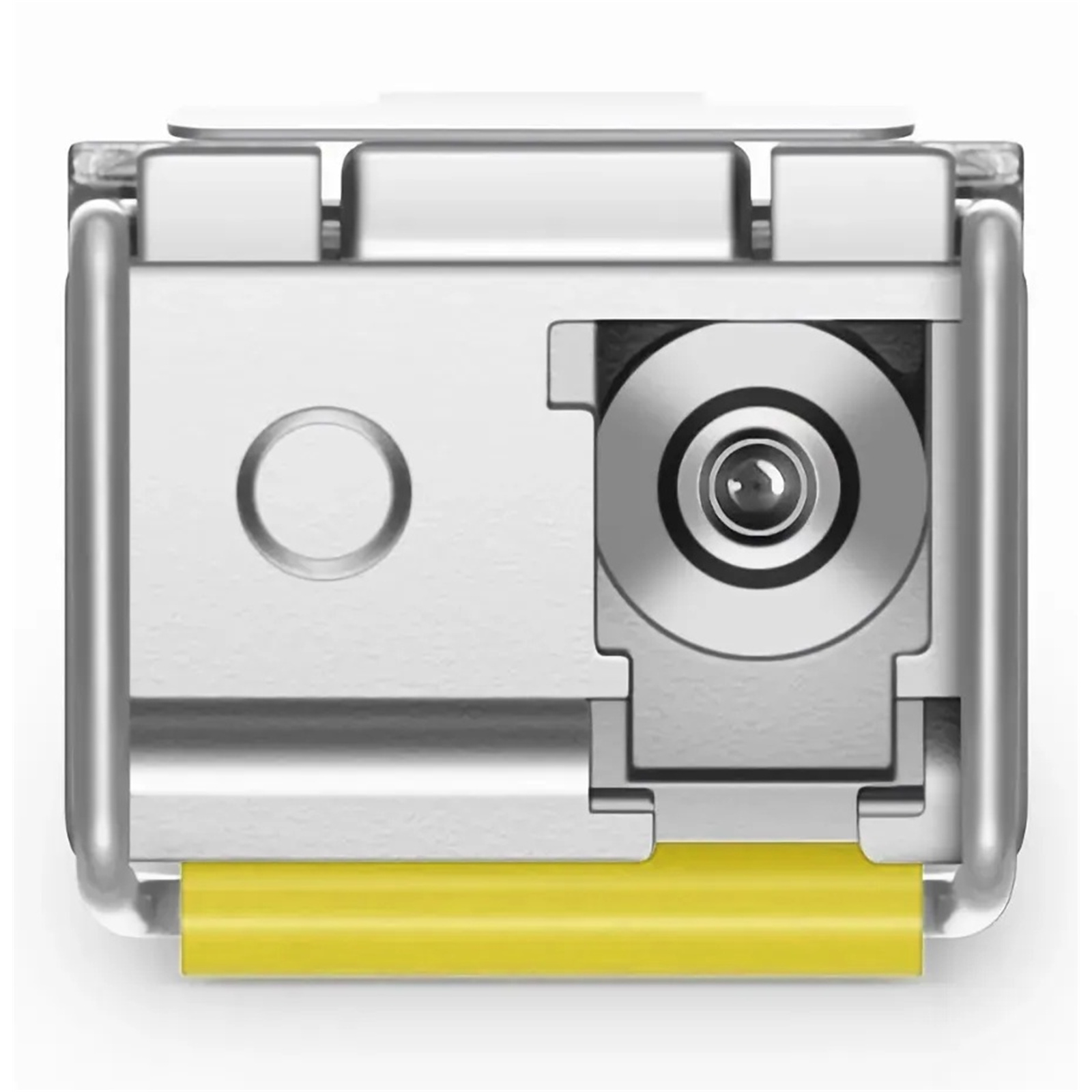

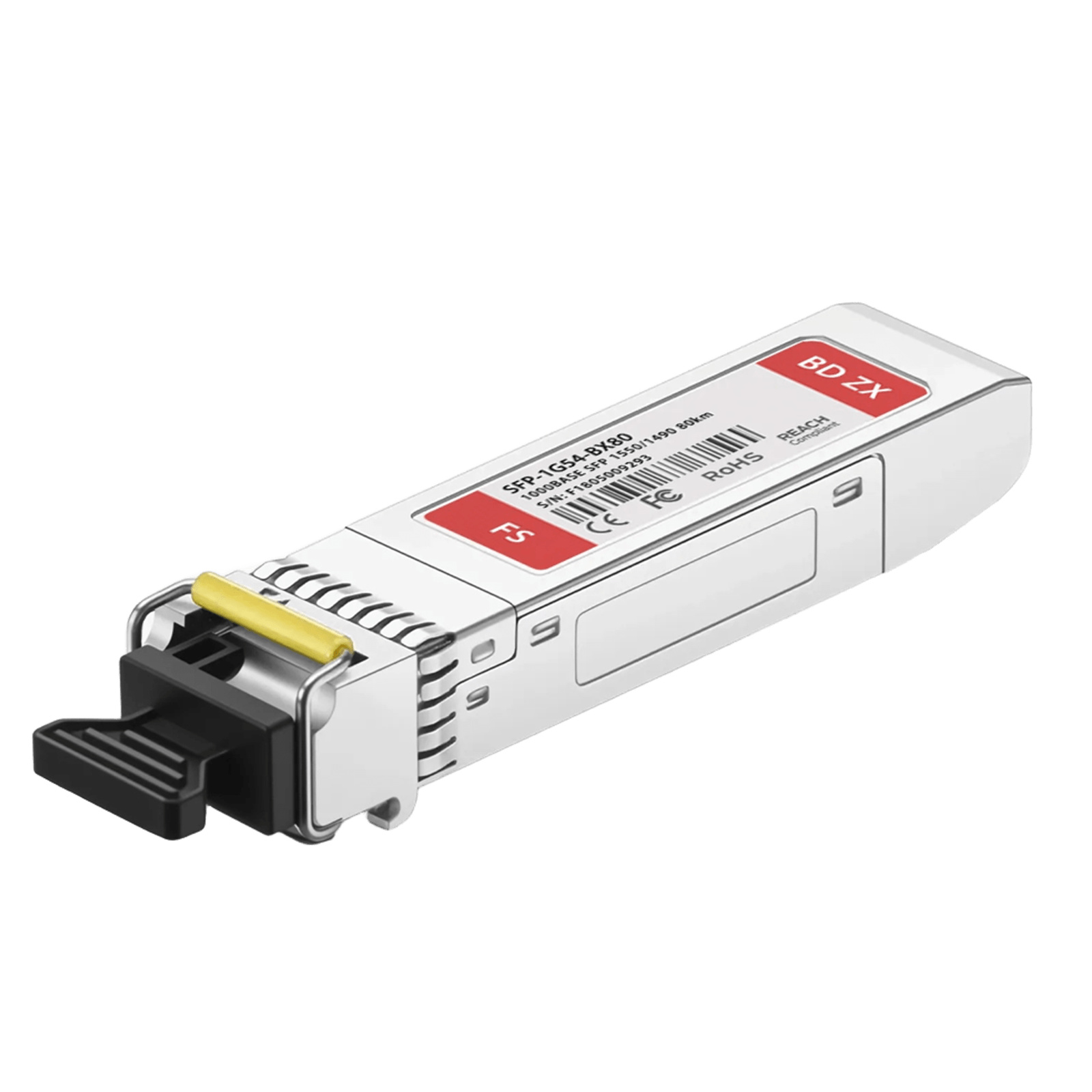

Cisco GLC-BX80-DA Compatible 1000BASE-BX SFP Transceiver Module (SMF, 1550nm-TX/1490nm-RX, 80km, LC, DOM)
The Cisco-compatible SFP transceiver provides up to 80km of 1000Base-BX throughput over single-mode fibre (SMF) using 1550nm-TX/1490nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths.It provides 1000BASE Ethernet connectivity options for Fast Ethernet, Telecom and Data Centers.

1G Connectivity for Data Center
Featured with low power consumption, the BIDI SFP transceivers provides a cost-efficient solution via using a single-fibre solution for Gigabit Ethernet applications.

Tested in Host Devices for Proven Interoperability
Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations.

Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
- Optical Spectrum Test: No Packet Loss & CRC
- Eye Pattern Test: Mask Margin >20%
- Bit Error Rate Test: BER 1E-12
- Temperature Test: 0~70°C

Certifications
Fully certified to meet strict international safety and quality standards for the industry.

Note
1. Matched Pairs: It must be used in pairs with SFP 1490nm-TX/1550nm-RX.

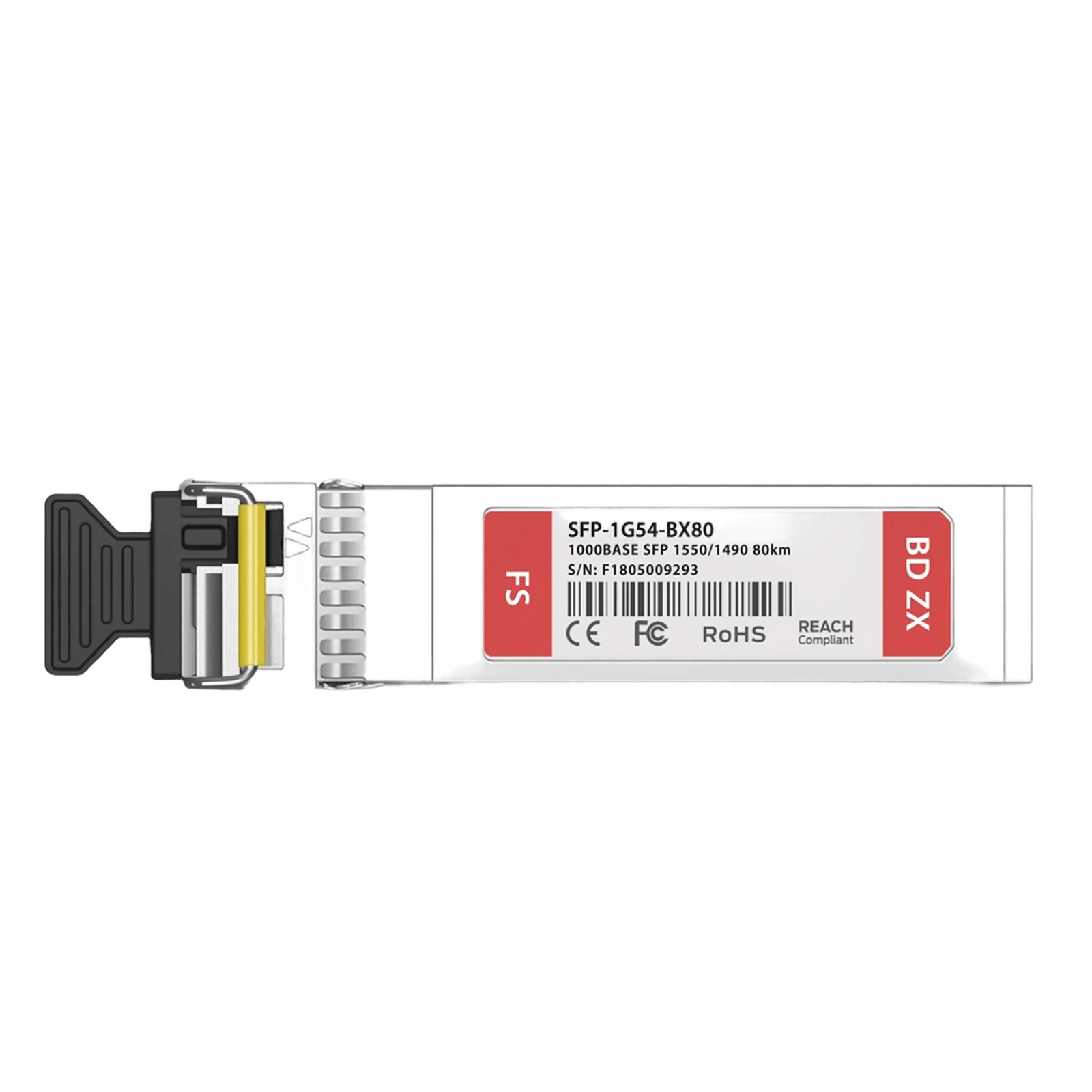

2. Note: The FS P/N is changed from SFP-GE-BX80 to SFP-1G54-BX80. You may receive either label, but functionality is identical.
Specifications
Cisco Compatible
GLC-BX80-DA
Form Factor
SFP
Max. Data Rate
1.25Gbps
Wavelength
1550nm-TX/1490nm-RX
Max Cable Distance
80km
Connector
Simplex LC
Media
SMF
Optical Components
DFB BiDi
Receiver Type
PIN
TX Power
-2~3dBm
Minimum Receiver Power
< -24dBm
Bit Error Ratio (BER)
1E-12
Attenuator (for short-distance use of long-reach transceiver)
15 dB (≤15 km), 10 dB (≤35 km), 5 dB (≤55 km)
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Power Consumption
≤1W
DDM/DOM
Supported
Protocols
Fast Ethernet, Gigabit Fibre Channel, MSA Compliant
