FS HPE Aruba 845398-B21 Compatible 25GBASE-SR SFP28 850nm 100m DOM Duplex LC/UPC MMF Optical Transceiver Module

HPE Aruba 845398-B21 Compatible 25GBASE-SR SFP28 Optical Transceiver Module for Data Center and Telecom (MMF, 850nm, 100m, LC, DOM)

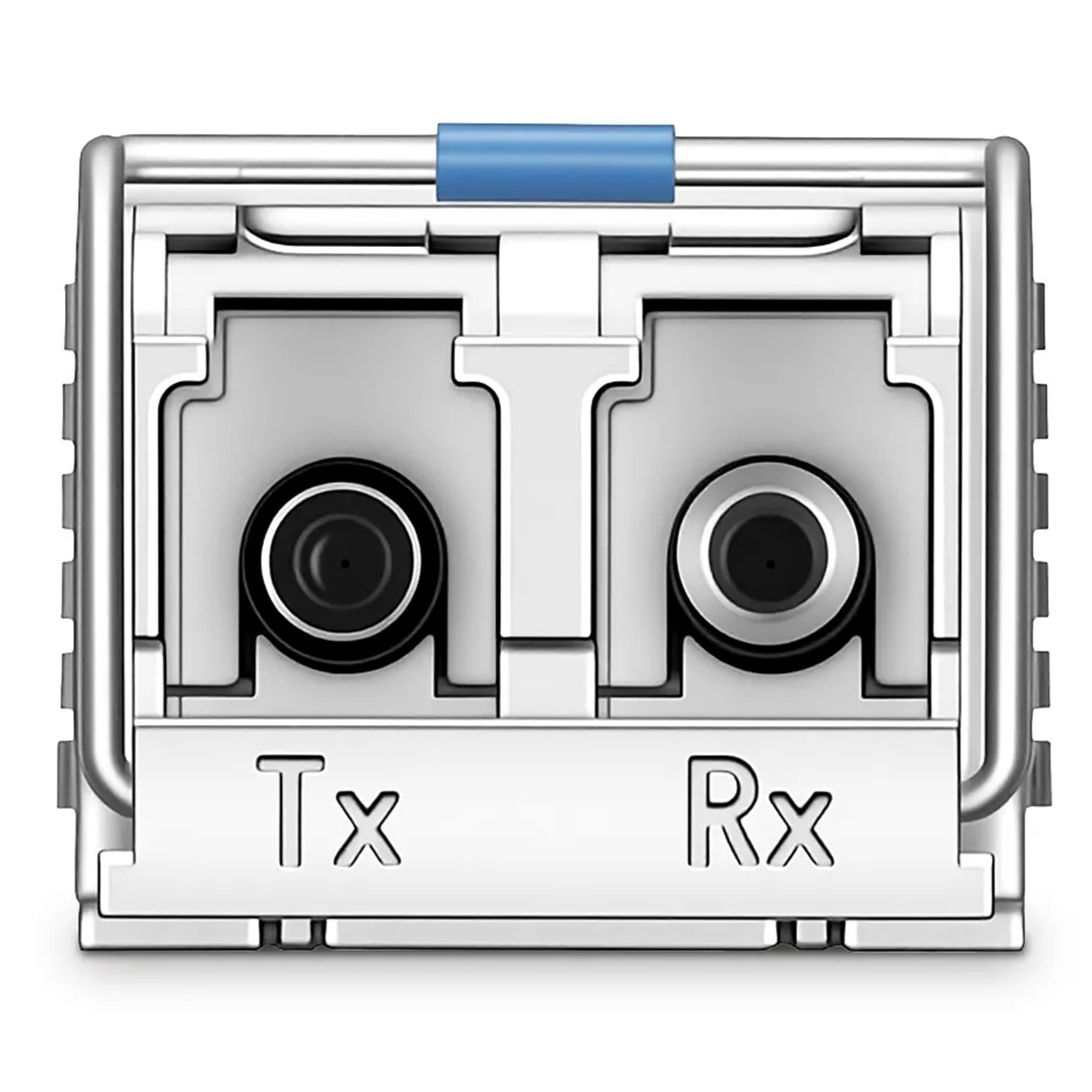

The HPE Aruba 845398-B21 compatible SFP28 transceiver adopts LC duplex connectors, reaching a link up to 100m over OM4 MMF (70m over OM3). The SFP28 transceiver module supports running on the same 1G/10G network cabling Infrastructure, giving 2.5 times increase in speed at least, and the built-in DDM/DOM functions monitor the real-time operating status.

This hot-swappable transceiver is pre-programmed, uniquely serialized, and tested for data traffic and application performance. Besides, it offers interoperability, laying a foundation for the next-generation network upgrade. Each SFP28 transceiver module is individually tested on targeted switches, and is fully compliant with the SFP28 MSA, RoHS, CPRI, and the eCPRI standards. Featuring low power consumption, high speed, this 25G transceiver is ideal for 25G Ethernet, telecom, and data centre.
Note: The FS P/N is changed from SFP28-25GSR-85 to SFP-25GSR-85, but the product is the same. Only the FS P/N has been changed.

- Built-in Macom Chip, Max. Power Consumption 1W
- Interoperable with Other IEEE-compliant 25G Interfaces for Seamless Integration
- Tested in Targeted Switch for Superior Performance, Quality, and Reliability
- High-speed Connectivity Compliant to IEEE 802.3by and IEEE 802.3cc
- Support 4x25G Fan out and Easy Migration to 100G Platforms
- Applied in 25G Ethernet, Telecom, and Data Center
- Hot Pluggable SFP28 MSA Compliant

Upgrade Your Network One Site at a Time

Upgrade just one site to 100G gear, and still connect it to the existing 25G sites.

25G Connectivity for Data Center

Featured with low-power, high-density and high-speed, the SFP28 transceiver offers a popular way to help you quickly ramp up to 25G transmission.

Tested in Host Devices for Proven Interoperability

Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations.

Comprehensive Testing Increases Reliability

Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.

- Optical Spectrum Test: No Packet Loss & CRC
- Eye Pattern Test: Mask Margin >20%
- Bit Error Rate Test: BER 1E-12
- Temperature Test: 0~70°C

Certifications

Fully certified to meet strict international safety and quality standards for the industry.
