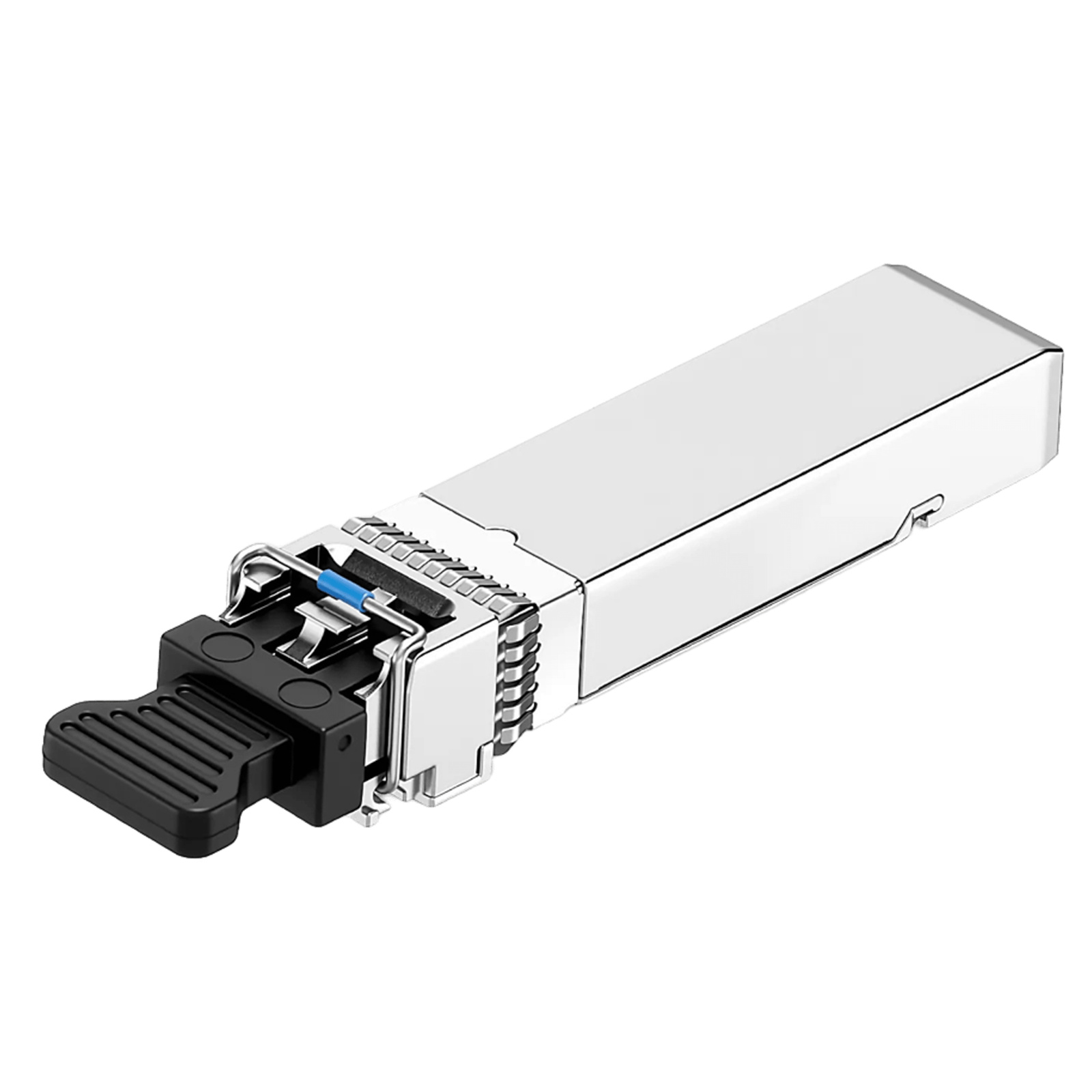

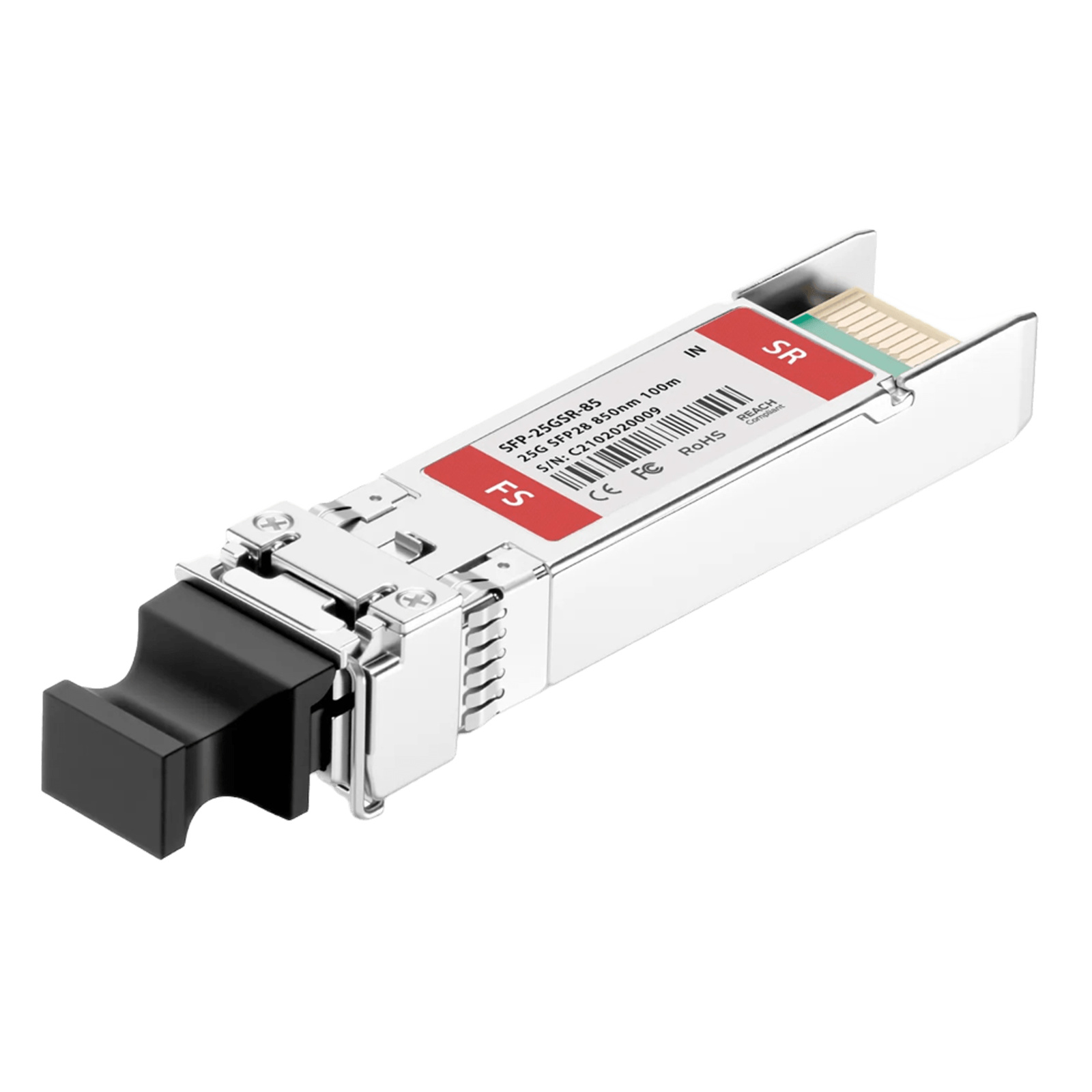

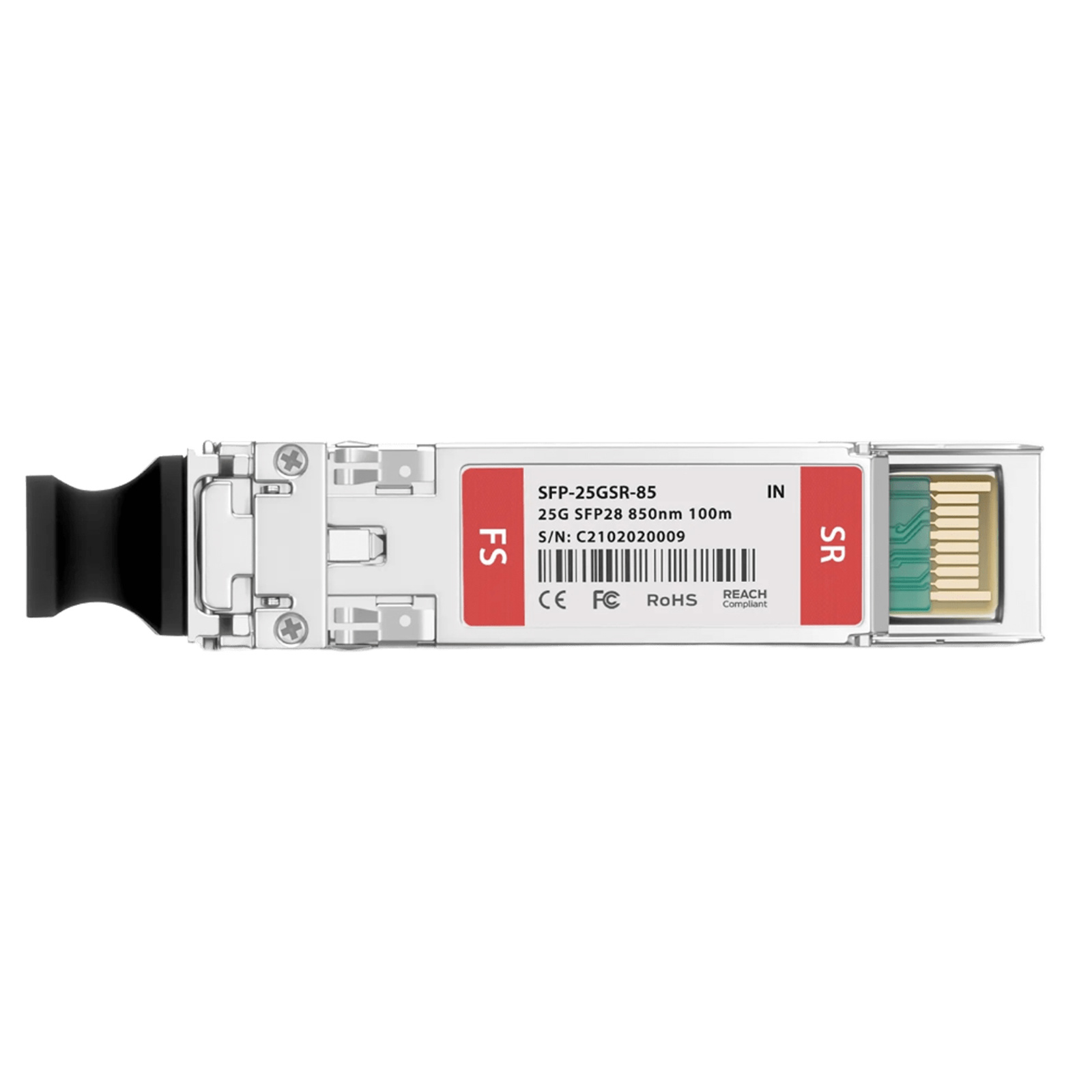

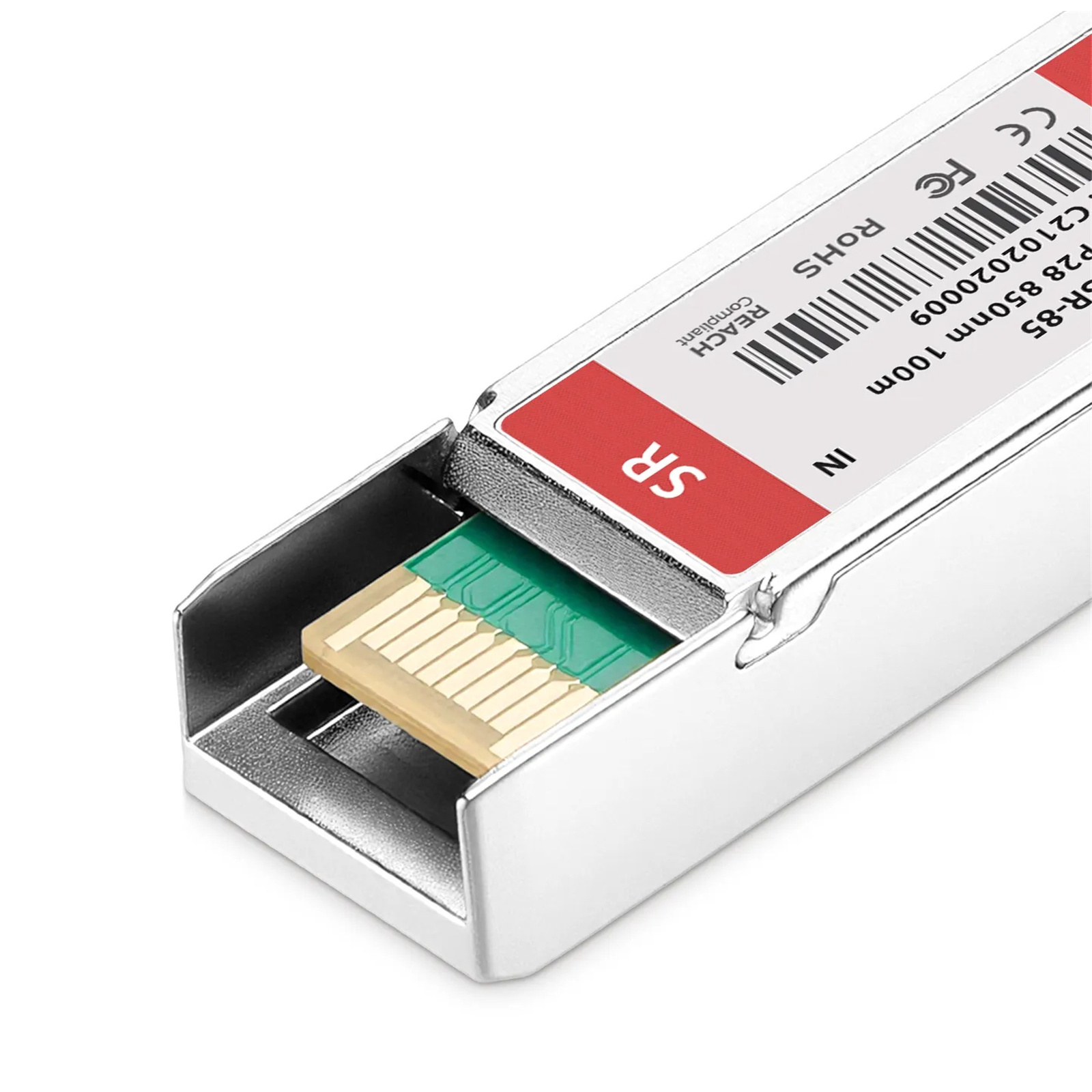

FS Intel E25GSFP28SR Compatible 25GBASE-SR SFP28 850nm 100m DOM Duplex LC/UPC MMF Optical Transceiver Module
Out of stock
FS Intel E25GSFP28SR Compatible 25GBASE-SR SFP28 850nm 100m DOM Duplex LC/UPC MMF Optical Transceiver Module
- Brand: FS
- MPN: FS-68000
- Part #: NETLTE2052
- UPC:
- Brand: FS
- MPN: FS-68000
- Part #: NETLTE2052
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Transceivers
FS Intel E25GSFP28SR Compatible 25GBASE-SR SFP28 850nm 100m DOM Duplex LC/UPC MMF Optical Transceiver Module
- Brand: FS
- MPN: FS-68000
- Part #: NETLTE2052
Product URL: https://www.pbtech.com/product/NETLTE2052/FS-Intel-E25GSFP28SR-Compatible-25GBASE-SR-SFP28-8
Features
Intel E25GSFP28SR Compatible 25GBASE-SR SFP28 Optical Transceiver Module for Data Center and Telecom (MMF, 850nm, 100m, LC, DOM)
Intel E25GSFP28SR compatible SFP28 transceiver adopts LC duplex connectors, reaching a link up to 100m over OM4 MMF (70m over OM3). The SFP28 transceiver module supports running on the same 1G/10G network cabling Infrastructure, giving 2.5 times increase in speed at least, and the built-in DDM/DOM functions monitor the real-time operating status.
This hot-swappable transceiver is pre-programmed, uniquely serialized, and tested for data traffic and application performance. Besides, it offers interoperability, laying a foundation for the next-generation network upgrade. Each SFP28 transceiver module is individually tested on targeted switches, and is fully compliant with the SFP28 MSA, RoHS, CPRI, and the eCPRI standards. Featuring low power consumption, high speed, this 25G transceiver is ideal for 25G Ethernet, telecom, and data centre.

Upgrade Your Network One Site at a Time
Upgrade just one site to 100G gear, and still connect it to the existing 25G sites.
- Connect New 100G Sites to Legacy 25G Sites
- Full Utilize Your 100G Port Bandwidth
- Re-use 25G Optics in New 100G Ports

25G Connectivity for Data Center
Featured with low-power, high-density and high-speed, the SFP28 transceiver offers a popular way to help you quickly ramp up to 25G transmission.

Tested in Host Devices for Proven Interoperability
Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations.

Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
- Optical Spectrum Test: No Packet Loss & CRC
- Eye Pattern Test: Mask Margin >20%
- Bit Error Rate Test: BER 1E-12
- Temperature Test: 0~70°C

Certifications
Fully certified to meet strict international safety and quality standards for the industry.
Note
The FS P/N is changed from SFP28-25GSR-85 to SFP-25GSR-85, but the product is the same.
Specifications
Intel Compatible
E25GSFP28SR
Form Factor
SFP28
Max Data Rate
25.78Gbps
Wavelength
850nm
Max Cable Distance
100m@OM4/70m@OM3
Connector

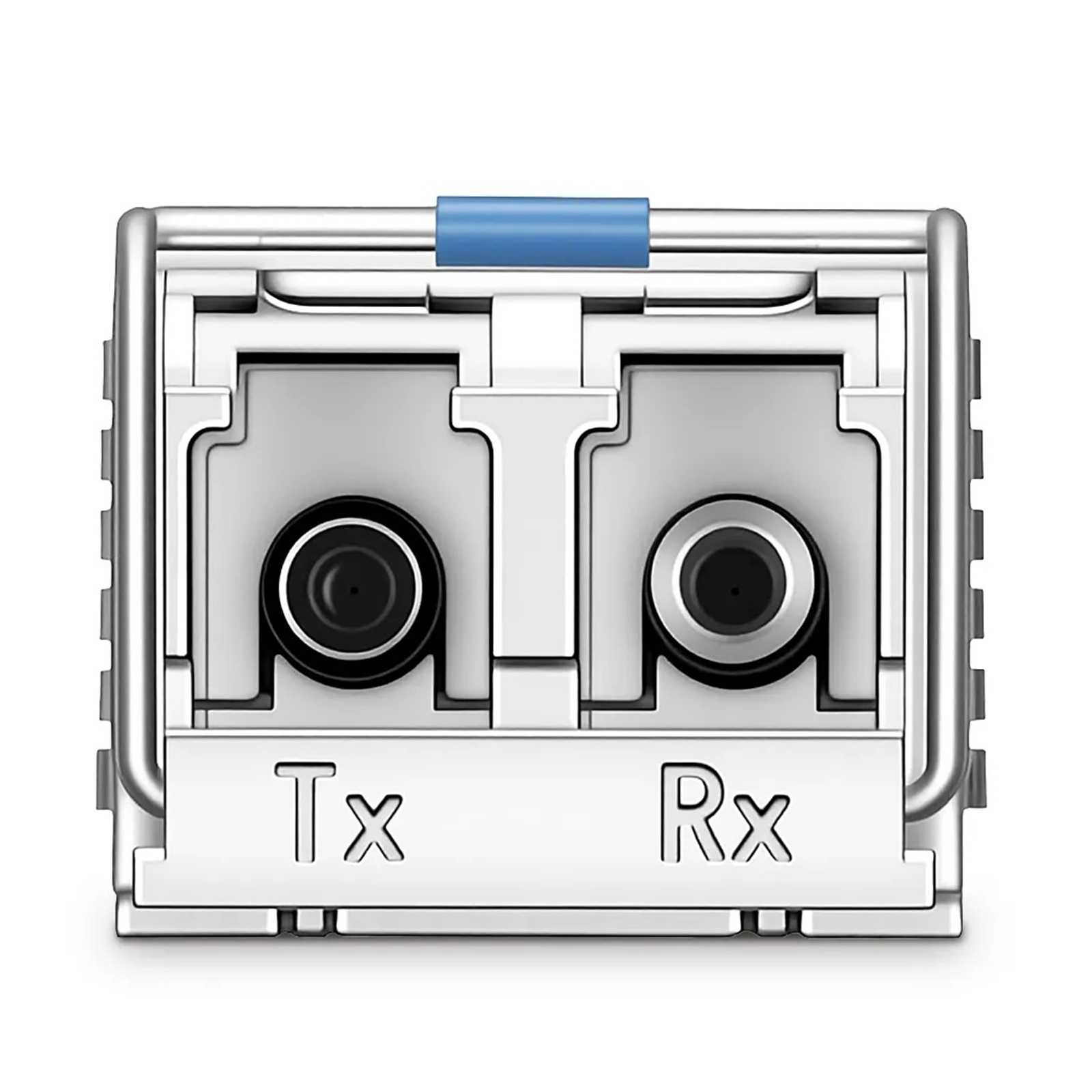

Duplex LC
Media
MMF
Transmitter Type
VCSEL
Receiver Type
PIN
TX Power
-8.4~2.4dBm
Minimum Receiver Power
<-5.6dBm
Power Budget
2.8dB
Receiver Overload
2.4dBm
Power Consumption
≤1W
Extinction Ratio
>2dB
CDR (Clock and Data Recovery)
TX & RX Built-in CDR
Inbuilt FEC
Yes
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Protocols
SFF-8472, SFF-8024, SFF-8431, SFF-8432
DDM/DOM
Supported
