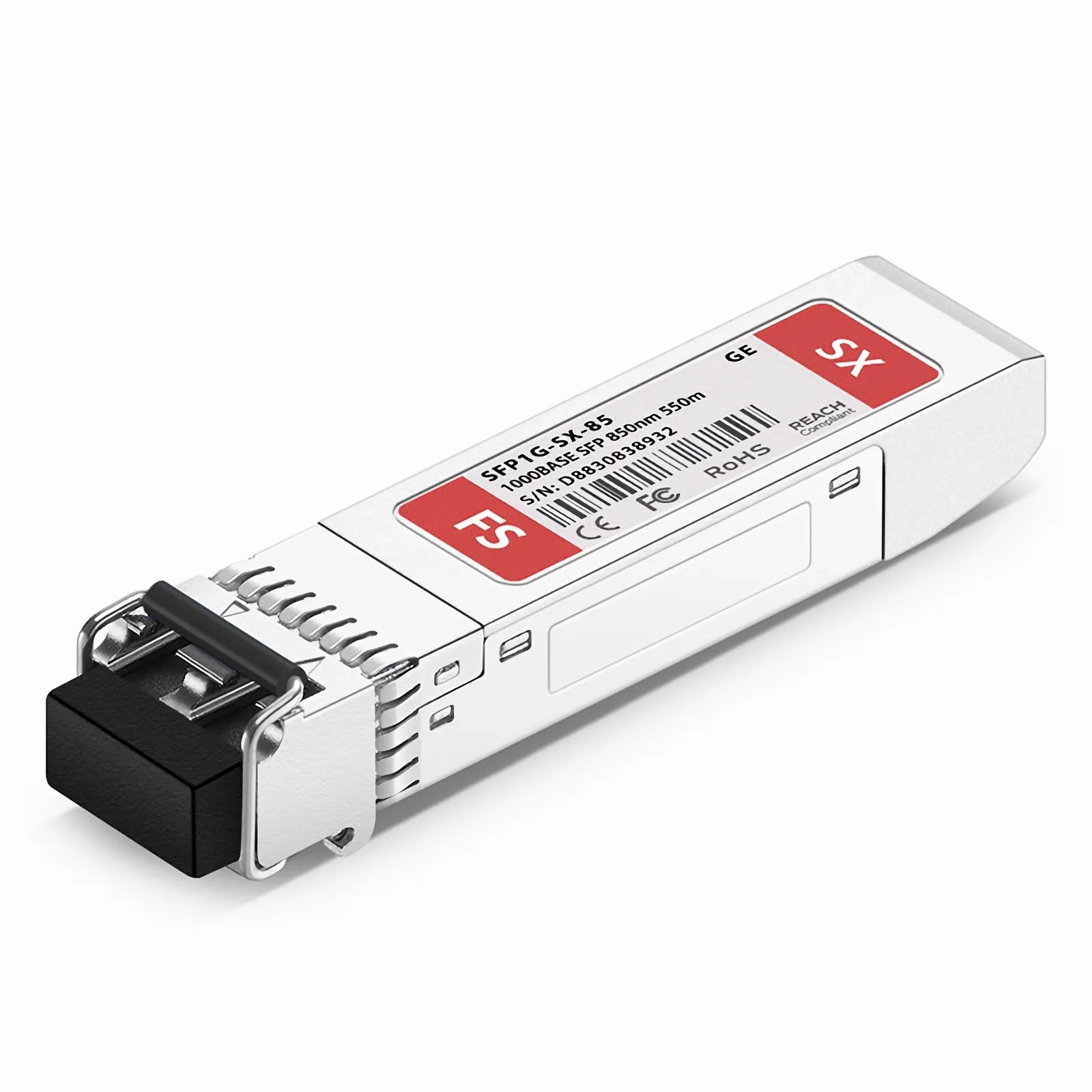

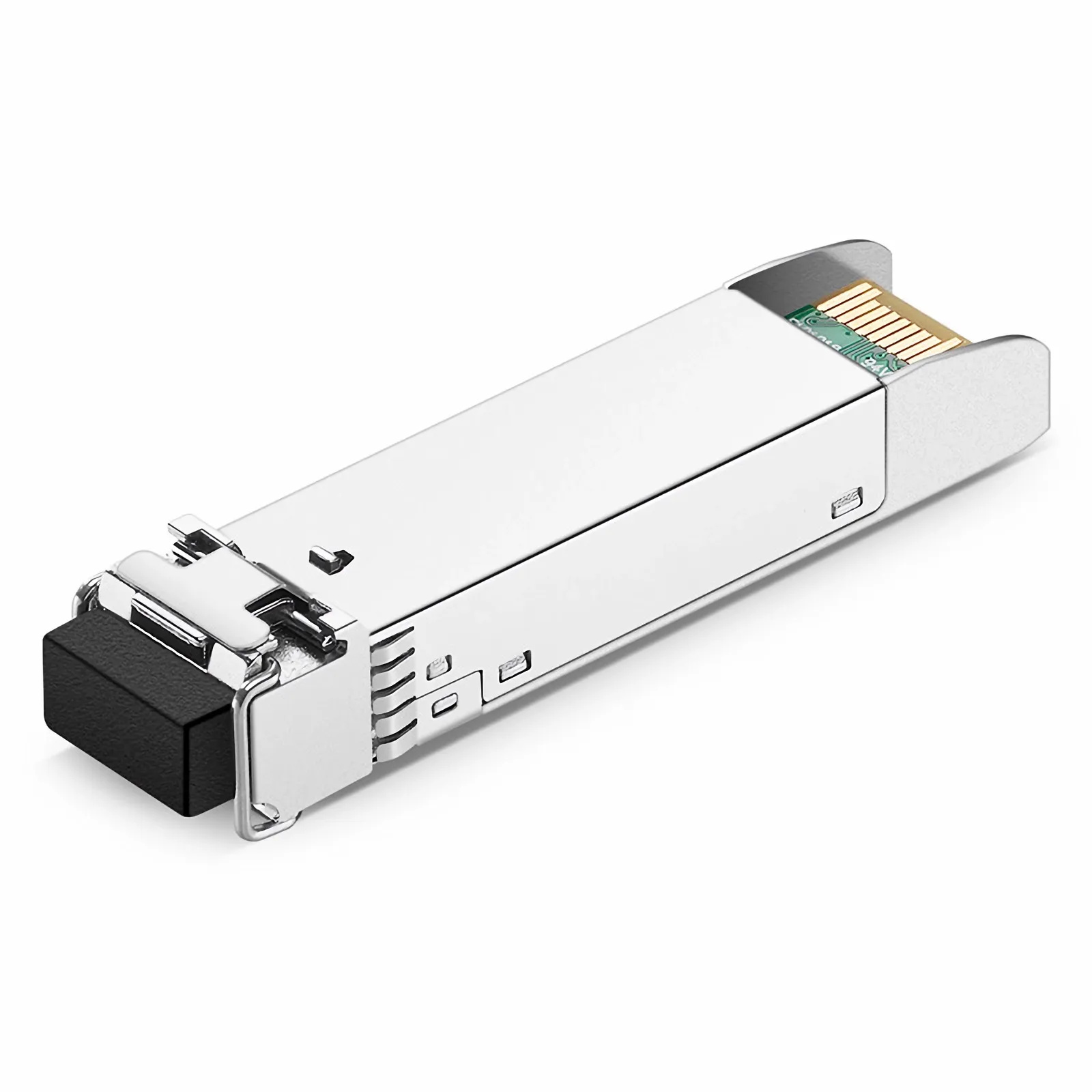

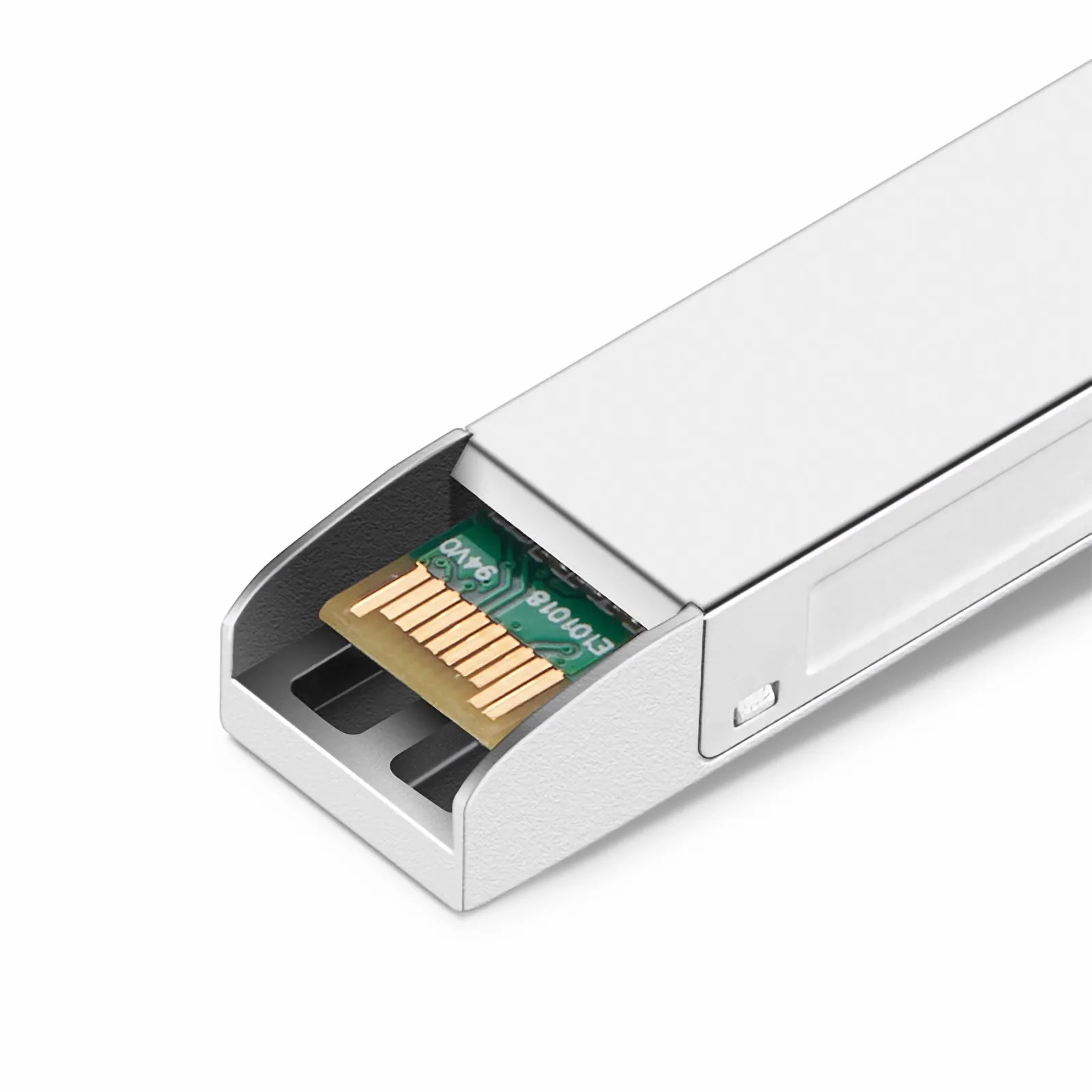

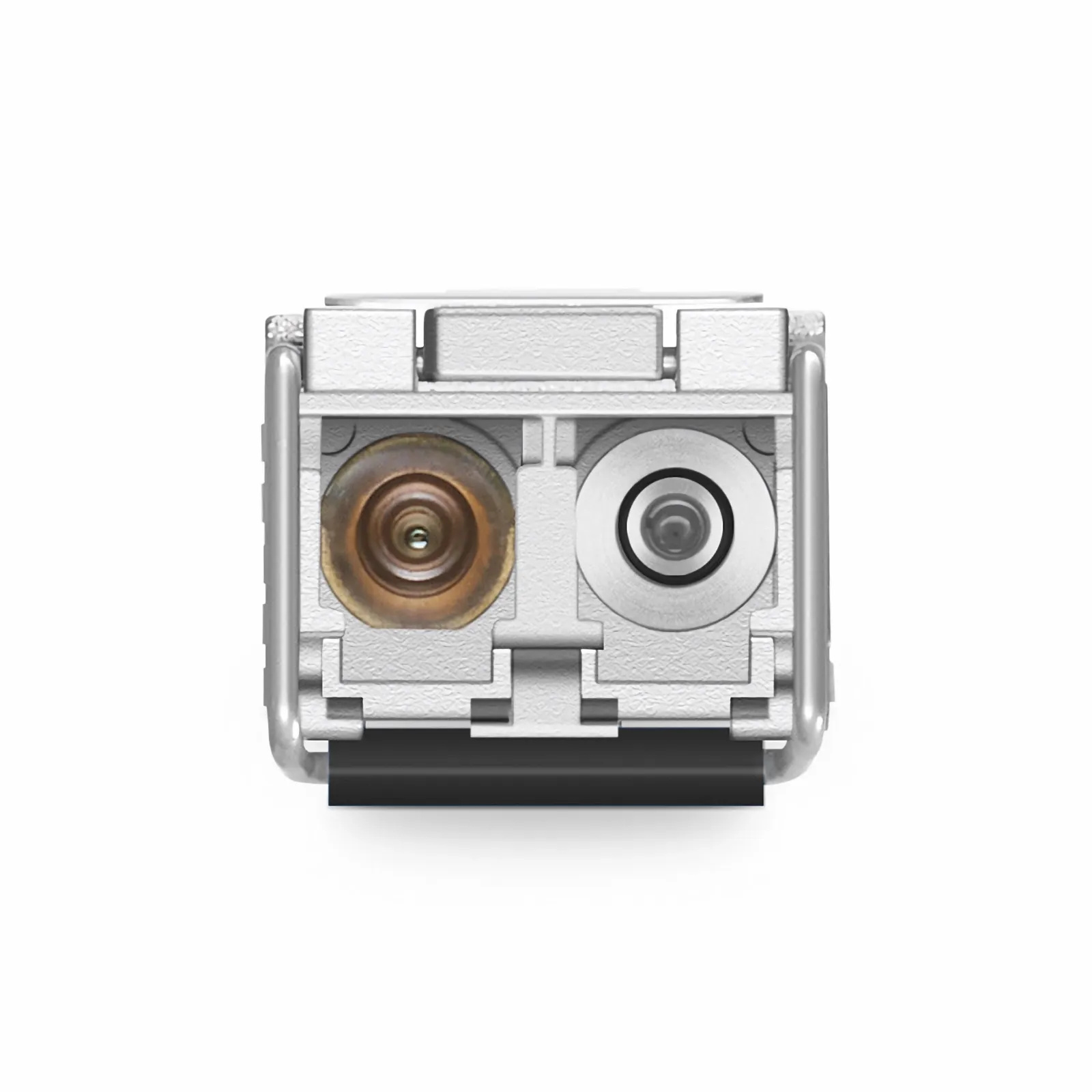

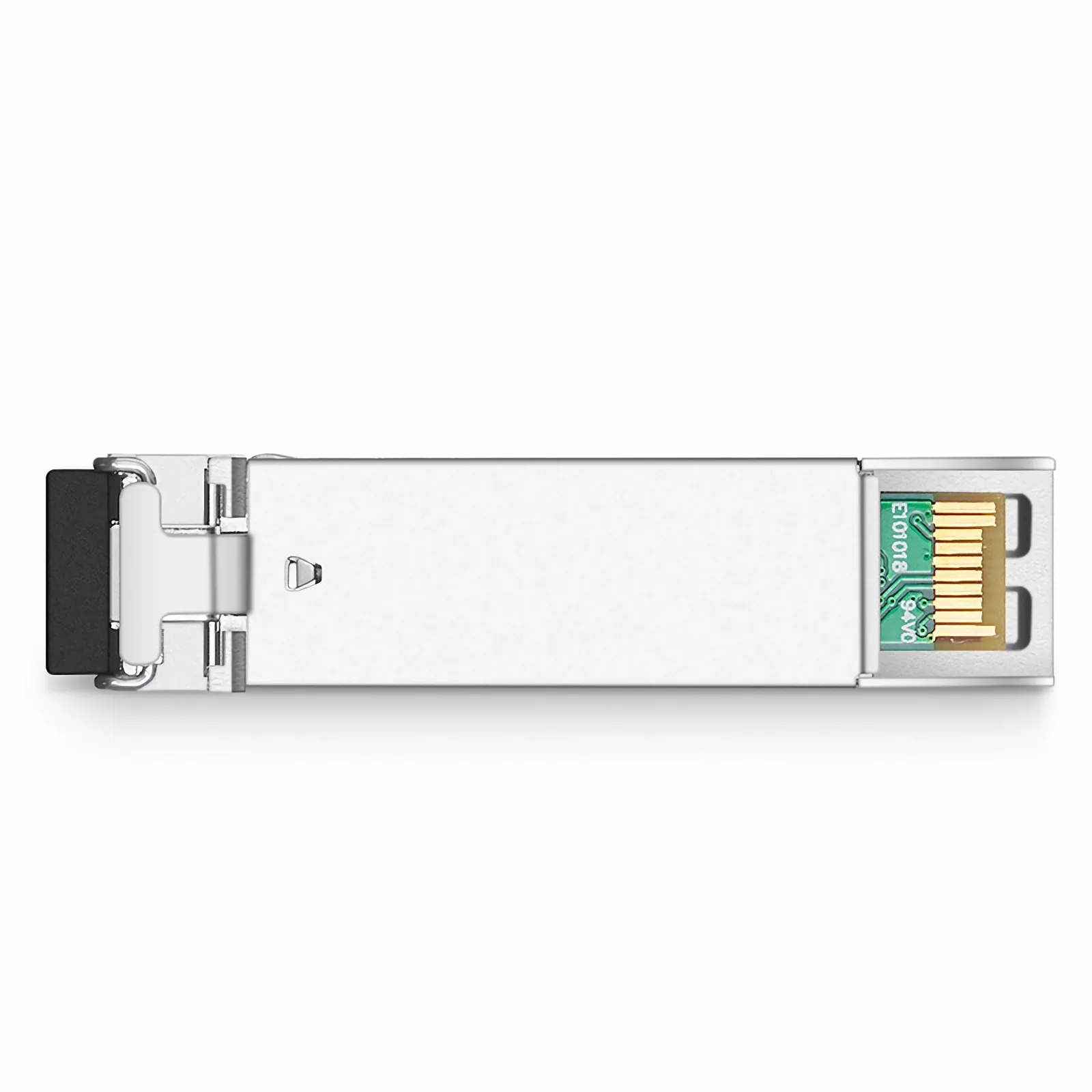

FS Generic Compatible 1000BASE-SX SFP 850nm 550m DOM Duplex LC/UPC MMF Optical Transceiver Module

PB Tech price

AUD $ 13 .00

$ 13 .00

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

FS Generic Compatible 1000BASE-SX SFP 850nm 550m DOM Duplex LC/UPC MMF Optical Transceiver Module

MPN: FS-75332
Part #: NETLTE2073
UPC:

PB Tech price

AUD $ 13 .00

In stock

Delivery: Order now and it ships on 15 Jun

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

MPN: FS-75332
Part #: NETLTE2073
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

- Hot Pluggable SFP MSA Compliant to Maximize Uptime and Simplify Maintenance
- Max. Power Consumption 0.8W Allowing for Prolonged Service Life
- Commercial Temperature Range 0 to 70°C (32 to 158°F)
- Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
- FS BOX - Support Real-time Configuration
- Compliant to IEEE 802.3z Gigabit Ethernet
- Class 1 FDA Laser Safety and RoHS Compliant
- Tested in Targeted Switches for Superior Performance, Quality, and Reliability

1000BASE-SX SFP compatible SFP transceiver supports up to 550m link lengths over multi-mode fibre (MMF) using a wavelength of 850nm via an LC connector. Each SFP transceiver module is individually tested to be used on a series of Generic switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

1G Connectivity for Data Center

Featured with low power consumption, the SFP transceivers provide a cost-effective solution for Gigabit Ethernet applications.

Tested in Host Devices for Proven Interoperability

Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations.

- Hot Pluggable SFP MSA Compliant
- Digital Optical Monitoring
- Class 1 FDA Laser Safety

Comprehensive Testing Increases Reliability

Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.

Optical Spectrum Test

No Packet Loss & CRC

Eye Pattern Test

Mask Margin >20%

Bit Error Rate Test

BER 1E-12

Temperature Test

0~70°C

Enable Seamless Connectivity for Your Network

Reconfiguring transceivers online for multi-vendor compatibility, FS BOX reduces inventory costs and improves flexibility.

Specifications

Form Factor

SFP

Max. Data Rate

1.25Gbps

Wavelength

850nm

Max. Cable Distance

550m@50/125µm OM2 MMF
[email protected]/125µm OM1 MMF
[email protected]/125µm FDDI MMF

Connector

Duplex LC

Media

MMF

Transmitter Type

VCSEL

Receiver Type

DDM/DOM

Supported

Commercial Temperature Range

0 to 70°C (23 to 158°F)

TX Power

-9.5~-3dBm

Receiver Sensitivity

< -17dBm

Typical Power Consumption

≤0.8W

Receiver Overload

-3dBm

Bit Error Ratio (BER)

1E-12

Extinction Ratio

>9dB

EMC (Electro Magnetic Compatibility)

Supported

MTBF (SX)

2,457,002 Hours

Protocols

IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant

Manufacturer Part No:

FS-75332

Brand:

Product Type:

UPC

Product Family:

Shipping Weight:

0.2 kg

PB Part No:

NETLTE2073

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
