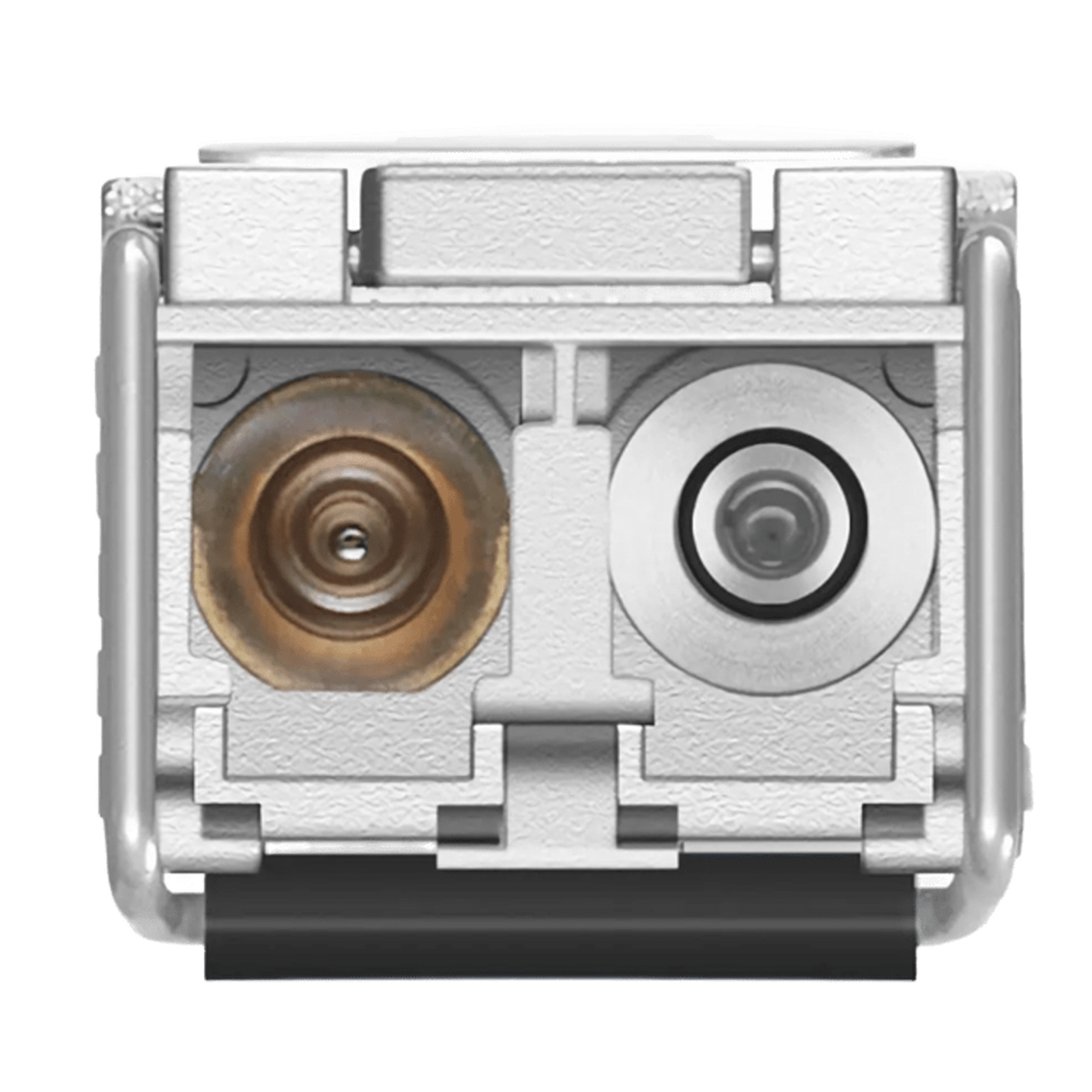

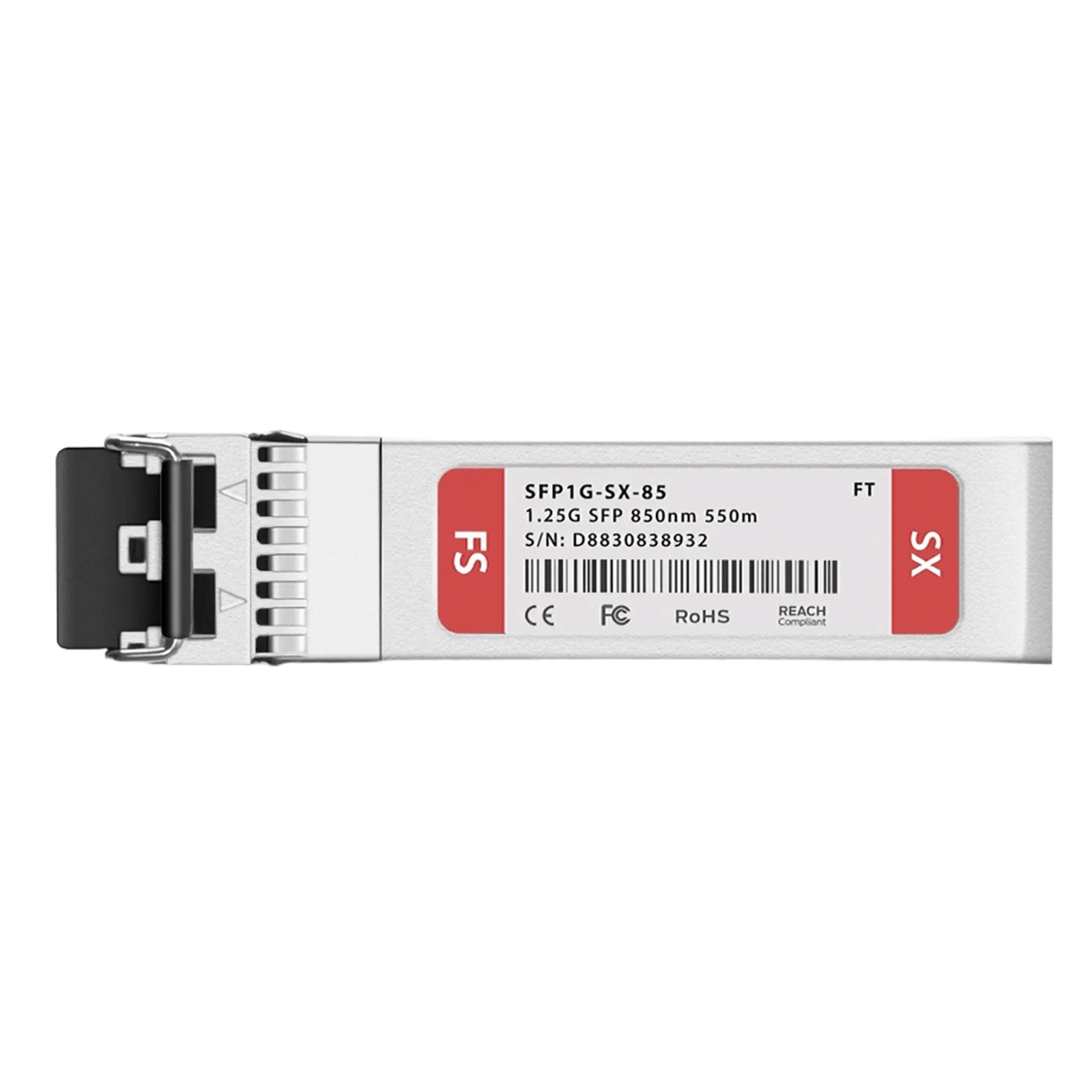

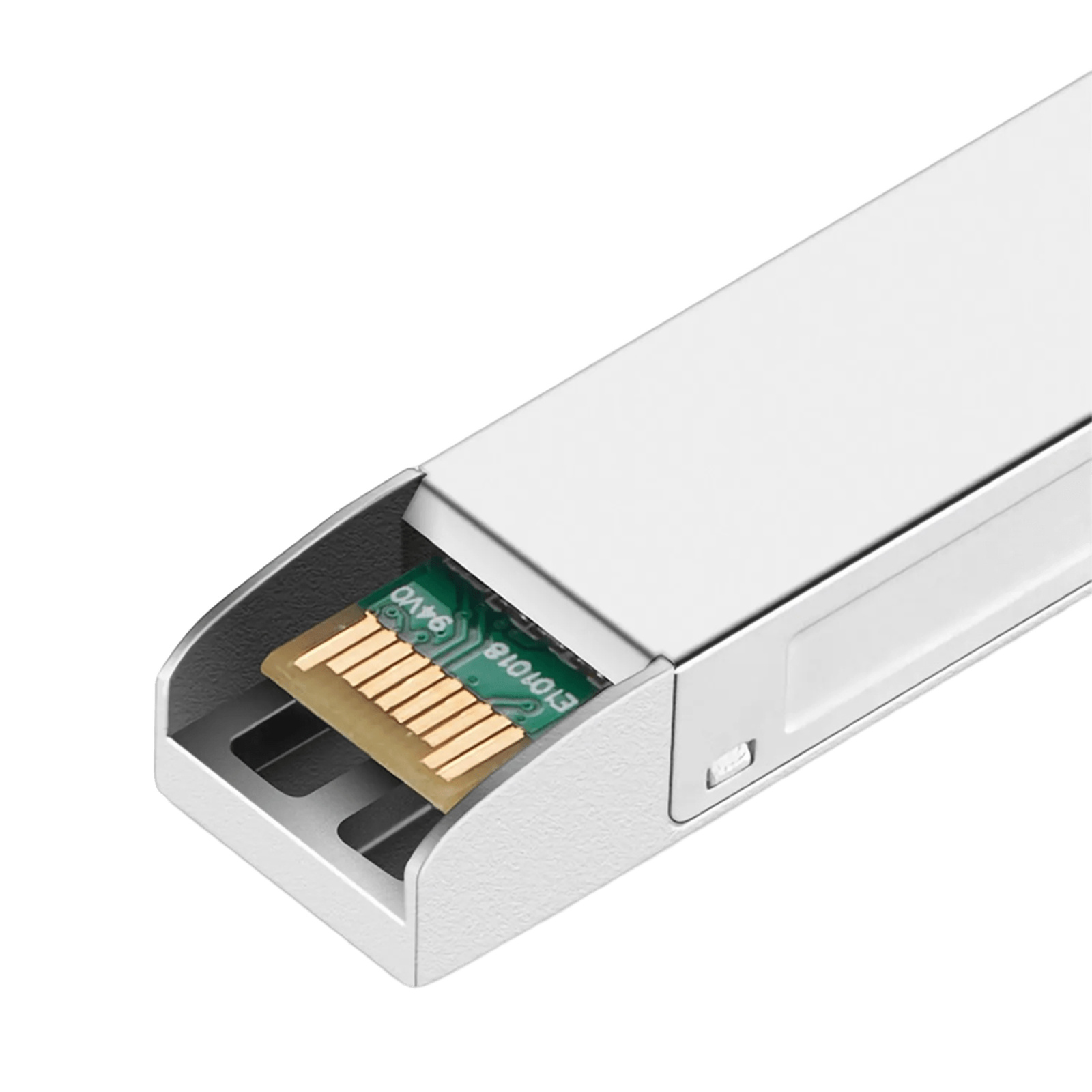

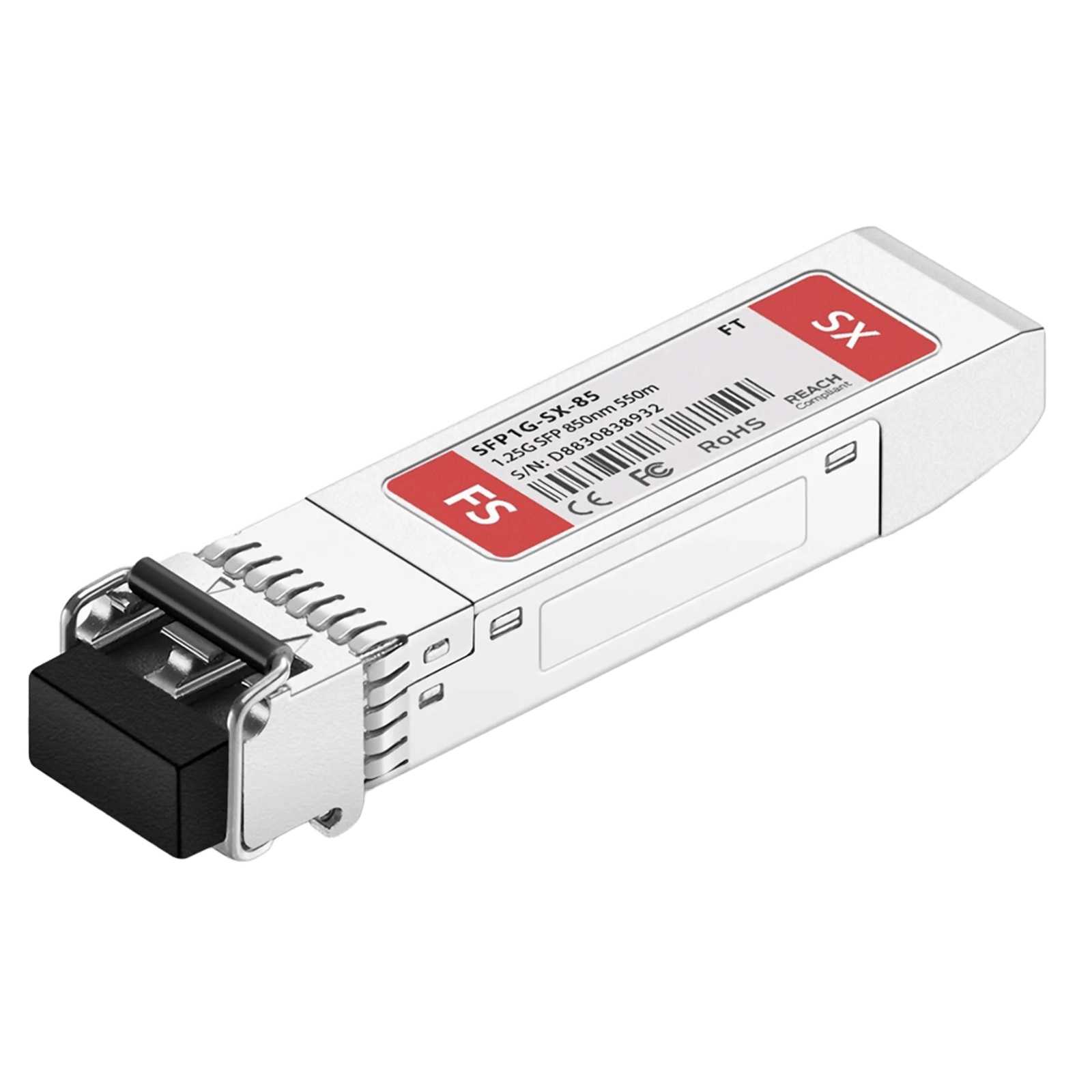

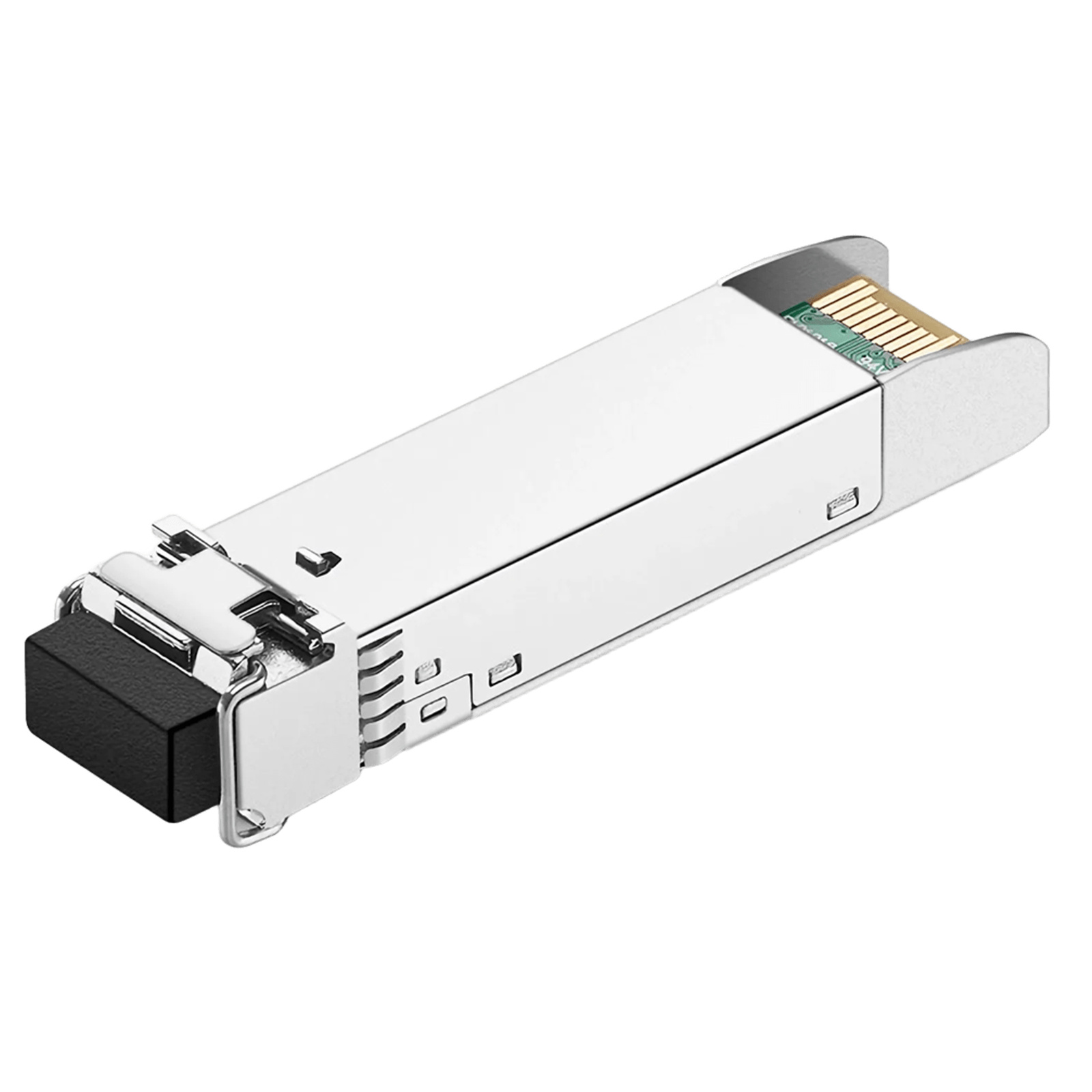

FS Fortinet FG-TRAN-SX Compatible 1000BASE-SX SFP 850nm 550m Duplex LC/UPC MMF Transceiver Module
Out of stock
FS Fortinet FG-TRAN-SX Compatible 1000BASE-SX SFP 850nm 550m Duplex LC/UPC MMF Transceiver Module
- Brand: FS
- MPN: FS-248807
- Part #: NETLTE2101
- UPC:
- Brand: FS
- MPN: FS-248807
- Part #: NETLTE2101
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Transceivers
FS Fortinet FG-TRAN-SX Compatible 1000BASE-SX SFP 850nm 550m Duplex LC/UPC MMF Transceiver Module
- Brand: FS
- MPN: FS-248807
- Part #: NETLTE2101
Product URL: https://www.pbtech.com/product/NETLTE2101/FS-Fortinet-FG-TRAN-SX-Compatible-1000BASE-SX-SFP
Features
Fortinet FG-TRAN-SX Compatible 1000BASE-SX SFP Transceiver Module (MMF, 850nm, 550m, LC, DOM)
Fortinet FG-TRAN-SX compatible 1000BASE-SX SFP transceiver supports up to 550m link lengths over multi-mode fibre (MMF) using a wavelength of 850nm via an LC connector. Each SFP transceiver module is individually tested to be used on a series of FS switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.
- Hot Pluggable SFP MSA Compliant to Maximize Uptime and Simplify Maintenance
- Max. Power Consumption 0.8W Allowing for Prolonged Service Life
- Commercial Temperature Range 0 to 70°C (32 to 158°F)
- Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
- Compliant to IEEE 802.3z Gigabit Ethernet
- Class 1 FDA Laser Safety and RoHS Compliant
- Tested in Targeted Switches for Superior Performance, Quality, and Reliability

1G Connectivity for Data Center
Featured with low power consumption, the SFP transceivers provide a cost-effective solution for Gigabit Ethernet applications.

Tested in Host Devices for Proven Interoperability
Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations.
- Hot Pluggable SFP MSA Compliant
- Digital Optical Monitoring
- Class 1 FDA Laser Safety

Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
- Optical Spectrum Test: No Packet Loss & CRC
- Eye Pattern Test: Mask Margin >20%
- Bit Error Rate Test: BER 1E-12
- Temperature Test: 0~70°C

Product Certifications & Compliance
Fully certified to meet strict international safety and quality standards for the industry.

Specifications
Fortinet Compatible
FG-TRAN-SX
Form Factor
SFP
Max. Data Rate
1.25Gbps
Wavelength
850nm
Max. Cable Distance
550m@50/125µm OM2 MMF
[email protected]/125µm OM1 MMF
[email protected]/125µm FDDI MMF
Connector
Duplex LC
Media
MMF
Transmitter Type
VCSEL
Receiver Type
PIN
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (23 to 158°F)
TX Power
-9.5~-3dBm
Receiver Sensitivity
< -17dBm
Typical Power Consumption
≤0.8W
Receiver Overload
-3dBm
Bit Error Ratio (BER)
1E-12
Extinction Ratio
>9dB
EMC (Electro Magnetic Compatibility)
Supported
MTBF (SX)
2,457,002 Hours
Protocols
IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant
