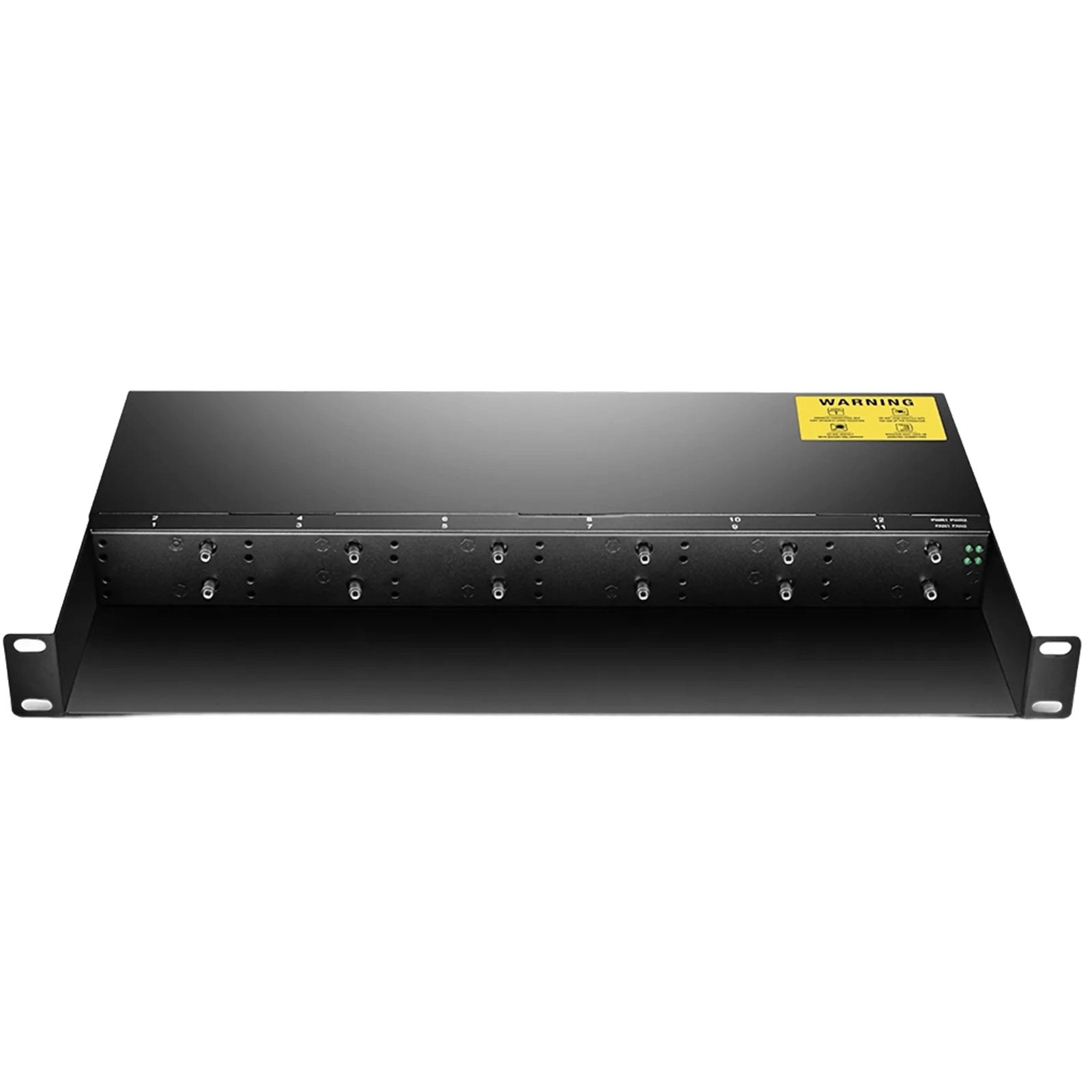

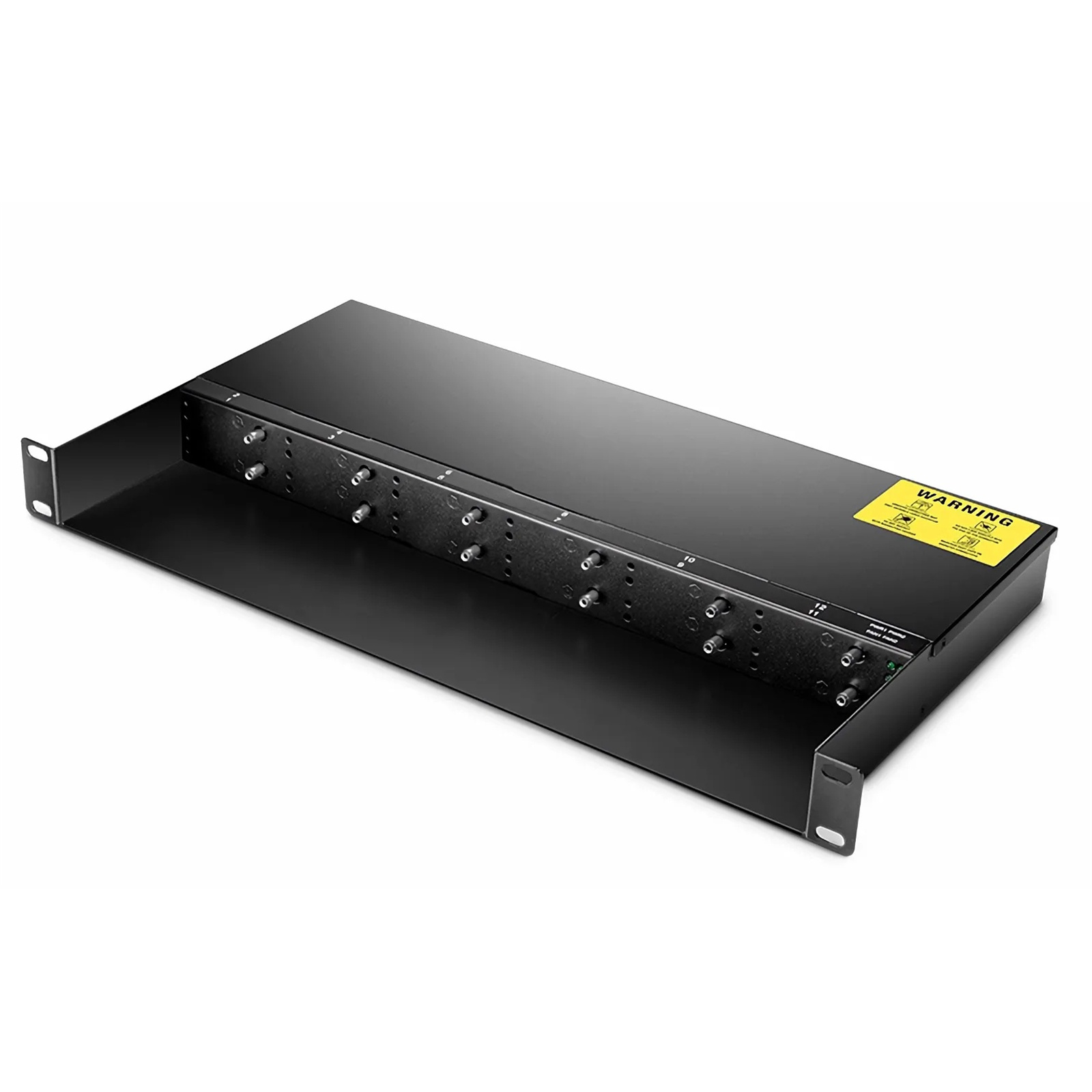

FS 12 Slots 10/100M and 10/100/1000M Mini Media Converter Chassis, 1U Rack Mount, Dual Power AC 220V
Out of stock
FS 12 Slots 10/100M and 10/100/1000M Mini Media Converter Chassis, 1U Rack Mount, Dual Power AC 220V
- Brand: FS
- MPN: MFMC-12DP
- Part #: NETLTE35348
- UPC: 840246430267
- Brand: FS
- MPN: MFMC-12DP
- Part #: NETLTE35348
- UPC: 840246430267
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Mounts & Brackets
FS 12 Slots 10/100M and 10/100/1000M Mini Media Converter Chassis, 1U Rack Mount, Dual Power AC 220V
- Brand: FS
- MPN: MFMC-12DP
- Part #: NETLTE35348
- UPC:840246430267
Product URL: https://www.pbtech.com/product/NETLTE35348/FS-12-Slots-10100M-and-101001000M-Mini-Media-Conve
Features
12 Slots Mini Media Converter Chassis, 1U Rack Mount, Dual AC Power
The MFMC-12DP 12-slot Rackmount chassis is specially designed to accommodate Mini Media Converter for central power supply, saving space and power cables. This 1U rack-mountable converter chassis is ideal for high-density fibre optic network applications. You can start with single media converters, and when your requirements grow bigger, you can mount a chassis to install your media converters in the chassis. The housing of each media converter can be easily removed, and the media converter PC board can be slid into the chassis.
The chassis lets you install multiple media converters in an equipment rack together with the network devices for which they provide media conversion. This provides for space saving, and the cabling will look neat.The power type of this device is AC by default.
- Supports up to 12 Hot-swappable Mini Media Converters
- Fits A Standard 19" Rack - 1U Height
- Optional Redundant hot-swappable AC power supplies
- Mounted Two Cooling Fans for Better Ventilation
- LED Indicators for System, Power, and Fan Conditions
- Support NTP Clock, Remote and Local System Log
High Density 12-slot System
It is specially designed to house, organise and power up 12 mini media converters for central power supply, saving space and power cables.

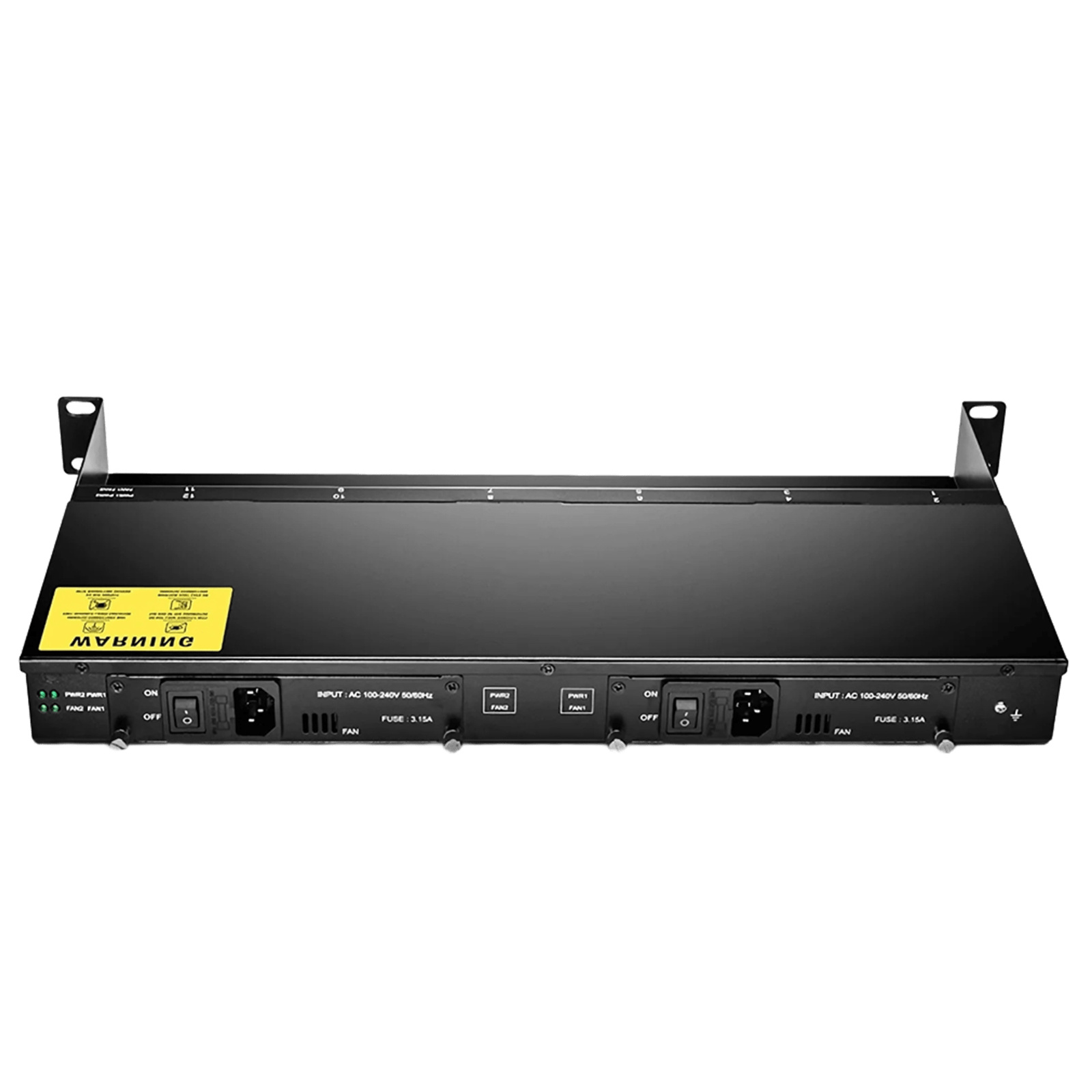

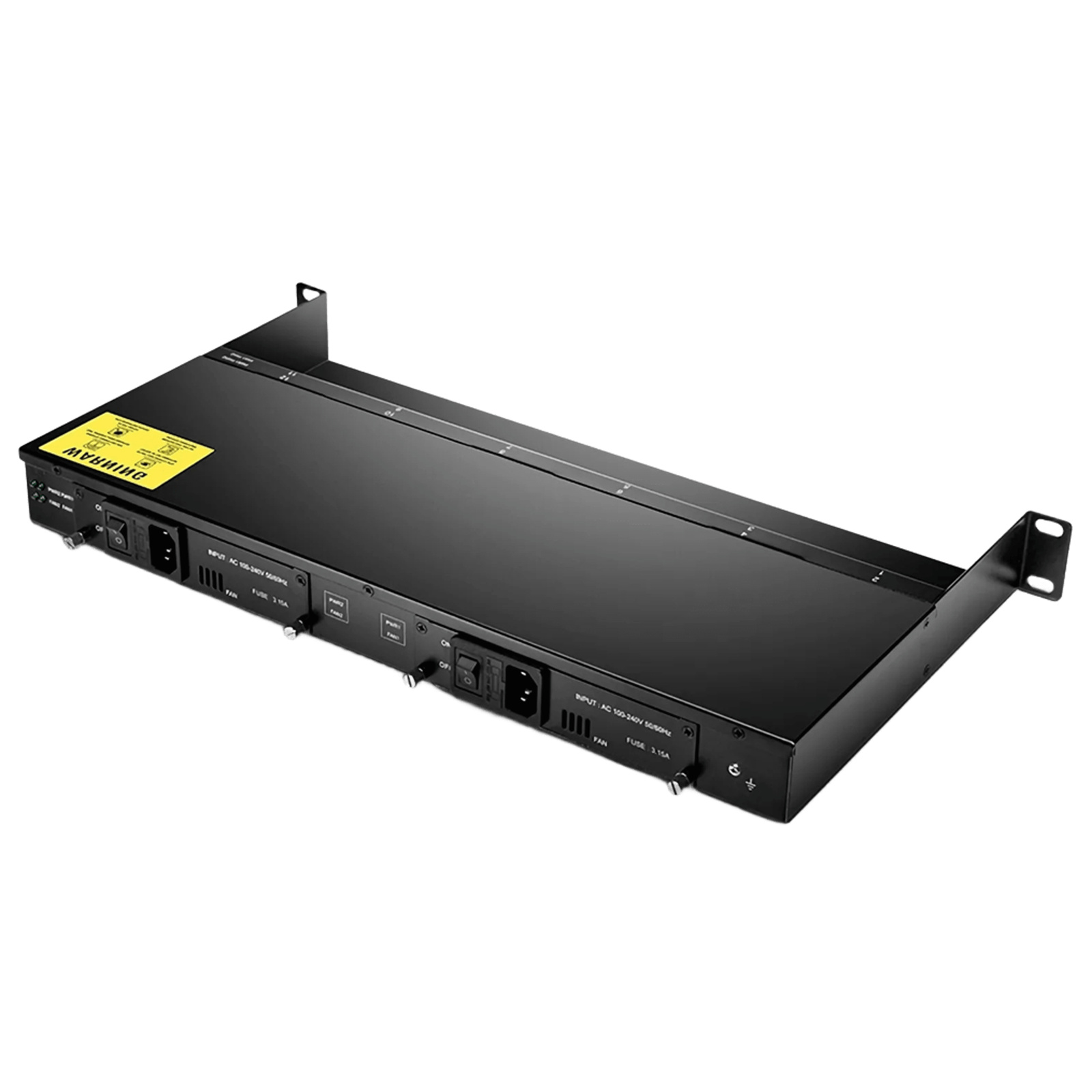

Dual Redundant Hot-swappable Power Supplies and 2 Fans
The chassis is equipped with optional redundant power supply to ensure non-stop reliable operation. Two cooling fans are installed internally to stabilise the performance and extend the lifetime.

Hot-Swappable for Easy Replacement of Converter
Media converter modules are individually secured and hot-swappable, which allows installing/removing the converter without powering off the chassis.

Certifications
Fully certified to meet strict international safety and quality standards for the industry.

Specifications
Number of Slots
12
Matching Products
Mini Unmanaged Media Converter
Power Supply
Dual AC Power Supplies Only (Redundant)
Fan Number
2 Built-in Fans
Input Power
100-240VAC, 50-60Hz, 1.0-1.8A
Output Power
DC 12V Per Power Supply, 5A
Power Consumption
60W Max
LED
Input power, Fan
Dimensions (HxWxD)
1.73"x18.98"x9.65" (44x482x245mm)
Weight
3.2Kg Approx
Operating Temperature
0°C to 40°C (32℉ to 104℉)
Storage Temperature
-20°C to 70°C (-4℉ to 158℉)
