Mars Antennas 4.9-6.1GHz Triple Polarisation 90deg MIMO Antenna
- Brand: Mars Antennas
- MPN: ANT-221
- Part #: NETMAN721361
Product URL: https://www.pbtech.com/product/NETMAN721361/Mars-Antennas-49-61GHz-Triple-Polarisation-90deg-M
Features

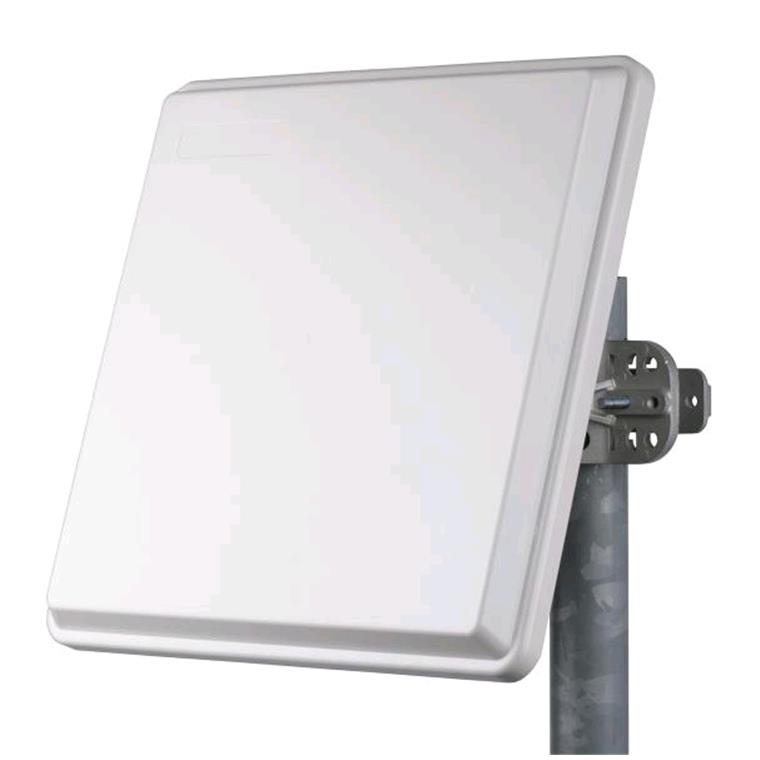

The MARS MA-WD56-DSV16B Triple Polarisation Sector Antenna provides coverage of 4.9-6.1 GHz frequency band in a single antenna radome.
- Dual Slant (±45�) and Vertical Polarization
- Specially designed for MIMO applications for optimal decorrelation
- Light weight and durable construction
- UV protected radome made of polycarbonate
Specifications
Frequency Range
4.9-6.1GHz
Gain
16dBi
Polarisation
Dual Slant 45deg and Vertical
Vertical Beamwidth
Dual Slant: 90deg, Vertical: 90deg
Horizontal Beamwidth
Dual Slant: 8deg, Vertical: 8deg
Connector Type
N-Type Female
Dimensions
370 x 370 x 40 mm
Pole Mount Diameter
30-63mm
