MikroTik CCR2004-16G-2S+ Router with 16x Gigabit Ethernet Ports, 2x10G SFP+ and Active Cooling

PB Tech price

AUD $ 661 .37

$ 661 .37

MikroTik CCR2004-16G-2S+ Router with 16x Gigabit Ethernet Ports, 2x10G SFP+ and Active Cooling

Brand: MikroTik
MPN: CCR2004-16G-2S+
Part #: NETMKT1376
UPC:

PB Tech price

AUD $ 661 .37

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 19 Jun

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: MikroTik
MPN: CCR2004-16G-2S+
Part #: NETMKT1376
UPC:

Be the first to review this product

Wireless Technology

Not Specified

Ethernet Ports Per Unit

USB Ports

Wireless Transmission Speed

Not Specified

WiFi Bands

Not Specified

Cellular Connectivity

Not Specified

HyperFibre Compatible

Not Specified

Coverage Area

Not Specified

View full specs

Returns & Warranty Bulk Quote Print Page

Similar in-stock products available at PB Tech right now

Teltonika RUT361 4G CAT6 N300 WiFi 4 Industrial Router

100M FE x 2 / SIM Slot x 1 / with Digital IO x 2

Wishlist Compare

Wireless Technology:

802.11g

Ethernet Ports Per Unit:

USB Ports:

Wireless Transmission Speed:

Not Specified

WiFi Bands:

Single

Cellular Connectivity:

Not Specified

HyperFibre Compatible:

Not Specified

Coverage Area:

N/A

MPN:

RUT361

Part #:

NETTTK3611

PB Tech price

$378 .33

$378.33

Ships today

Wishlist Compare

Features

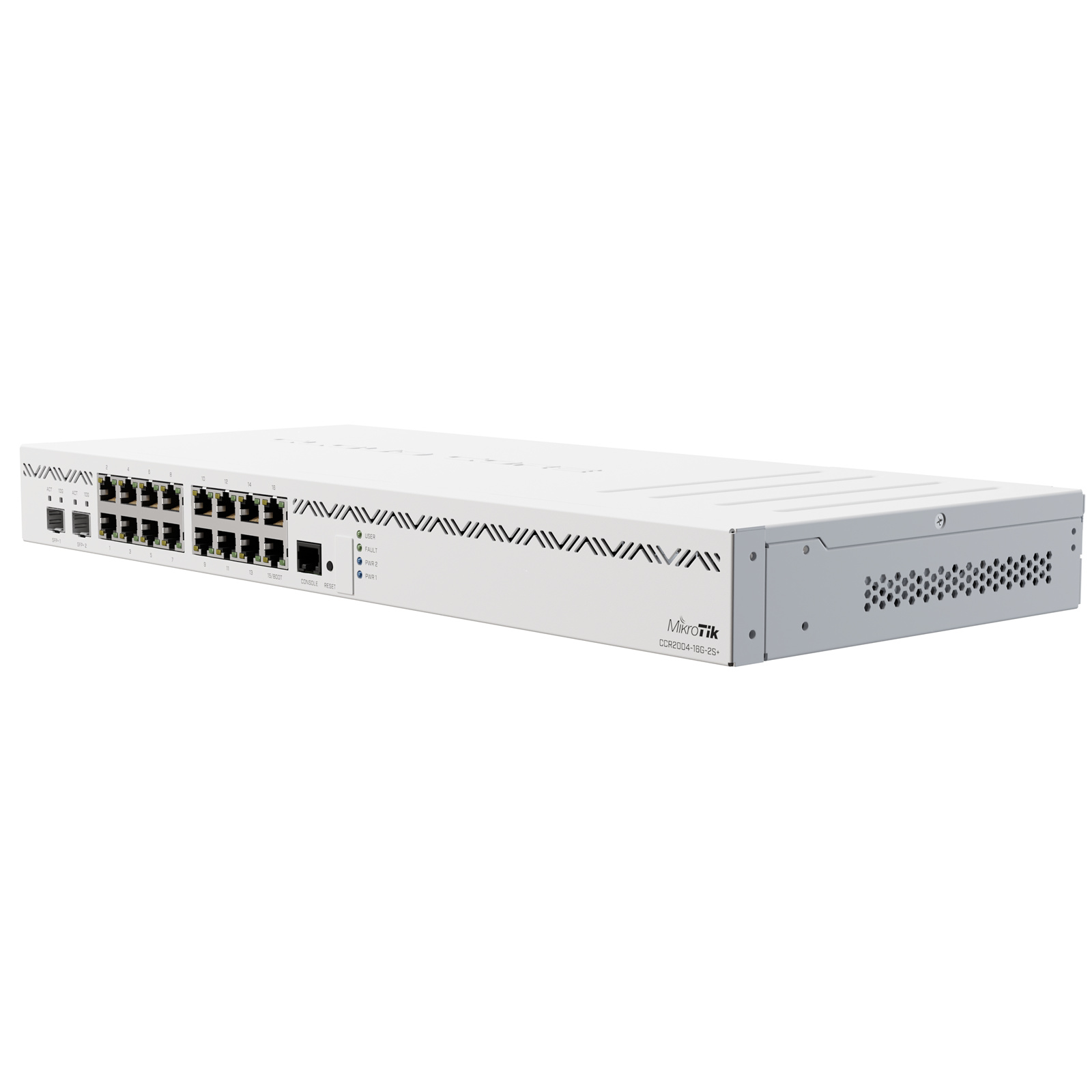

MikroTik CCR2004-16G-2S+. This powerful and affordable router crushes all previous CCR models in single-core performance. 16x Gigabit Ethernet ports, 2x10G SFP+ cages, active cooling and the best single-core performance per watt & best overall performance per watt among all the CCR devices.

Like the other models in CCR2004 series, this CCR also features the Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores running at 1,7GHz. But here's the difference. This powerful router crushes all previous CCR models in single-core performance, and that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example.But that's not all! It also has the best single-core performance per watt and best overall performance per watt among all the CCR devices. Better for the planet, better for the bills, it's a win-win!

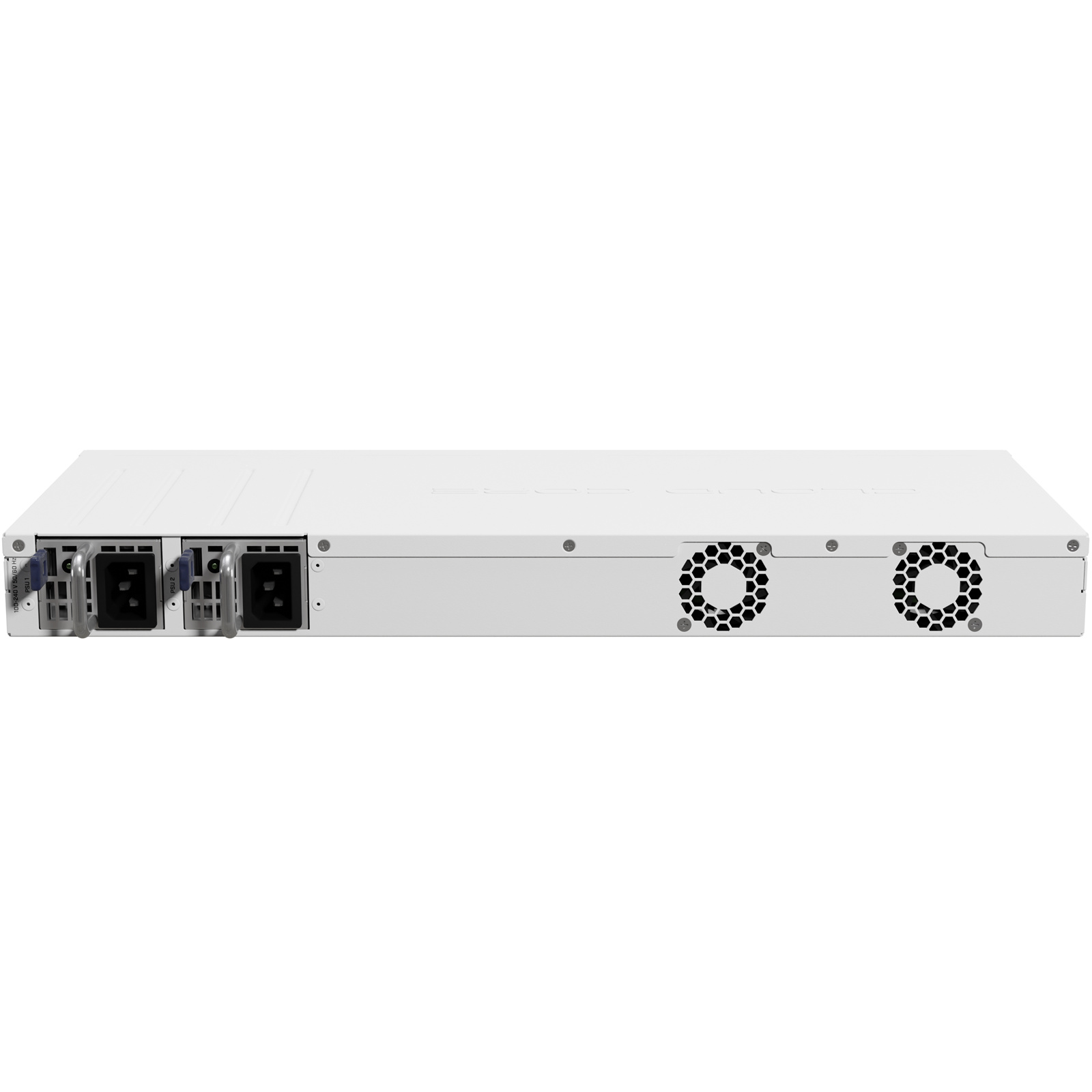

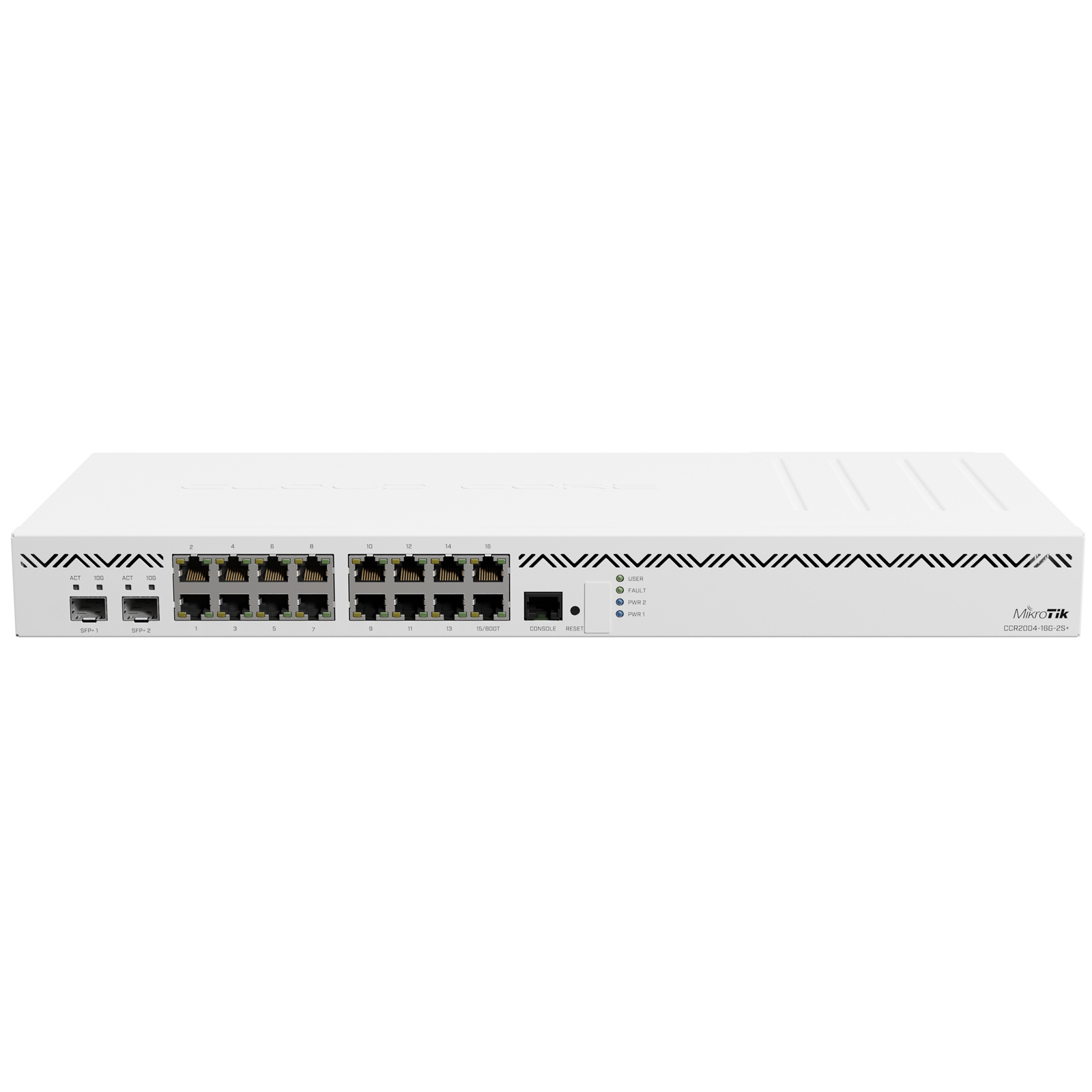

The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a full-size USB and RJ-45 console port on the front panel. Like all CCR devices, it comes in a classic white 1U rackmount case. Built-in dual redundant power supplies are included, so you have one less thing to worry about. And, of course, there is active cooling to keep things nice and cool. Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage.

So as you can see - no bottlenecks. As long as the CPU can handle the processing, all ports can reach wire speed. And this CPU is a beast that can handle a lot. If we look at the performance, you can see that it is trading blows with our CCR1009. Even surpassing it in CPU-heavy configurations! And if that wasn't enough - it can even reach the performance of CCR1016.

Specifications

Brand

MikroTik

MPN

CCR2004-16G-2S+

Architecture

ARM 64bit

CPU

AL32400

CPU core count

CPU nominal frequency

1700 MHz

RouterOS license

Operating System

RouterOS (v7 only)

Size of RAM

4 GB

Storage size

128 MB

Storage type

NAND

MTBF

Approximately 200,000 hours at 25°C

Tested ambient temperature

-20°C to 60°C

IPsec hardware acceleration

Yes

10/100/1000 Ethernet ports

SFP+ ports

Serial console port

RJ45

Number of USB ports

USB Power Reset

Yes

USB slot type

USB 3.0 type A

Max USB current (A)

0.9

CPU temperature monitor

Yes

PCB temperature monitor

Yes

Voltage Monitor

Yes

Number of AC inputs

AC input range

100-240 Frequency (Hz) 50/60

Max power consumption

48 W

Max power consumption without attachments

35 W

FAN count

Certification

CE, EAC, ROHS

Manufacturer Part No:

CCR2004-16G-2S+

Brand:

MikroTik

Product Type:

UPC

Product Family:

Shipping Weight:

1.1 kg

PB Part No:

NETMKT1376

Product Model:

Warranty: 12 months *
