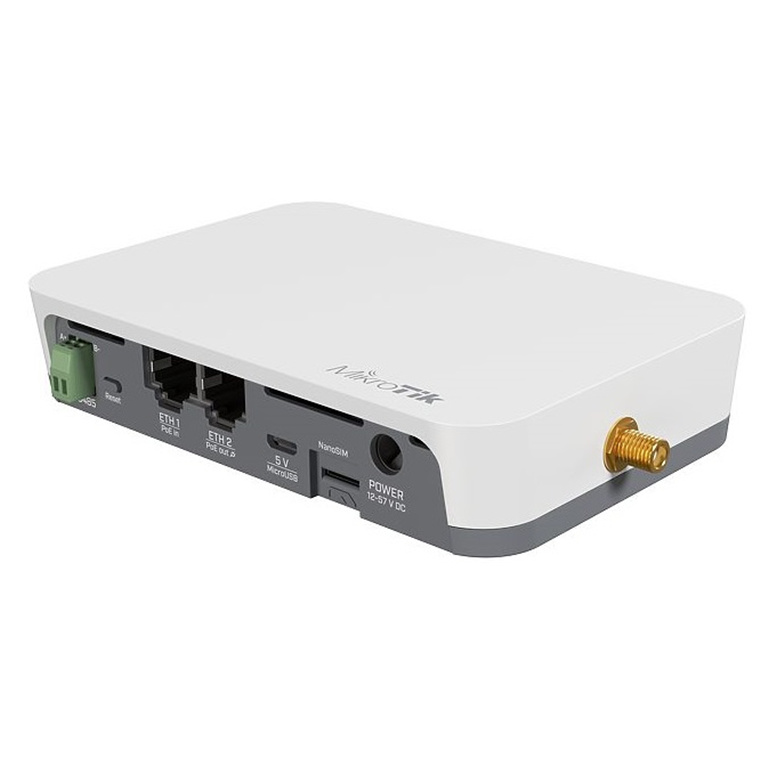

MikroTik RB924iR-2nD-BT5&BG77&R11e-LR9 KNOT LR9 kit 902-928 MHz LoRa IoT Gateway CAT-M Cellular Backhaul and Bluetooth

PB Tech price

AUD $ 243 .76

$ 243 .76

MikroTik RB924iR-2nD-BT5&BG77&R11e-LR9 KNOT LR9 kit 902-928 MHz LoRa IoT Gateway CAT-M Cellular Backhaul and Bluetooth

Brand: MikroTik
MPN: RB924iR-2nD-BT5&BG77&R11e-LR9
Part #: NETMKT1421
UPC:

PB Tech price

AUD $ 243 .76

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 26 Jun

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: MikroTik
MPN: RB924iR-2nD-BT5&BG77&R11e-LR9
Part #: NETMKT1421
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

MikroTik KNOT LR9 kit 902-928 MHz LoRa IoT Gateway with CAT-M Cellular Backhaul. MikroTik KNOT LR9 kit is an out-of-the-box IoT Gateway solution for LoRa® technology. It uses Narrow Band and CAT-M technology. Because of the low cost, low bandwidth cellular connection, it is supported by countless mobile operators around the globe. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa® servers. With the support of 8 different channels, Listen Before Talk (LBT) and spectral scan features this product will astound you with its enticing price point.

It could be used as a backup connection for the Ethernet or as a management channel for your network. NB/CAT-M monthly plan is much cheaper than LTE. Why spend extra money on bandwidth you don't need? For example, you can manage a KNOT-powered vending machine with temperature and moisture sensors with only a few megabytes per day!

KNOT features so many protocol support and connectivity options: 2.4 GHz wireless, Bluetooth, LoRa®, 2x 100 Mbps Ethernet ports with PoE-in and PoE-out, Micro-USB. Maximum convenience at the lowest cost!

With the Bluetooth interface, you can use the KNOT for asset tracking and telemetry based on Bluetooth advertisement packets. KNOT supports any BLE tag that sends advertisement data. iBeacon, Eddystone or any other format. It has powerful filters for forwarding only relevant packets and ignoring others.

This kit can even help you in the most unusual situations. Remember the part about onboard GPIOs? Those pins can be used to read all kinds of analog sensors, interact with a single-board computer or other custom electronics - hobbyist kits, D.I.Y. robotics... It's like getting the whole Swiss Army instead of a Swiss Army knife!

KNOT is a great tool for most outdoor cabinet IoT applications as well. It comes with a DIN rail mount that allows easy integration with all kinds of setups: from agriculture and asset tracking to cold chain monitoring, industrial manufacturing, and so on.

Specifications

Brand

MikroTik

MPN

RB924iR-2nD-BT5&BG77&R11e-LR9

Architecture

MIPSBE

CPU

QCA9531

CPU core count

CPU nominal frequency

650 MHz

RouterOS license

Operating System

RouterOS

Size of RAM

64 MB

Storage size

128 MB

Storage type

NAND

MTBF

Approximately 200'000 hours at 25°C

Tested ambient temperature

-40°C to 70°C

MicroUSB input Voltage

5 V

Number of DC inputs

3 (PoE-IN, DC jack, MicroUSB)

DC jack input Voltage

12-57 V

Max power consumption

23 W

Max power consumption without attachments

5 W

Cooling type

Passive

PoE in

802.3af/at

PoE in input Voltage

18-57 V

PoE-out ports

Ether2

PoE out

Passive PoE up to 57V

Total output power

12W

Wireless 2.4 GHz standards

802.11b/g/n

10/100 Ethernet ports

Number of SIM slots

1 Modem (Nano SIM)

MiniPCI-e slots

Serial console port

RS485

Number of USB ports

USB slot type

microUSB type AB

Max USB current (A)

PCB temperature monitor

Yes

Voltage Monitor

Yes

Bluetooth version

5.2

Bluetooth RF connector type

uUFL

Certification

CE, FCC, IC, EAC, ROHS

Manufacturer Part No:

RB924iR-2nD-BT5&BG77&R11e-LR9

Brand:

MikroTik

Product Type:

UPC

Product Family:

Shipping Weight:

1.01 kg

PB Part No:

NETMKT1421

Product Model:

RB924iR-2nD-BT5&BG77&R11e-LR9

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
