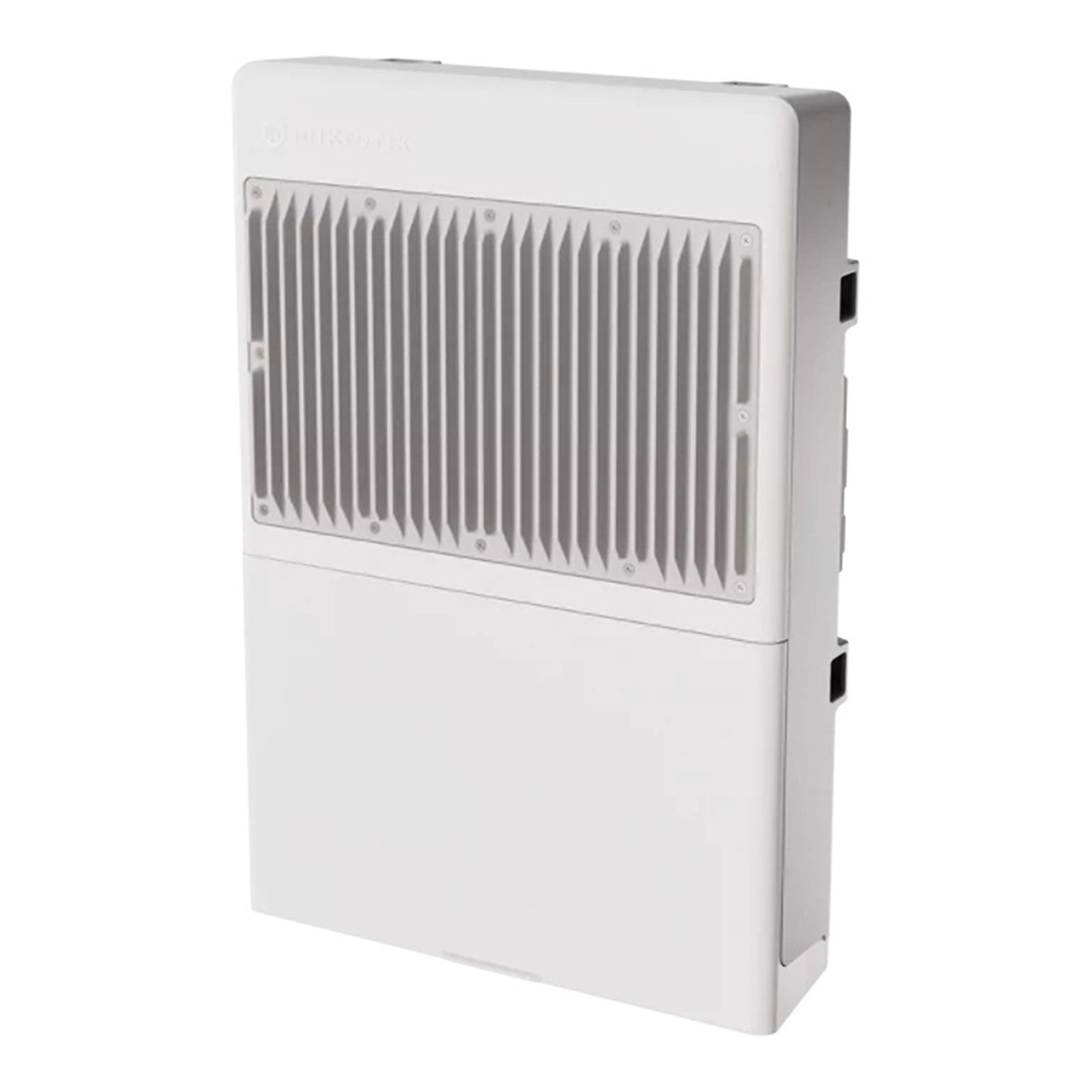

MikroTik netPower Lite 8P Compact PoE switch with built-in UPS and smart battery charger - CSS610-8P-2S+OUT
MikroTik netPower Lite 8P Compact PoE switch with built-in UPS and smart battery charger - CSS610-8P-2S+OUT
- Brand: MikroTik
- MPN: CSS610-8P-2S+OUT
- Part #: NETMKT1526
- UPC:
- Brand: MikroTik
- MPN: CSS610-8P-2S+OUT
- Part #: NETMKT1526
- UPC:
Similar in-stock products available at PB Tech right now
Features
netPower Lite 8P
Low-cost. Tough. And always ON! Compact PoE switch with built-in UPS and smart battery charger - because your CCTV cameras and access points deserve true off-the-grid resilience.
- 8× Gigabit Ethernet
- 802.3af/at PoE-Out
- 2× 10G SFP+ uplinks
- 24-57 V DC input
- 120 W total PoE-Out
- Integrated UPS switchover
- Built-in smart battery charger
- Temperature sensor included
Power cuts shouldn't mean downtime. The netPower Lite 8P delivers reliable Power-over-Ethernet even when the grid goes dark. The integrated UPS and smart charger work with your external 24 V battery - and can deliver high-voltage PoE-out even from low-voltage DC sources, making the netPower a perfect match for CCTV, offices, apartment buildings, and smart-city installations.
The netPower Lite 8P comes with eight Gigabit Ethernet ports featuring 802.3af/at PoE-Out, plus two 10G SFP+ uplinks for high-speed backhaul. It runs SwOS Lite - fast, efficient, and refreshingly simple to manage. Power input is flexible: just feed 24-57 V DC into the 2-pin terminal.
Just like other outdoor-friendly gear, this switch is built to endure. With an operating range of -40 °C to +70 °C, the netPower Lite 8P keeps delivering where many devices would already be giving up. The switch can draw up to 181 W total, with a 120 W PoE-Out budget. When incoming power is limited, PoE is prioritized automatically - charging slows down first to keep your essential devices online.
Built-in UPS support: effective, reliable, gives you options
Connect a 24 V nominal battery - typically two 12 V units in series - and the switch instantly becomes a small, efficient UPS. During a power outage, PoE devices stay online without any interruptions.
The charger supports flooded, AGM, and gel-based lead-acid batteries, as well as LiFePO₄ (Lithium Iron Phosphate Battery) packs with proper BMS. The charger subsystem is designed for charging batteries through the 2-pin header in a current range 0.2-1.6 A, and at a voltage range of 20 to 31.7 V.
Charging is handled intelligently through three stages:
A temperature sensor is included; it fine-tunes voltage for lead-acid batteries and blocks charging when temperatures drift outside a safe range. This helps prolong battery life.
Alarm input
Connect a simple 2-wire contact to detect tampering, and the device will report it instantly in SwOS Lite and over SNMP. You can pair it with a RouterOS device for additional automation or creative scripting triggers.
Typical Deployment
Powering cameras and wireless backhaul from a single UPS-enabled switch with zero downtime in the long run
Perfect for WISPs, CCTV, apartments, utilities, and smart-city networks
Whenever uptime matters (and budgets!), the netPower Lite 8P gives you a clean, reliable, scalable solution. You get PoE, backup power, smart monitoring, and rugged outdoor performance in one compact device.
So if you value every watt and every second of uptime - the netPower Lite 8P is ready to keep you online…even when the lights go out.
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
Ubiquiti UniFi USW-Flex-2.5G-5 5-Port 2.5G L2 Managed Switch - 2...
Ubiquiti UniFi USW-Pro-48-POE 52-Port 10G L3 Managed PoE Switch ...
Ubiquiti UniFi USW-24-POE 26-Port Gigabit L2 Managed PoE Switch ...
MikroTik netPower Lite 8P Compact PoE switch with built-in UPS and smart battery charger - CSS610-8P-2S+OUT
- Brand: MikroTik
- MPN: CSS610-8P-2S+OUT
- Part #: NETMKT1526
Product URL: https://www.pbtech.com/product/NETMKT1526/MikroTik-netPower-Lite-8P-Compact-PoE-switch-with
Features
netPower Lite 8P
Low-cost. Tough. And always ON! Compact PoE switch with built-in UPS and smart battery charger - because your CCTV cameras and access points deserve true off-the-grid resilience.
- 8× Gigabit Ethernet
- 802.3af/at PoE-Out
- 2× 10G SFP+ uplinks
- 24-57 V DC input
- 120 W total PoE-Out
- Integrated UPS switchover
- Built-in smart battery charger
- Temperature sensor included
Power cuts shouldn't mean downtime. The netPower Lite 8P delivers reliable Power-over-Ethernet even when the grid goes dark. The integrated UPS and smart charger work with your external 24 V battery - and can deliver high-voltage PoE-out even from low-voltage DC sources, making the netPower a perfect match for CCTV, offices, apartment buildings, and smart-city installations.
The netPower Lite 8P comes with eight Gigabit Ethernet ports featuring 802.3af/at PoE-Out, plus two 10G SFP+ uplinks for high-speed backhaul. It runs SwOS Lite - fast, efficient, and refreshingly simple to manage. Power input is flexible: just feed 24-57 V DC into the 2-pin terminal.
Just like other outdoor-friendly gear, this switch is built to endure. With an operating range of -40 °C to +70 °C, the netPower Lite 8P keeps delivering where many devices would already be giving up. The switch can draw up to 181 W total, with a 120 W PoE-Out budget. When incoming power is limited, PoE is prioritized automatically - charging slows down first to keep your essential devices online.
Built-in UPS support: effective, reliable, gives you options
Connect a 24 V nominal battery - typically two 12 V units in series - and the switch instantly becomes a small, efficient UPS. During a power outage, PoE devices stay online without any interruptions.
The charger supports flooded, AGM, and gel-based lead-acid batteries, as well as LiFePO₄ (Lithium Iron Phosphate Battery) packs with proper BMS. The charger subsystem is designed for charging batteries through the 2-pin header in a current range 0.2-1.6 A, and at a voltage range of 20 to 31.7 V.
Charging is handled intelligently through three stages:
A temperature sensor is included; it fine-tunes voltage for lead-acid batteries and blocks charging when temperatures drift outside a safe range. This helps prolong battery life.
Alarm input
Connect a simple 2-wire contact to detect tampering, and the device will report it instantly in SwOS Lite and over SNMP. You can pair it with a RouterOS device for additional automation or creative scripting triggers.
Typical Deployment
Powering cameras and wireless backhaul from a single UPS-enabled switch with zero downtime in the long run
Perfect for WISPs, CCTV, apartments, utilities, and smart-city networks
Whenever uptime matters (and budgets!), the netPower Lite 8P gives you a clean, reliable, scalable solution. You get PoE, backup power, smart monitoring, and rugged outdoor performance in one compact device.
So if you value every watt and every second of uptime - the netPower Lite 8P is ready to keep you online…even when the lights go out.
Specifications
MPN
CSS610-8P-2S+OUT
10/100/1000 Ethernet ports with PoE
8
SFP+ ports
2
Switch chip model
88E6193
Operating System
SwOS Lite
Storage size
64 KB
Storage type
FLASH
Number of DC inputs
3 (2-pin terminal)
2-pin terminal input Voltage
24-57 V (Battery 22-30 V)
Max power consumption
208 W
Max power consumption without attachments
9 W
Cooling type
Passive
PoE-out ports
Ether1-Ether8
PoE out
802.3af/at
Low voltage PoE-Out current limit
1.0 A
High voltage PoE-Out current limit
0.64 A
Total output power
120
CPU temperature monitor
Yes
Current Monitor
Yes
Voltage Monitor
Yes
Certification
CE, EAC, ROHS
IP
54
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-40°C to 70°C
