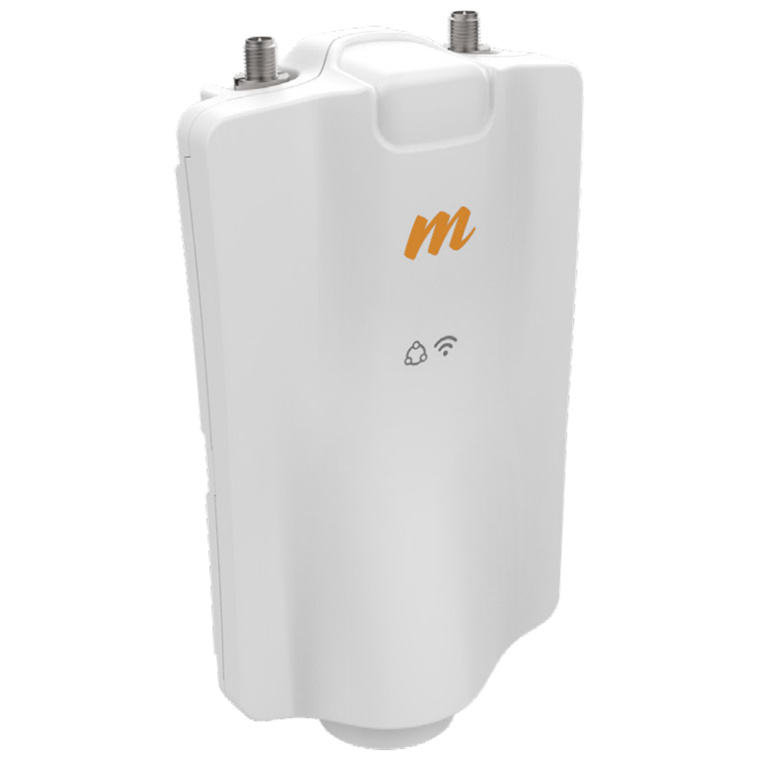

Mimosa A5x 2x2 Connectorised GPS Sync Access Point
Mimosa A5x 2x2 Connectorised GPS Sync Access Point
- Brand: Mimosa
- MPN: A5x
- Part #: NETMMS690055
- UPC:
- Brand: Mimosa
- MPN: A5x
- Part #: NETMMS690055
- UPC:
Features
With fast client speeds and great access point capacity, along with local and network-wide spectrum reuse, the cost-effective, connectorized A5x delivers fiber-fast connectivity for any unlicensed Fixed Wireless network. The A5x is well suited for short to long-range pole and tower point-to-multipoint (PTMP) applications, access point colocation (GPS sync), and Municipal and Rural Licensed Public Safety multipoint (4.9 GHz; rest-of-world product). In situations where the A5c connectorized 4x4 access point is too much or too powerful, the A5x is the perfect choice.
Fiber Speeds
With access point capacity of up to 700 Mbps (IP), the A5x delivers the speeds consumers and business users demand at a fraction of the cost of delivering fiber-to-the-premises.
Increased Capacity at Each Site
With integrated, high-precision SRS (GPS sync) technology, new A5x sectors can easily be added at existing A5 and B5 sites and reuse the same channel. This saves valuable, scarce unlicensed spectrum resources when new A5x devices are installed "back-to-back" on the same tower or pole.
Add Subscribers with Ease
Install, aim and go! We've eliminated manual installation and pre-provisioning complexity, so you can focus on adding subscribers quickly.
Ultra-High Client Capacity
TDMA techniques provide significant improvements when scaling the number of clients. By dynamically allocating upstream timeslots upon client request, network scale, spectrum efficiency and access point utilization are optimized to the highest degree possible.
Extended Frequency Available
Rise above the noise with available extended frequency support from 4.9-6.4 GHz, with the rest-of-world (ROW) product (restricted by country of operation).
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular PTP/PTMP Access Points
Ubiquiti NanoBeam NBE-5AC-Gen2 High-Performance airMAX ac Bridge,...
Ubiquiti LiteBeam LBE-5AC-Gen2 airMAX ac CPE, 5GHz,450+ Mbps, PtP...
Ubiquiti Unifi UDB-Pro 5GHz 867Mbps 5km Wireless Bridging with...
Ubiquiti Unifi UDB 5GHz 867Mbps Wireless Bridging PoE Adapter...
Ubiquiti Rocket ac R5AC-LITE airMAX BaseStation 5GHz,500+ Mbps, 1...
Mimosa A5x 2x2 Connectorised GPS Sync Access Point
- Brand: Mimosa
- MPN: A5x
- Part #: NETMMS690055
Product URL: https://www.pbtech.com/product/NETMMS690055/Mimosa-A5x-2x2-Connectorised-GPS-Sync-Access-Point
Features
With fast client speeds and great access point capacity, along with local and network-wide spectrum reuse, the cost-effective, connectorized A5x delivers fiber-fast connectivity for any unlicensed Fixed Wireless network. The A5x is well suited for short to long-range pole and tower point-to-multipoint (PTMP) applications, access point colocation (GPS sync), and Municipal and Rural Licensed Public Safety multipoint (4.9 GHz; rest-of-world product). In situations where the A5c connectorized 4x4 access point is too much or too powerful, the A5x is the perfect choice.
Fiber Speeds
With access point capacity of up to 700 Mbps (IP), the A5x delivers the speeds consumers and business users demand at a fraction of the cost of delivering fiber-to-the-premises.
Increased Capacity at Each Site
With integrated, high-precision SRS (GPS sync) technology, new A5x sectors can easily be added at existing A5 and B5 sites and reuse the same channel. This saves valuable, scarce unlicensed spectrum resources when new A5x devices are installed "back-to-back" on the same tower or pole.
Add Subscribers with Ease
Install, aim and go! We've eliminated manual installation and pre-provisioning complexity, so you can focus on adding subscribers quickly.
Ultra-High Client Capacity
TDMA techniques provide significant improvements when scaling the number of clients. By dynamically allocating upstream timeslots upon client request, network scale, spectrum efficiency and access point utilization are optimized to the highest degree possible.
Extended Frequency Available
Rise above the noise with available extended frequency support from 4.9-6.4 GHz, with the rest-of-world (ROW) product (restricted by country of operation).
Specifications
Brand
Mimosa
Model
A5x
Max Throughput
700 Mbps IP
Wireless Protocols
Mimosa SRS; WiFi Interop
Client Capacity
64 (WiFi Interop); 44 (SRS/GPS sync)
Frequency Range
4900-6400 MHz (restricted by country of operation)
Max Output Power
27 dBm
System Power Method
Passive POE (24-56 VDC)
Max Power Consumption
9.2 W average; 12.9 W max
Physical Dimensions
Height: 188.4 mm, Width: 75 mm, Depth: 44 mm
Weight
0.3 kg
Outdoor Ingress Protection Rating
IP67
Operating Temperature
-40°C to +55°C
Operating Humidity
5 to 100% condensing
Operating Altitude
4,420 m max
Shock & Vibration
ETS 300-019-2-4 class 4M5
Ports
(1) 10/100/1000-BASE-T
