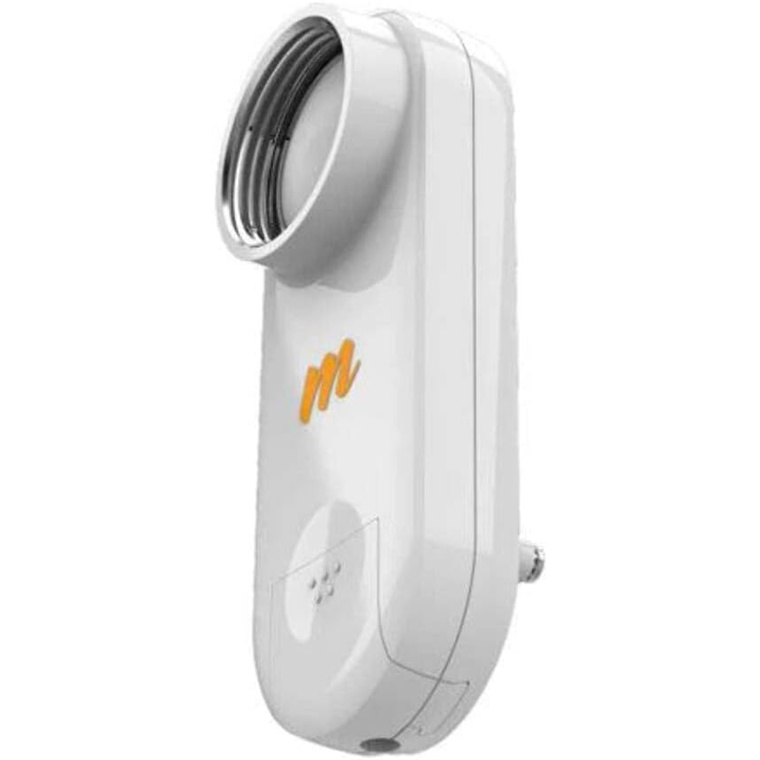

Mimosa C5x 4.9-6.4 GHz, 8 dBi Modular 500 Mbps Bridge Radio

  • Brand: Mimosa
  • MPN: C5x
  • Part #: NETMMS690060
  • UPC:
PB Tech price
AUD $ 157 .51 $ 157 .51


Delivery: Order now and it ships on 19 Jun
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$157.51  +GST
$157.51

Features

The Mimosa C5x is the industry's most versatile, modular, radio solution with five gain options (8, 12, 16, 20 and 25 dBi). The ultra-rugged solution provides extended frequency operation from 4.9-6.4 GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and value, the C5x is the go-to solution for 5 GHz deployments. The C5x can be used in PTP or PTMP mode with speeds of up to 700 Mbps.

- Four Twist-On, Flexible Antenna Options
- PTP or PTMP Modes (feature key may be required)
- Extended Frequency 4.9-6.4 GHz
- Best-in-Class Noise Immunity
- Ultra Rugged
- Low-Power Consumption
- Ultra Reliable
- Designed for WISP's

Key Applications

- Broadband service providers
- Public safety and first responders
- Enterprise and campus building interconnecting
- Multipoint distribution for WiFi, video security and Smart Cities

Ultimate Flexibility and Performance

This ultra-rugged solution offers extended frequency operation from 4.9 to 6.4 GHz, providing best-in-class noise immunity. With speeds up to 500 Mbps (PTMP)/700 Mbps (PTP), the C5x delivers exceptional flexibility and cost efficiency for both Point-to-Multipoint and Point-to-Point Solutions.

Incredible RF Performance

Encased in metal and leveraging custom-designed horn and Cassegrain antennas, the C5x reduces localized noise and provides immunity from interference with breakthrough front-to-back and front-to-side performance.

Ultra Rugged and Compact

The C5x, with its die-cast aluminum metal enclosure, dual-pole mounts and industrial-grade, twist-on antenna options, is optimized to reduce noise, withstand the outdoor elements and stay mounted in extreme weather with a rating of IP-67.

Specifications

Model

C5x

Max Throughput

700 Mbps IP (866 PHY)

Wireless Protocols

Mimosa SRS; WiFi Interop

Modes

PTP Backhaul & PTMP Client

Frequency Range

PTP/PTMP: 4900-6400 MHz (restricted by country of operation)

Max Output Power

27 dBm

Antenna Gain

8 dBi (native built in) or 12-25 dBi (with optional add on antennas)

System Power Method

Passive POE (24-56 VDC)

Max Power Consumption

9.2 W average; 12.9 W max

Physical Dimensions

Height: 175 mm, Width: 70 mm, Depth: 61 mm

Weight

0.4 kg

RF Connector Type

Mimosa N5-X twist-on

Wind Survivability

200 km/h (125 mph)

Outdoor Ingress Protection Rating

IP55

Operating Temperature

-40°C to +55°C (-40°F to 131°F)

Operating Humidity

5 to 100% condensing

Operating Altitude

4,420 m (14,500') max

Shock & Vibration

ETS 300-019-2-4 class 4M5

Ports

(1) 10/100/1000-BASE-T

Manufacturer Part No:
C5x
Brand:
Mimosa
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.1 kg
PB Part No:
NETMMS690060
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
Provide feedback on product content: If this product page is missing key information or you spotted a mistake please let us know.
