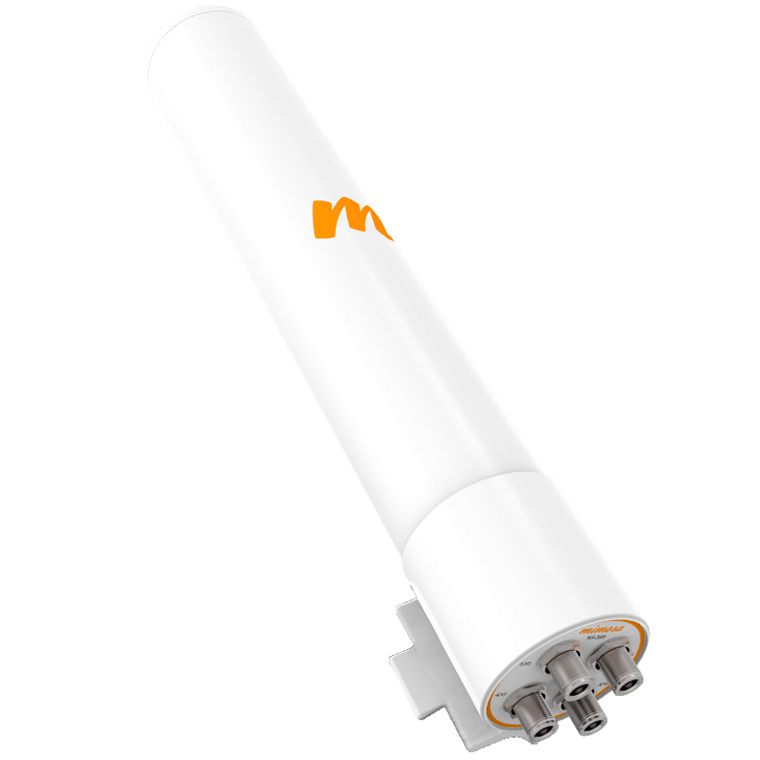

Mimosa N5-360 4.9-6.4GHz 360 Beamforming Antenna A5c
- Brand: Mimosa
- MPN: N5-360
- Part #: NETMMS690062
Product URL: https://www.pbtech.com/product/NETMMS690062/Mimosa-N5-360-49-64GHz-360-Beamforming-Antenna-A5c
Features
Beamforming 360° Antenna
Introducing the industry's first 4-port, beamforming, 360° antenna specifically designed exclusively for Mimosa's A5c access point. The N5-360 antenna's unique design incorporates quad-180° overlapping antenna polarizations, doubling the coverage of Mimosa MicroPoP deployments with 3 dB of beamforming gain.

Designed Exclusively for Mimosa's A5c
The N5-360 boosts throughput by providing balanced dual-stream coverage over 360º of azimuth. Without sacrificing performance, the N5-360 operates over a wide frequency range, from 4.9 to 6.4 GHz, supporting licensed public safety bands and other expanded frequencies, where permitted by region.
Wide-Frequency Range
The only antenna available for use between 4.9 to 6.4 GHz, delivering incredible spectrum flexibility. Enhanced C5 and C5c subscriber speeds through new, balanced, multi-stream technology.

Beamforming Capabilities
3 dB performance enhancement in a compact design, with all new quad-180° overlapping antenna polarizations that enable range-extending, beamforming technology.

Designed for MicroPop Deployments
Double the coverage area with 60% longer reach for MicroPoP deployments, easily handling deployments to homes within 500 m in dense, last mile, suburban areas.

Specifications
Brand
Mimosa
Model
N5-360
Gain
15 dBi
Frequency
4.9-6.4 GHz
Azimuth Beamwidth
360° via 4 overlapping 180° sectors
Elevation Beamwidth (3 db)
8°
Downtilt
2°
Height
465 mm (18.31") including bracket
Width
80 mm (3.15")
Weight
1.11 kg (2.45 lbs)
RF Connectors
4 N-type female
