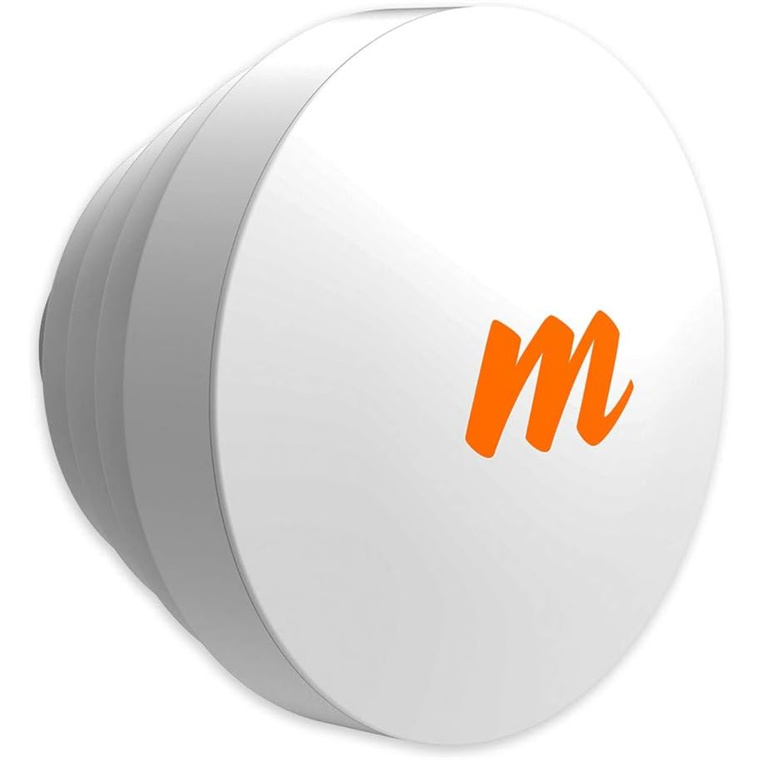

Mimosa 4.9-6.4 GHz Modular Twist-on Antenna, 150mm Horn for C5x only, 16 dBi gain
Mimosa 4.9-6.4 GHz Modular Twist-on Antenna, 150mm Horn for C5x only, 16 dBi gain
- Brand: Mimosa
- MPN: N5-X16
- Part #: NETMMS690066
- UPC:
- Brand: Mimosa
- MPN: N5-X16
- Part #: NETMMS690066
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Antennas





Mimosa 4.9-6.4 GHz Modular Twist-on Antenna, 150mm Horn for C5x only, 16 dBi gain
- Brand: Mimosa
- MPN: N5-X16
- Part #: NETMMS690066

Product URL: https://www.pbtech.com/product/NETMMS690066/Mimosa-49-64-GHz-Modular-Twist-on-Antenna-150mm-Ho
Features
N5-X Series - Modular Antenna Options
Mimosa's unique twist-on antennas offer the ultimate flexibility in network design with 12, 16, 20, 25 and 30 dBi gain options.
Design Your Network with Ease
Mimosa's modular antennas were designed to work with Mimosa's C5x and C6x Client radios, as well as Mimosa's B5x and B6x* Backhaul radios.
*Requires an adapter to work with the 30 dBi antenna
Fiber-Fast Speeds
Breaking the barriers to entry, the A5x is a connectorized, 2x2 access point that delivers fiber-like speeds of up to 700 Mbps (IP).
Get Around the Noise
The wide frequency of the A5x (4.9-6.4 GHz with the ROW product) allows affordable access to more low-noise spectrum for increased speeds and reliability-especially paired with SRS (GPS sync) for channel reuse.
Going the Distance
Whether you're deploying C5x, C6x, B5x, or B6x radios, the Mimosa Design Tool empowers you to precisely test and plan antenna distances, ensuring optimal performance and coverage for your network.
Specifications
Model
N5-X16
Gain
16 dBi
Polarization
Dual-slant 45°
Beamwidth, Symmetric (3dB)
22 dB
Front-to-Back Ratio (min)
50 dB
Front-to-Side Ratio (min)
43 dB
Diameter
160 mm
Depth
116 mm
Mount
Mimosa N5-X twist-on
Wind Survivability
200 km/h (125 mph)
Wind Loading
TBD
