Panasonic PN260496-NZ GA-ML Series Layer2 POE Switch GA-ML4TWPOE
- Brand: Panasonic
- MPN: PN260496-NZ
- Part #: NETPAN1008
Product URL: https://www.pbtech.com/product/NETPAN1008/Panasonic-PN260496-NZ-GA-ML-Series-Layer2-POE-Swit
Features

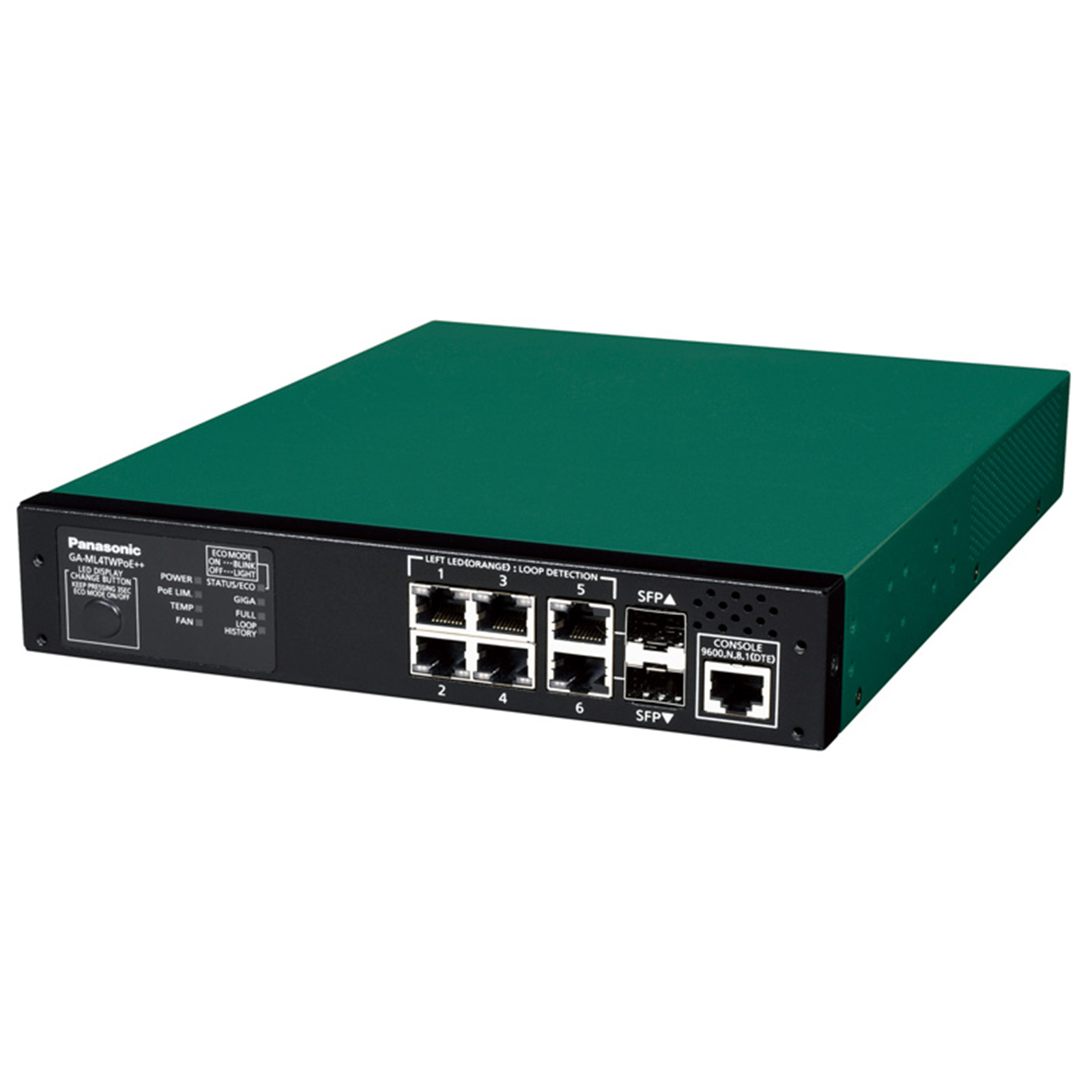

GA-ML4TWPoE++ is an Ethernet Switch with management function having 6 ports of 10/100/1000BASE-T and SFP extension slot, one of which is selectable. Ports 1 to 4 support IEEE802.3bt/at/af PoE power supply function.
- Ports 1 to 4 are 10/100/1000BASE-T ports corresponding to auto negotiation. Also their speed and communication mode can be switched by configuration. Ports 5 and 6 can be used as a 10/100/1000BASE-T port corresponding to auto negotiation or an SFP extension slot exclusively.
- Ports 1 to 4 can supply power conforming with IEEE802.3bt/at/af. Supplying power up to 95 W per port, and up to 240 W in total is possible.
- Equipped with PoE auto reboot function, and monitoring, and the switching of the power supply OFF/ON to ports is possible via Ping, LLDP, and the 3 traffic volume methods.
- Equipped with silent fan control functions, which can set to match the operating environment temperature and power supply, and be used with any of the fan rpm, "High", "Low" and "Min".
- All twisted pair ports support straight/cross cable auto sensing function. Simply connect devices with straight cables, whether it is a terminal or a network device. (This function does not work if the port communication configuration is set at Fixed or Link Aggregation. Ports 1 to 4 are set at MDI-X. (default))
- Telnet/SSH allows remote configuration changes and verifications of the Ethernet Switch. Remotely configure the PoE settings for each port (Ports 1 to 4).
- The connection status for each port is detected by the power saving mode, and it can reduce the power consumption to required levels when not linked up. (Factory default: deactivated)
- Rapid Spanning Tree Protocol is supported, allowing to build a system with redundancy.
- The IEEE802.1p compatible QoS function is supported.
- Supports triple authentication that can simultaneously wait on IEEE802.1X authentication, MAC authentication, and WEB authentication via one port, and an authentication network which is matched to the kinds of connection terminals can be constructed.
- Equipped with step authentication functions, and can prevent illegal access of the terminals.
- Since it is equipped with authentication supplicant functions, a more robust security configuration can be configured in combination with the upper switch's IEEE802.1X authentication function.
- Due to the loop detection/shutoff function, a port where loop has occurred can be automatically shut off to prevent loop failures. When a port is shut off and recovered automatically, SNMP trap can be sent to notify the incident to the administrator. Moreover, the port with a loop can be identified by loop notification on the LEDs on the main unit and referring the history of loop on the setting screen.
- The PoE scheduler function enables scheduling of PoE power supply control.
- Supports ZEQUO assist Plus. Processes from introduction to maintenance can be performed easily.
Specifications
Model No.
PN260496-NZ
Rated/Environmental Conditions
Power supply
AC100-240V, 50/60Hz, 5.0A (with a built-in power supply)
Power consumption
Normally, Max.291W (15.7W when not supplying power), Min. 11.5W
Operating environment
Temperature: 0 - 50°C
Humidity: 20 - 80%RH (no condensation)
(Note) Please note that if the aforementioned conditions are not satisfied, it may cause fire, electrical shock, malfunctions or misoperations, which are not covered by the warranty.
*If it is used beyond the operating environmental temperatures, then the protective devices will start working and the Ethernet Switch power will be shut off.
*If the settings for the silent fan control functions are changed, then the upper limit for the operating environmental temperatures may change. For details, check "7-11. The Silent Fan Control Functions".
Storage environment
Temperature: -20 - 70°C
Humidity: 10 - 90%RH (no condensation)
EMC compliance
CISPR 32 Class A
EN 55032 Class A
AS/NZS CISPR32 Class A
VCCI Class A
EN 61000-3-2, EN 61000-3-3
EN 55024
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5,
IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11
* Electrical surges (lightning-induced surges in wiring): 10 kV (Depending upon the twisted pair ports, and Panasonic's proprietary evaluations
Safety compliance
IEC 62368-1
EN 62368-1
Environment compliance
RoHS compliant
Form
Form and materials/colors
Dimensions :44mm(Height)×210mm(Width)×260mm(Depth) (Excluding protruding sections)
Case material :SECC
Color : Main unit: Green 03, Front face: Black 03, Face plate label: Black 04
Mass(Weight)
2,300g
Interface
Twisted pair port :RJ45 connector (Port 1 to 4, (*1))
Transmitting and receiving network system:
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
Transmission speed :10/100/1000Mbps, full/half duplex
Compatible cable :Twisted pair cable (At least equivalent to EIA/TIA568 category 5e)
Maximum transmission distance :100m
Auto-Negotiation :Communication speed and full/half duplex are automatically recognized.
Setting can be fixed to 10Mbps or 100Mbps and full duplex or half duplex.
PoE power supply function :IEEE802.3bt/at/af
Up to 240W of power can be supplied to ports 1 to 4 in total.
Up to 90W of power can be supplied per port (factory default).
Up to 95W of power can be supplied per port (*2)(*3)
PoE power supply method :Alternative A (Cable signal lines 1, 2, 3, and 6 are used.) :Alternative A,B (Cable signal lines 1 to 8 are used)
Twisted pair port :RJ45 connector (Port 5 to 6, (*1))
Transmitting and receiving network system:
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
energy efficient Ethernet :IEEE802.3az(LPI)
Transmission speed :10/100/1000Mbps, full/half duplex
Compatible cable :Twisted pair cable (At least equivalent to EIA/TIA568 category 5e)
Maximum transmission distance :100m
Auto-Negotiation :Communication speed and full/half duplex are automatically recognized. Setting can be fixed to 10Mbps or 100Mbps and full duplex or half duplex.
*1 Support two types of energy saving method : 1) Embedded power saving mode detects the connection status automatically and saves power consumption to minimum. 2) Energy Efficient Ethernet (EEE) conforming to IEEE802.3az (LPI). When there is no data transmission at link up, the energy-saving state automatically starts so that power consumption can be reduced on each port. These items are set to "Disabled" at factory default setting, and arrowed to be changed by the setting for application
*2 This is enabled when the limit of power supply per port is set to 95W. Power supply over 90W is available for only the Panasonic's PDs corresponding to PoE++.
*3 AWG24 and 65 Celsius degree or higher rated temperature cables are recommended.
SFP extension slot 5, 6
Transmitting and receiving network system: IEEE802.3z 1000BASE-X
* Select either of 1000BASE-T twisted pair port or SFP for use SFF-8472(DMI:Diagnostic Monitoring Interface
Switching mode
Switching method
Store and Forward
Switching capacity
12.0Gbps
Packet transfer capability
Non-blocking
Max. 1,488,000pps/port(1000Mbps)
Max. 148,800pps/port(100Mbps)
Max. 14,880pps/port(10Mbps)
MAC Address table
Max. 16K entry/unit
Automatic learning can be enabled/disabled
Buffer memory
2.0M Bytes/unit
Flow control
half-duplex Back pressure full-duplex IEEE802.3x
Aging timeout
10 to 1,000,000 sec. (Default: 300 sec.)
Jumbo frame supported
9KB
Transmittable frames
EAP,BPDU
Terminal emulator connection
Console port
RJ45 connector 1 port
Transmission mode
RS-232C(ITU-TS V.24)
Emulation mode
VT100
Communication configuration
9,600bps, 8bit, None Parity control,
Stop bit 1 bit
