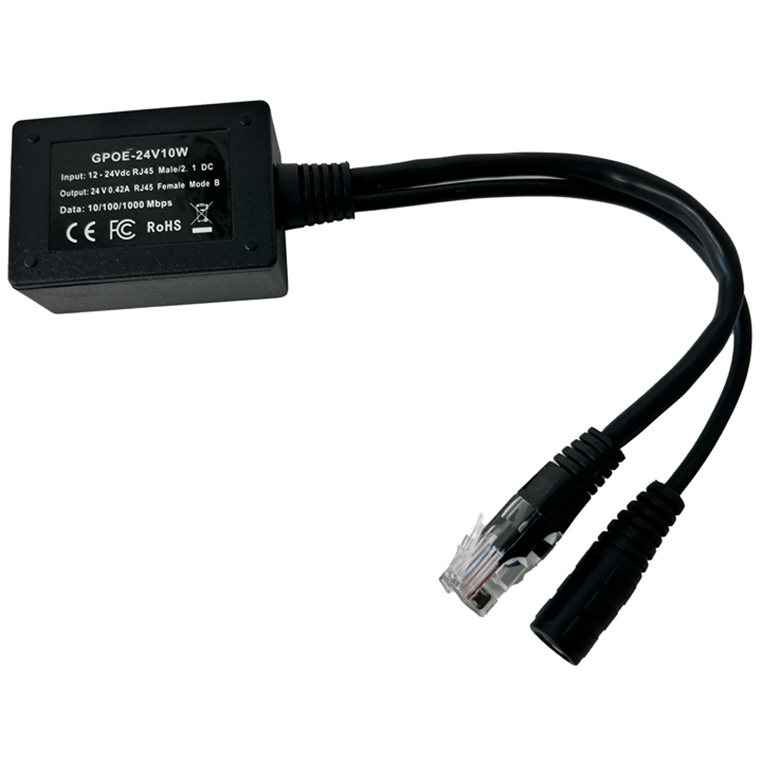

PoE World GPOE-24V10W GPOE-24v10w PoE Inline Converter for 12 - 30V Solar in to 24V Passive PoE Out

PB Tech price
PB Tech price
AUD $ 31 .85
$ 31 .85
$31.85  +GST
$31.85

PoE World GPOE-24V10W GPOE-24v10w PoE Inline Converter for 12 - 30V Solar in to 24V Passive PoE Out

  • Brand: PoE World
  • MPN: GPOE-24V10W
  • Part #: NETPEW1011
  • UPC:
PB Tech price
AUD $ 31 .85 $ 31 .85


Delivery: Order now and it ships on 25 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$31.85  +GST
$31.85
  • Brand: PoE World
  • MPN: GPOE-24V10W
  • Part #: NETPEW1011
  • UPC:

Features

This device provides a low cost solution for delivering battery or 12v power to a 24 volt device over 328ft of network cable. This scheme allows power to be carried on 10/100/1000 networks on CAT5E, CAT6 or CAT7 Ethernet network cable. Power into the device is either from the 2.1mm DC connector - OR - from the RJ45 male pins 4,5 + (plus) and 7,8 -
(minus). The device passes 10/100/1000 Ethernet.

A battery of 12v can now power a 24 volt device like a Mikrotik or Ubiquiti. The higher DC voltage of 24 volts compared to 12 volts, means the wire loss is reduced by a factor of 4, thus carried with less loss over the spare pairs of the 10BASE-T or 100BASE-T network cable. The remote device extracts the DC voltage from the network cable and powers it's internal electronics.

If power is applied to the 2.1mm input - power will be isolated from the male RJ-45 - so the male Rj45 can be plugged into a switch or router. The output voltage of 24 volts comes on pins 4,5 + (plus) and 7,8 -(minus) of the female RJ-45 in order to power any mode B device. If the source power is from 10v to 24v, and the output voltage is 24 volts, if the source is greater than 24.7v, the output will be equal to the input minus 0.7 volts. For example, a 30.7 volt input will cause the output to be 30 volts

Note: the device will continue to operate as low as 10 volts - so if connected to a battery - use a charge controller to disconnect at 11.3 volts to protect the battery.

Specifications

Brand

PoE World

Data + Power in

RJ 45 male connector (Mode B)

DC Input Connector

2.1mm x 5.5mm adapter (Center +)

Data + Power out

RJ 45 Female connector (Mode B)

Network Type

10/100/1000

Data Pins

All 4 pairs

Power Pins Input

4 & 5 + and 7 & 8 -

Input Voltage

8v to 24 volts DC (Step up)
24 to 30 volts DC (pass thru)

Output Voltage

24v +- 2% at .42 amps

Input Current

At 8 volts, 10 watts (1.3 amps)
At 12 volts, 10 watts (0.9 amps)
At 24 volts, 10 watts (0.42 amps)
At 30 volts, 10 watts (0.33 amps)

Power Pins Out

4 & 5 + and 7 & 8 (Mode B)

Operating Temperature

0°C ~ 50°C

Manufacturer Part No:
GPOE-24V10W
Brand:
PoE World
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
NETPEW1011
Product Model:
-
Warranty: 12 months *
