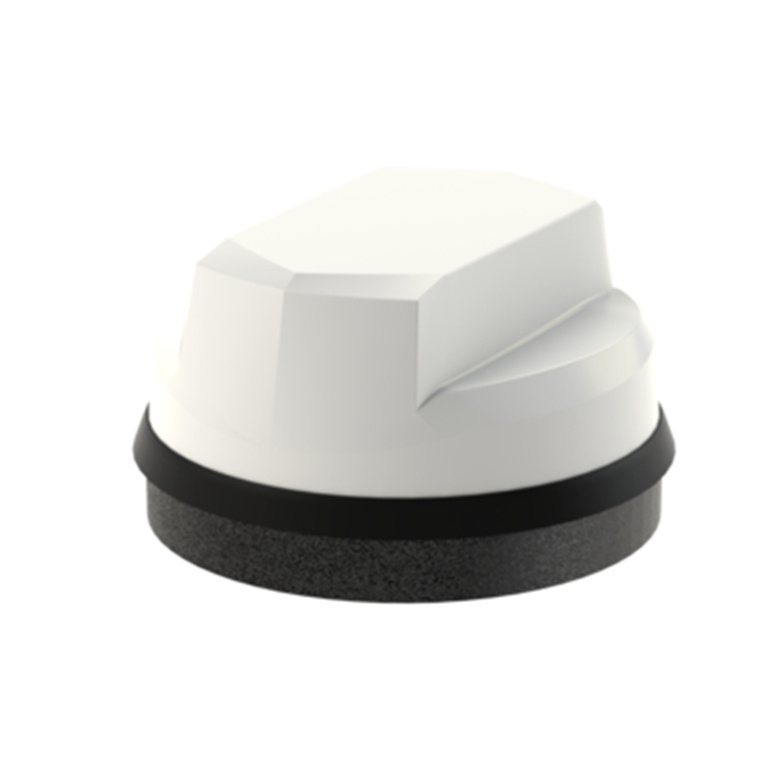

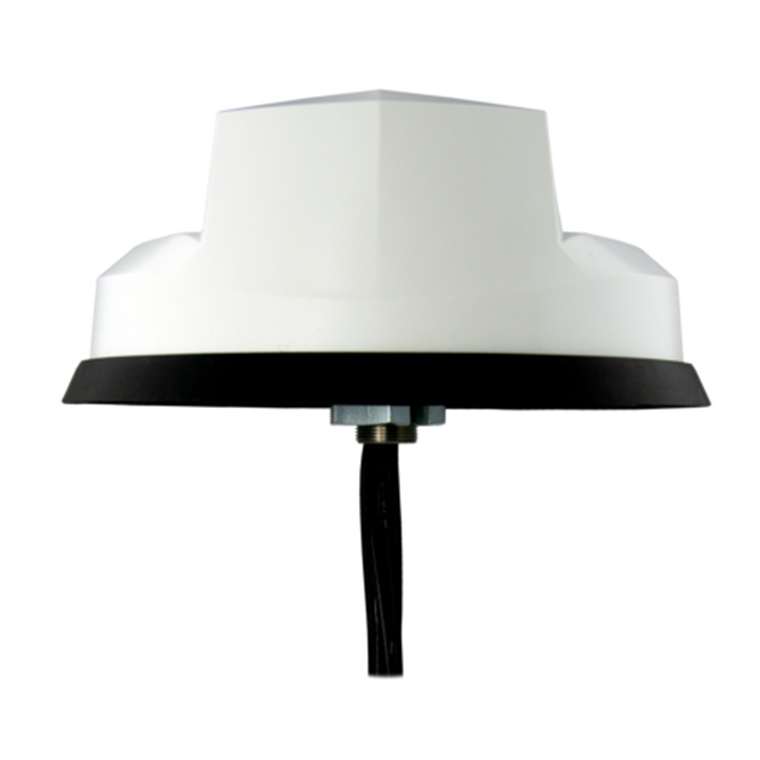

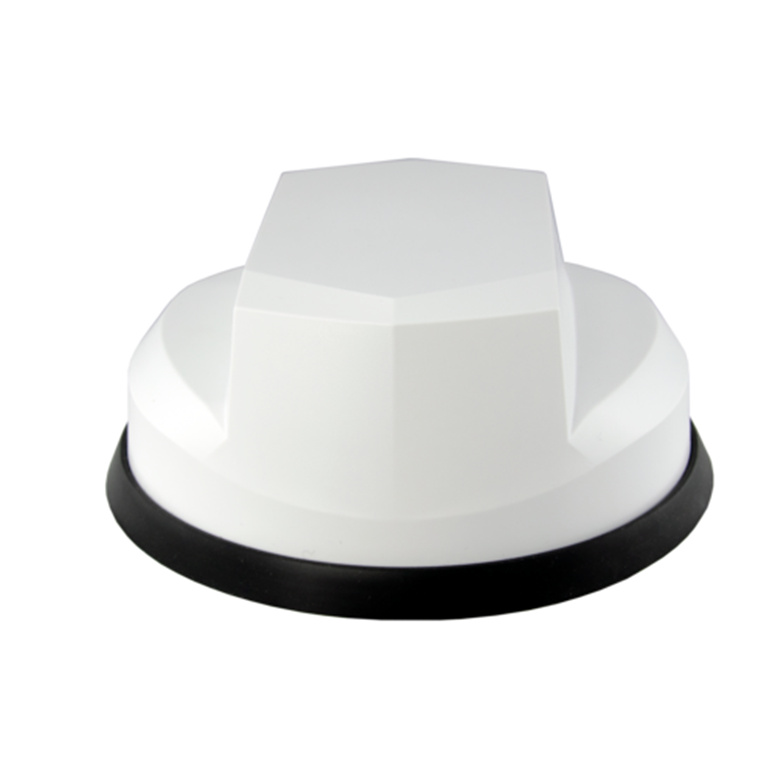

Panorama LP-IN2455-W-LC 2-in-1 2x2 MiMo 5G LTE Dome Kit w/ 5m cables (white)

The Panorama Antennas LP-IN2455-W-LC is a high-performance 2-in-1 dome antenna engineered for modern LTE applications. Featuring advanced 2x2 MiMo technology, it supports connectivity across a wide range of frequencies, specifically 617-960 MHz and 1427-6000 MHz. This extended coverage makes it suitable for multiple generations of cellular technologies, including 2G, 3G, 4G, and 5G LTE, ensuring compatibility with the latest mobile data networks.

Versatile Applications for Public and Commercial Sectors

Designed to meet the demanding needs of public safety and commercial fleets, the LP-IN2455 is ideal for installation on police vehicles, ambulances, fire trucks, public buses, and various fleet operations including trucks and utility vehicles. Its broad frequency compatibility and dependable performance make it an excellent choice for critical communication systems such as FirstNet, Frontline, and the Emergency Services Network (ESN), enhancing operational reliability for mission-critical applications.

Key Benefits and Flexible Installation

This antenna stands out for its panel-mount design, which allows for single-hole installation on both conductive and non-conductive surfaces. Its ground plane independence simplifies placement, making it adaptable to a variety of installation scenarios.

Robust Construction and Environmental Protection

Engineered with durability and safety in mind, the LP-IN2455 comes equipped with integrated, flame-retardant RG174 cables that comply with UNECE 118.01 and EN45545-2 safety standards. The radome is halogen-free and flame retardant, providing excellent protection in harsh environments. The white version of the antenna meets the IK10 standard for vandal resistance and carries an IP69K rating, signifying top-tier resistance to dust, water, and even high-pressure cleaning.

Technical Specifications and Reliability

From a technical perspective, the LP-IN2455 offers an impressive peak gain of up to 9 dBi and supports omni-directional coverage with up to 10 watts of input power. The antenna operates reliably in extreme temperatures ranging from -40°C to +85°C. Its compact design-with a height of 80 mm and a diameter of 180 mm-ensures it fits unobtrusively on vehicles or equipment. With its robust mounting mechanism and industry-recognized IP69K ingress protection, the LP-IN2455 is a trustworthy solution for anyone requiring high performance and reliability in demanding communication environments.
