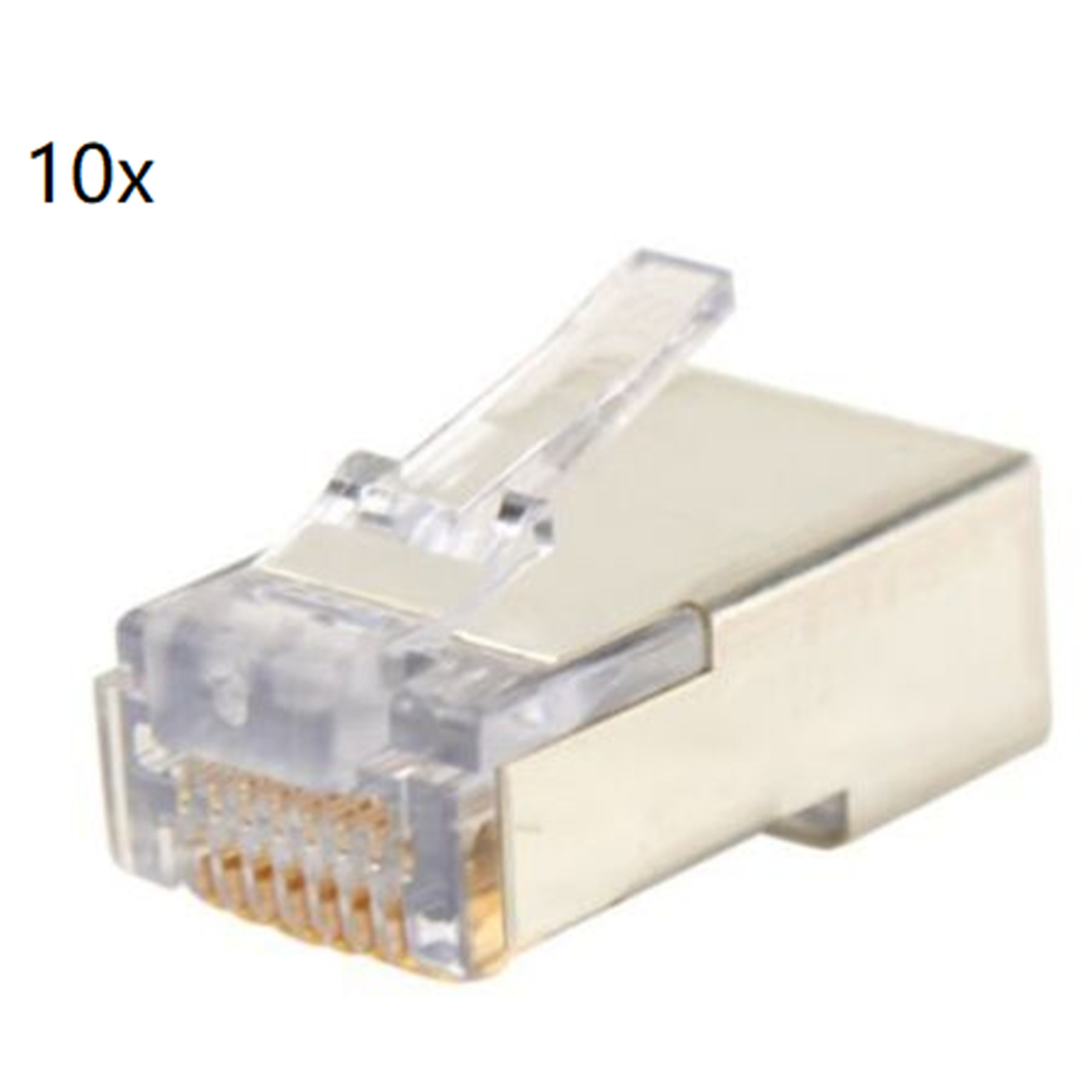

PlatinumTools 100021C Cat5e/6 Shielded EZ-RJ45 Plug with Internal Ground. Easy install RJ45 plug for Cat5e or Cat6 shielded solid and stranded cable. Once piece design. 10pc clamshell.
PlatinumTools 100021C Cat5e/6 Shielded EZ-RJ45 Plug with Internal Ground. Easy install RJ45 plug for Cat5e or Cat6 shielded solid and stranded cable. Once piece design. 10pc clamshell.
- Brand: PlatinumTools
- MPN: 100021C
- Part #: NETPNT1000
- UPC: 849160000723
- Brand: PlatinumTools
- MPN: 100021C
- Part #: NETPNT1000
- UPC: 849160000723
COMBO DEALS: Frequently Bought Together




JEYI SSD Heatsink Warship PRO For NVME M.2 2280 Aluminum Heatsink, Works With Playstation PS5 SSD...
$12.67
$12.67
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Modular Connectors





PlatinumTools 100021C Cat5e/6 Shielded EZ-RJ45 Plug with Internal Ground. Easy install RJ45 plug for Cat5e or Cat6 shielded solid and stranded cable. Once piece design. 10pc clamshell.
- Brand: PlatinumTools
- MPN: 100021C
- Part #: NETPNT1000
- UPC:849160000723

Product URL: https://www.pbtech.com/product/NETPNT1000/PlatinumTools-100021C-Cat5e6-Shielded-EZ-RJ45-Plug
Features
PLATINUM TOOLS Cat5e/6 Shielded EZ-RJ45 Plug with Internal Ground. Easy install RJ45 plug for Cat5e/ Cat6 shielded solid & stranded cable. One piece design. 10x clamshell.

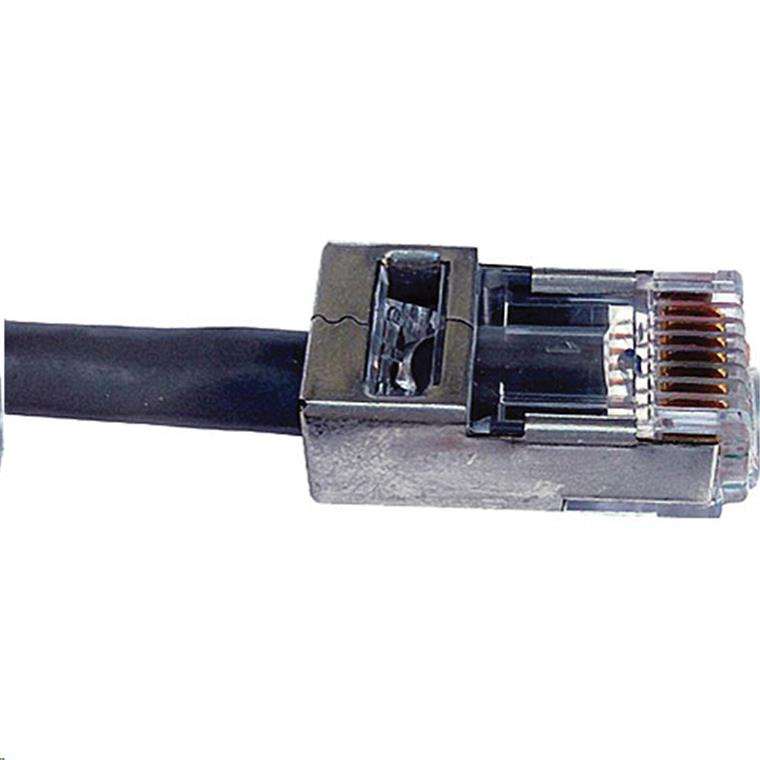

The EZ-RJ45® fully shielded plug, with an internal ground, combines the performance advantage exclusive to the EZ-RJ45® design with the performance advantage inherent to shielded products to provide an unparalleled solution for the market.
- EZ-RJ45® design allows the wires to pass through the connector so the twists in each pair can be pulled closer to the contacts than conventional plugs.
- Maintaining the twists to the point of termination significantly decreases crosstalk and markedly increases performance.
- Fully shielded products provide reduced pair-to-pair crosstalk, alien crosstalk, and considerably improved immunity to noise at all frequencies.
- Significantly improve Shannon capacity.
- Substantially improve noise immunity at all frequencies, especially above 30 MHz when cable balance starts to significantly degrade.
- Category 6 performance per EIA/TIA B.2. FCC compliant, UL rated. RoHS compliant
- Max Cable OD: 6.60mm (0.260"), Max Insulated wire OD: 1.041mm (0.041")
- For solid round or stranded wire cables.
- Made in the USA, Patented
- TAA Compliant
- 10pc clamshell
Specifications
CAT5e & CAT6
Quantity
10 pieces
Cable Maximum OD:
0.26" / 6.60 mm
Conductor Maximum OD:
0.041" / 1.041 mm
Compliance
FCC, UL, and RoHS
