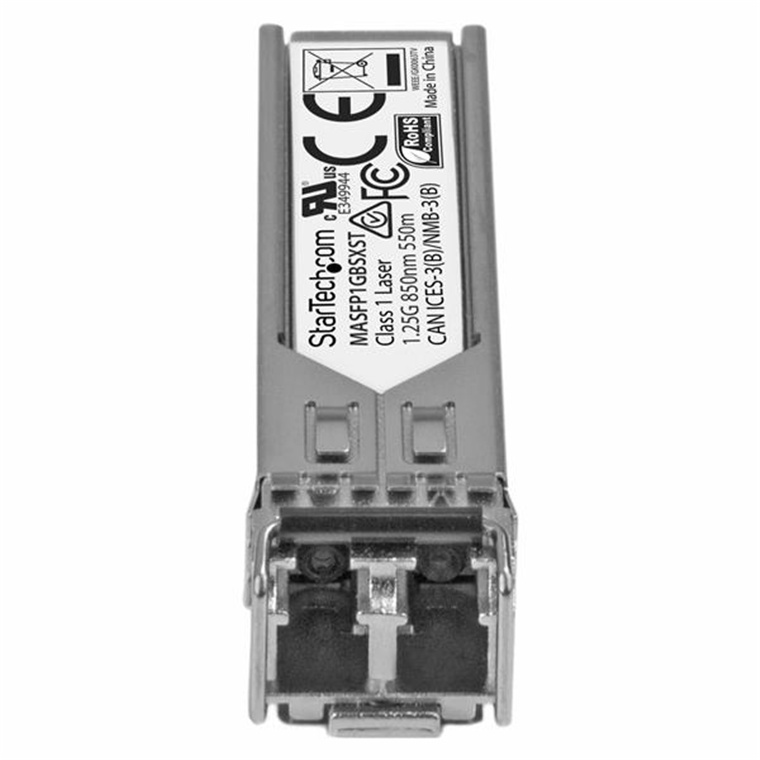

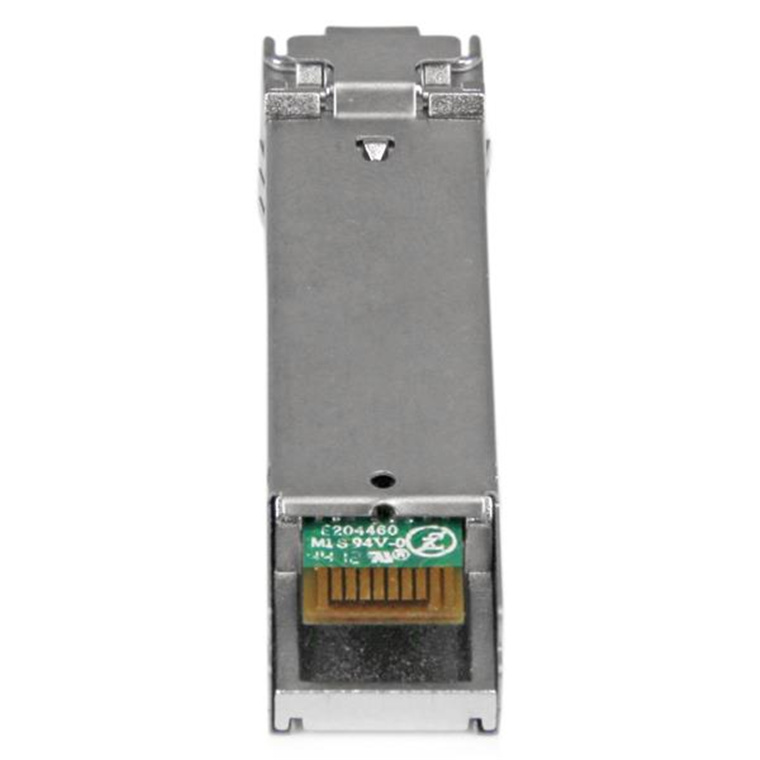

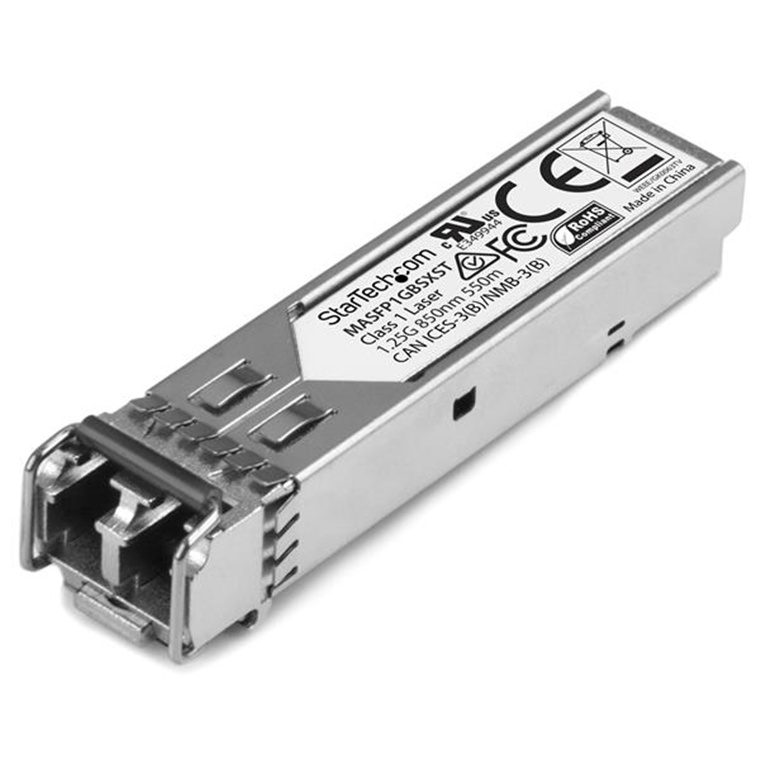

StarTech.com MA-SFP-1GB-SX Compatible SFP - Gb Fiber 1000Base-SX SFP Transceiver Module - MM LC -
StarTech.com MA-SFP-1GB-SX Compatible SFP - Gb Fiber 1000Base-SX SFP Transceiver Module - MM LC -
- Brand: StarTech.com
- MPN: MASFP1GBSXST
- Part #: NETSTT3578241
- UPC: 065030868655
- Brand: StarTech.com
- MPN: MASFP1GBSXST
- Part #: NETSTT3578241
- UPC: 065030868655
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Transceivers
StarTech.com MA-SFP-1GB-SX Compatible SFP - Gb Fiber 1000Base-SX SFP Transceiver Module - MM LC -
- Brand: StarTech.com
- MPN: MASFP1GBSXST
- Part #: NETSTT3578241
- UPC:065030868655
Product URL: https://www.pbtech.com/product/NETSTT3578241/StarTechcom-MA-SFP-1GB-SX-Compatible-SFP---Gb-Fibe
Features
1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) |
- 100% CISCO MERAKI MA-SFP-1GB-SX COMPATIBLE: Works with Cisco Meraki switches like MS225, MX400, MS250, MS350, MX84 and others
- TECHNICAL SPECS: 1000BASE-SX | 1 Gbps | Multi Mode (MMF) | LC Connector | 850nm | Digital Diagnostic Monitoring (DDM) | Distances up to 550m (1804ft)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550m (1804 ft).
Technical Specifications:
Wavelength: 850nm
Maximum Data Transfer Rate: 1.25 Gbps
Type: Multi Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 550m (1804 ft)
MTBF: 1,967,709 hours
Power Consumption: Less than 1.2 Watts
Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Applications
- Replacing defective or damaged SFP modules in Cisco Meraki switches and routers
- Expand your network to remote segments
Specifications
Package Quantity
1
Industry Standards
IEEE 802.3z 1000BASE-SX
Material
Aluminum
System and Cable Requirements
MSA or Cisco Meraki compliant SFP port
Connector(s)
Local Unit Connectors
1 - Fiber Optic LC Duplex
Environmental
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
5~95% RH
Hardware
Compatible Brand
Cisco Meraki
Packaging Information
Package Height
1.3 in [3.3 cm]
Package Length
4.4 in [11.3 cm]
Shipping (Package) Weight
1.5 oz [42.0 g]
Package Width
3.6 in [9.2 cm]
Performance
Maximum Data Transfer Rate
1.25 Gbps
Max Transfer Distance
550m [1804ft]
Type
Multi Mode
Wavelength
850nm
Fiber Operating Mode
Full-Duplex
DDM
Yes
Compatible Networks
1000 Mbps (1 Gbps)
MTBF
3,381,761 hours
Power Consumption (In Watts)
< 1 W
Physical Characteristics
Weight of Product
0.5 oz [14.0 g]
Color
Silver
Product Length
2.2 in [56.6 mm]
Product Width
0.5 in [1.4 cm]
Product Height
0.5 in [1.2 cm]
Special Notes / Requirements
Note
For use in Gigabit fiber networking equipment and media converters
What's in the Box
Included in Package
1 - SFP transceiver
