Features

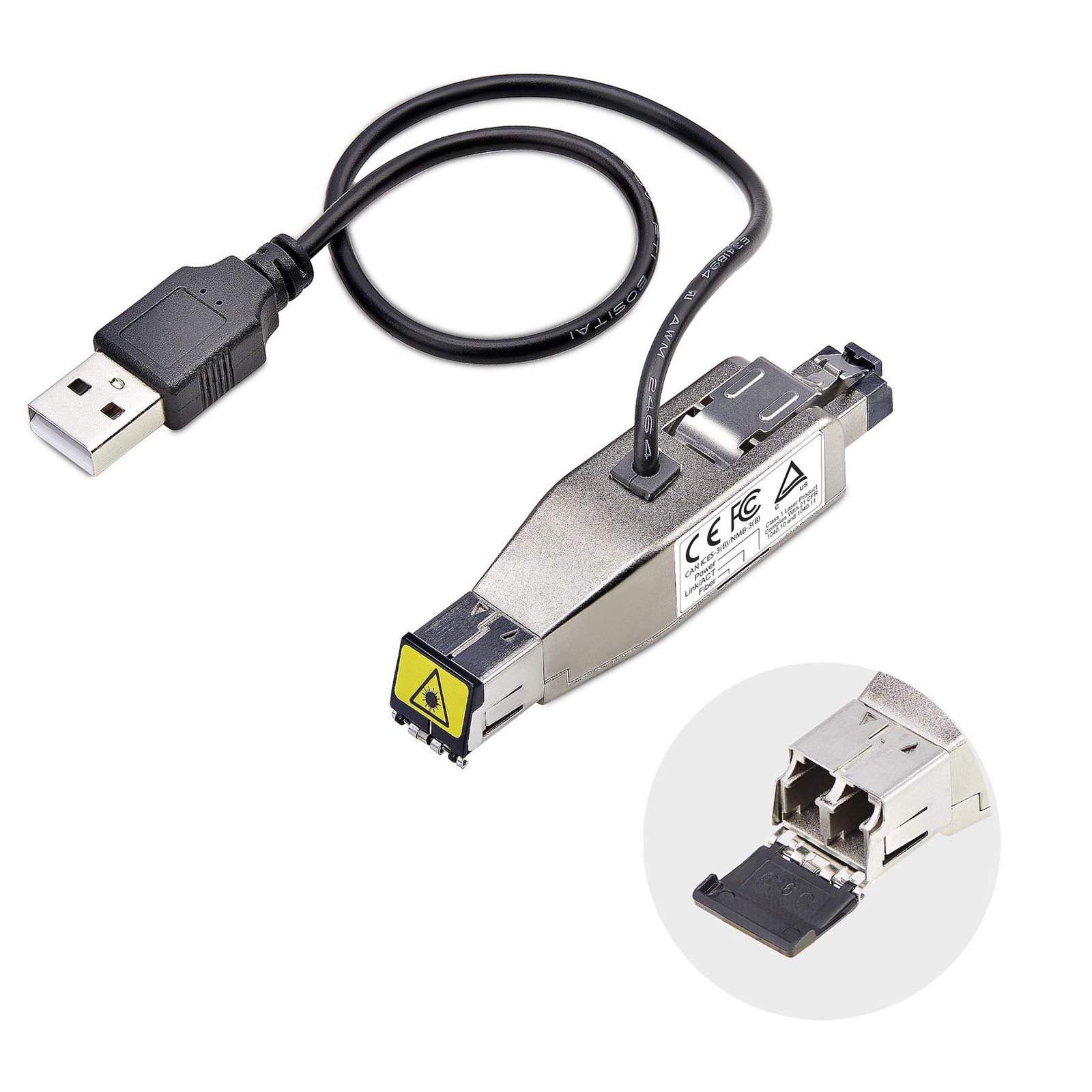

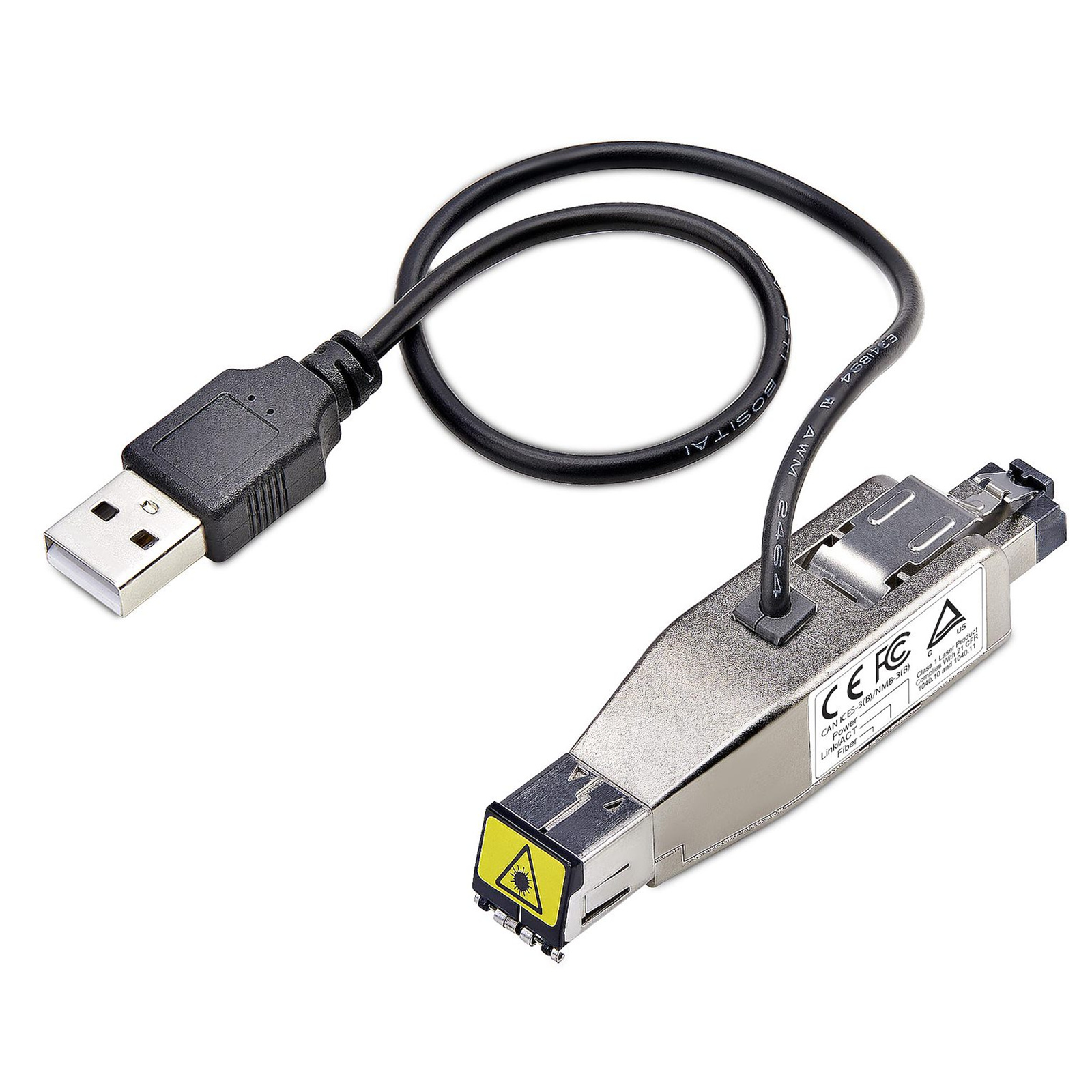

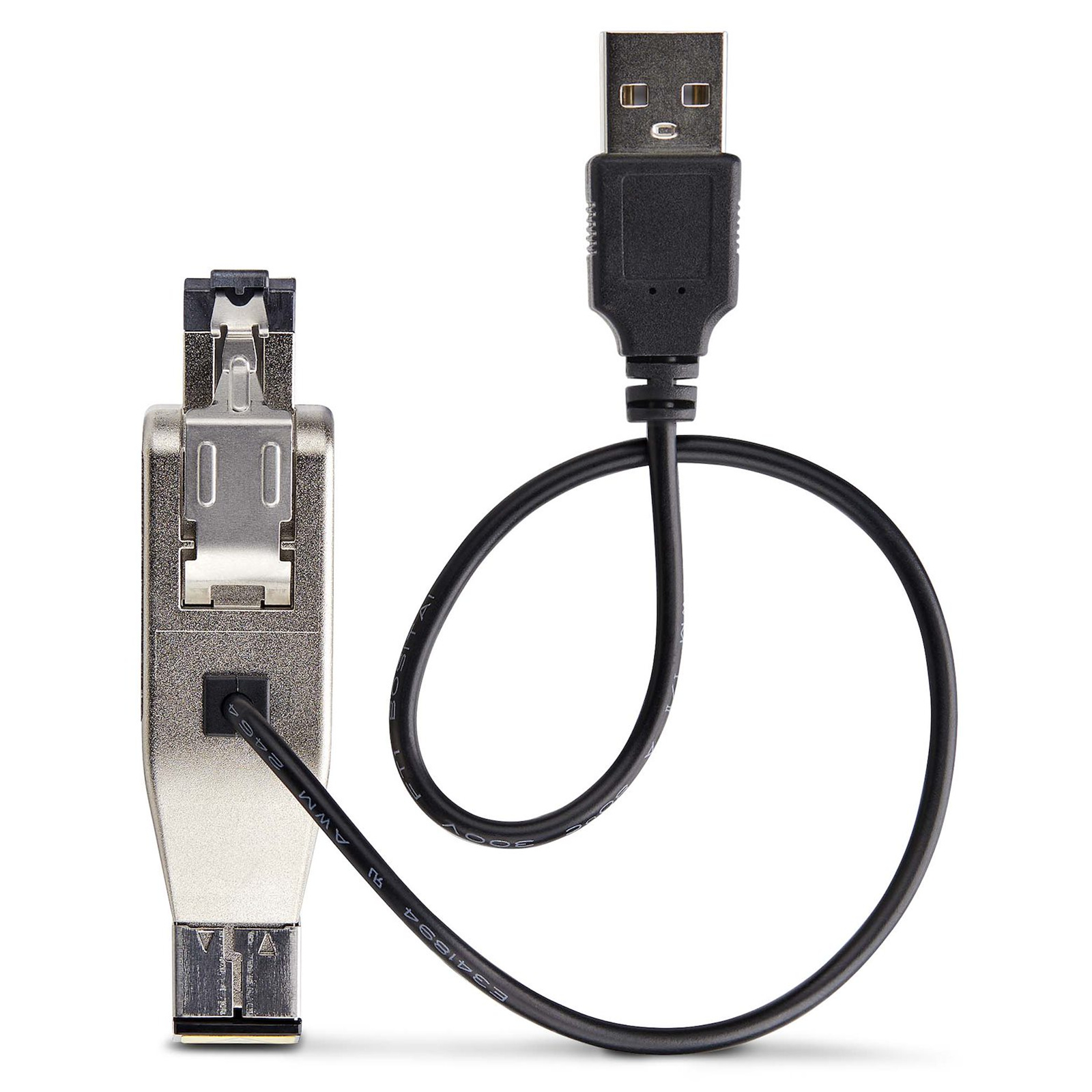

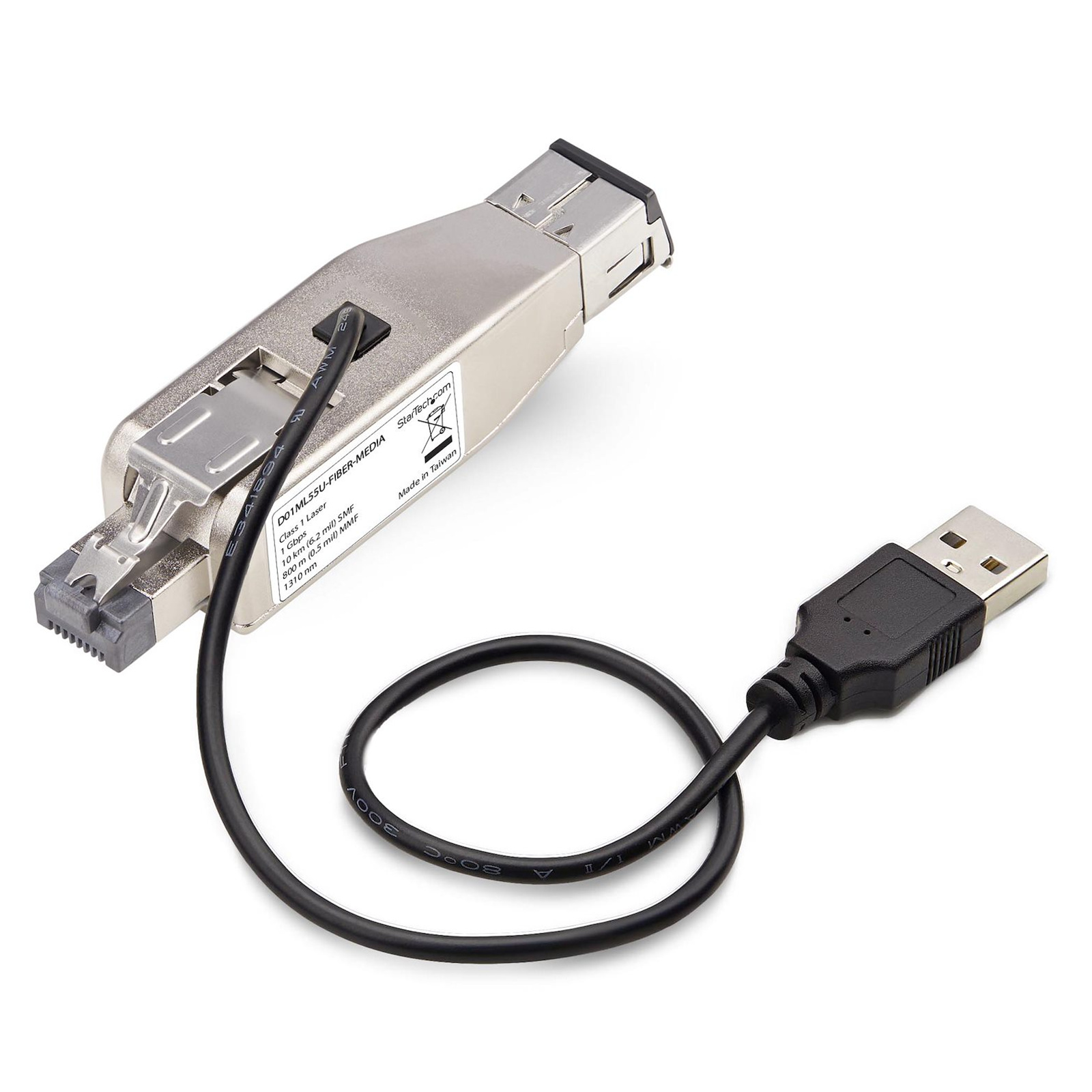

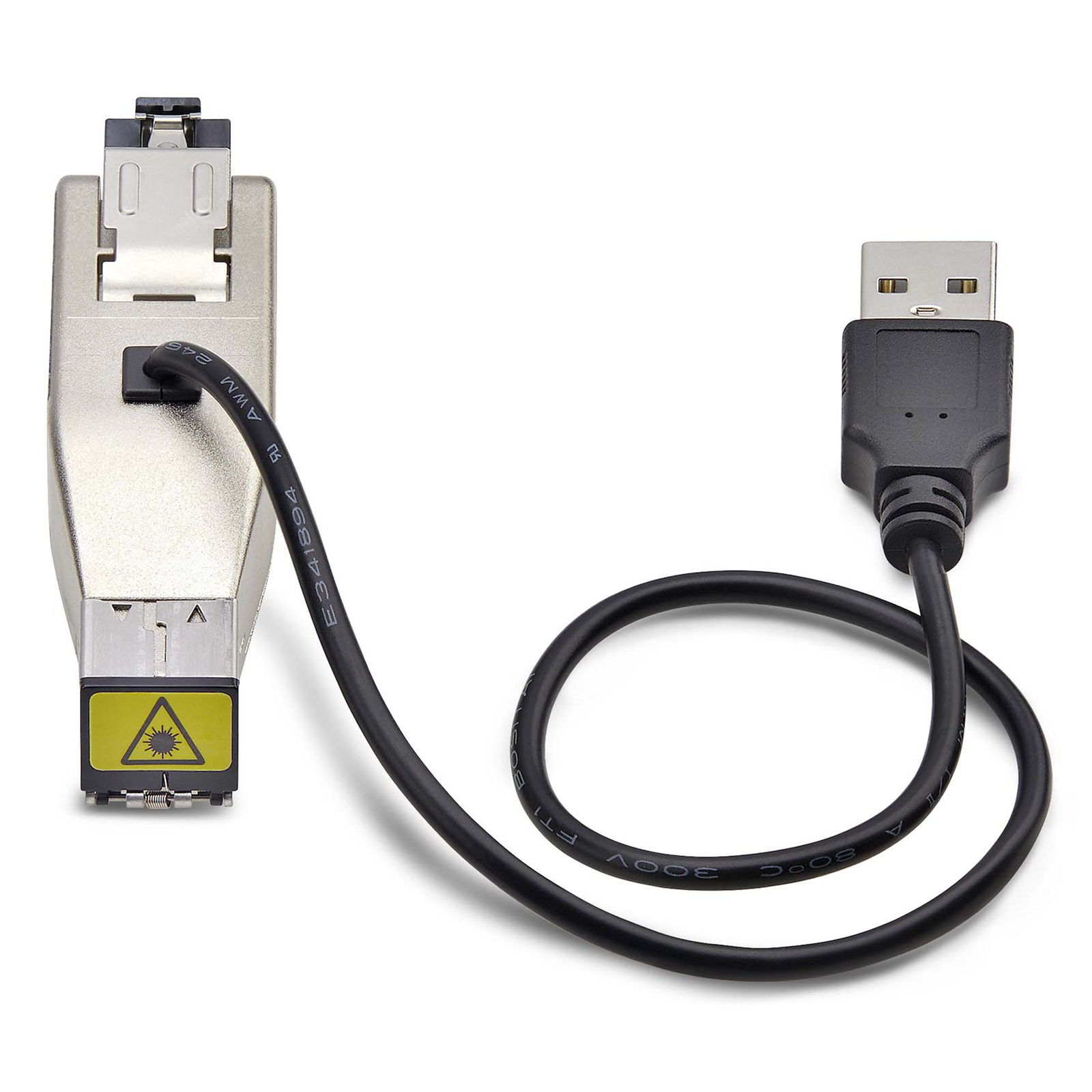

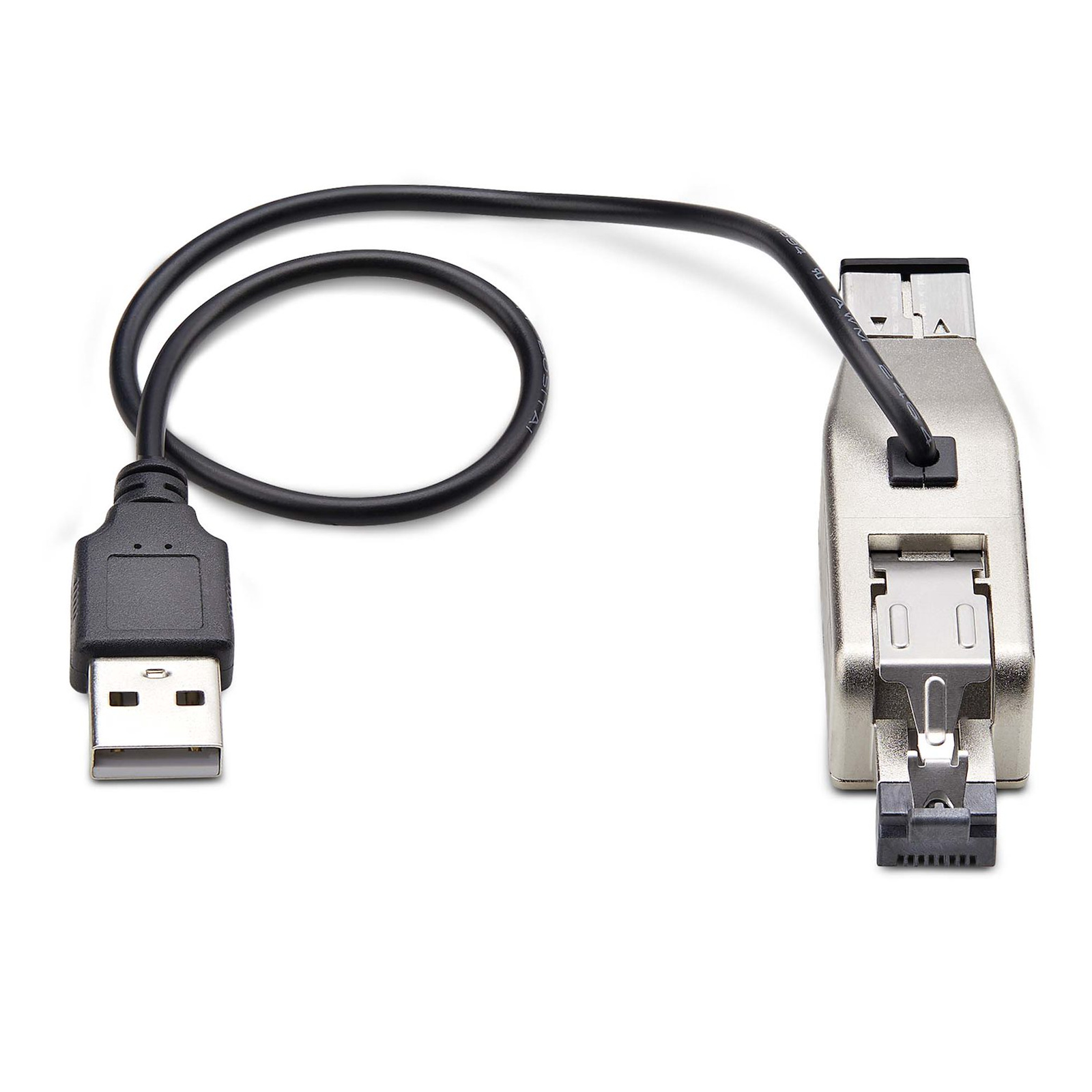

This compact Gigabit Fiber to Ethernet Media Converter enables Cat6 or similar cabling to be upgraded to an EMI-free fiber connection. The TAA-compliant adapter is designed with a convenient built-in USB cable for power, making it a perfect choice when external power options are unavailable.
Simplified Installation
The unmanaged fiber media converter features a plug-and-play design that does not require additional software or settings to be changed. The metal housing features an IP20 rating and is an all-in-one construction with integrated LC fiber and RJ45 ports. The RJ45 side features a metal tab to ensure a reliable and secure fit and prevent accidental disconnections.
Short & Long Range Fiber
- LC slot compatible w/Single-Mode (10km) & Multi-Mode (800m)
- Single speed 1Gbps for both fiber and RJ-45 ports
- Status LEDs including LFPT (Link Fault Pass-Through) enables IT admins to monitor network connectivity
Network Features
The LC slot is compatible with Single-Mode (10km) and Multimode (800m) fiber cables up to 1Gbps. A spring-loaded tab protects the port when not in use. The converter supports LFPT (Link Fault Pass-Through), allowing IT administrators to monitor and assess network connectivity at a glance based on the LED behavior.
Compatibility

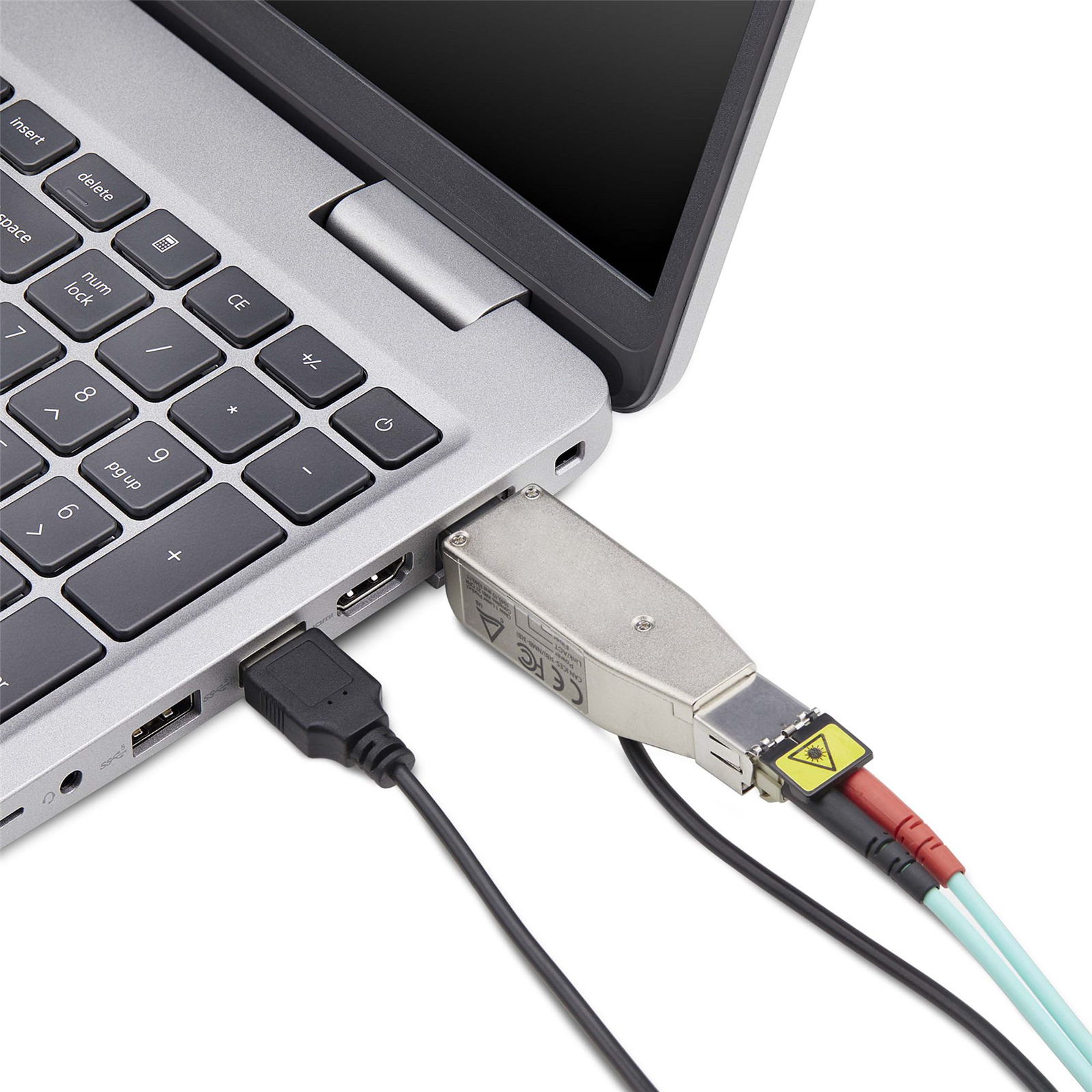

This LAN-to-fiber converter is ideal for upgrading computers, switches, routers, or other equipment from copper to fiber. It suits various applications, including field deployments, industrial automation, telecommunications, broadcasting, data centers, and remote networking. Experience reliable connectivity with EMI immunity over long distances with this compact (3.2x0.8x0.7in/82.39x20x17.5mm) and power-efficient (2.5W max) dongle.
Applications
- Upgrade computers, switches, routers, or other equipment to fiber
- Suitable for on-site network troubleshooting, field deployments, industrial automation, telecommunications, broadcasting, data centers, and remote networking
Specifications
Connector(s)
Connector A
1 - LC
Connector B
1 - RJ-45
1 - USB Type-A (4-pin) USB 1.1
Hardware
PoE
No
Industry Standards
IEEE 802.3ab (1000BASE-T)
IEEE 802.3z (1000BASE-LX)
Chipset ID
Marvell - 88E1512
Indicators
LED Indicators
1 - Power
Solid Green: Module On
Off: Module Off
1 - Link/ACT
Solid Green: 1000Mbps
Blinking Green: Activity
Off: Disconnected
1 - Fiber
Solid Blue: Connected
Off: Disconnected
Performance
Maximum Data Transfer Rate
1000 Mbps
Type
Single Mode / Multi Mode
Wavelength
1310nm
Compatible Networks
1000 Mbps (1 Gbps)
Auto-Negotiation
Yes
Auto MDIX
Yes
Physical Characteristics
Color
Silver
Product Height
0,7 in [1,8 cm]
Product Length
0,8 in [2,0 cm]
Weight of Product
1,7 oz [49,0 g]
Product Width
3,2 in [8,2 cm]
Material
Metal and Plastic
Power
Power Source
USB-Powered
Plug Type
USB A (4 pin) Male
Power Consumption (In Watts)
2.5W Max
Environmental
Operating Temperature
0°C to 50°C (32°F to 122°F)
Humidity
5~85% RH
What's in the Box
Included in Package
1 - Media Converter
1 - Quick-Start Guide
