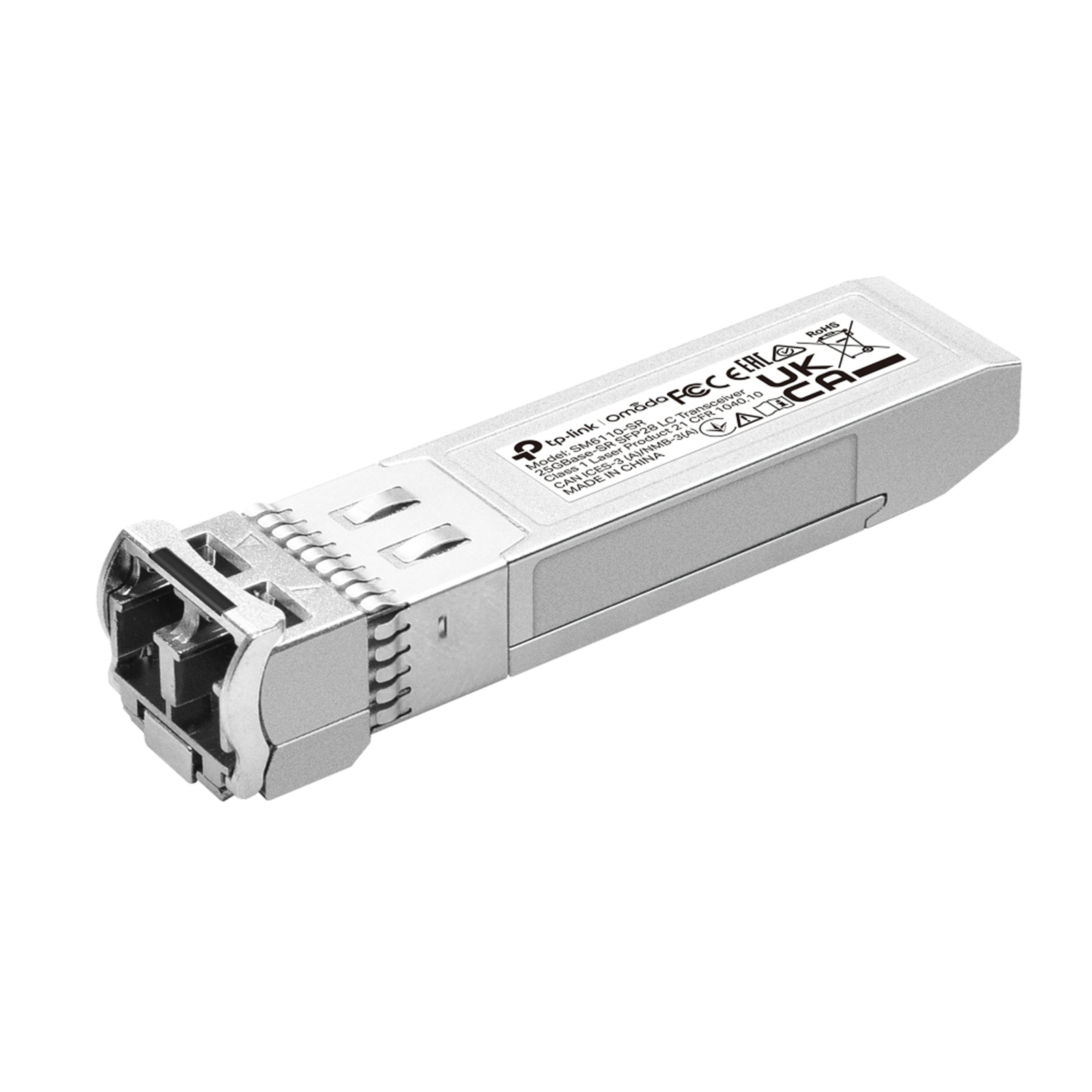

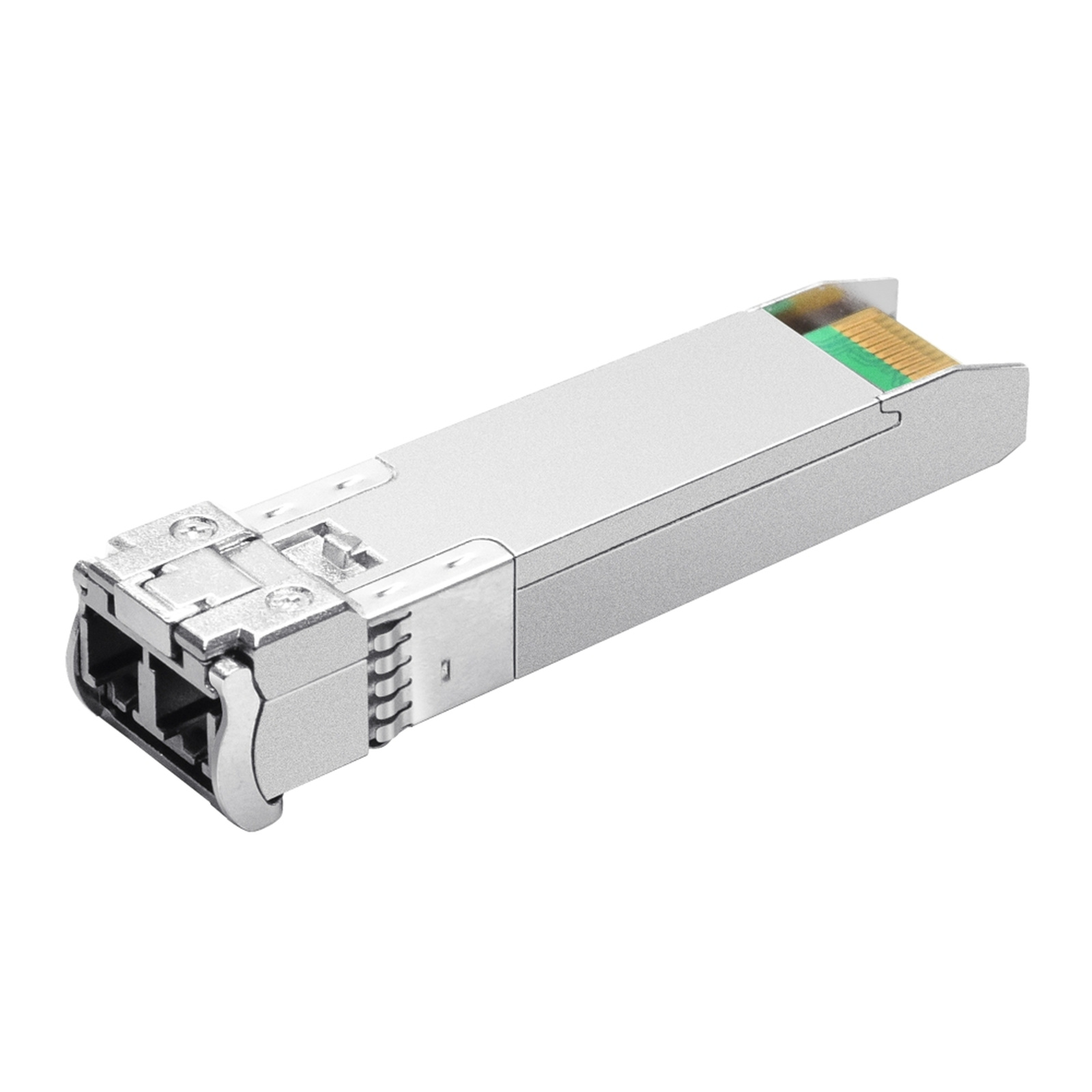

TP-Link SM6110-SR 25G Multi-mode SFP+/SFP28 LC Transceiver
- Brand: TP-Link
- MPN: SM6110-SR
- Part #: NETTPL96110

Product URL: https://www.pbtech.com/product/NETTPL96110/TP-Link-SM6110-SR-25G-Multi-mode-SFPSFP28-LC-Trans
Features
SM6110-SR
Omada 25GBase-SR SFP28 LC Transceiver
- Multi-mode SFP+/SFP28 LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Low Power Consumption no more than 1 W
- Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
- Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.
What This Product Does
The SM6110-SR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-SR high performance 850nm multi-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 70m (OM3) @25.78Gbps, 100m (OM4) @25.78Gbps and 300m (OM3) @10.31Gbps respectively.
Specifications
PACKAGE CONTENTS
Package Contents
- SM6110-SR
- Installation Guide
HARDWARE FEATURES
DDM
Yes
SFP-MSA
Yes
Hot Swappable
Yes
Dimensions ( W x D x H )
2.24*0.55*0.53 in (57*14*13.45 mm)
TRANSCEIVER
Standards and Protocols
- IEEE 802.3ae, 802.3by
- SFF-8402, SFF-8431, SFF-8432, SFF-8472
- eCPRI, CPRI
- TCP/IP
Wavelength
850nm
Power Supply
3.3V
Fiber Type
50/125um or 62.5/125um Multi-mode
Max. Cable Length
70m (OM3) @25.78Gbps, 100m (OM4) @25.78Gbps, 300m (OM3) @10.31Gbps
Support Data Rate
Dual Rate 25.78 Gbps and 10.31 Gbps
Connector
Duplex LC/UPC
Regulatory Compliance
CE, FCC, RoHS
Environment
- Operating Temperature: 0°C to 70°C (32-158 ?)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Operating Humidity: 10% to 90% RH non-condensing
- Storage Humidity: 5% to 90% RH non-condensing
