FS Fortinet FN-TRAN-SFP+SR Compatible 10GBASE-SR SFP+ 850nm 300m DOM Duplex LC/UPC MMF Optical Transceiver Module
- Brand: FS
- MPN: FS-179739
- Part #: NETTSX1101
- UPC:810039076828
Product URL: https://www.pbtech.com/product/NETTSX1101/FS-Fortinet-FN-TRAN-SFPSR-Compatible-10GBASE-SR-SF
Features

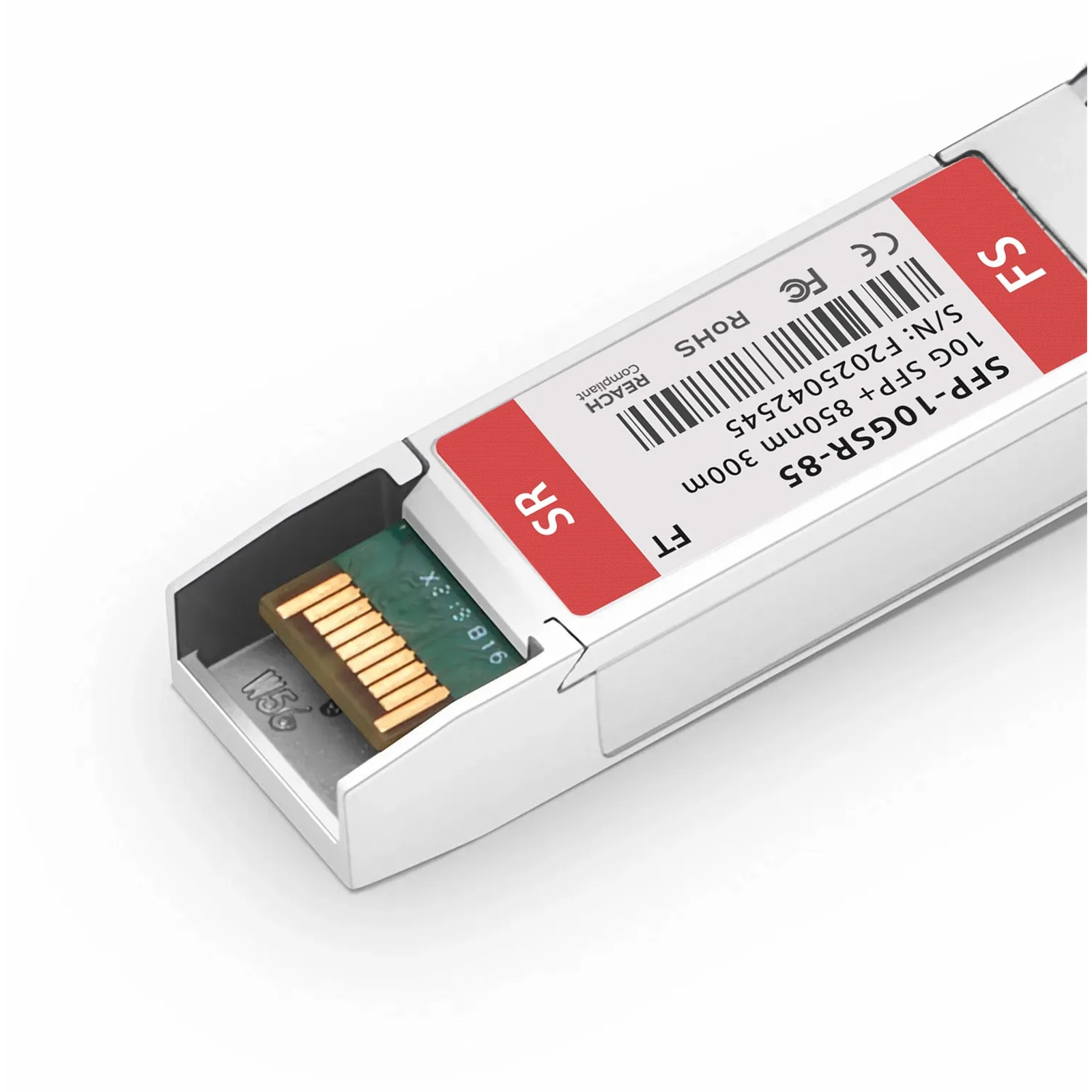

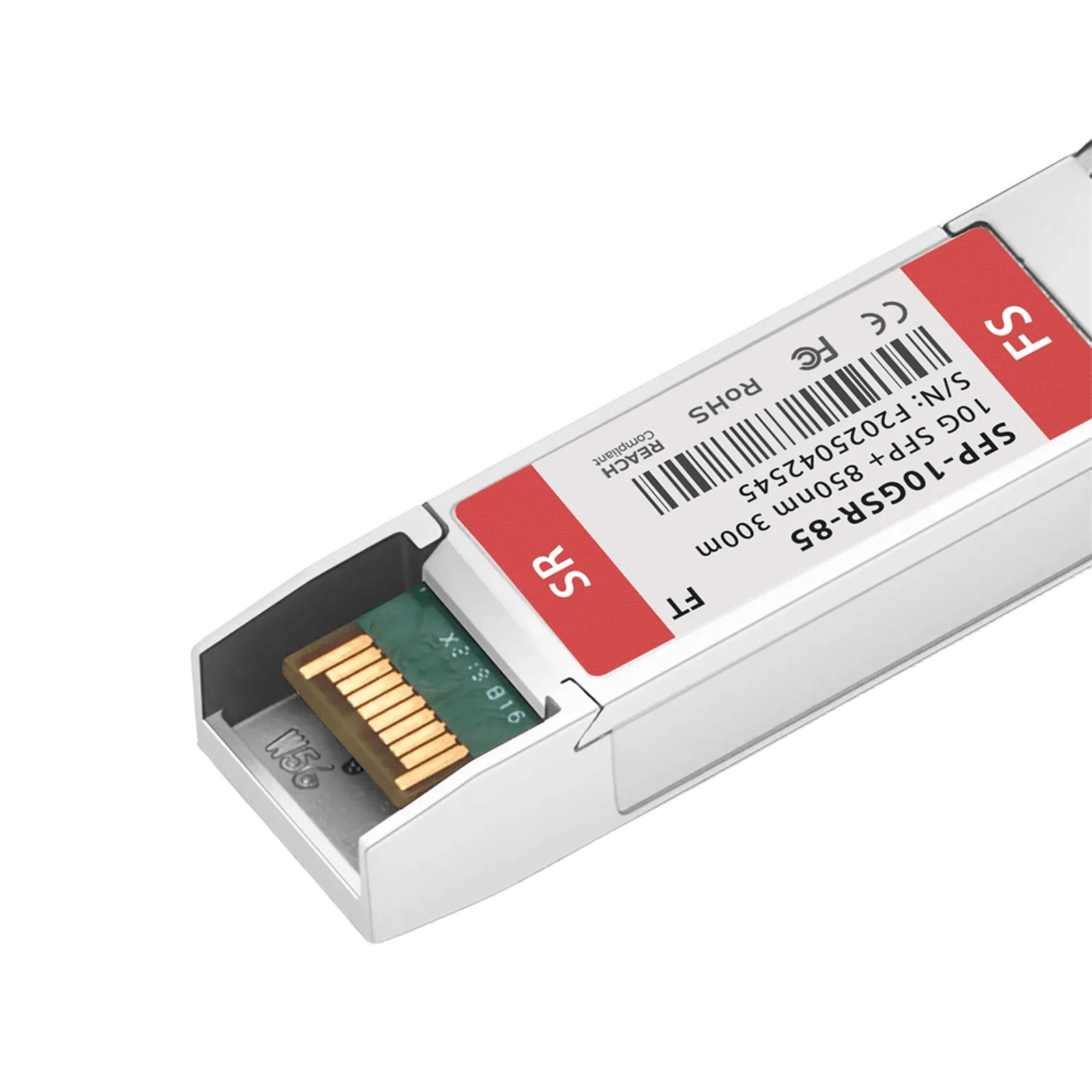

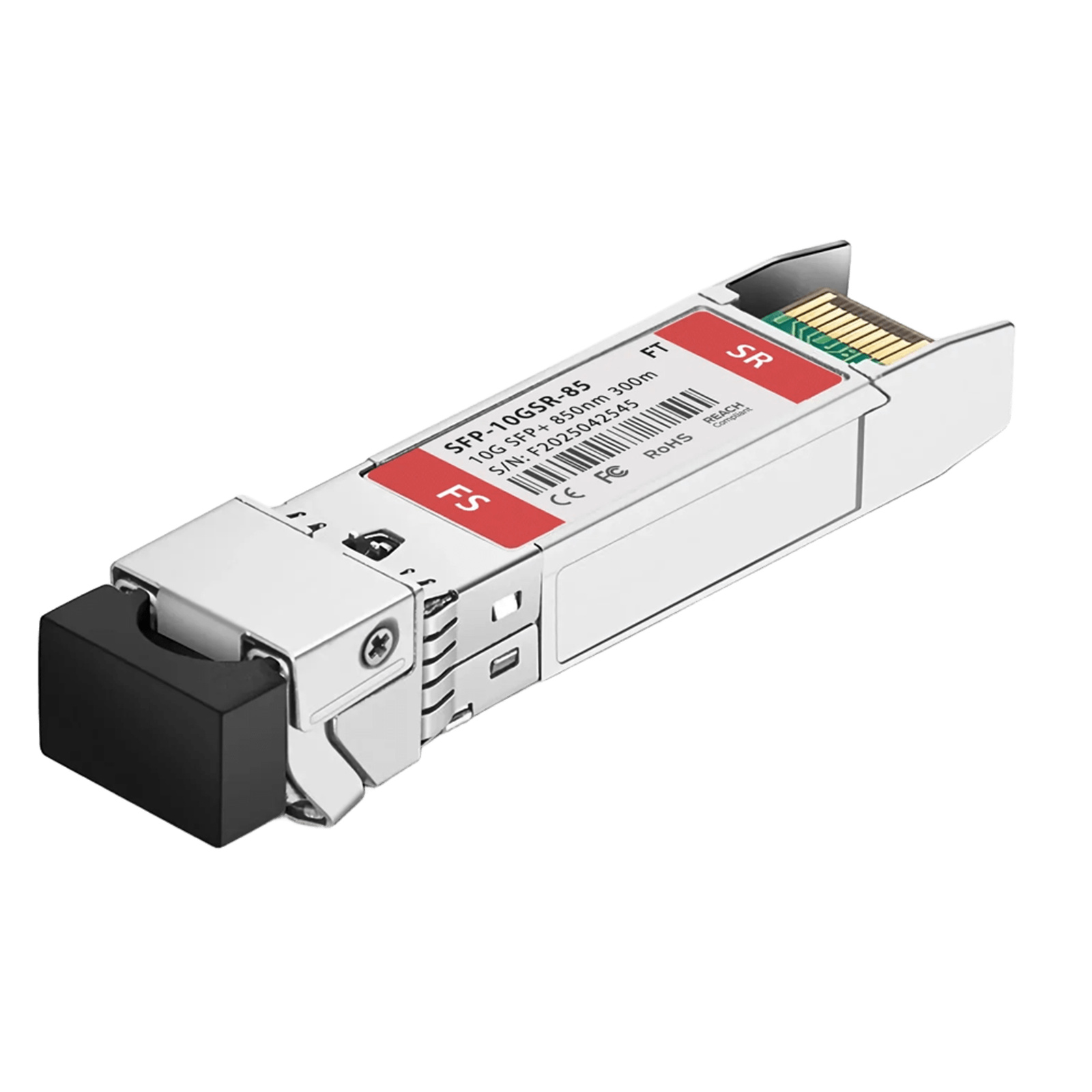

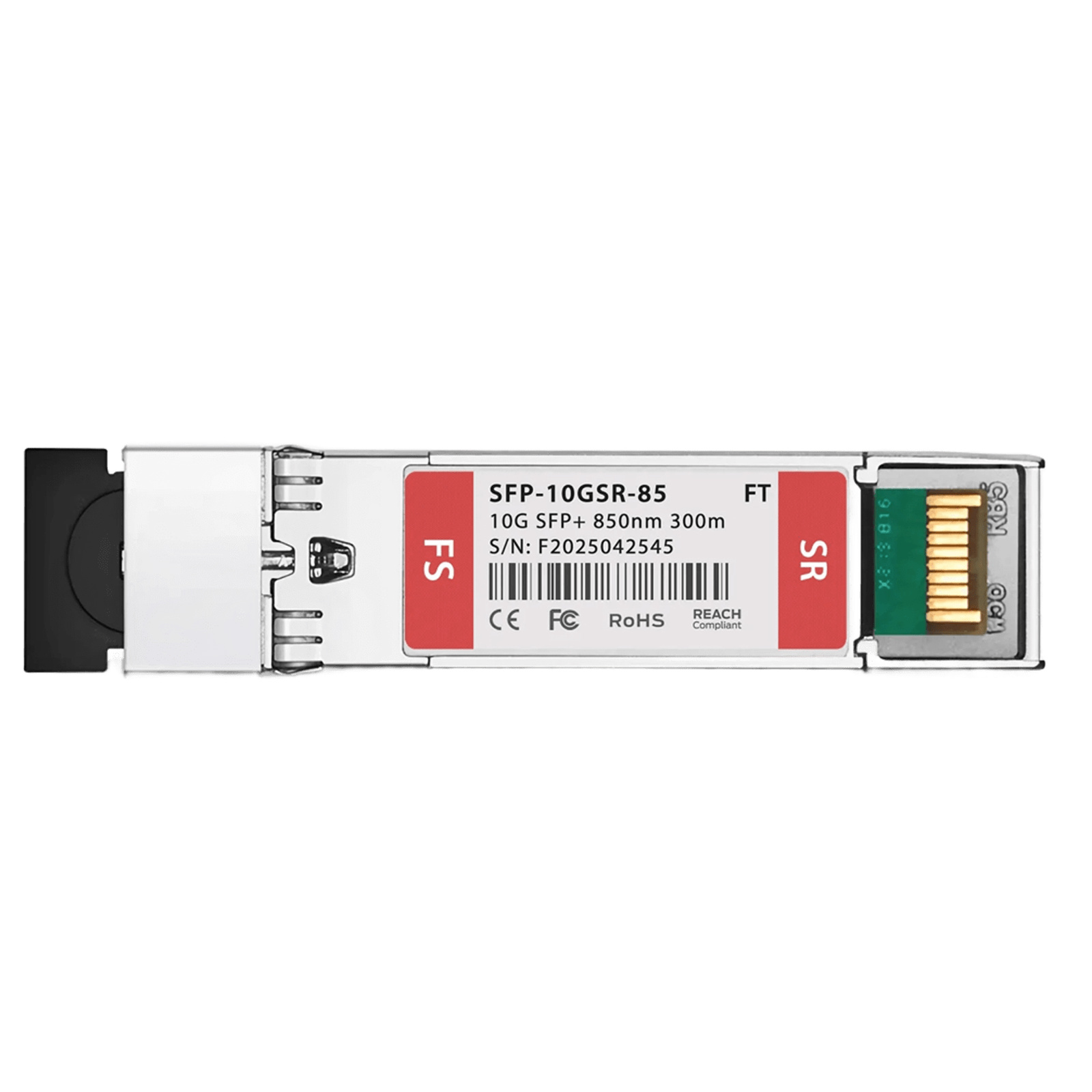

Fortinet FN-TRAN-SFP+SR Compatible 10GBASE-SR SFP+ Transceiver Module (MMF, 850nm, 300m, LC, DOM)

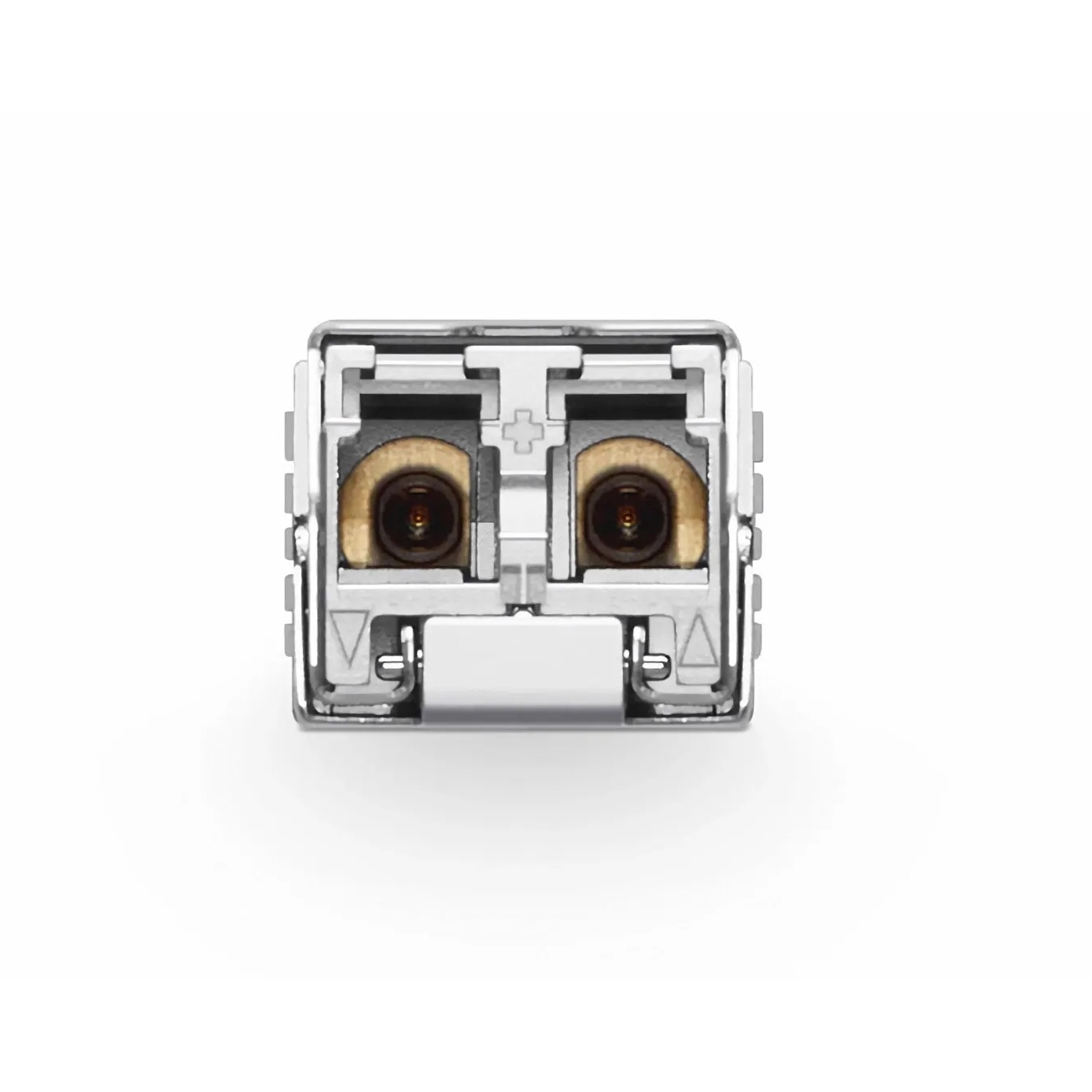

Fortinet FN-TRAN-SFP+SR Compatible SFP+ transceiver supports up to 400m link lengths over OM4 MMF (300m over OM3 MMF) via an LC duplex connector. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards and for seamless interoperability in multivendor environments. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption and high speed, this 10G SFP+ transceiver is ideal for data centres, enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.
- Max. Power Consumption 1W, and TO Packaging Features High Reliability
- Tested in Targeted Switches for Superior Performance, Quality, and Reliability
- Small 10G Form Factor for Greatest Density per Chassis
- Support 4x10G Fan out and Easy Migration to 40G Platforms
- Hot Pluggable SFP+ MSA and RoHS Compliant
- Optical Interoperability with 10GBASE XENPAK, X2, and XFP Interfaces On the Same Link
- Digital optical monitoring capability for strong diagnostic capabilities

Upgrade Your Network One Site at a Time
Upgrade just one site to 40G gear, and still connect it to the existing 10G sites.
- Connect New 40G Sites to Legacy 10G Sites
- Full Utilize Your 40G Port Bandwidth
- Re-use 10G Optics in New 40G Ports

10G Connectivity for Data Center
Featured with 1W low-power, high-density and high-speed, the SFP+ transceiver offers a popular way to help you quickly ramp up to 10G transmission.

Tailored Excellence with TO-Can Packaging
Taking TO-can package design, the transceiver has great reliability, airtightness, and heat dissipation performance, ideal for telecom &data centre applications.

Tested in Host Devices for Proven Interoperability
Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations.

Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
- Optical Spectrum Test: No Packet Loss & CRC
- Eye Pattern Test: Mask Margin >20%
- Bit Error Rate Test: BER 1E-12
- Temperature Test: 0~70°C

Certifications
Fully certified to meet strict international safety and quality standards for the industry.

Specifications
Fortinet Compatible
FN-TRAN-SFP+SR
Form Factor
SFP+
Max. Data Rate
10.3125Gbps
Wavelength
850nm
Max. Transmission Distance
300m@OM3/400m@OM4
Connector
Duplex LC
Media
MMF
Transmitter Type
VCSEL
Receiver Type
PIN
TX Power
-7.3~-1dBm
Receiver Sensitivity
< -11.1dBm
Power Budget
3.8dB
Receiver Overload
-1dBm
Max. Power Consumption
≤1W
Extinction Ratio
>3dB
DDM/DOM
Supported
Operating Temperature
0 to 70°C (32 to 158°F)
Core Size
50/125µm
Modulation
NRZ
Protocols
IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
