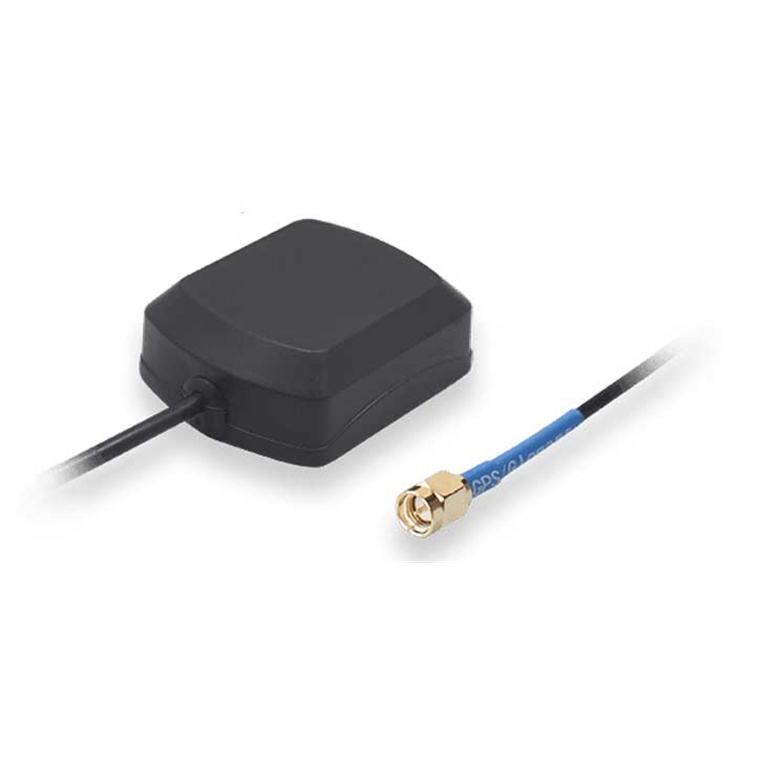

Teltonika GNSS Adhesive SMA Male Antenna, 1700-2100MHz
Out of stock
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Antennas
Teltonika GNSS Adhesive SMA Male Antenna, 1700-2100MHz
- Brand: Teltonika
- MPN: 003R-00250
- Part #: NETTTK9250
Product URL: https://www.pbtech.com/product/NETTTK9250/Teltonika-GNSS-Adhesive-SMA-Male-Antenna-1700-2100
Features
Teltonika GNSS Adhesive SMA Male Antenna, 1700-2100MHz

Specifications
Frequency
1575.42-1602 MHz
Polarization
RHCP
Gain
2 dBi
V.S.W.R
< 1.5
Impedance
50 O
Max Axial Ratio
3 dB
LNA Gain
28±2 dB
LNA Noise Figure
< 1.5 dB
Supply Voltage
2.2 - 5 VDC
Current Consumption
< 15 mA
LNA V.S.W.R
< 2.0
Cable
RG174, 3000 mm
Connector
SMA Male
Mounting Method
Adhesive
Operating Temperature
-40 to +85
Operating Relative Humidity
95 % max
RoHS Compliant
Yes
