Teltonika A360S QuWireless QuSpot for Teltonika RUT360
- Brand: Teltonika
- MPN: A360S
- Part #: NETTTK93602
Product URL: https://www.pbtech.com/product/NETTTK93602/Teltonika-A360S-QuWireless-QuSpot-for-Teltonika-RU
Features

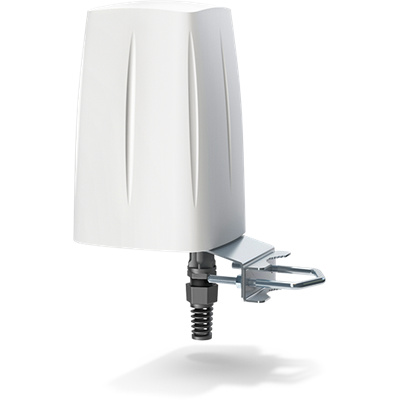

QuSpot for Teltonika RUT360
Integrated multi-band LTE omni antennas + WiFi omni antennas + place to install Teltonika RUT360 (All-in-one)
QuSpot omni LTE antenna for Teltonika RUT360 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded also omni Wi-Fi antennas. If you use RUT360 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.


In the box

Router mounting adapter manual

Dimensions

For more information: https://quwireless.com/quspot-rut360
Specifications
LTE ANTENNA SPECIFICATION
Frequency
0.694 - 0.96 GHz
1.7 - 2.2 GHz
2.2 - 2.7 GHz
Supported LTE/5G bands
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95
Gain
0.694 - 0.96 GHz : 2 dBi
1.7 - 2.2 GHz : 2 dBi
2.2 - 2.7 GHz : 4 dBi
VSWR
<1.60, max <2.00
Beamwidth
360°/35° ±5°
Polarization
Vertical
Impedance
50 O
WI-FI ANTENNA SPECIFICATION
Frequency
2.40 - 2.50 GHz
Gain
6 dBi
VSWR
<1.70, max <2.00
Beamwidth
360°/25° ±5°
Polarization
Vertical
Impedance
50 O
MECHANICAL SPECIFICATION
Materials
ABS, aluminum, PTFE
Connector type
RJ45
Ingress protection
IP67
Dimensions
160 x 160 x 240 mm
6.3 x 6.3 x 9.45 inch
Weight
1.5 kg
3.31 lbs
Operating temperature
From -40°C to 75°C
From -40°F to 167°F
