Tycon Systems TP-DCDC-2456GVHP Tycon 18-36VDC In, 56VDC 70W Out DC to DC Converter

PB Tech price

AUD $ 202 .50

$ 202 .50

Tycon Systems TP-DCDC-2456GVHP Tycon 18-36VDC In, 56VDC 70W Out DC to DC Converter

Brand: Tycon Systems
MPN: TP-DCDC-2456GVHP
Part #: NETTYC1022
UPC:

PB Tech price

AUD $ 202 .50

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 18 Jun

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Tycon Systems
MPN: TP-DCDC-2456GVHP
Part #: NETTYC1022
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

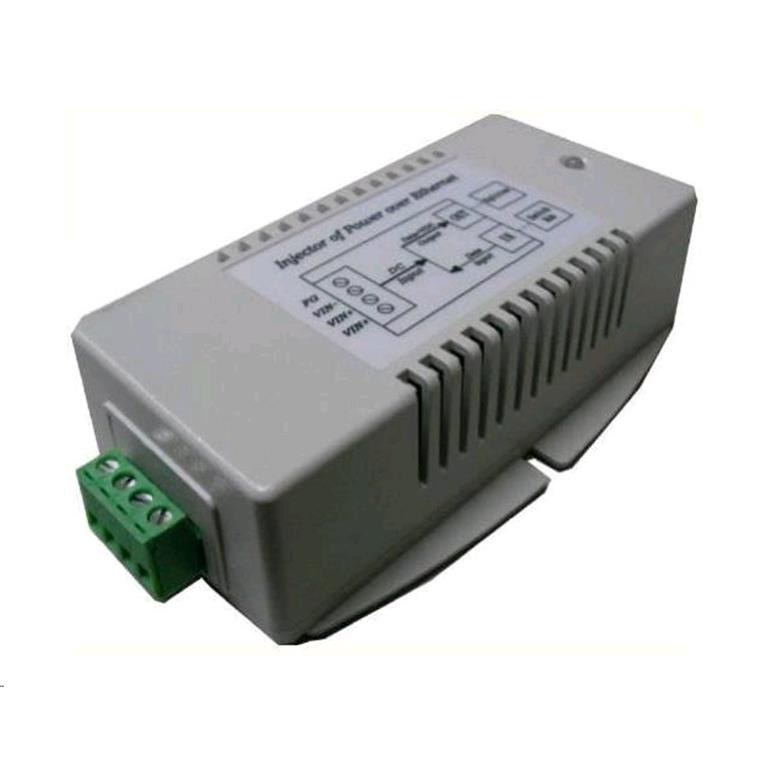

The Tycon Power Gigabit compatible TP-DCDC-2456G-VHP is a special very high power DC to DC converter / POE inserter designed especially for Ubiquiti airFiber antenna systems and other systems which require high power passive POE such as Axis High Power POE PTZ security cameras. The unique POE inserter supplies 56VDC POE power on all 8 Ethernet wires. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated.

- Input Voltage 24VDC (18-36VDC)
- 8 wire 56VDC Passive POE Output
- High Power Output to 70W
- Dual DC Inputs for Connecting 2 Power Sources
- Gigabit Data Throughput
- Low self consumption power (<2W)
- Short Circuit, Over Current and Reverse/Over Voltage Protection
- Industrial Temperature Range
- Applications: 24VDC Remote Power Systems, Ubiquiti airFiber™ Antennas Axis, Q6032-E, Q6034-E and Q6035-E PTZ Security Cameras

Specifications

DC Input Voltage
18VDC to 36VDC

DC Input Connector
Removable Screw Type Compression Wire Terminal (12 AWG Max)

DC Output Voltage
56VDC (Passive 8 Wire)

Data in & Data/POE Output Connector
RJ45 (Shielded)

Output Current (max)
1.25A Total

Output Power (max)
70W Total

Self Consumption Power
2W

Dimensions
Length
125 mm
Width
75 mm
Height
38 mm

Manufacturer Part No:

TP-DCDC-2456GVHP

Brand:

Tycon Systems

Product Type:

UPC

Product Family:

Shipping Weight:

1.01 kg

PB Part No:

NETTYC1022

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
