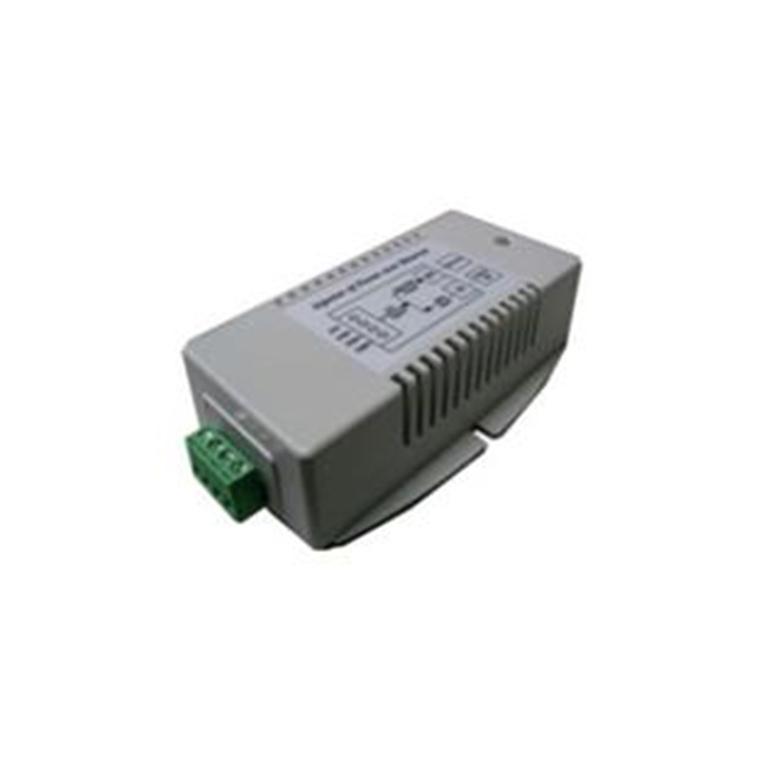

The Tycon TP-DCDC-2448G-HP DC to DC converter is a low cost and high reliability solution for those requiring 56VDC Power Over Ethernet voltage from a +/-48V battery system. They have an integrated Gigabit Passive PoE injector to apply the regulated 56VDC to the CAT5 Ethernet cable. The input voltage must be between 18VDC and 36VDC. They accept data-in to a shielded RJ45 Jack and provide data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on the Ethernet pins 4,5(V+) and 7,8(V-).
Specifications
Manufacturer's Product Code
TP-DCDC-2448G-HP
DC Input Voltage
18VDC - 36VDC
DC Input Connector
Removable Screw Type Compression Wire Terminal (12 AWG Max)
DC Output Voltage
56VDC
PoE Method
Passive PoE
Data in & Data/POE Output Connector
RJ45 (Shielded)
Output Current (max)
0.9A
Output Power (max)
50W
Self Consumption Power
1W
Ethernet Speed
1Gbps
Dimensions (LxWxH)
125 x 75 x 38mm
Manufacturer Part No:
TP-DCDC-2448G-HP
Brand:
Tycon Systems
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
NETTYC1041
Product Model:
-
Warranty:
12 months * * Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
