UbiBot PT100-3M-R-USB Industrial Grade Temperature Probe for WS1 Pro 3 Metres
UbiBot PT100-3M-R-USB Industrial Grade Temperature Probe for WS1 Pro 3 Metres
- Brand: UbiBot
- MPN: PT100-3M-R-USB
- Part #: NETUBB1016
- UPC:
- Brand: UbiBot
- MPN: PT100-3M-R-USB
- Part #: NETUBB1016
- UPC:
Features

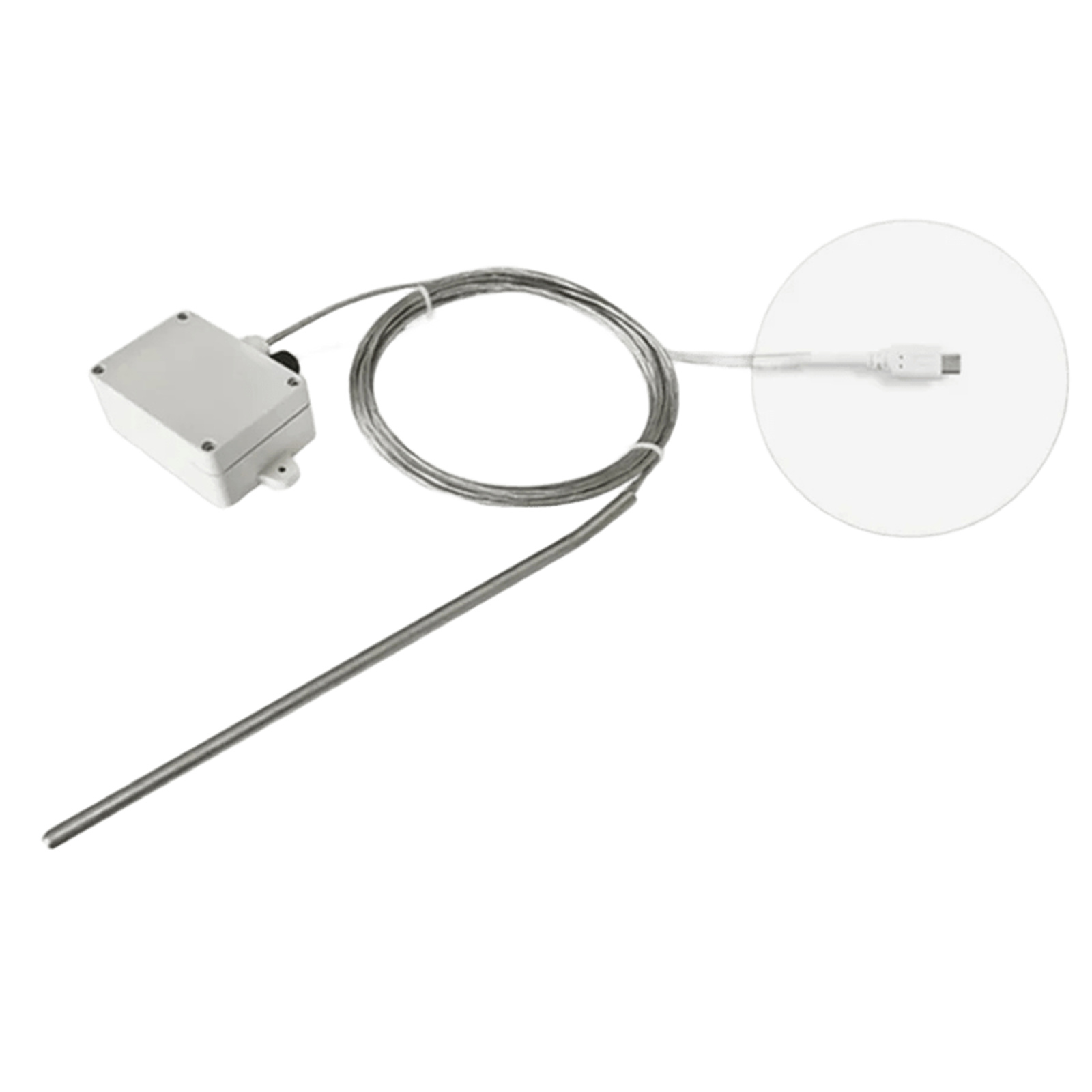

Ubibot Industrial Grade Temperature Probe for WS1 Pro 3 Metres - Micro USB Connector
This product adopts modbus-rtu protocol, and the computer can monitor the temperature through the communication mode of RS485 interface. Cooperate with WS1 Pro series product to monitor the data on computer platform or mobile APP, and generate temperature data report through the platform.
The PT100 probe is made of specially treated platinum wire wrapped around the inner surface of the probe. Compared with the general axial thermal resistance, it can reflect the actual temperature of the measured object quickly and accurately. The butt cock line is made of high temperature zone shielded fiberglass material, with a temperature range of up to 200 degrees Celsius. PT100 adopts the chip imported from Germany with high stability, and adopts a more stable three-wire connection mode to ensure the accuracy of temperature measurement and anti-interference ability of the system. The probe shell is made of 304 stainless steel, which has good resistance to acid and alkali corrosion. The shell is completely wrapped and can reach IP68 waterproof grade, which means the probe can be continuously measured in water.
- RS485 Interface
- High precision, wide range, good consistency
- Super stability and anti-interference
- Wide voltage input,DC5-12V
- Standard MODBUS RTU protocol
Cooperate with WS1 Pro to achieve remote monitoring, report generation and other functions
Widely used in chemical plants, power plants, oil refineries, cold storage, sewage treatment plants, steel plants, food plants and other industrial temperature measurement sites.
Note
1. Do not directly place the transmitter in a high temperature environment.
2. It is prohibited to place the transmitter in the environment of steam, water mist, water curtain or condensation for a long time.
3. The temperature tolerance of the probe butt cock line is 200?. Exceeding this temperature will lead to the failure of normal temperature measurement and even permanent damage.
4. Once the waterproof box of transmitter is opened, it will not be returned or replaced.
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Smart Security Sensors
Ubiquiti UniFi Protect UP-Sense All-In-One Sensor
UbiBot MS1 Remote Infrared Motion IoT Sensor Cloud-Supported WiFi
UbiBot DS18B20-15M-R-USB External Temperature Probe for WS1 & WS1...
UbiBot RS485-USB converter for Connecting an RS485 probe to a PC...
UbiBot Soil-Probe-3M-R-Audio Soil Temperature and Moisture Probe...
UbiBot PT100-3M-R-USB Industrial Grade Temperature Probe for WS1 Pro 3 Metres
- Brand: UbiBot
- MPN: PT100-3M-R-USB
- Part #: NETUBB1016
Product URL: https://www.pbtech.com/product/NETUBB1016/UbiBot-PT100-3M-R-USB-Industrial-Grade-Temperature
Features
Ubibot Industrial Grade Temperature Probe for WS1 Pro 3 Metres - Micro USB Connector
This product adopts modbus-rtu protocol, and the computer can monitor the temperature through the communication mode of RS485 interface. Cooperate with WS1 Pro series product to monitor the data on computer platform or mobile APP, and generate temperature data report through the platform.
The PT100 probe is made of specially treated platinum wire wrapped around the inner surface of the probe. Compared with the general axial thermal resistance, it can reflect the actual temperature of the measured object quickly and accurately. The butt cock line is made of high temperature zone shielded fiberglass material, with a temperature range of up to 200 degrees Celsius. PT100 adopts the chip imported from Germany with high stability, and adopts a more stable three-wire connection mode to ensure the accuracy of temperature measurement and anti-interference ability of the system. The probe shell is made of 304 stainless steel, which has good resistance to acid and alkali corrosion. The shell is completely wrapped and can reach IP68 waterproof grade, which means the probe can be continuously measured in water.
- RS485 Interface
- High precision, wide range, good consistency
- Super stability and anti-interference
- Wide voltage input,DC5-12V
- Standard MODBUS RTU protocol
Cooperate with WS1 Pro to achieve remote monitoring, report generation and other functions
Widely used in chemical plants, power plants, oil refineries, cold storage, sewage treatment plants, steel plants, food plants and other industrial temperature measurement sites.
Note
1. Do not directly place the transmitter in a high temperature environment.
2. It is prohibited to place the transmitter in the environment of steam, water mist, water curtain or condensation for a long time.
3. The temperature tolerance of the probe butt cock line is 200?. Exceeding this temperature will lead to the failure of normal temperature measurement and even permanent damage.
4. Once the waterproof box of transmitter is opened, it will not be returned or replaced.
Specifications
Model
PT100-3M-R-USB
Working Voltage
DC5V~DC12V
Output Interface
Micro USB
Compatible with
For WS1 Pro
Communication Methods
RS485
Communication Protocol
MODBUS RTU
Communication Address
1-255(can be customized)
Baud Rate
300 bit/s,600 bit/s, 1200 bit/s, 2400 bit/s, 4800 bit/s, 9600 bit/s, 19200bit/s,38400bit/s,43000 bit/s, 56000 bit/s, 57600 bit/s,115200 bit/s(can be customized)
Standby Current
=20mA

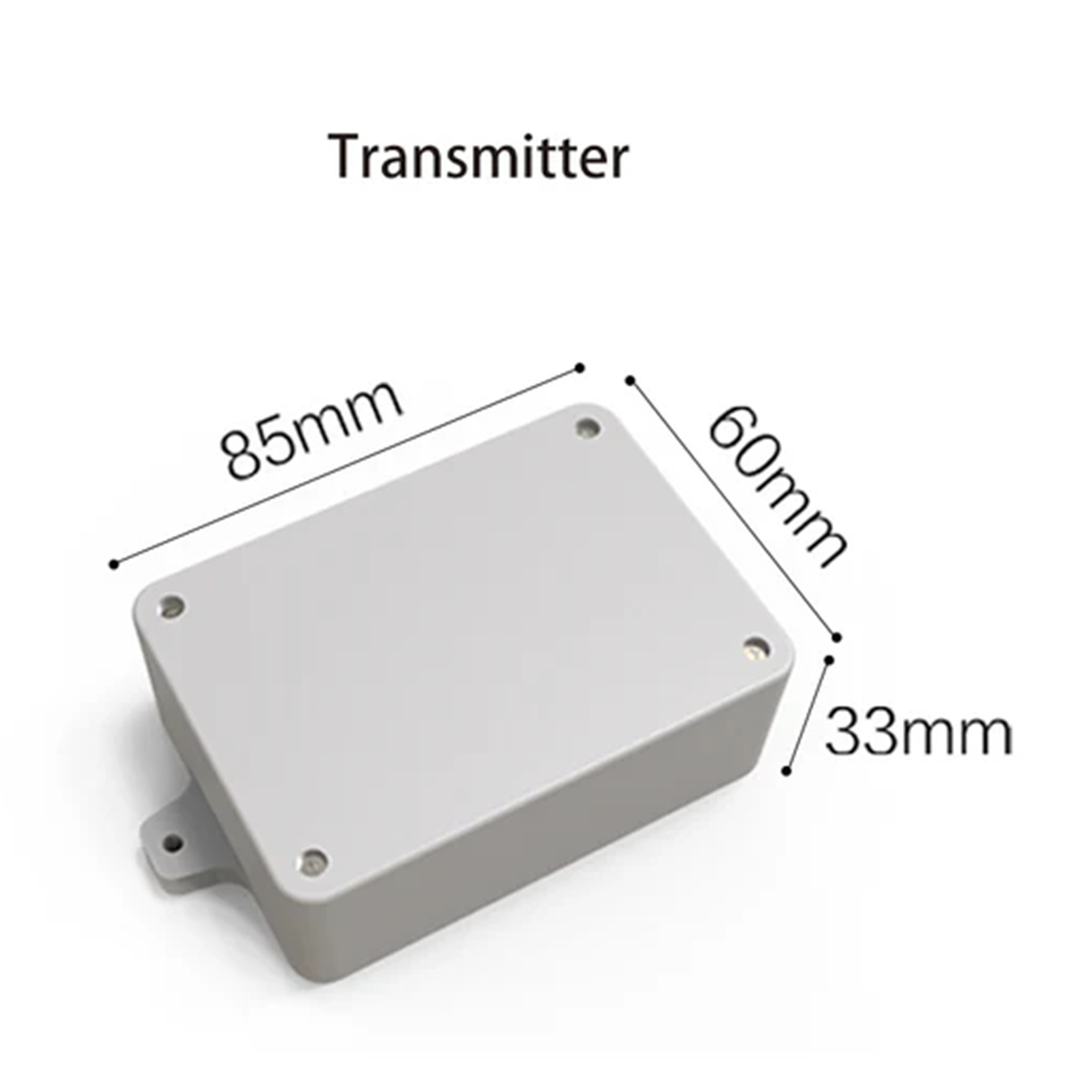

Dimensions
85x33x60mm

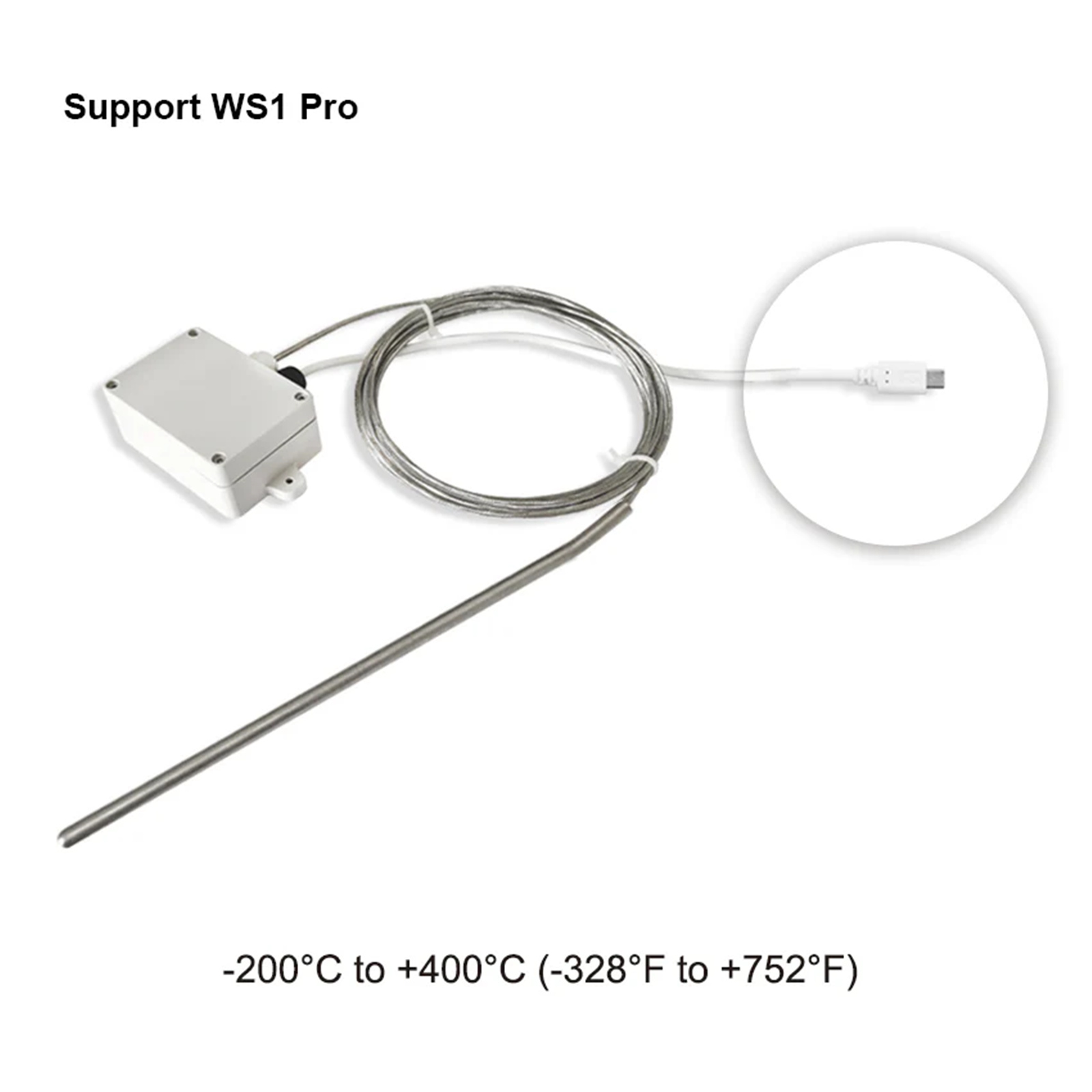

Measuring Range
-200~400?
Measuring Accuracy
±(2%+1?)

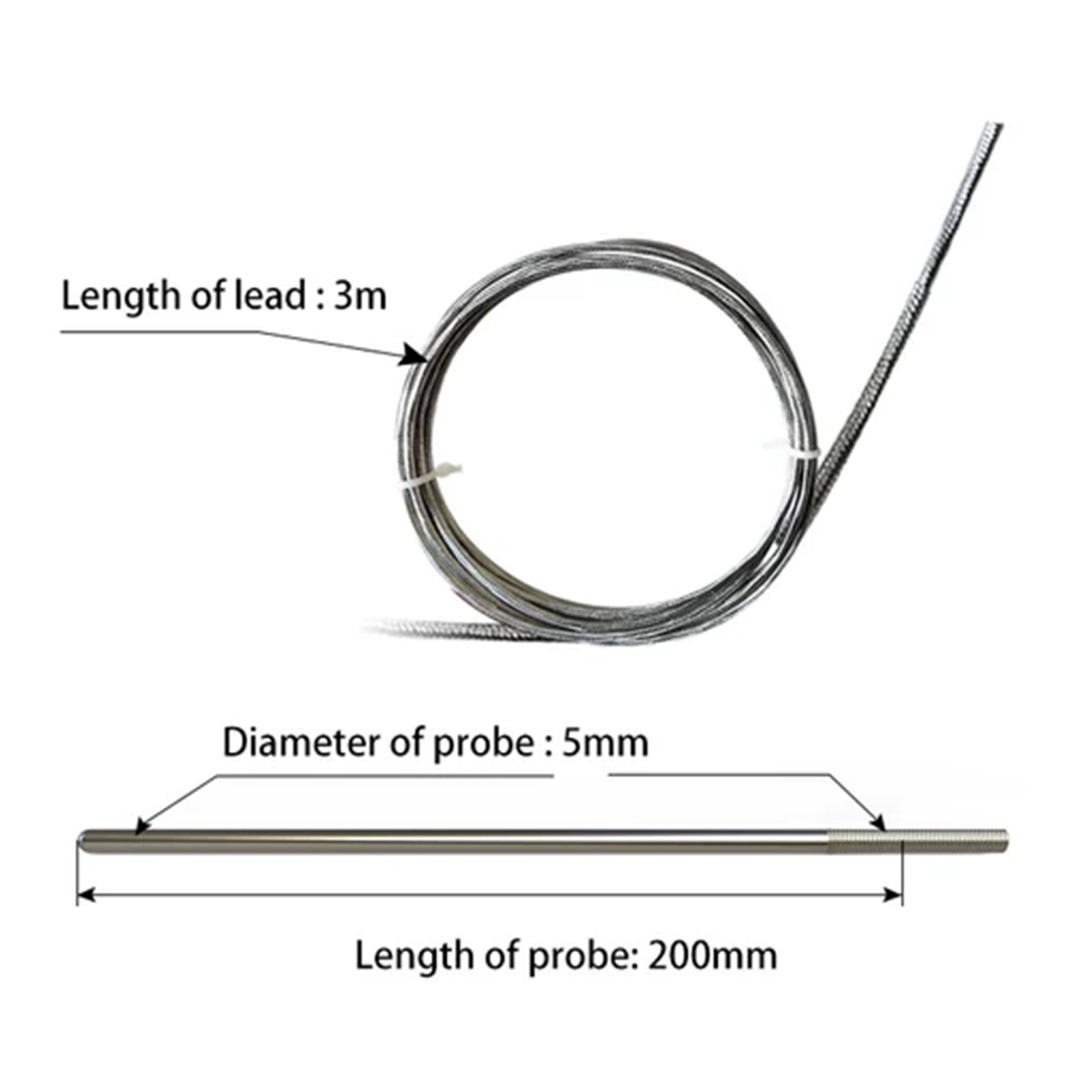

Probe Length
200mm
Probe Diameter
F5
Lead Length
3 meters
Buttcock Line Temperature Range
-30~200?
