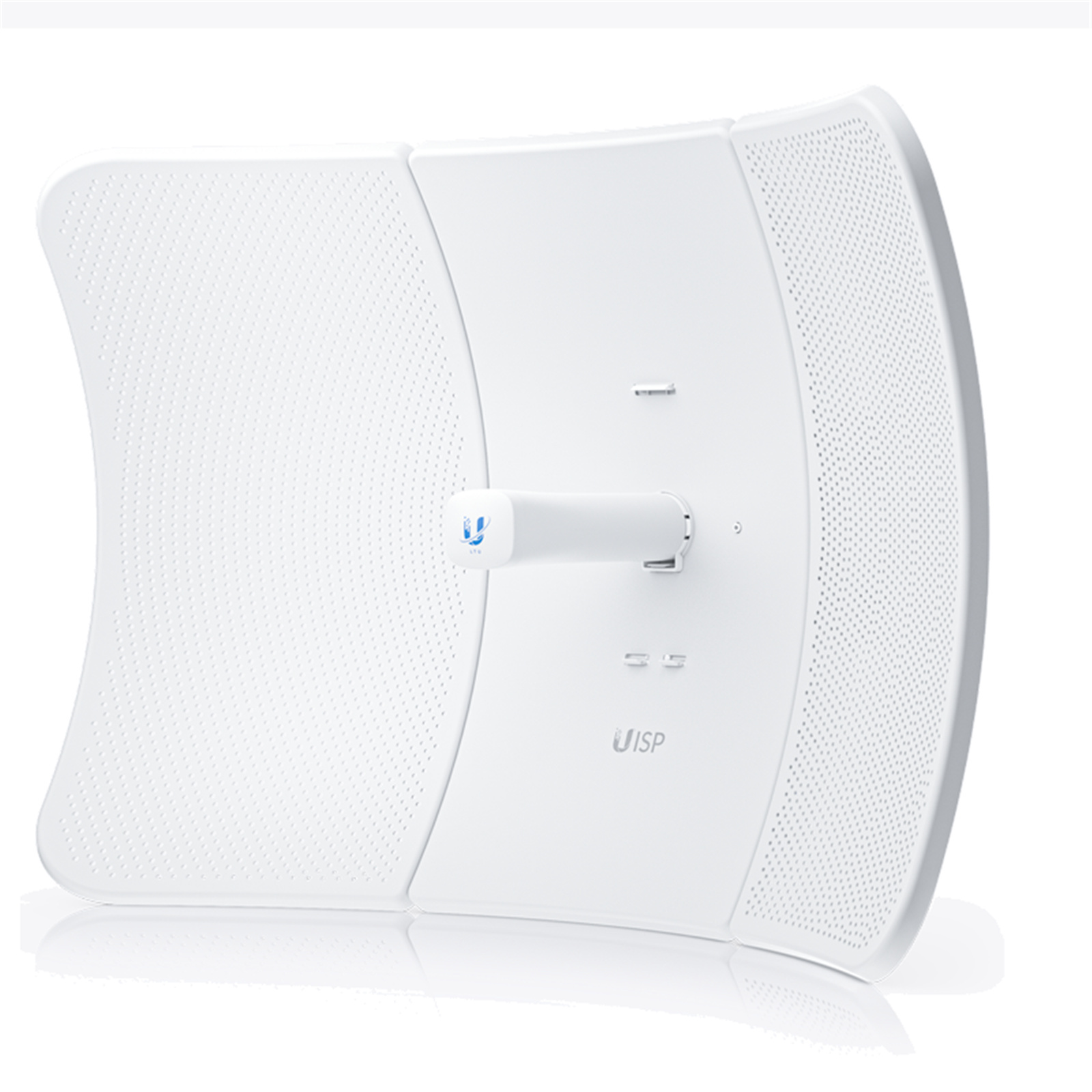

Ubiquiti LTU-XR 5GHz high-performance LTU PTP/Client Radio with High Gain Antenna

PB Tech price
PB Tech price
AUD $ 223 .10
$ 223 .10

Out of stock

Ubiquiti LTU-XR 5GHz high-performance LTU PTP/Client Radio with High Gain Antenna

  • Brand: Ubiquiti
  • MPN: LTU-XR
  • Part #: NETUBI1707
  • UPC: 810010073327
PB Tech price
AUD $ 223 .10 $ 223 .10


Delivery: Out of stock
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info

Features

Ubiquiti LTU-XR 5GHz high-performance LTU PTP/Client Gigabit Radio with High 29dBi Gain Antenna.

5 GHz LTU client that establishes extremely long-distance wireless links with an LTU Rocket serving as its base station.

The LTU XR is a high-performance, cost-effective PtMP CPE for wireless ISPs that can reach up to a 550 Mbps throughput rate. The LTU XR also facilitates independent transmission and receives channel frequency configurations anywhere within its radio band to avoid local interference and ensure superior client performance. Additionally, the LTU XR is equipped with a Bluetooth management radio so it's easy to set up and configure with the UISP Mobile app.

- Proprietary Ubiquiti LTU core processor
- Long-range, 29 dBi antenna with InnerFeed® technology
- High data and performance rate (1024 QAM)
- Link range up to 35 km
- Channel width flexibility (10/20/30/40/50 MHz bandwidth)
- Central configuration management from the AP side
- Frequency splitting
- Router mode support
- Integrated GPS
- Link planning support via ISP Design Center
- Quick, Bluetooth-powered setup with the UISP Mobile app
- Supports PTP mode

Specifications

MPN

LTU-XR-AU

Maximum throughput

550 Mbps

Encryption

WPA2-PSK (AES)

Uplink/downlink ratio

25/75, 33/67, 50/50

OS

airOS

Modes

PtMP CPE only

Operating frequency

5.15 to 5.95 GHz * Depends on regulatory region.

Max. conducted TX power

25 dBm

Channel bandwidth

10/20/30/40/50 MHz

Antenna Gain

29 dBi

Isolation

20 dB

Beamwidth

HPOL: 3 dB: 5.5°, 6 dB: 7.5°, VPOL: 3 dB: 5.5°, 6 dB: 7.5°, Elevation: 3 dB: 5.5°, 6 dB: 7.5°

Services

SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog

Utilities

airView, speed test, alignment, discovery, ping, traceroute, cable test, constellation

Auto distance adjustment

Yes

Auto power adjustment

Yes

Network

Router mode

Security

Yes

Statical reporting

Yes

Management interface

Bluetooth management for easy setup over UISP App, WEB UI

Minimum software requirements

Modern Web browser or Android/iOS smartphone

Networking interfaces

(1) GbE RJ45 port

Button

Factory reset

LEDs

Power/ethernet

RF connections

Internal

Max. power consumption

8.5W

Power method

Passive PoE 2-pair (4, 5+; 7, 8-)

Power supply

24VDC, 0.5A Gigabit PoE adapter (included)

Supported voltage range

22 to 26VDC

Operating temperature

-40 to 55° C (-40 to 131° F)

Operating humidity

5 to 95% non-condensing

Dimensions

747 x 525 x 347 mm (29.41 x 20.67 x 13.66")

Weight

3.2 kg (7.06 lb)

Enclosure materials

Aluminum alloy, UV stabilized polycarbonate

Mount material

UV stabilized polycarbonate

Mount

Integrated pole mount (included), Pole compatibility: Ø35-60 mm (Ø1.38-2.36")

Wind loading

1100 N at 200 km/h (247.29 lbf at 125 mph)

Weatherproofing

IPX6

Certifications

FCC, IC, CE

Manufacturer Part No:
LTU-XR
Brand:
Product Type:
-
UPC
810010073327
Product Family:
-
Shipping Weight:
5.71 kg
PB Part No:
NETUBI1707
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
