Ubiquiti UACC-ETH-SP-Pro 10 GbE PoE++ Wall/DIN Mountable Ethernet Surge Protection Outdoor
- Brand: Ubiquiti
- MPN: UACC-ETH-SP-Pro
- Part #: NETUBI22302

Product URL: https://www.pbtech.com/product/NETUBI22302/Ubiquiti-UACC-ETH-SP-Pro-10-GbE-PoE-WallDIN-Mounta
Features
Ubiquiti Ethernet Surge Protection (UACC-ETH-SP-Pro). ESD protection for outdoor high-speed networks.
- Compatible with 10 GbE networks
- Supports up to PoE++ Passthrough
- Protects outdoor Ethernet devices, up to 20kA discharge current

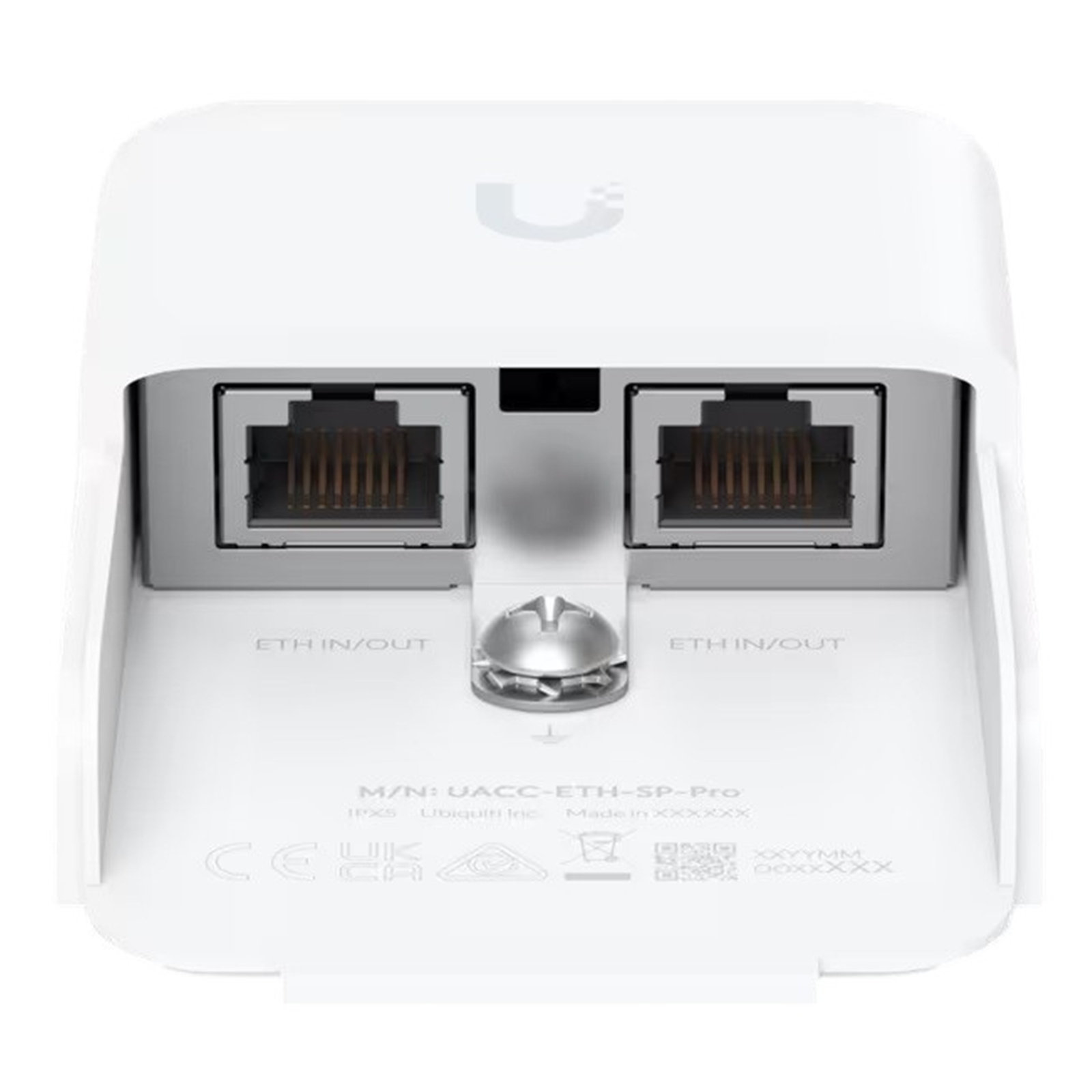

- (2) Passive, surge-protected RJ45 connections
- Quick and easy installation
- Outdoor IPX5 Rated
Specifications
Manufacturer's Code
UACC-ETH-SP-Pro
Dimensions
91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")
Weight
95 g (3.35 oz)
Enclosure Material
Polycarbonate
Weatherproofing
IPX5
Hardware
Networking Interface
(2) RJ45 female connectors
DC Spark-Over Voltage
90V @ 100V/s
Max. Impulse Spark-Over Voltage
600V @ 1kV/µs
Discharge Current
20kA
Insulation
Max. Resistance: 1G ohm @ 50V
Max. Capacitance
1.0 pF @ 1 MHz
Data Line Protection
Up to 10 Gbps
PoE Support
Yes (up to PoE++)
ESD/EMP Protection
Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
Ambient Operating Temperature
-30 to 65° C (-22 to 149° F)
Ambient Operating Humidity
10 to 90% noncondensing
Shock and Vibration Certification
ETSI300-019-1.4 Standard
