Ubiquiti EdgePower EP-24V-72W 24V-72W Power Supply with UPS and PoE
Out of stock
Ubiquiti EdgePower EP-24V-72W 24V-72W Power Supply with UPS and PoE
- Brand: Ubiquiti
- MPN: EP-24V-72W
- Part #: NETUBI2472
- UPC: 817882025904
- Brand: Ubiquiti
- MPN: EP-24V-72W
- Part #: NETUBI2472
- UPC: 817882025904
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular POE Splitters / Injectors
Ubiquiti EdgePower EP-24V-72W 24V-72W Power Supply with UPS and PoE
- Brand: Ubiquiti
- MPN: EP-24V-72W
- Part #: NETUBI2472
- UPC:817882025904
Product URL: https://www.pbtech.com/product/NETUBI2472/Ubiquiti-EdgePower-EP-24V-72W-24V-72W-Power-Supply
Features

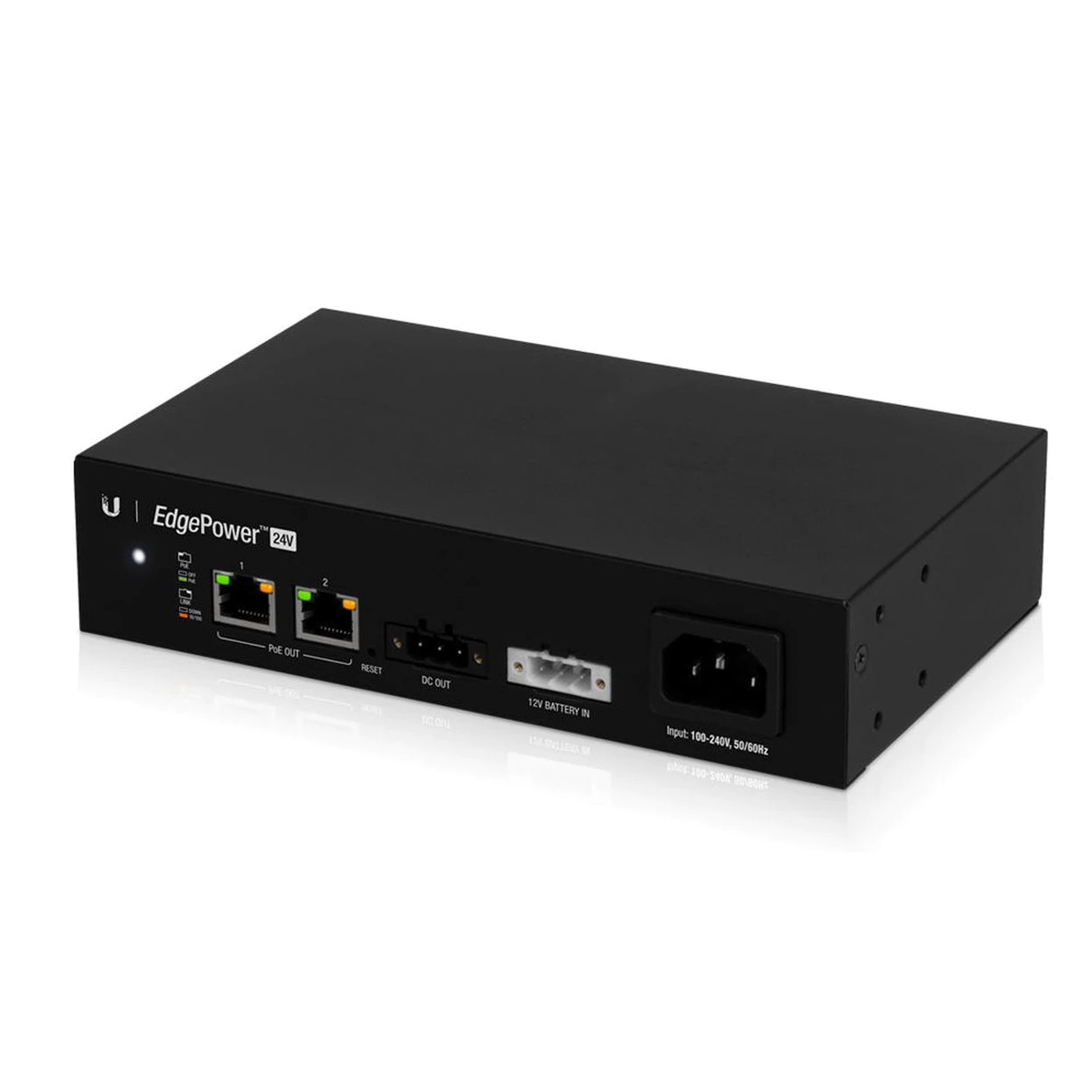

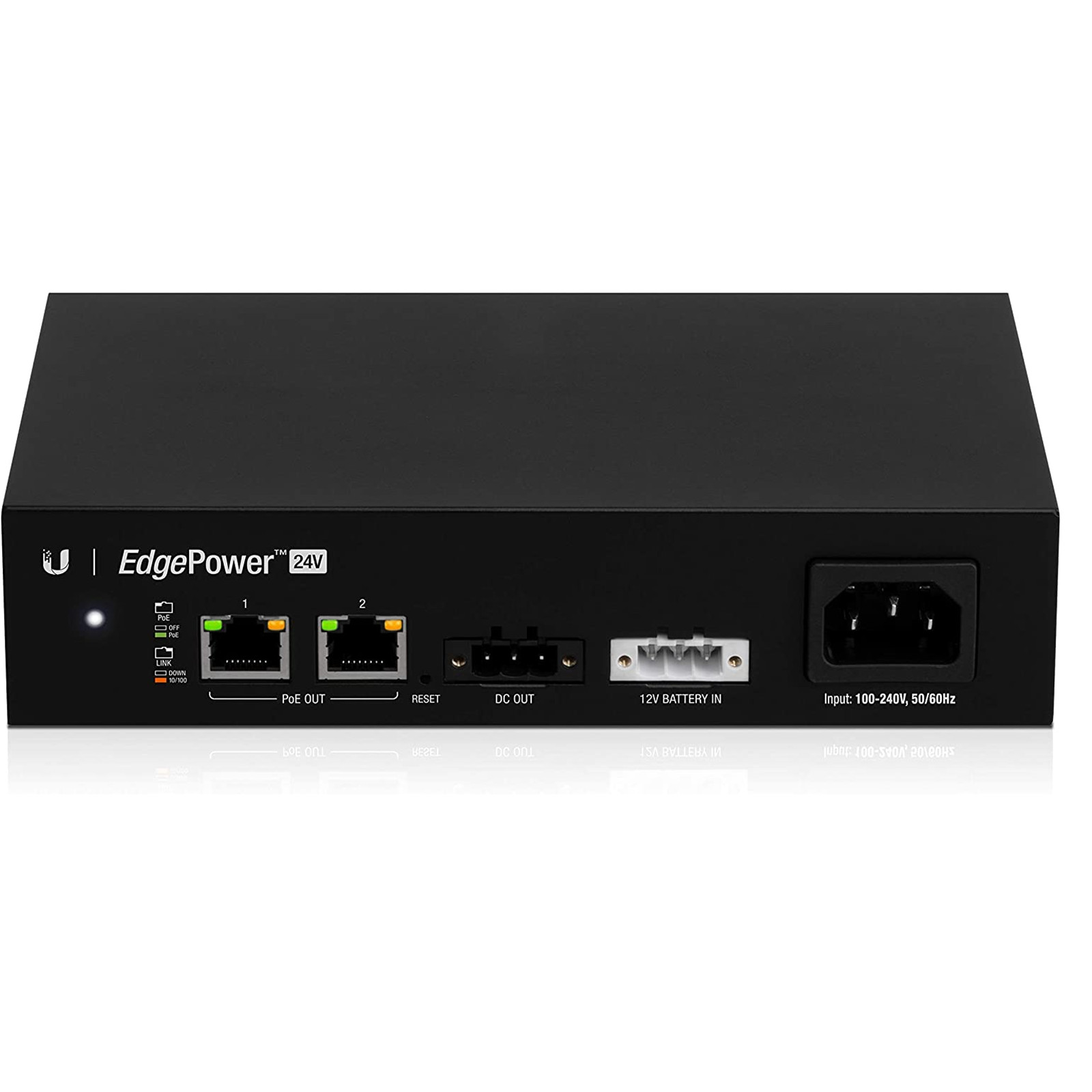

The EdgePower 24V 72W is a UNMS monitored and managed 24V DC power supply with integrated battery backup. This product provides WISPs with an easy-to-install 24V redundant power supply that includes a management user interface and simple 12V battery backup charger with multiple 24V outputs for small sites.
Key Features
100-240VAC, 50-60 Hz, Universal Input
24V DC Output (terminal connector with dual DC barrel jack included)
12V Lead Acid Battery Input*
Two, 10/100 Ethernet, 24V Passive PoE output, switch ports
*12V Battery not included
Specifications
Dimensions
192 x 43.7 x 115 mm
(7.559 x 1.72 x 4.528")
Weight
650 g
(1.43 lb)

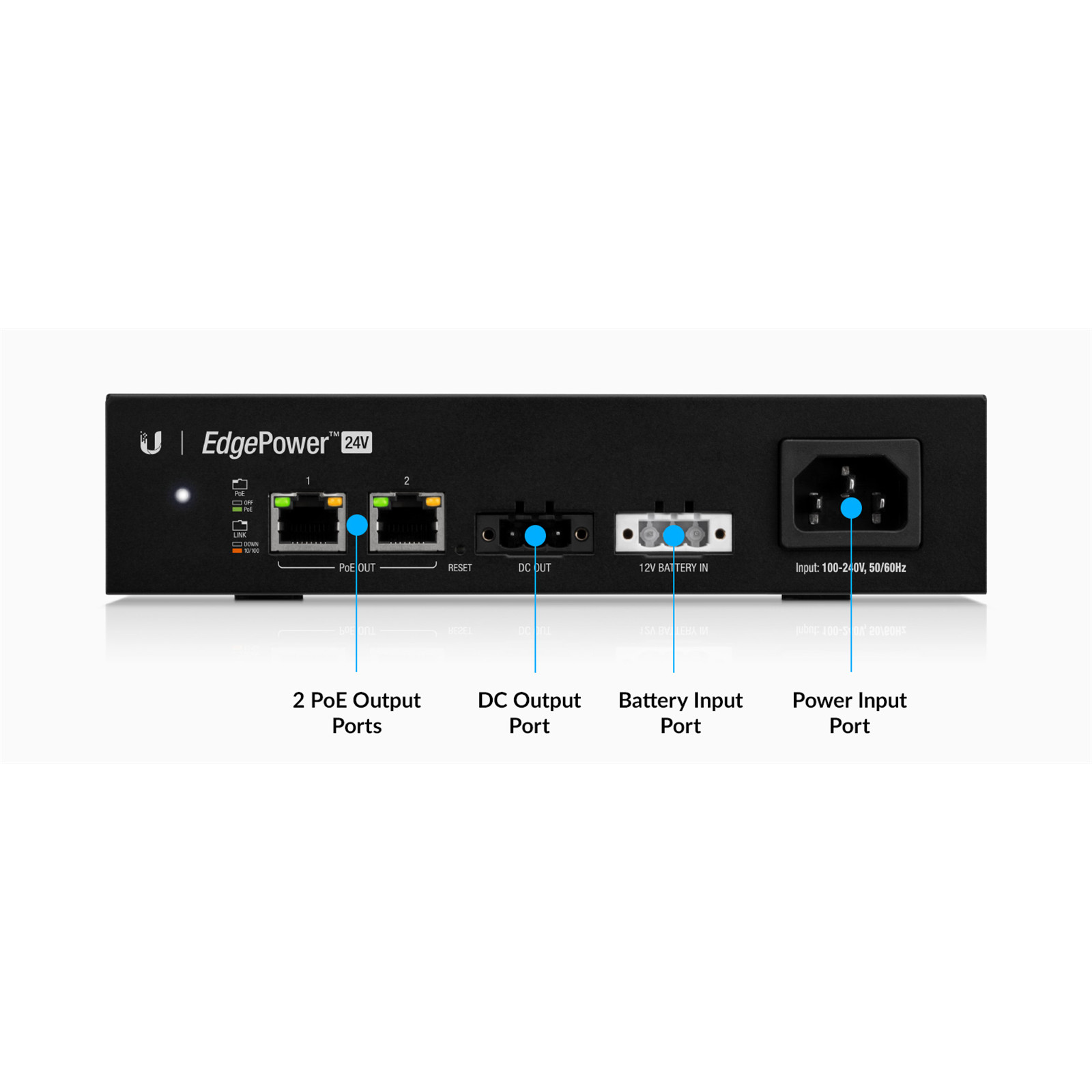

Interfaces
Networking Management
(2) 10/100 Mbps RJ45 Ports Ethernet In-Band
PoE Output
(2) 24VDC Passive PoE (Pins 4, 5+; 7, 8-)
DC Output
24V, 3A
Power Method
0
AC Input
100-240VAC, 50-60 Hz, Universal Input
Battery Input
DC Terminal Block
Power Supply
0
AC Input
AC/DC 72W
Battery Input
12VDC Lead Acid Battery
Max. Power Consumption
0
System
2W
Output
72W
LEDs
0
RJ45 Data Ports
PoE; Link/Activity
ESD/EMP Protection
Air: ± 12 kV, Contact: ± 12 kV
Operating Temperature
0 to 40° C (32 to 104° F)
Operating Humidity
10 to 90% Noncondensing
Certifications
CE, FCC, IC
