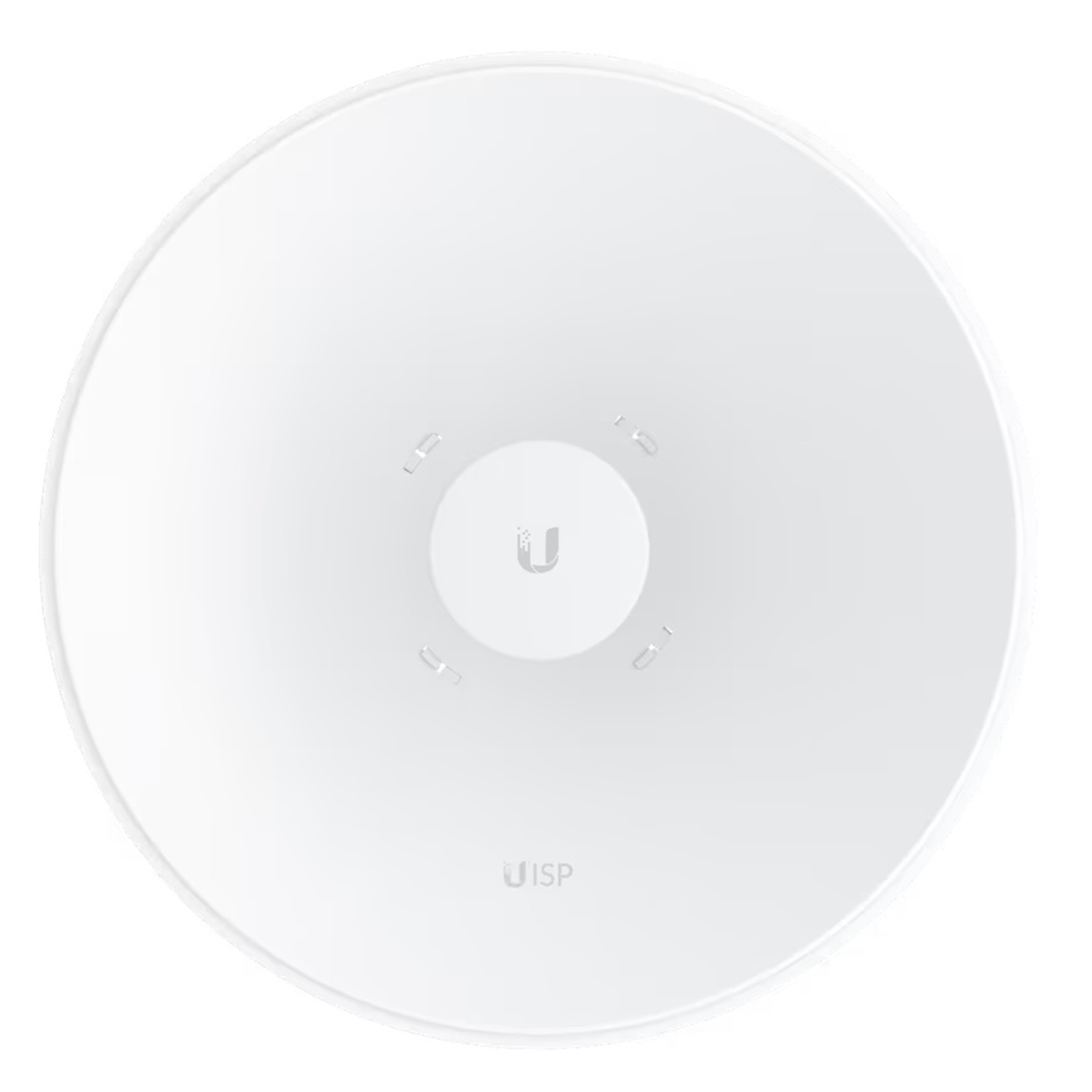

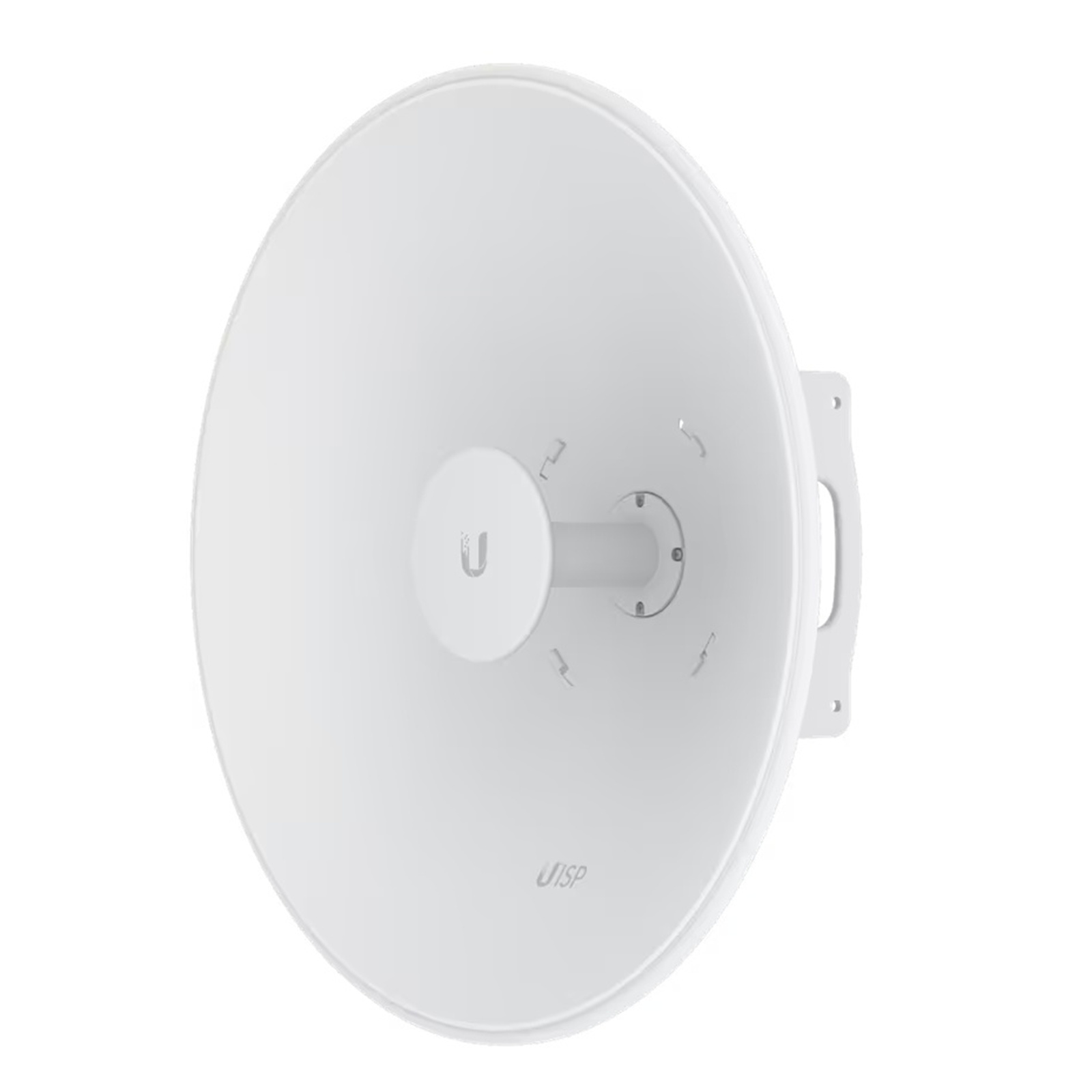

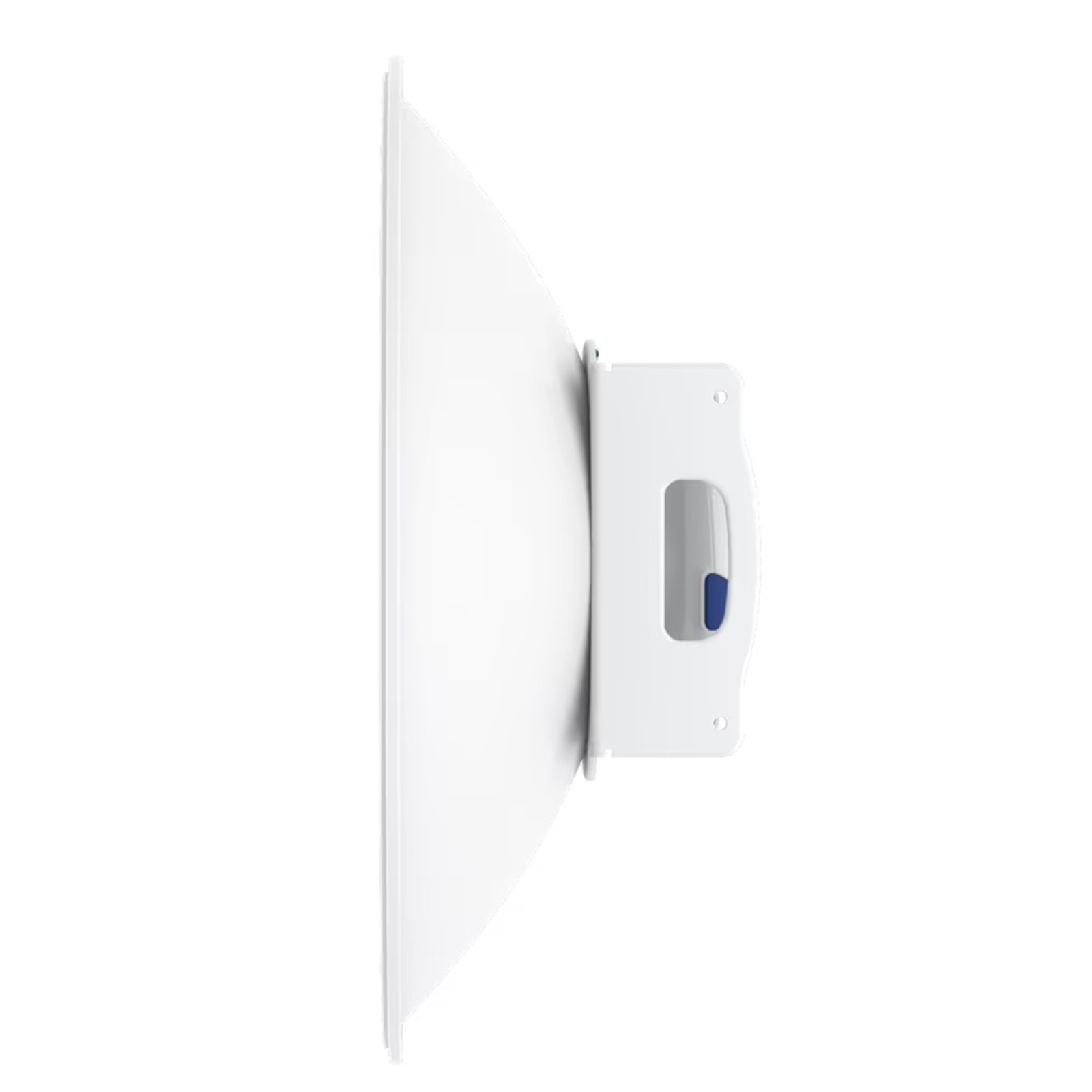

Ubiquiti UISP-Dish 6GHz 30dBi Dish Antenna with Radio Waveguide Direct Connect
Ubiquiti UISP-Dish 6GHz 30dBi Dish Antenna with Radio Waveguide Direct Connect
- Brand: Ubiquiti
- MPN: UISP-Dish
- Part #: NETUBI2603
- UPC:
- Brand: Ubiquiti
- MPN: UISP-Dish
- Part #: NETUBI2603
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Networking
Ubiquiti UISP-Dish 6GHz 30dBi Dish Antenna with Radio Waveguide Direct Connect
- Brand: Ubiquiti
- MPN: UISP-Dish
- Part #: NETUBI2603
Product URL: https://www.pbtech.com/product/NETUBI2603/Ubiquiti-UISP-Dish-6GHz-30dBi-Dish-Antenna-with-Ra
Features
Point-to-point (PtP) dish antenna that covers a wide operating frequency range.

Shown in use

Specifications
Dimensions
Dimensions
⌀650 x 200 mm (⌀25.6 x 7.9")
Weight
Device
4.54 kg (10 lb)
Mount
3.1 kg (6.8 lb)
Enclosure Material
Powder-coated galvanized steel, UV stabilized polycarbonate, aluminum alloy
Wind Survivability
Up to 200 km/h (124 mph)
Wind Loading
860 N at 200 km/h (193 lbf at 124 mph)
Mounting
Pole Mount
Alignment Mount Included)
Mechanical adjustment: ±15° elevation
Pole Mount Diameter
⌀1.57 to 3.5" (⌀40 to 90 mm)
Weatherproofing
IPX6
Hardware
Frequency Range
5.15 to 6.875 GHz
Gain
30 dBi
Beamwidth
Azimuth: 5 to 6° (3 dB) / 6.5 to 8° (6 dB)
Elevation: 5 to 6° (3 dB) / 6.5 to 8° (6 dB)
Electrical Downtilt
0°
Electrical Beamwidth
2:1
Polarization
Dual-linear
Cross-Pol Isolation
20 dB
NDAA Compliant
Yes
