Ubiquiti UniFi Access Door Hub Mini (UA-Hub-Door-Mini)
- Brand: Ubiquiti
- MPN: UA-Hub-Door-Mini
- Part #: NETUBI81003

Product URL: https://www.pbtech.com/product/NETUBI81003/Ubiquiti-UniFi-Access-Door-Hub-Mini-UA-Hub-Door-Mi
Features

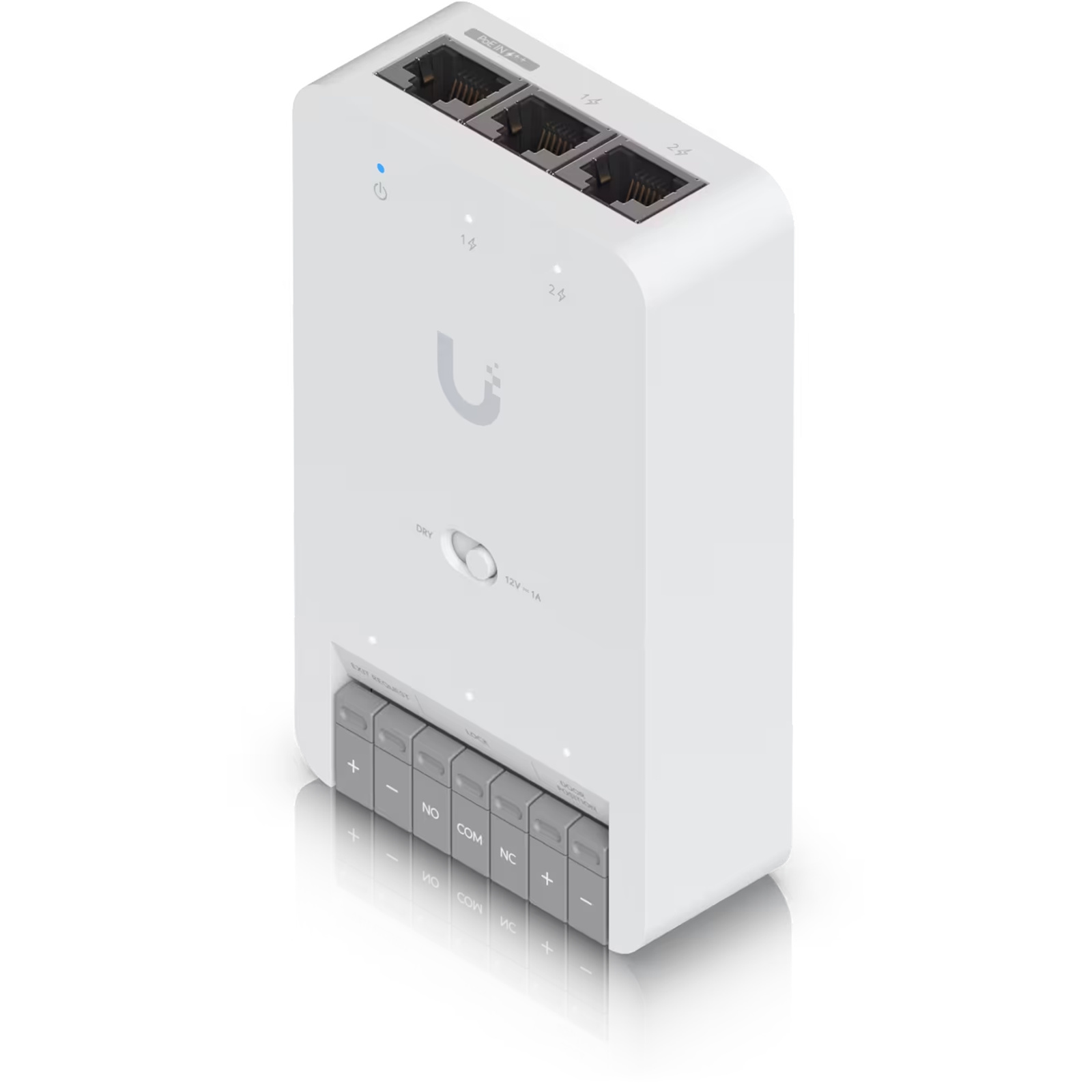

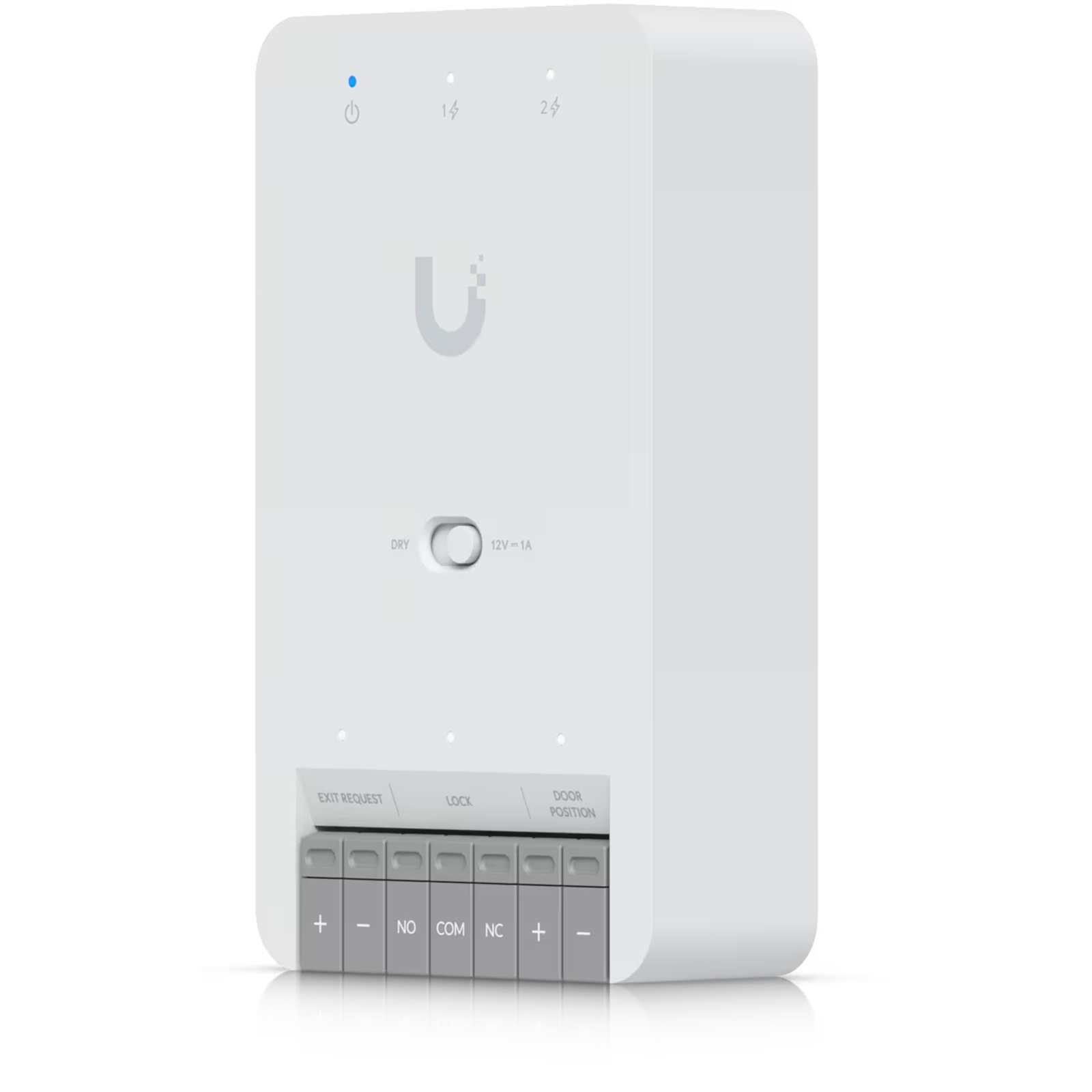

Door Hub Mini
Compact Access Control Hub for a single door.

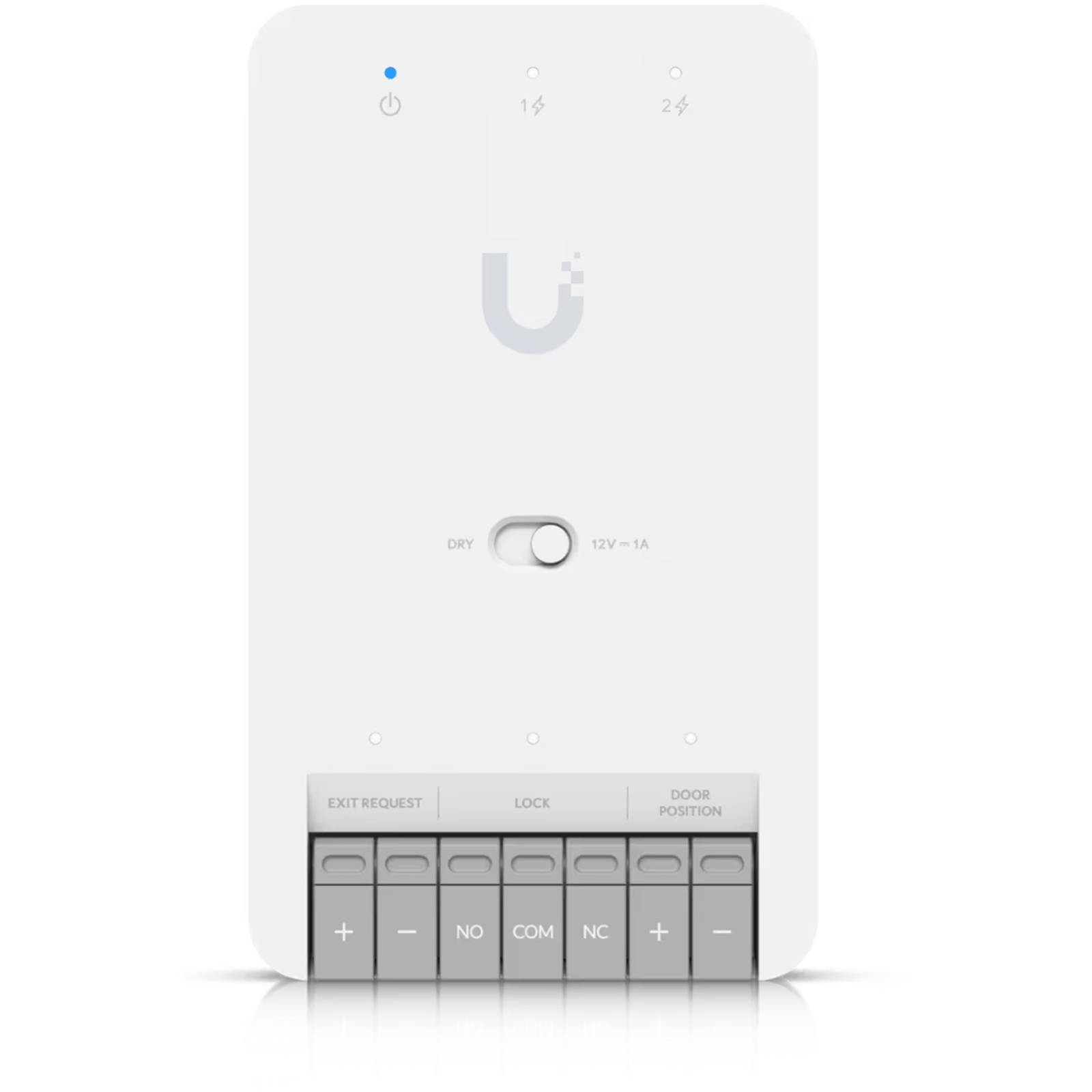

- (1) Lock terminal (12V and Dry switchable)
- (2) Additional inputs (sensor and button)
- Connect and power via PoE++
- Connect up to two UniFi Access Readers or Protect Cameras
Specifications
Mechanical
Dimensions
113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1")
Weight
190 g (6.7 oz)
Enclosure material
Polycarbonate, metal
Hardware
Networking interface

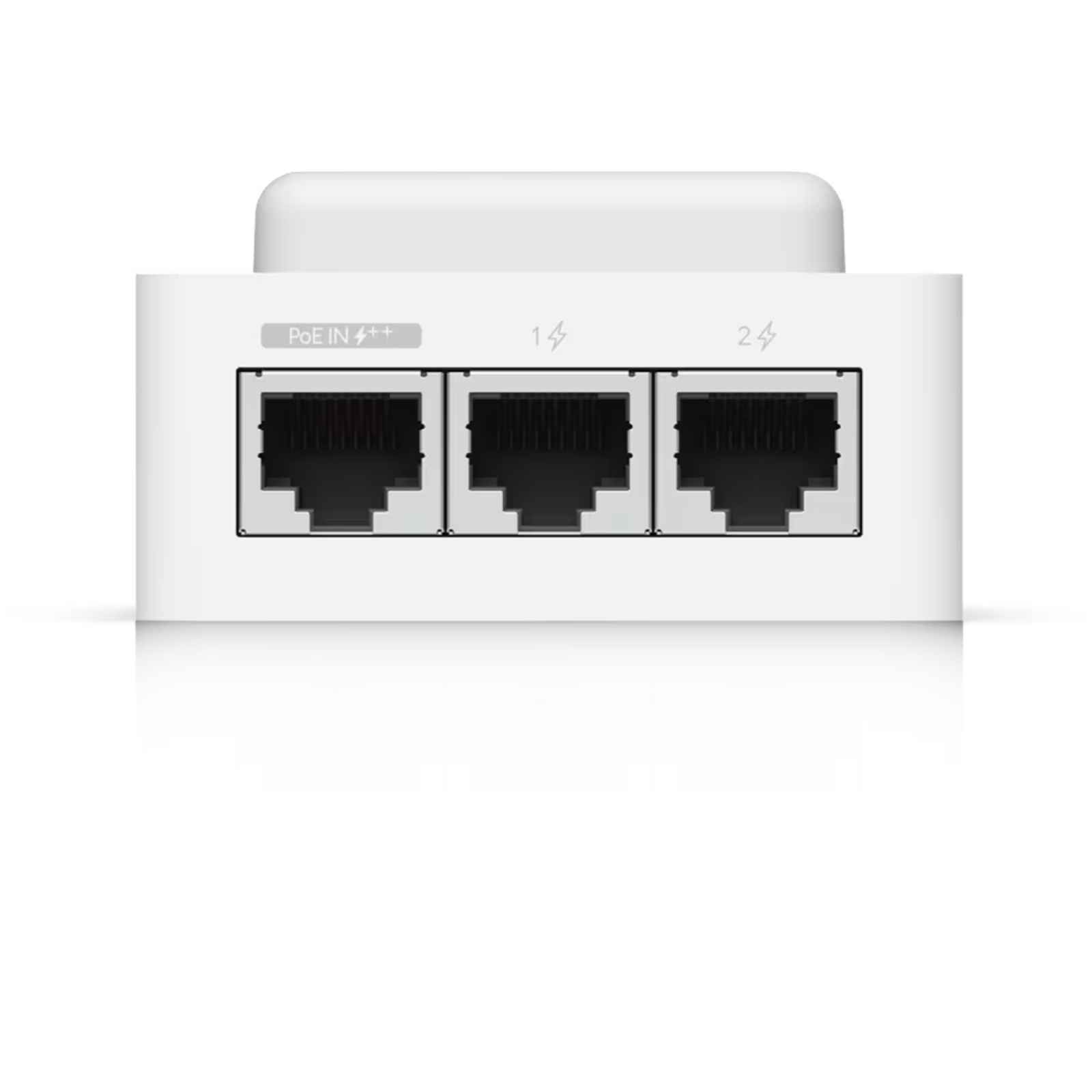

(3) GbE RJ45 ports
Power method
PoE++
Max. power consumption
Without PoE output: 19W
With PoE output: 50W
PoE input
50V DC, 1A
PoE output
(2) PoE ports, total 31W
LEDs
White/blue
Button

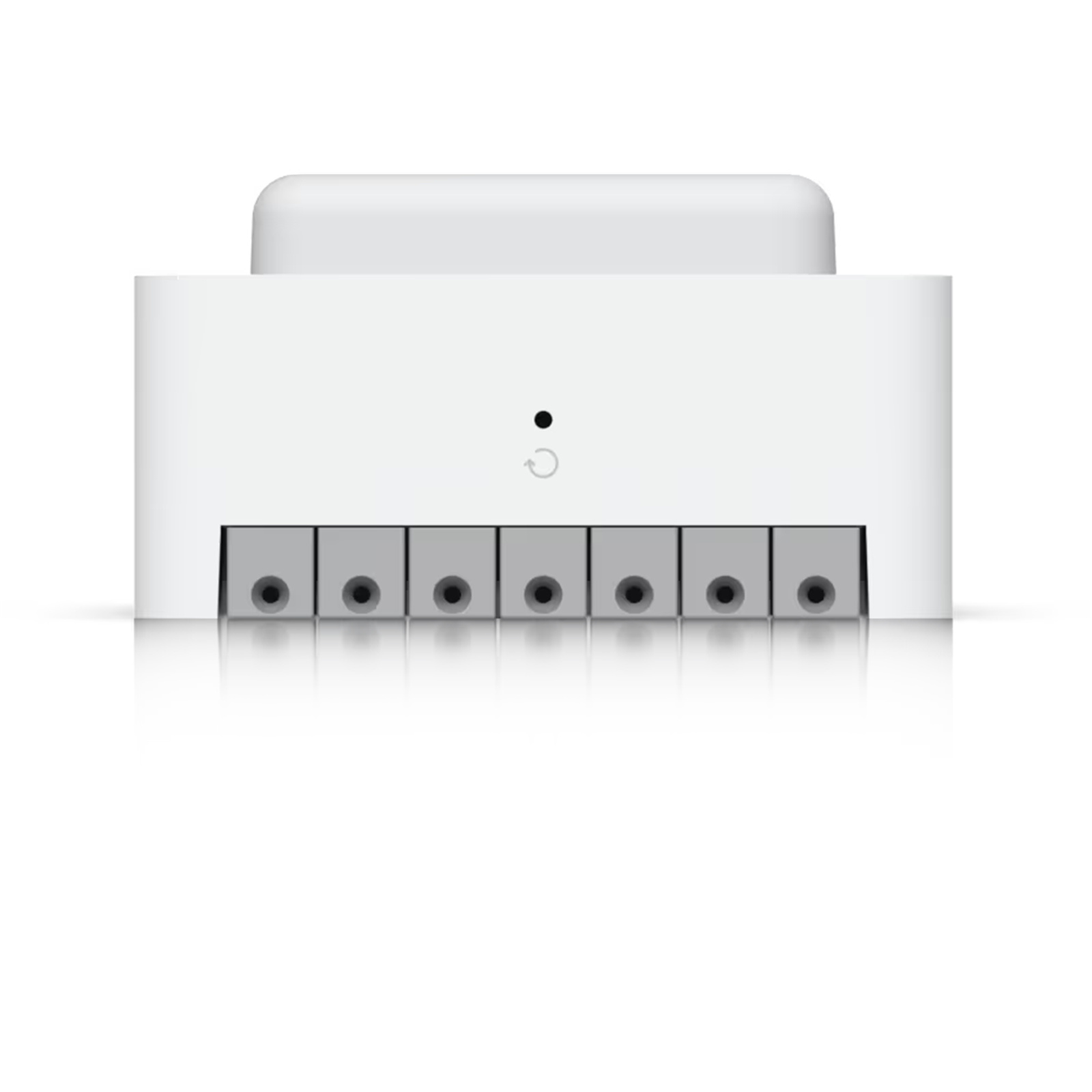

(1) Factory-reset
(1) Dry/Wet switch
Digital input
Request to exit/door position sensor
Output relay
Dry: 30V DC, 1A
Wet: 12V DC, 1A
PoE cabling requirements
Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable.
Operating environment
Indoor use only
Ambient operating temperature
-10 to 40° C (14 to 104° F)
Ambient operating humidity
5 to 90% noncondensing
Software information
The software version of a product can be checked at https://unifi.ui.com
Certifications
CE, FCC, IC
Document number, and issue date and/or revision level
UA-Hub-Door-Mini, V01
Software
Management application
UniFi Access: Version 2.5.2 and later
