Ubiquiti UACC-LRE Long-Range Ethernet PoE Repeater with 10kA+ Surge Protection
- Brand: Ubiquiti
- MPN: UACC-LRE
- Part #: NETUBI91107
- UPC:810010078780
Product URL: https://www.pbtech.com/product/NETUBI91107/Ubiquiti-UACC-LRE-Long-Range-Ethernet-PoE-Repeater
Features
Long-Range Ethernet Repeater
The Long-Range Indoor/Outdoor Repeater (UACC LRE) is Gigabit adapter that allows you to easily and inexpensively expand your Ethernet network's range. With its (2) GbE RJ45 ports, the UACC LRE can receive PoE/PoE+ while providing passthrough PoE output. You can also chain multiple UACC LRE adapters together to connect access points and cameras that are far away from your PoE switch. The UACC LRE also offers 10kA+ surge protection and works reliably in extreme temperatures (-40 to 80° C) to protect your deployment from weather and electrical damage. Supports up to 1 km link distances*.
- Long-range Gigabit Ethernet adapter that receives PoE/PoE+ and offers passthrough PoE output.
- Establishes long-range connections between PoE switches and devices
- Chains with other UACC LRE units
- (1) GbE RJ45 port for PoE/PoE+ input
- (1) GbE RJ45 port for passthrough PoE output
- 10kA+ surge protection
- Works reliably in extreme temperatures (-40 to 80° C)
* Deployment tested: (9) daisy-chained UACC LRE units connected to an endpoint device (e.g., camera, AP) using (10) 100 m UISP Cable Pros, all powered a by UniFi PoE+ switch.
Specifications
Mechanical
Dimensions
196.5 x 93.5 x 39 mm ( 7.7 x 3.7 x 1.5")
Weight
350 g (12.3 oz)
Enclosure material
UV stabilized polycarbonate

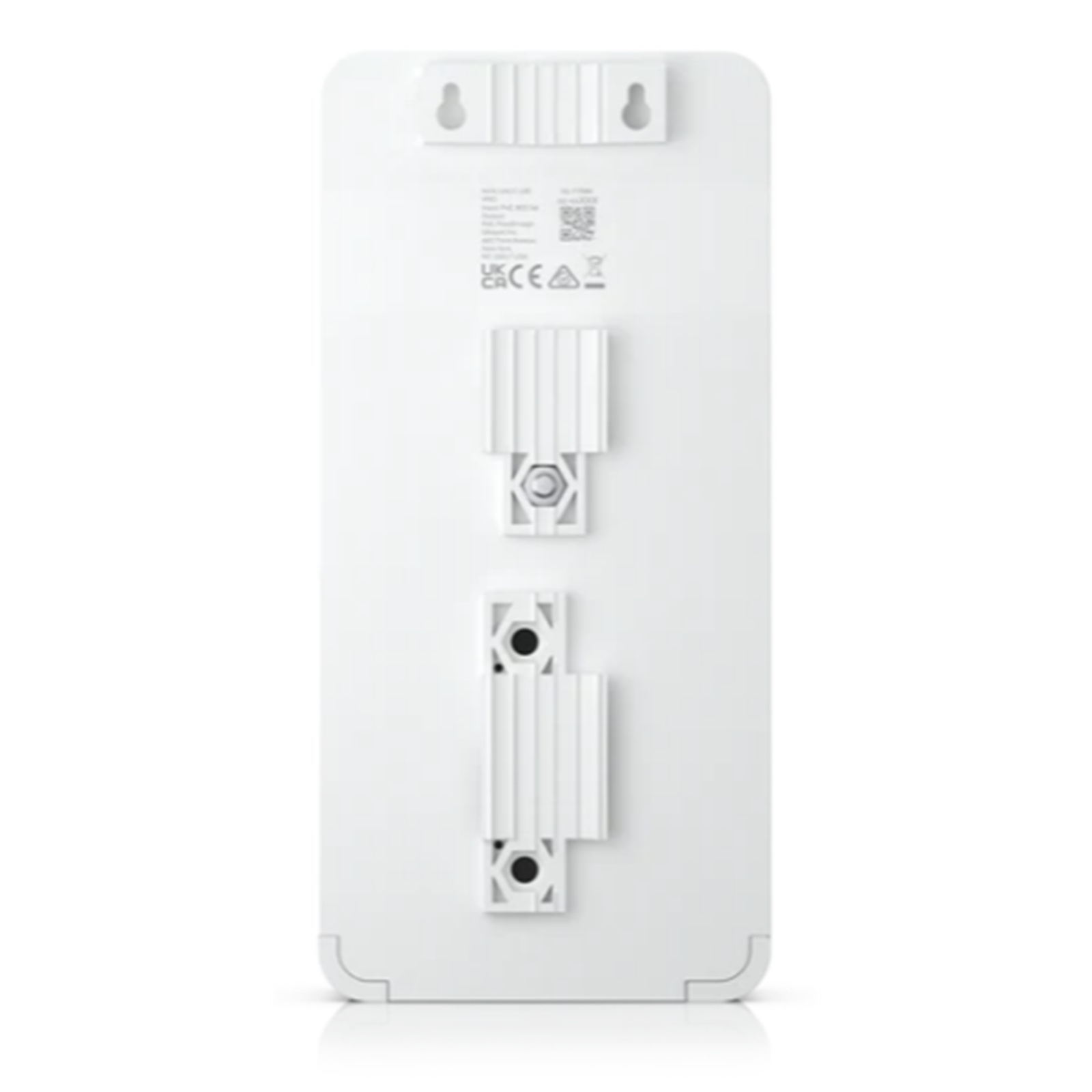

Mounting material
Stainless steel
Weatherproofing
IPX5
Hardware
Networking interfaces

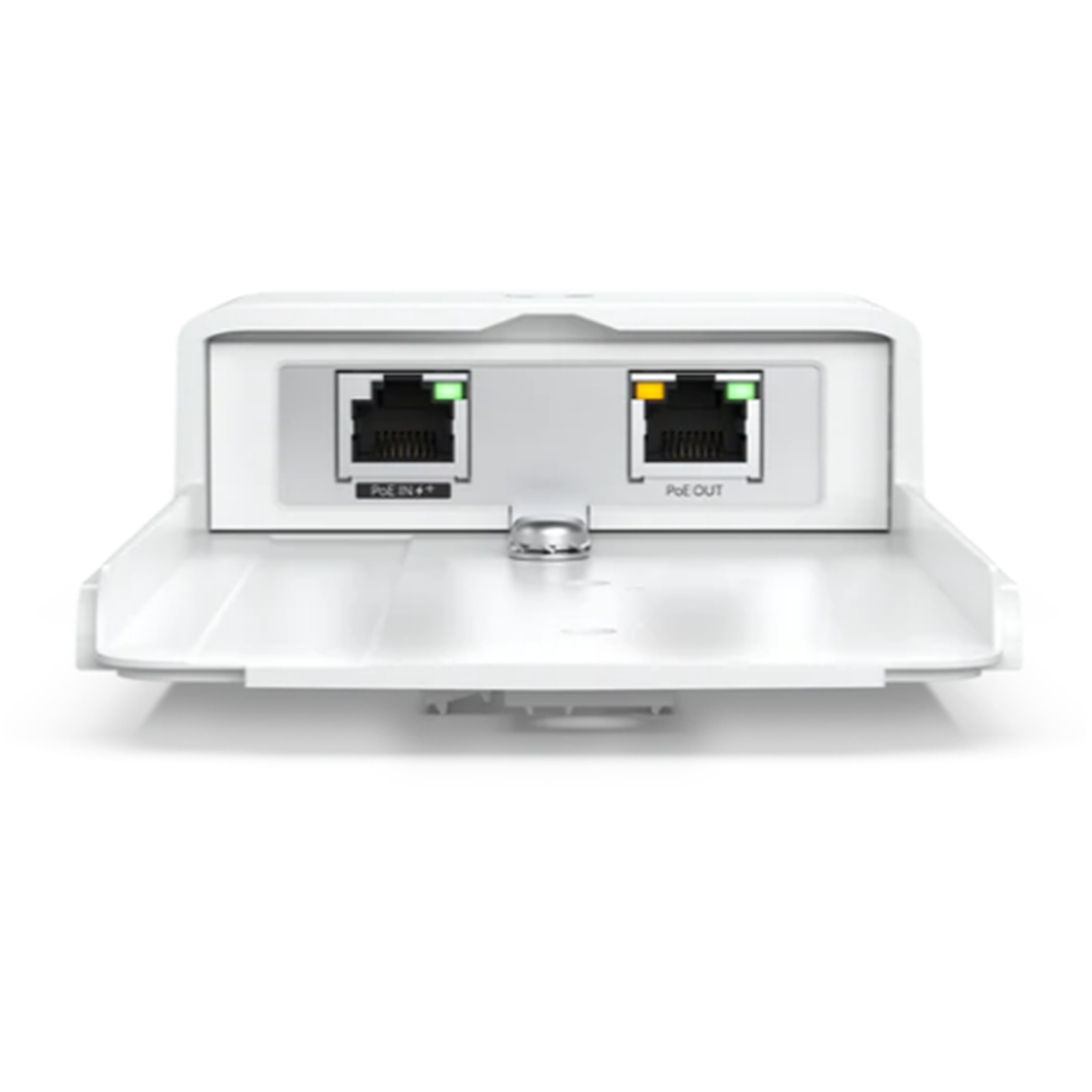

(2) GbE RJ45 ports
Power method
PoE/PoE+ 2-pairs (pins 1, 2+; 3, 6-)
Max power consumption (excluding PoE out)
1.5W
Voltage range
37 to 57VDC
PoE interfaces
(1) Passthrough PoE output 2-pairs (pins 1,2+; 3,6-)
ESD/EMP protection
Air/contact: ± 30kV
DC sparkover voltage
90V at 100V/s
Max. impulse sparkover voltage
700V at 1kV/µs
Discharge current
10kA+
Modes
Long-range indoor
Outdoor ethernet repeater
Operating temperature
-40 to 80° C (-40 to 176° F)
Operating humidity
10 - 95% non-condensing
Certifications
CE, FCC, IC
LEDs
System
(1) Blue: power ON
Ethernet
(2) Green: 1 Gbps, Amber: 10/100 Mbps
PoE
(1) Amber: passthrough PoE out
